SWIT CM-S75F 3000nit Super Bright HDR Monitor w/ 3G/HD-SDI & 4K HDMI input and loop out - 7 Inch

ITEM #: SWIT-CM-S75F MFG #: CM-S75F

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SWIT-CM-S75F

CM-S75F - Overview

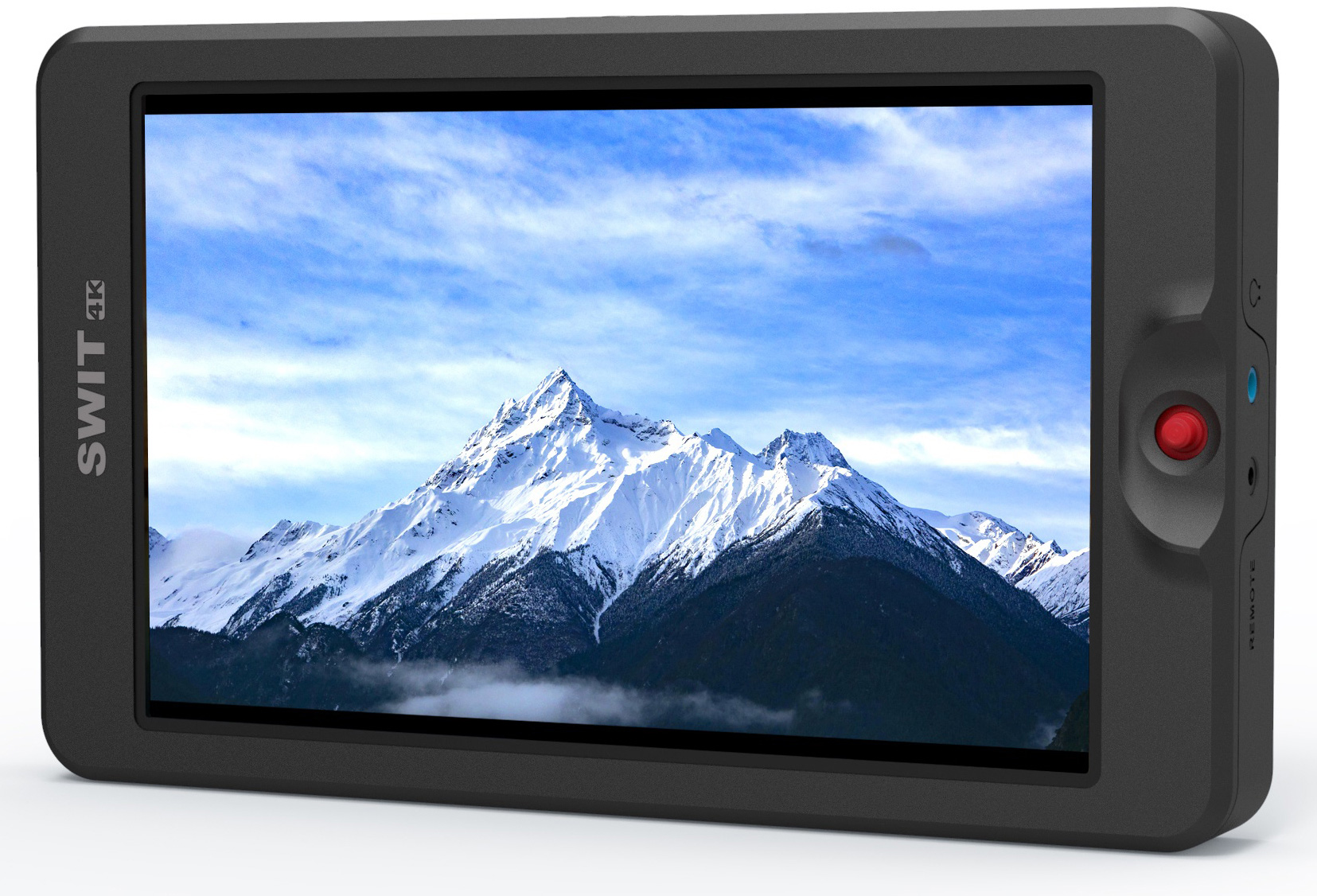

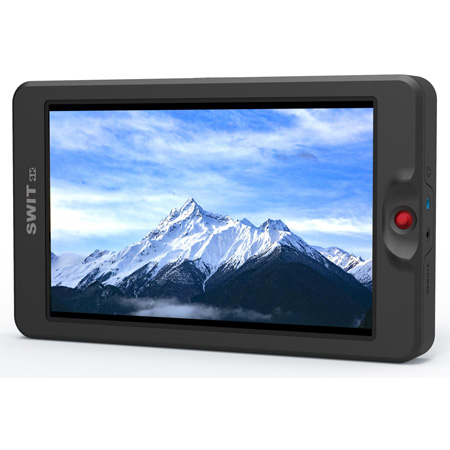

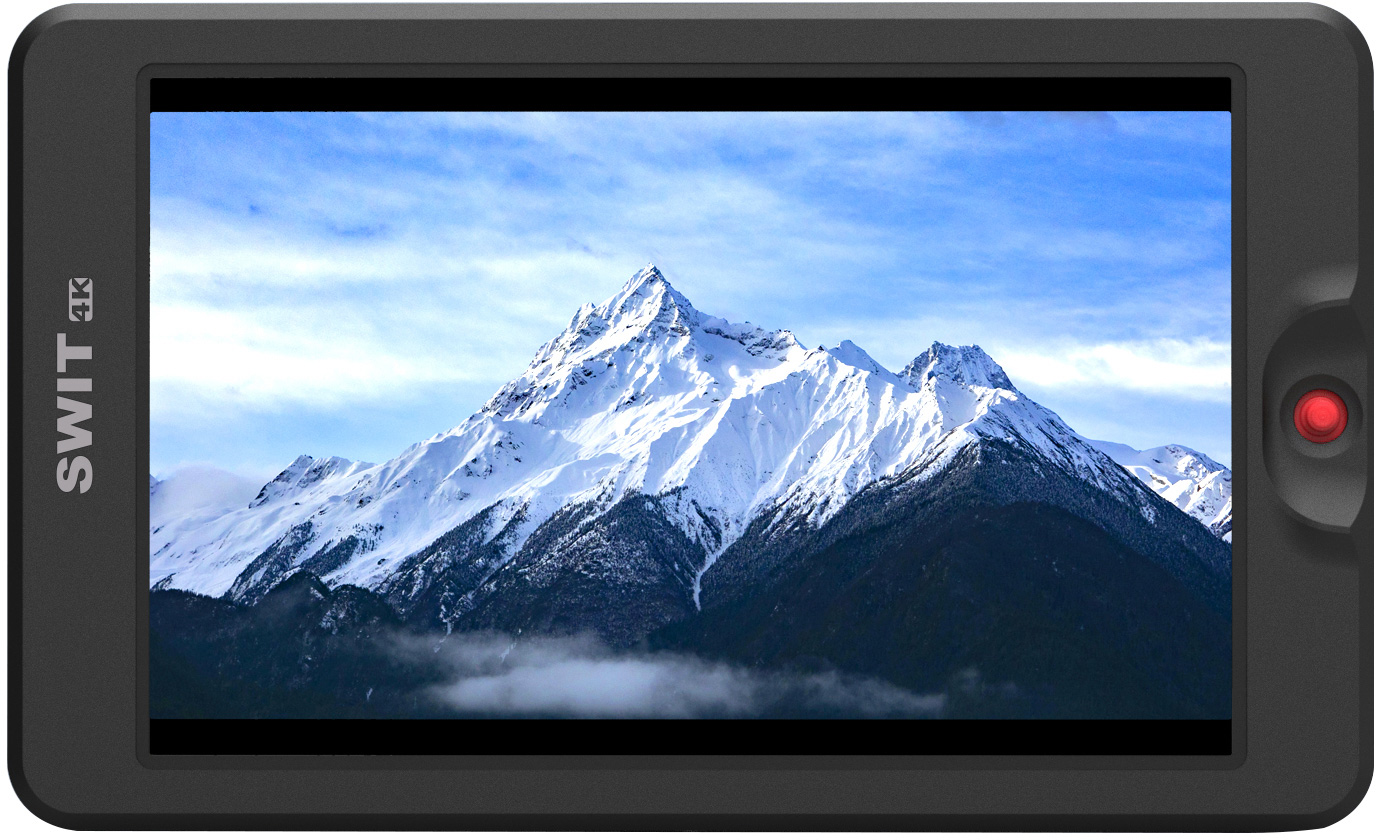

The SWIT CM-S75F adopts a 7-inch super high bright LCD, the Max brightness is 3000nit, visible under sunlight, and built-in PQ, HLG HDR, with 3G/HD-SDI & 4K HDMI input and loop out.

The native resolution is Full HD 1920x1200, contrast 1200:1.

  • Features:

    • 7-inch IPS LCD, 1920x1200 FHD
    • 3000nit super bright, sunlight visible
    • PQ/HLG HDR monitoring
    • 3G/HD-SDI input and loop out
    • HDMI 1.4 (4K30p) input and loop out
    • 2x 4x Quick zoom-in and Pan
    • Peaking focus assist and precision adjust
    • Waveform / Vector / Histogram
    • Build-in 30 kinds of De-log 3DLUTs
    • User DIT 3DLUT import by SD card
    • 2-ch SDI/HDMI audio meters display
    • Anamorphic De-Squeeze
    • Super False color, Zebra stripes
    • Single joystick quick operation
    • Built-in NP-F plate, V-mount for option
    • Firmware update by SD card

  • Specifications:

    • LCD Performance
    • Size: 7"
    • Display Area: 5.95 x 3.72" (151.2 x 94.5mm)
    • Resolution: 1920x1200
    • Aspect Ratio: 16:9 (4:3 adjustable)
    • Brightness: 3000 nit
    • Contrast: 1200:1
    • Color: 16.77 million colors
    • Viewing Angle: Horizontal: 160°; Vertical: 160°

      Input

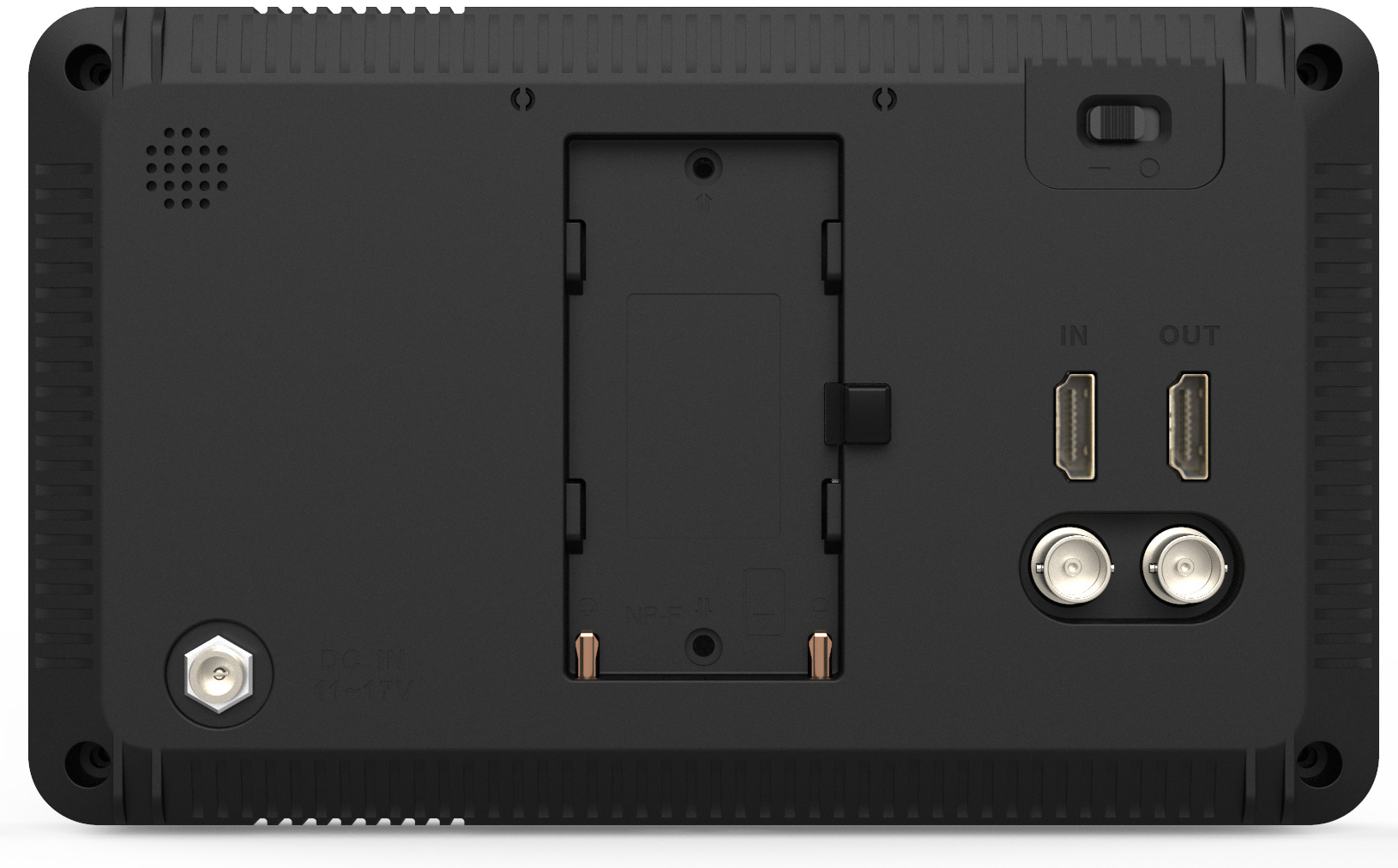

    • BNC (1): 3G/HD/SD-SDI input
    • HDMI-A (1): HDMI 1.4 input

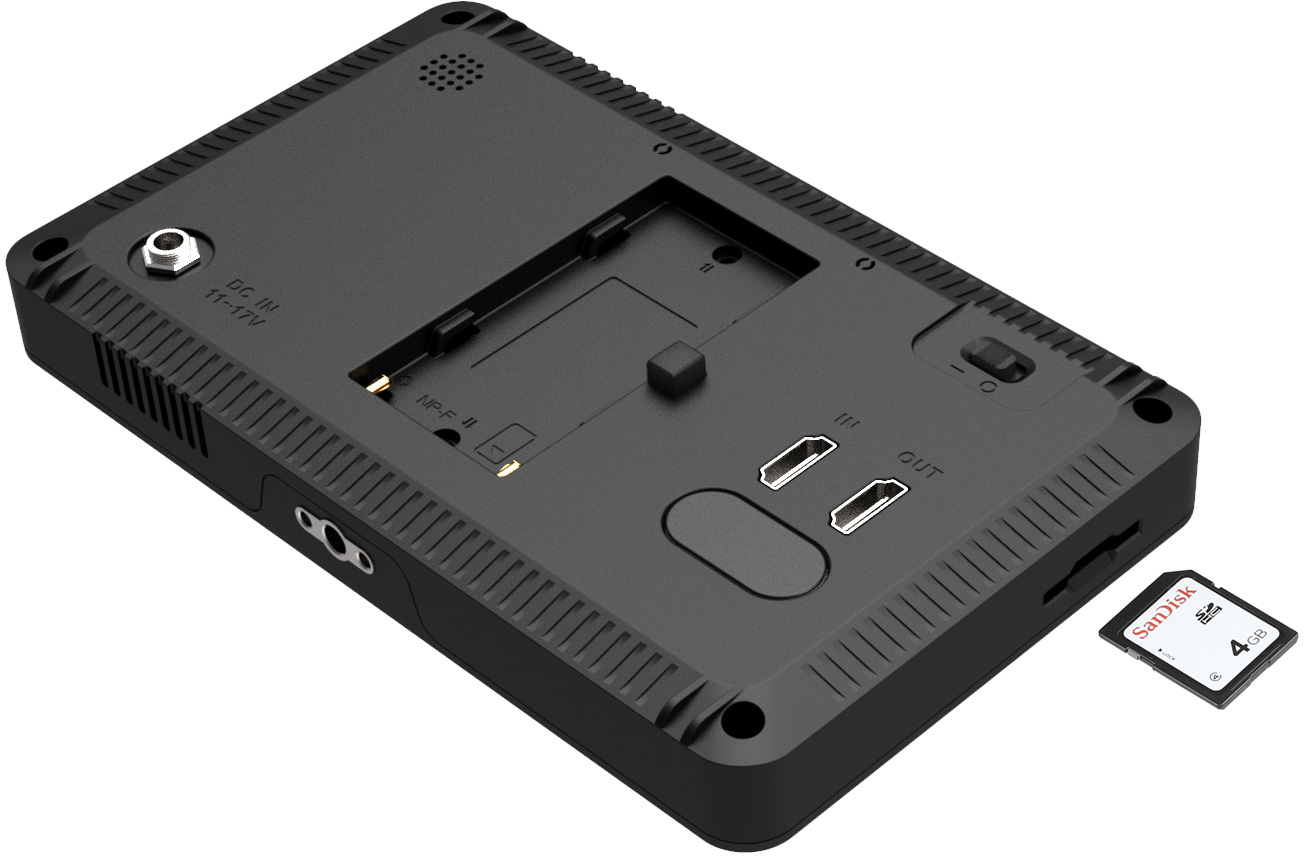

    • SD Card(1): 3DLUT upload and Firmware upgrade

      Output
    • BNC (1): 3G/HD/SD-SDI loop output
    • HDMI-A (1): HDMI 1.4 loop output
    • 3.5mm (1): SDI,HDMI embedded audio output
    • Speaker: SDI/HDMI embedded audio output

      Video Format
    • SDI:
      2048x1080p (60 / 59.94 / 50)
      1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
      1080i (60 / 59.94 / 50)
      1080psf (30 / 29.97 / 25 / 24 / 23.98)
      1035i (60 / 59.94)
      720p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    • HDMI:
      4096x2160p (30 / 29.97 / 25 / 24 / 23.98)
      3840x2160p (30 / 29.97 / 25 / 24 / 23.98)
      1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
      1080i (60 / 59.94 / 50)
      720p (60 / 59.94 / 50)
      480p / 576p

      General
    • Input Voltage: 5.5/2.1mm Pole-tap DC 11-17V input; NP-F battery 6-8.4V input
    • Power Consumption: Max 18.8W
    • Temperature:
      Operating: 14 to 122°F (-10° to 50°C)
      Storage: 5° to 140°F (-15° to 60°C)
      Humidity: 10% to 90%
    • Dimensions: 7.56 x 4.58 x 0.97" (192 x 116.3 x 24.7mm)
    • Weight (Main Body): 1Lbs (450g)

  • Item Includes:

    • 1x CM-S75F Monitor
    • 1x Arm trestle
    • 1x Sun Hood
    • 1x Dedicated V-mount plate (MA-K75S)
    • 1x D-tap DC cable
    • 1x AC-DC power adapter
    • 1x Carrying case

  • GTIN:

    6948193507651
