The Turtle AV Chazy 4K Multiview brings multiview directly into the Dante ecosystem and unlocks new possibilities for control rooms, live production, and AV over IP environments.
Four sources in from anywhere on the network. One customisable view out. Distributed anywhere you need it.

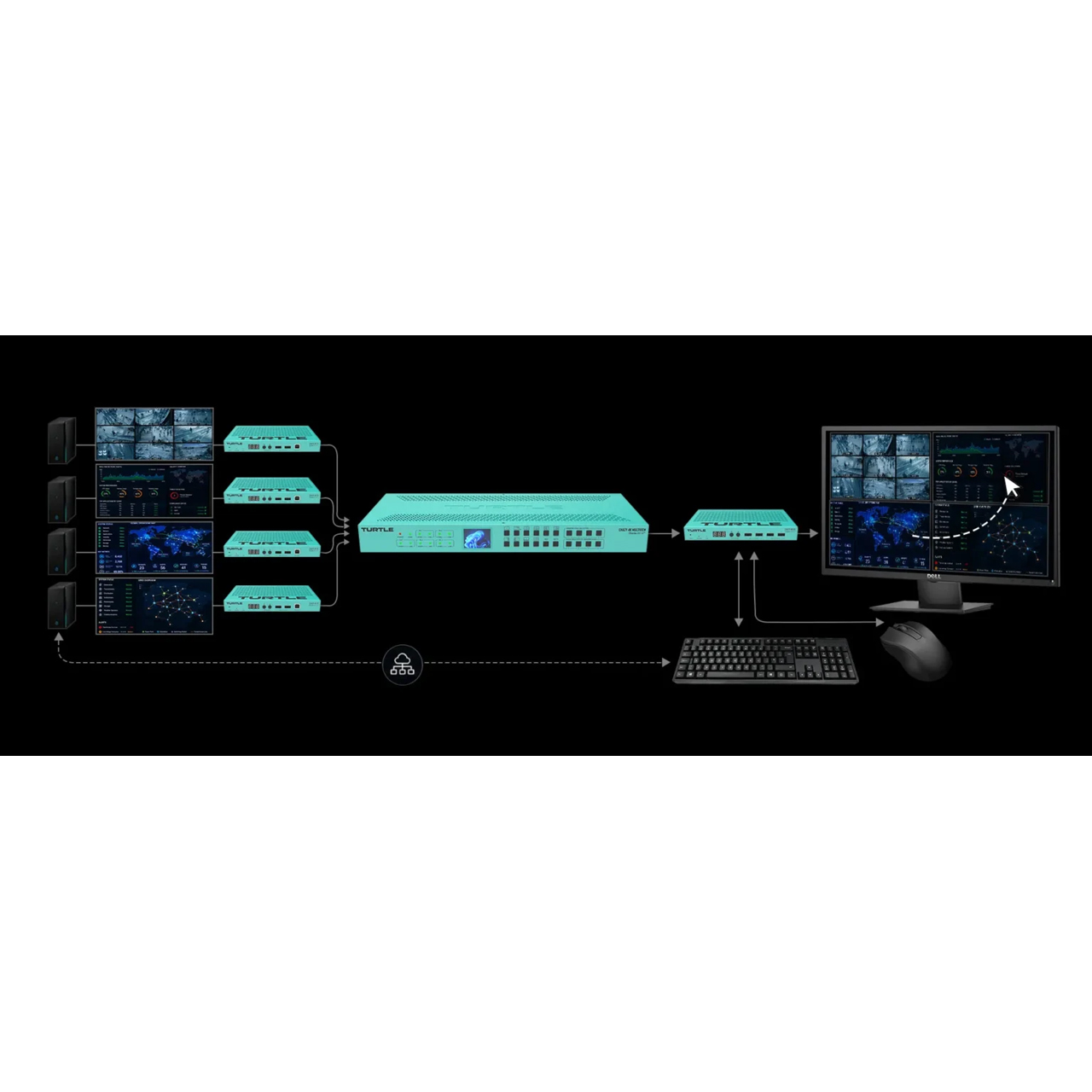

Four Sources. One Multiview.
Take four independent 4K Dante AV-A streams and transform them into one fully customisable 4K multiview output. Monitor multiple sources at once without complex routing or additional processing hardware. Output locally via either HDMI or DisplayPort or send the multiview back onto the network as a Dante AV-A stream, ready to be received by unlimited Chazy 4K RX units. Four sources. One view. Anywhere you need it.
HDMI and DisplayPort. Together as One.
Meet the revolutionary HDMI and DisplayPort combo connector. One physical port supports either HDMI or DisplayPort cables.
See it here. Send it there.
View locally through the combo HDMI and DisplayPort connector while simultaneously distributing the same multiview across the network as a Dante AV-A stream. Connect a display at the rack and send it anywhere to unlimited Chazy 4K RX receivers. One multiview. Unlimited destinations.
Drag. Scale. Tile. Recall.
Create layouts exactly how you want them. Drag windows into position, resize sources, create custom views, or instantly switch between saved presets. Quad view. Picture in picture. Operator specific layouts. See your multiview your way.
Mouse Roaming. One Surface.
Forget fixed KVM zones and awkward switching. True Windowing KVM with Mouse Roaming lets your cursor glide naturally between sources as though they were one continuous surface. Glide across your multiview like a turtle through water. No button presses. No source switching. Just move and control.
Buttons > Browsers

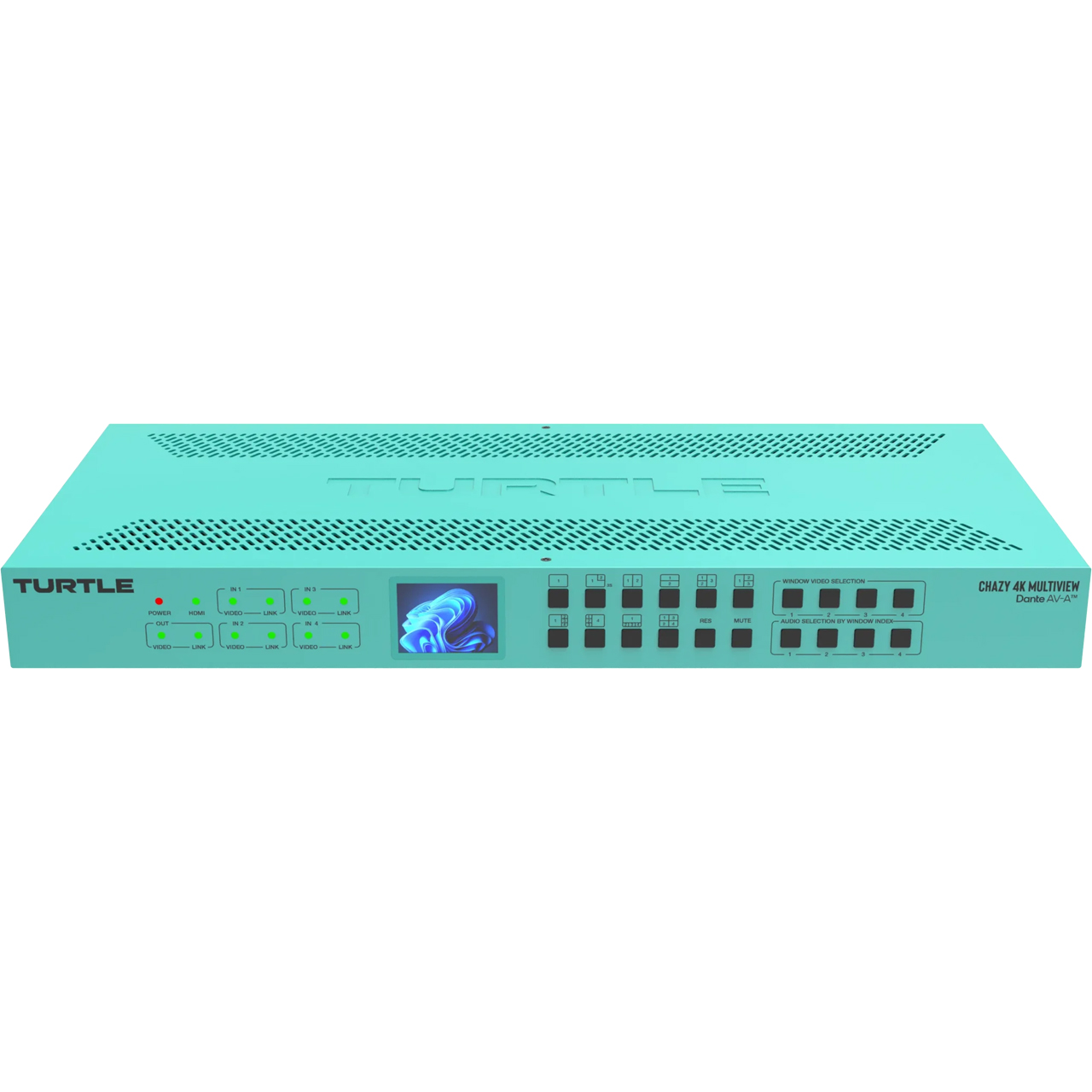

Dedicated front panel buttons give instant access to presets, layouts, and key system functions. No laptop. No loading screens. Just control.
OLED Confidence Monitor.
The built in OLED confidence monitor delivers instant system visibility directly from the front panel. Quick checks. Fast diagnostics. No browser. No guessing.
WebGUI for Centralized Management and Control.
Easily configure and manage your entire network of CHAZY 4K Transmitters and Receivers through an intuitive WebGUI. Simplify complex setups with centralized control at your fingertips.
Super easy Drag-and-Drop Routing.
With Chazy Control you can also drag and drop Tx to Rx for easy routing with support from 1 to 1, or 1 to many, and there are video preview windows for easy visibility of sources and destinations.
Q SYS. Crestron. OpenAVC. Open API.
Chazy 4K Multiview integrates seamlessly with native Q SYS plugin support, Bitfocus Companion integration, OpenAVC, and an open API for custom workflows. Push buttons, automate actions, or build something entirely your own. You're in control. Or take full control with our Unified API and build in any language you choose.
1RU. Rack Ready.
Big functionality. Small footprint. Chazy Multiview packs serious multiview capability into a compact 1RU design.
RS232. Old School. Still Cool.
Not every installation starts from scratch. RS232 support keeps Chazy compatible with existing control systems and legacy environments.
Dante Audio. Of course.
Chazy 4K Multiview receives Dante and outputs via the Analog breakout over Euroblock connectors.
Distribute To Unlimited Receivers.
Once your multiview exists on the network, it can go anywhere. Send it to one receiver or one hundred. One multiview source. Unlimited possibilities.
