Tascam Multi-Format Professional Blu-ray Player Offering DVD/CD SD Card and USB Flash Memory Playback


  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

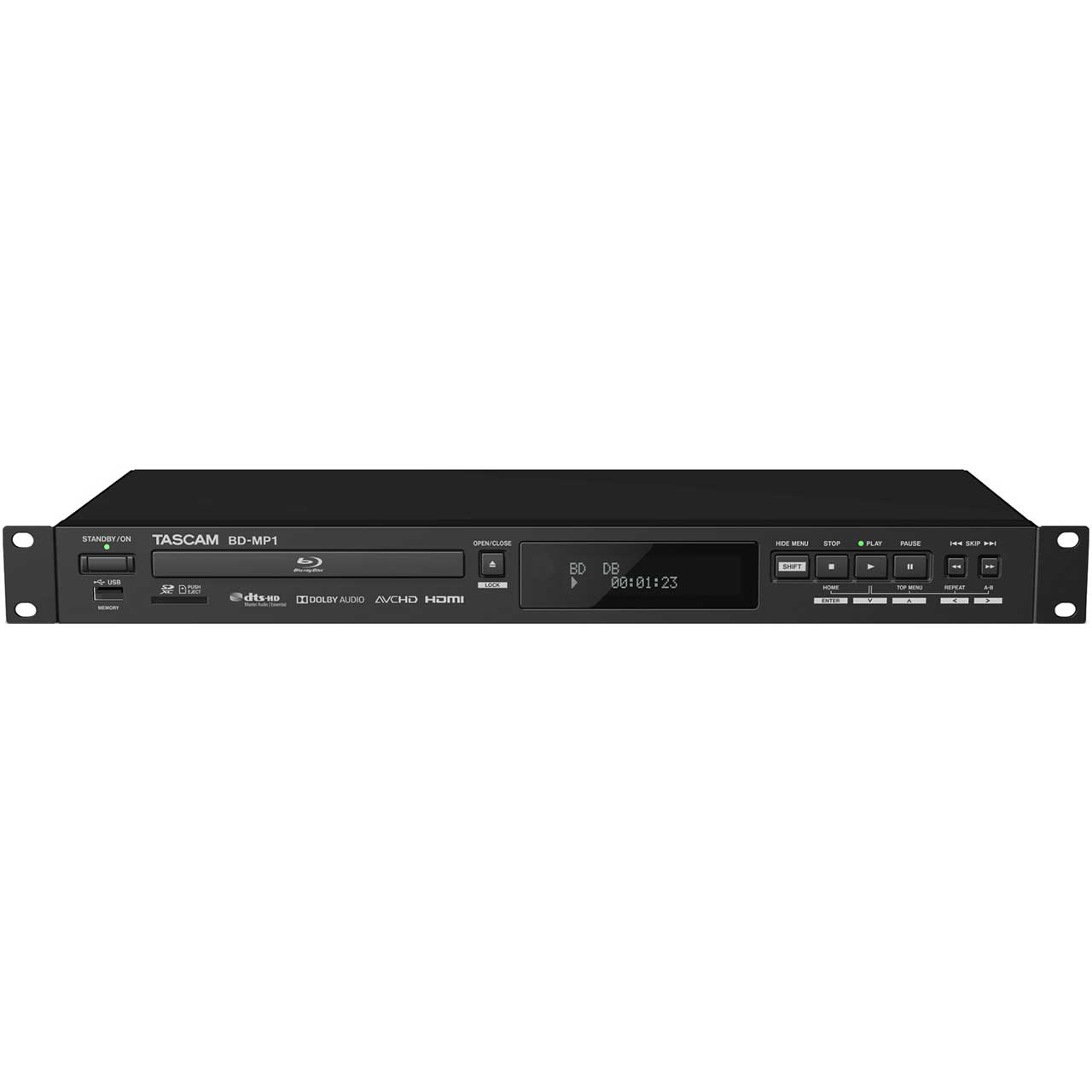

    BD-MP1 - Overview

    The TASCAM BD-MP1 is a professional-grade Blu-ray player that expands the legacy of TASCAM's popular BD-01U Blu-ray player. The BD-MP1 is the perfect choice for a wide range of commercial installations, including public, educational and commercial facilities, theaters, amusement and entertainment businesses, to name a few.

    • Features:

      • Supports playback of various formats of Blu-ray, DVD, and CD discs
      • Supports playback of various video, still image, and audio formats from SD cards (SD/SDHC/SDXC) and USB memory
      • Power on play function
      • Seamless repeat function: by chapter, title, or A-B repetition
      • Resume function
      • Lock functions: panel, IR, and tray lock
      • Hide MENU function to display only the main contents on the screen
      • External remote control via LAN or RS-232C
      • HDMI output port equipped
      • XLR balanced output terminals equipped
      • Coaxial digital audio output terminal equipped
      • RCA 7.1ch audio output terminal equipped
      • Analog output attenuation function (up to -12dB)
      • SPDIF/Dolby/DTS digital outputs (coaxial)
      • USB memory ports on front and back panel

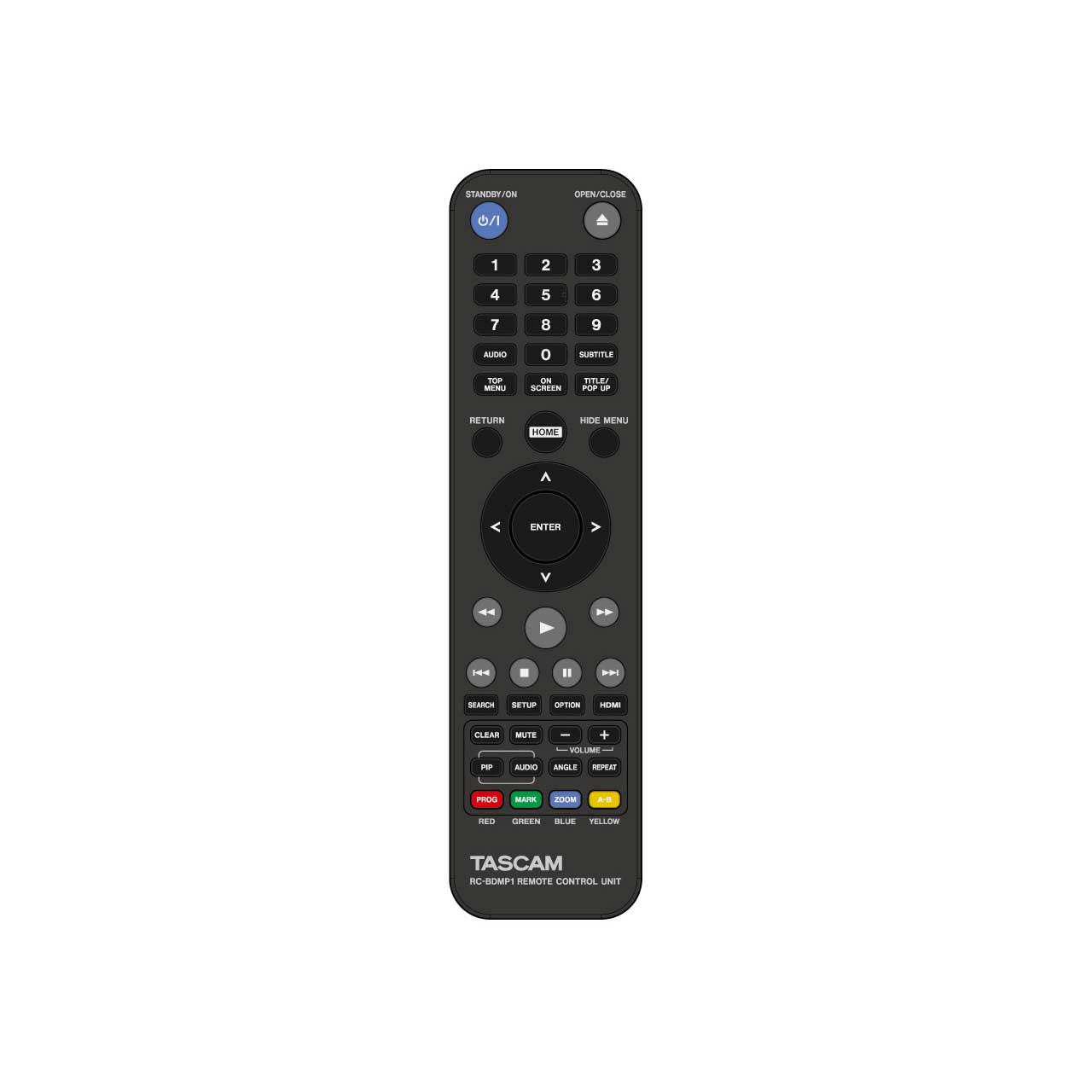

      • IR remote control included (RC-BDMP1)
      • Rugged metal casing
      • 1U rackmount size
    • Specifications:

      • Disc Media
      • Blu-ray: BD25, BD50, BD-ROM, BD-R, BD-RE
      • CD: CD-DA, CD-R, CD-RW

        Disc type
      • Blu-ray: BDMV, BDAV, BD-Audio
      • DVD: DVD-Video, DVD-VR, AVCHD, DVD-Audio

      • Video: ASF, MPG, AVI, 3GP, DAT, MKV, MOV, M2TS, OGM, RMVB, TP, TS, MP4, WMV
      • Audio: WAV, MP3, WMA, AAC, FLAC, APE
      • Picture: JPEG, GIF, PNG

        Ratings (Audio)
      • BD/DVD/USB/SD
      • Sampling Frequency: 44.1k/48k/64k/88.2k/96k/176.4k/192k Hz
      • Bit Length: 16/24 bit

      • Sampling Frequency: 44.1k/48k Hz
      • Bit Length: 16/24bit

      • Sampling Frequency: 32k/44.1k/48k Hz
      • Bit Length: MP3: 112k to 320k bps/WMA: 48k to 192k bps

        HDMI Output
      • Connector: HDMI 19pin Type A
      • Resolution: 480i/576i, 480p/576p, 720p, 1080i, 1080p
      • Aspect Ratio: 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox
      • Video Format: NTSC, PAL, Multi
      • HDMI Signal System: RGB PC level, RGB Video level, YCbCr(4:4:4), YCbCr(4:2:2)

        Digital Audio Outputs
      • Coaxial
      • Connector: RCA pin jack
      • Format: IEC60958-3(S/P DIF)
      • Output Impedance: 75Ω

        Analog Audio Outputs
      • Balanced:
        Connector: XLR-3-32(1 : GND, 2 : HOT, 3 : COLD) x 2 (Stereo)
        Output Impedance: 200Ω
        Normal Output Level: +4dBu (1.23 Vrms)
        Maximum Output Level: +20dBu (7.75Vrms)
      • Unbalanced:
        Connector: RCA pin jack x1 pair
        Output Impedance: 200Ω
        Normal Output Level: -10dBV (0.316 Vrms)
        Maximum Output Level: +6dBV (2.0Vrms)
      • 7.1ch Audio Outputs:
        Connector: RCA pin jack x8 (FL/FR/SL/SR/SBL/SBR/C/SW)
      • Connector Color:
        FL, SL, SBL: White
        FR, SR, SBR: Red
        C, SW: Black
      • Output Impedance: 200Ω
      • Normal Output Level: -10dBV (0.316 Vrms)
      • Maximum Output Level: +6dBV (2.0Vrms)

      • Connector: D-sub 9pin x 1
      • Format: RS-232C compliant

      • Connector: RJ-45
      • Protocol: 10BASE-T/100BASE-TX

      • Connector
      • Front: USB A-type x1
      • Rear: USB A-type x1
      • Protocol: USB2.0 compliant
      • Rated Supply Voltage: DC 5V, 1A
      • Mass Storage Class: 2TB (Max)
      • File Format: FAT16/FAT32/NTFS

      • Media: SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 128GB)
      • Storage Class: Max 128GB
      • File Format: FAT16/FAT32/EX-FAT/NTFS

        Audio Performance
      • Frequency Response: 20Hz to 20kHz, ±0.5dB (JEITA)
      • THD: 0.03% or less (1kHz, JEITA)
      • S/N Ratio: 96dB or more (JEITA)
      • Dynamic Range: 96dB or more (JEITA)
      • Channel Separation: 89dB or more ( JEITA)

      • Power: AC 100V to 240V, 50/60Hz
      • Power Consumption: 30W
      • Dimensions (WxHxD): 19.01 x 1.83 x 10.82" (483 x 46.5 x 274.8mm)
      • Weight: 6.61Lbs (3kg)
      • Operating Temperature: 41° to 95°F (5° to 35°C)
    • Item Includes:

      • 1x Remote Control Unite (RC-BDMP1)
      • 1x AC Power Code
      • 1x Rack-Mounting Kit
      • 1x Owner's manual (with warranty)
