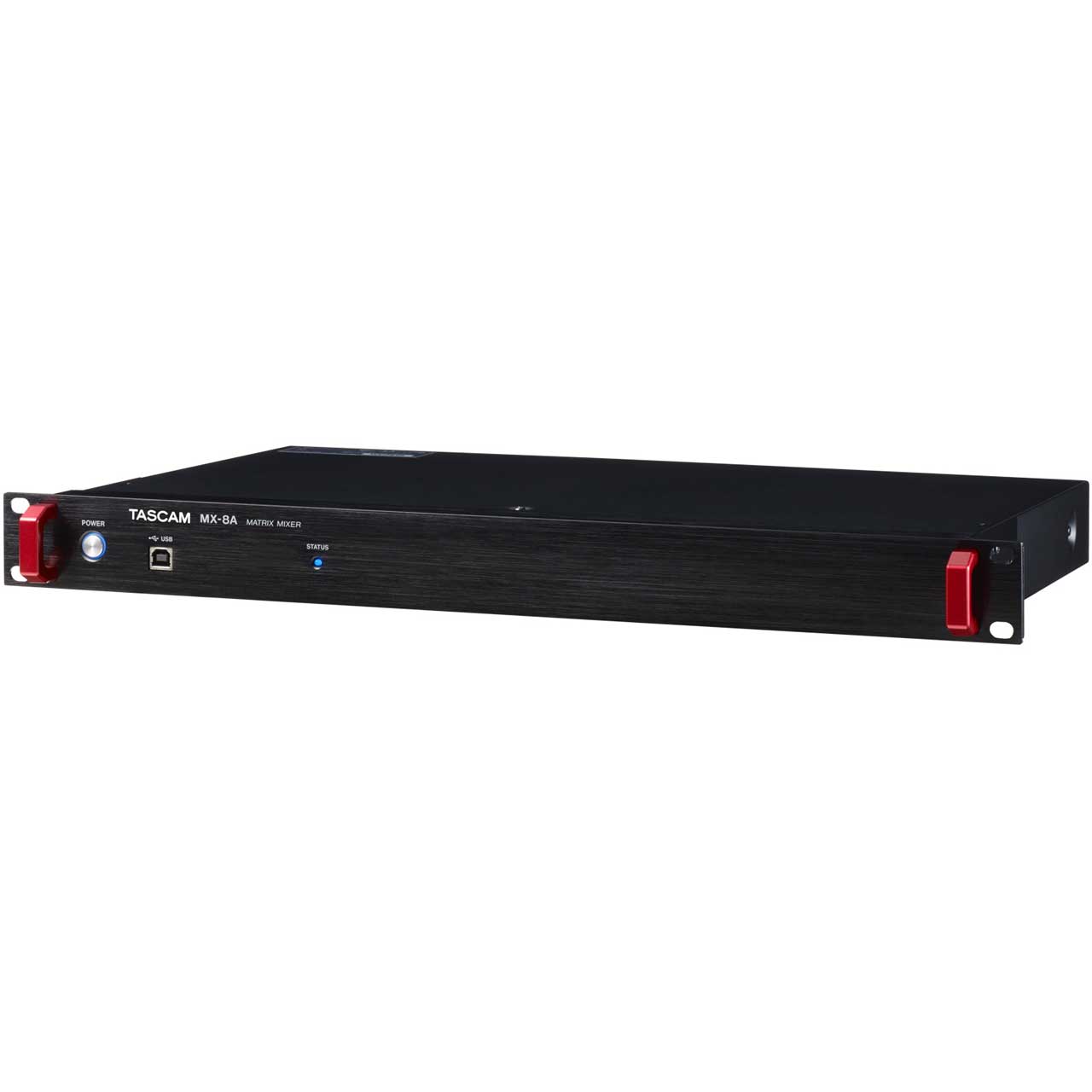

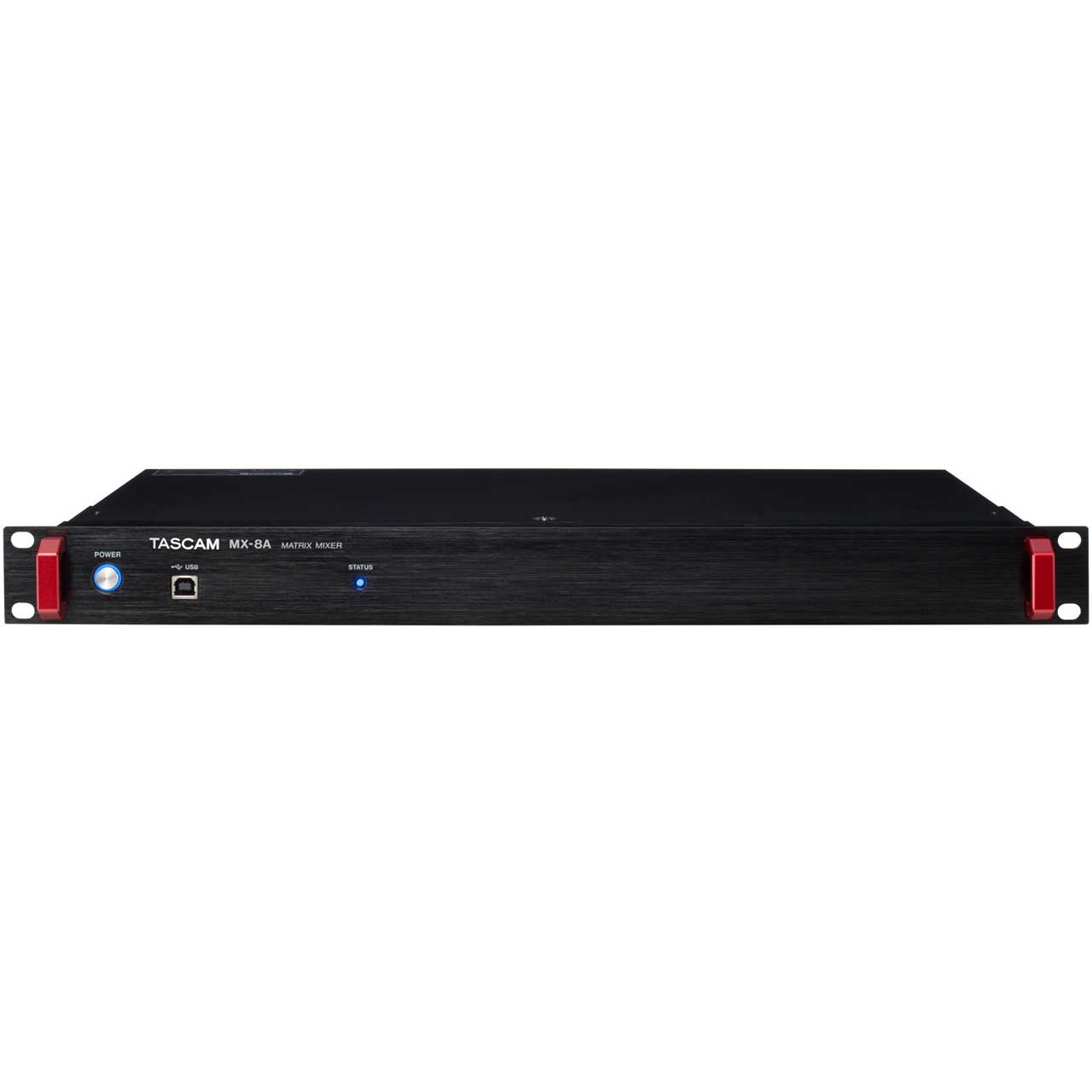

Tascam MX-8A 8 Input/8 Output Matrix Mixer with DSP Processing
  • Tascam MX-8A 8 Input/8 Output Matrix Mixer with DSP Processing
  • Tascam MX-8A 8 Input/8 Output Matrix Mixer with DSP Processing
  • Tascam MX-8A 8 Input/8 Output Matrix Mixer with DSP Processing
  • Tascam MX-8A 8 Input/8 Output Matrix Mixer with DSP Processing

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tascam MX-8A 8 Input/8 Output Matrix Mixer with DSP Processing

Manufacturer: Tascam

Item #: TCM-MX-8A   •   MFG #: MX-8A



List Price:$1,799.99
Our Price:$1,499.99

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Tascam MX-8A is a Matrix Mixer equipped with 8 mic / line inputs and 8 line outputs as well as integrated DSP for audio optimization in various environments and configurations Custom control apps are also available to allow easy setup and adjustment by both system integrators and end users.

    Structuring small to mid-scale systems

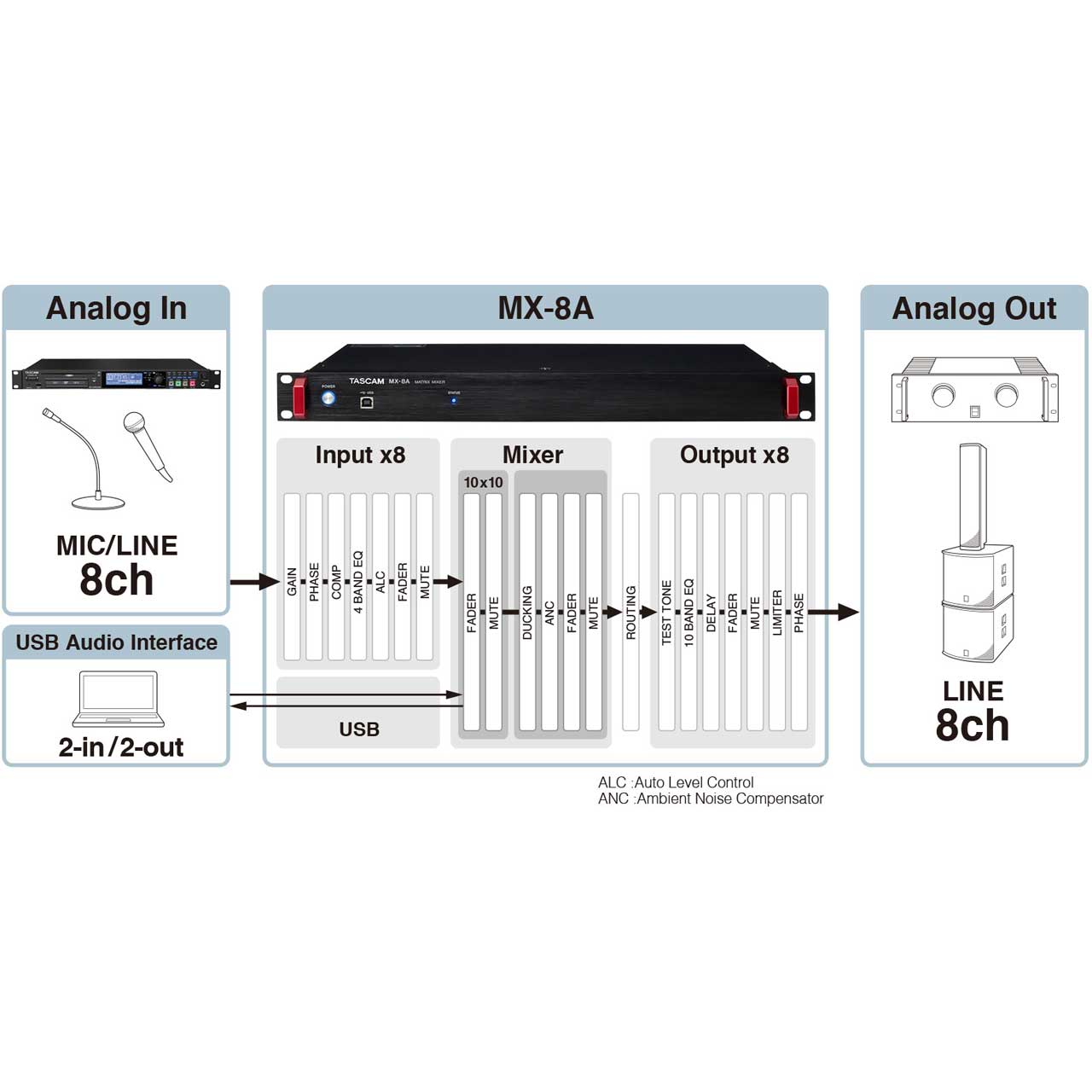

    The TASCAM MX-8A is possible to mix mic and playback equipment audio signals into 8 different zones. This function can be used in installation systems for small to medium scale stores, restaurants or banquet rooms, etc.

    Powerful Integrated DSP
    The onboard DSP provides a full set of audio processing for mic and line inputs including Compressor, 4 parametric EQ, auto level, ducking and more. On line level outputs, the DSP delivers 10 band EQ, high pass filters, low pass filters, delay and limiter effects.


    • Features

      • 8-channel mic / line input with phantom power (+48v) support
      • Supports remote mic gain control
      • 8 line output

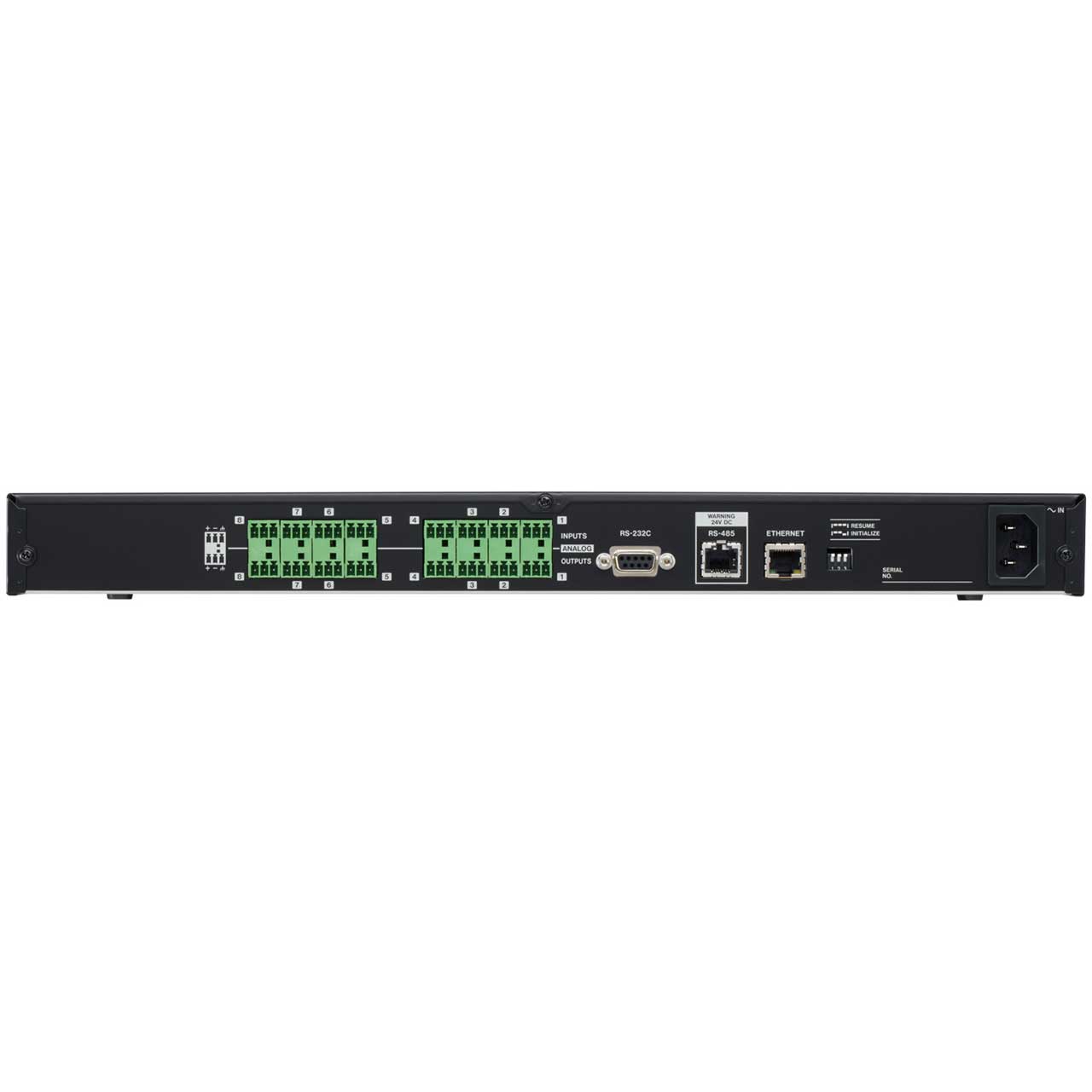

      • Equipped with Euroblock connectors for signal input / output
      • Compatible with external software (Windows / macOS / Android / iOS) for audio playback / recording via USB audio interface function
      • Includes a variety of DSP functions for optimal use in different scenes / environments
      • Flexible scene preset function allows recall of a variety of configurations (Up to 50 presets)
      • Timer event function allows to automatically switch scenes at a specified time (planned to be compatible on a future version update)
      • Equipped with a RS-232C connector to support serial remote control systems
      • Equipped with an RS-485 connector to remote control the MX-8A via dedicated wall-mount remote control (optional accessory, launch date TBA)
      • Supports remote control via Ethernet
      • 1U rack-mountable size
      • Installed indicators display operating status and control software connection status

    • Specifications

      • Format: 44.1k / 48k Hz, 16bit / 24bit

        USB
      • Connector: 4-pin USB B-type
      • Transfer rate: USB2.0 High Speed (480Mbps)

        ANALOG IN
      • Connector: Euroblock (Balanced) 3.81mm pitch
      • Minimum input level: -70dBu
      • MIC: +26dBu
      • LINE: +24dBu
      • Input impedance: 2.2kΩ or higher

        ANALOG OUT
      • Connector: Euroblock (Balanced) 3.81mm pitch
      • Nominal output level
      • +4dBu (when Ref.Level set to other than -9dBFS)
        +6dBu (when Ref.Level set to -9dBFS)
      • Maximum output level(switchable)
      • +15dBu (Ref.Level: -9dBFS)
        +18dBu (Ref.Level: -14dBFS)
        +20dBu (Ref.Level: -16dBFS)
        +22dBu (Ref.Level: -18dBFS)
        +24dBu (Ref.Level: -20dBFS)
      • Output impedance: 200Ω or lower

        RS-232C
      • Connector: D-sub 9-pin (female, inch-standard)

        RS-485
      • Connector: RJ-45
      • Cables: Category 5e or faster STP cables

        ETHERNET
      • Connector: RJ-45
      • Transmission protocol: TCP/IP
      • Ethernet standard: 100BASE-TX
      • Cables: Category 5e or faster STP cables

        Other
      • Power: AC 100-240 V, 50/60 Hz
      • Power consumption: 21W
      • Dimensions: 19.01 inch x 1.77 inch x 11.97 inch (483(W) x 45(H) x 304.1(D)mm) (including protrusions)
      • Weight>: 6.6lbs (3.0kg)
      • Operating temperature range: 0~40°C

    • Item Includes

      • 1 Main unit
      • 1 Power cord
      • 16 Euroblock plugs
      • 1 Cable band kit
      • 1 Rackmount screw kit
      • 1 Owner's Manual including warranty
