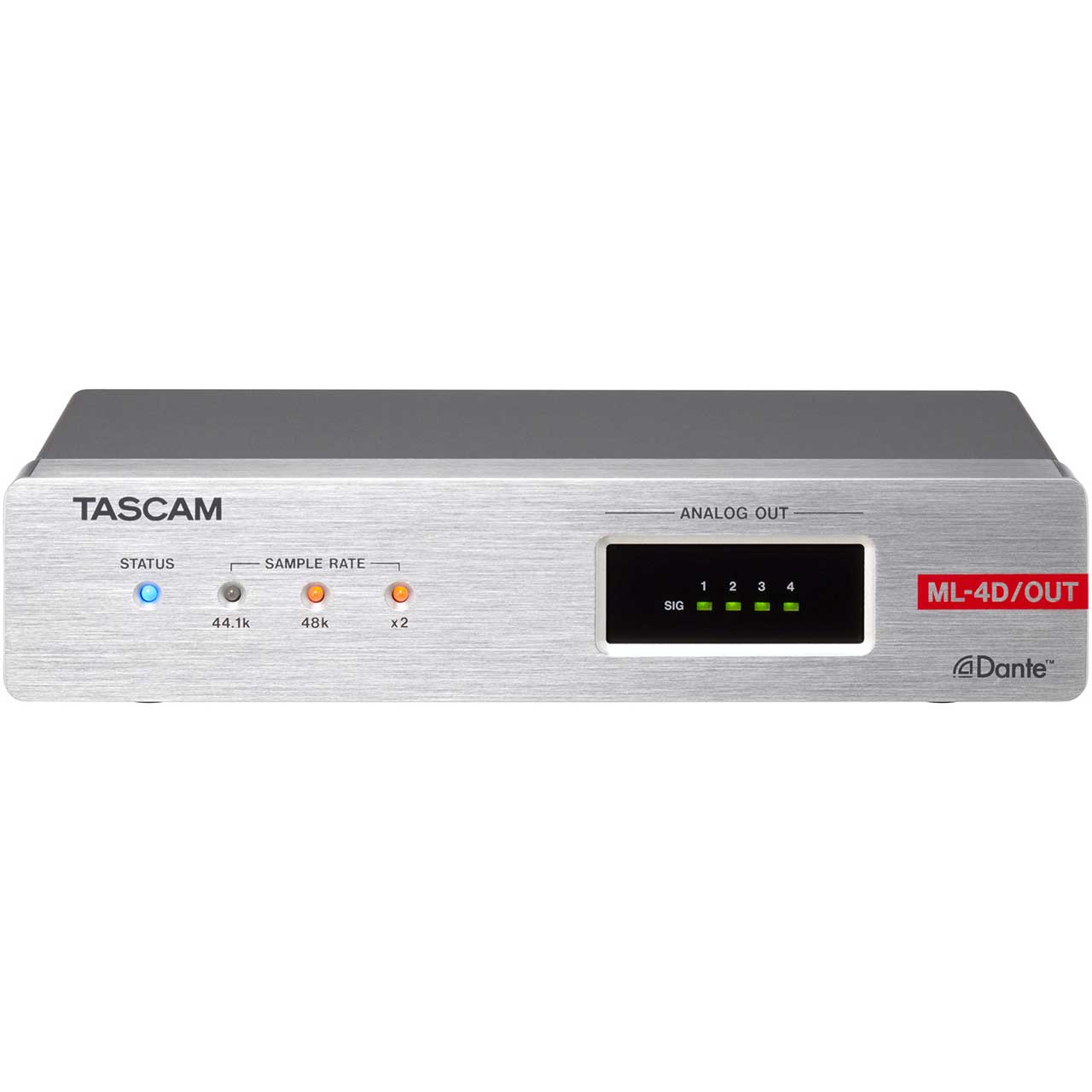

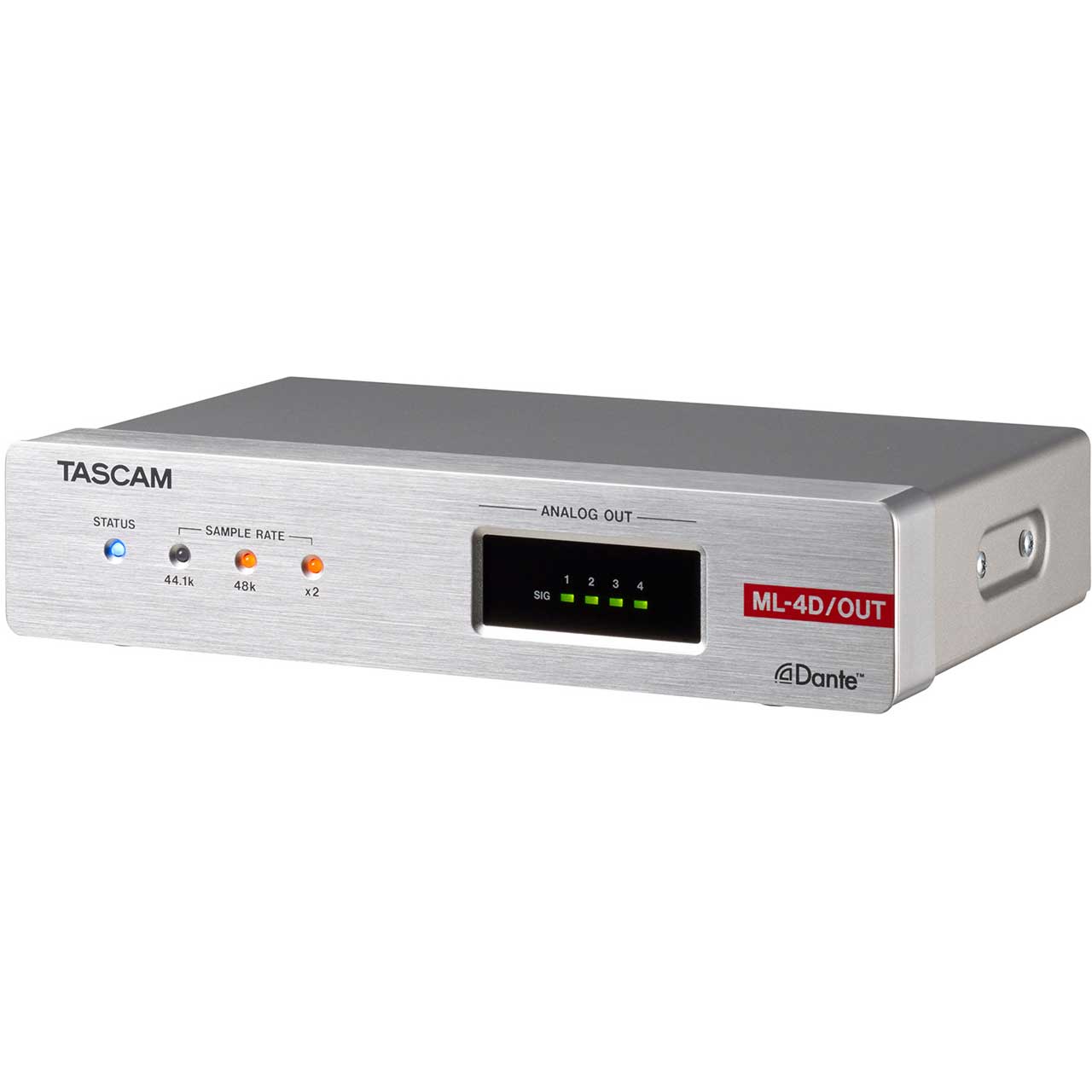

Tascam ML-4D/OUT-X 4-Channel Line Output Dante Converter with XLR and Built-in DSP Mixer

ITEM #: TCM-ML-4D-OUT-X MFG #: ML-4D/OUT-X

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:

$799.00

Our Price:

$599.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    ML-4D/OUT-X - Overview

    The Tascam ML-4D/OUT-X is a compact converter that converts Dante input signals into 4-channel line output signals. With half the size of a standard 1U rack, the ML-4D/OUT-X is suitable for different Dante systems as an exquisite analog output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. ML-4D/OUT-X supports up to 96kHz/24bit and uses XLR connectors for analog line output.

    4 line output, 4 Dante input/output

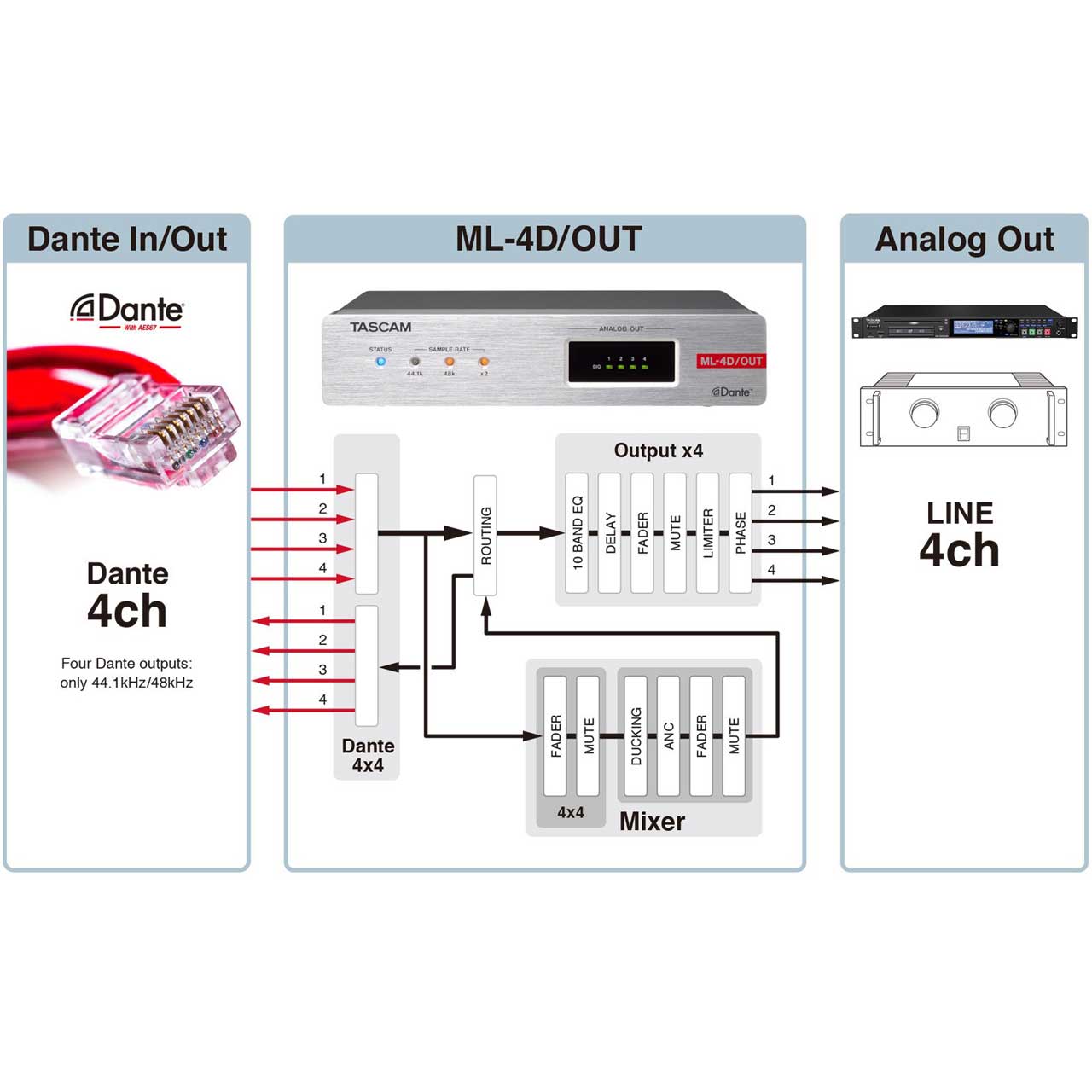

    The ML-4D/OUT-X not only converts Dante signals into 4-channel line signals; it can also convert them into 4-channel Dante output signals, making it possible to direct these to a Dante established network using the built-in DSP matrix mixer.

    The Dante Compact Processor Series has a line-up of models with different input/output specifications:

  • MM-4D/IN, 4-channel mic/line input
  • ML-4D/OUT, 4-channel line output
  • MM-2D, 2-channel mic/line input/output
  • AE-4D, AES/EBU 4-channel input/output
  • For analog input/output models, the branch extends with units equipped with Euroblock or XLR connectors that users can choose depending on their usage. By combining multiple different units all at once, it is possible to match and introduce them into various systems.

    Optimal input/output unit for different Dante systems
    The Dante Compact Processor Series provide easy additional mic/line or AES/EBU input/output to several situations and places such as public facilities, broadcasting stations, recording studios, etc. where Dante systems are being used. They are the optimal input/output unit for small scale environments.

    Structuring small scale systems with the DSP function
    The Dante Compact Processor Series are equipped with a matrix mixer that includes a DSP feature with compressors, parametric EQs, limiter, delay, etc. functions. From the input of microphone signals to the output of powered speakers; also applicable with recording/playback systems, the Dante Compact Processor Series can build up a complete small system on their own.

    Flexible routing
    Routing to each Dante device is easy via Dante controller. Input/output units can be added flexibly to new or already established Dante systems.

    • Features:

      • 4 line output
      • 4 Dante input/output
      • Supports PoE (Power over Ethernet)
      • Up to 24bit/96kHz
      • Includes a variety of DSP functions for optimal use in different scenes/environments (Output effects, 4 in/4 out matrix mixer)
      • Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
      • Compatible with Dante Domain Manager and Dante AES67 Mode
      • Flexible scene preset function allows to work in different area situations (Up to 50 presets)
      • Timer event function allows to automatically switch scenes at a specified time (planned to be compatible on a future version update)

    • Specifications:

      • Formats and Channels: 44.1/48/88.2/96kHz,16/24-bit, 4 channels

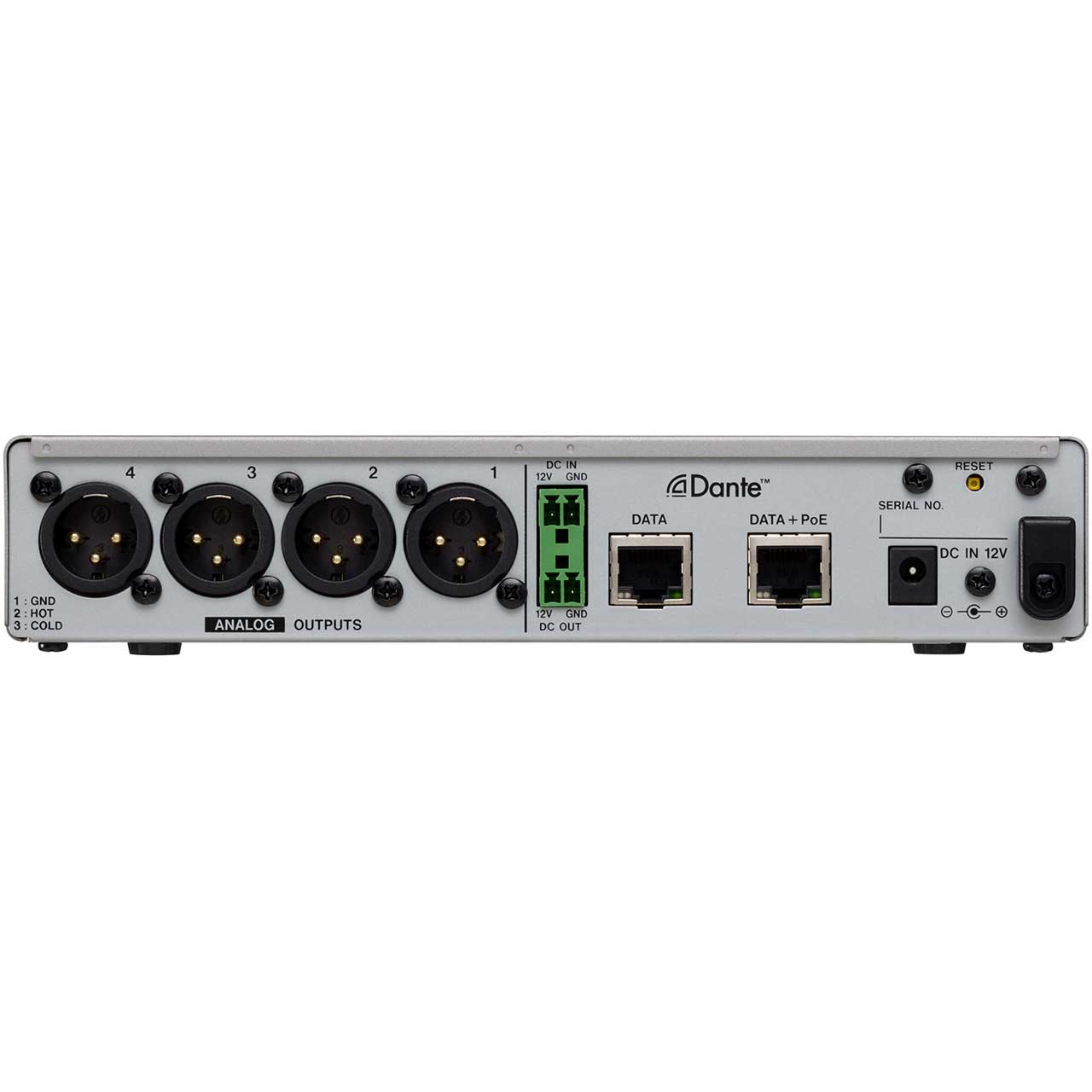

        DATA/DATA+PoE Connectors
      • Connector: RJ-45
      • Transmission Protocol: Dante
      • Gigabit Ethernet Standard: 1000BASE-T (IEEE 802.3ab)
      • Cables: Category 5e or faster STP cables

        Analog OUT Connectors
      • Connector: XLR-3-32 (1: GND, 2: HOT, 3: COLD)
      • Nominal Output Levels:
        +4 dBu (when Ref. Level not -9 dBFS)
        +6 dBu (when Ref. Level set to -9 dBFS)
      • Maximum Output Level (switchable):
        +15 dBu (Ref. Level: -9 dBFS)
        +18 dBu (Ref. Level: -14 dBFS)
        +20 dBu (Ref. Level: -16 dBFS)
        +22 dBu (Ref. Level: -18 dBFS)
        +24 dBu (Ref. Level: -20 dBFS)
      • Output Impedance: 200 Ω or lower

        Other
      • Power: PoE class 0
      • Power Consumption: 4W
      • Dimensions: 8.42" x 1.75" x 5.35" (214mm x 44.45mm x 136.1mm) (W x H x D, including protrusions)
      • Weight: 1.9lb (863 g)
      • Operating Temperature Range: 32°F - 104°F (0°C-40°C)
      • Included Items: Installation brackets, Owner's manual (including warranty)

        Dante IN - Line OUT
      • Frequency Response:
        ±0.5dB: 20Hz - 20kHz (44.1/48kHz sampling frequency, JEITA)
        ±0.5dB: 20Hz - 40kHz (88.2/96kHz sampling frequency, JEITA)
      • Distortion (THD+N): 0.002% (when -1dBFS input, 44.1/48/88.2/96kHz sampling frequency, JEITA)
      • S/N Ratio: 108dB (44.1/48/88.2/96kHz sampling frequency, JEITA)
      • Crosstalk: 100dB (44.1/48/88.2/96kHz sampling frequency, JEITA)
      • Dynamic Range: 108dB (44.1/48/88.2/96kHz sampling frequency, JEITA)

    • Item Includes:

      • 1 ML-4D-OUT-X unit
      • 2 installation brackets
      • Owners Manual

    • GTIN:

      0043774033850
