Tektronix SPG8000ADPW Add Second Hot-Swappable Redundant (Backup) Power Supply & Second Power Cord

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Tektronix SPG8000ADPW Add Second Hot-Swappable Redundant (Backup) Power Supply & Second Power Cord

    Manufacturer: Tektronix

    Item #: TEK-SPG8000ADPW   •   MFG #: SPG8000ADPW




    Our Price:$479.00

    no free ship


    Availability:
    More on the way, usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      Required Accessories

      The SPG8000A is a precision multiformat video signal generator, suitable for master synchronization and reference applications. It provides multiple video reference signals, such as black burst, HD tri-level sync, and serial digital and composite analog test patterns, and it provides time reference signals such as time code, NTP (Network Time Protocol), and IEEE 1588 PTP (Precision Time Protocol). The base configuration includes three sync outputs that can be configured with independent output formats and independently adjustable timing offsets.

      For mission-critical applications, the SPG8000A can be configured with a second power supply module. Under normal operation, the designated backup supply is seldom used, ensuring that it has maximum remaining life should the primary supply fail. The backup supply is load-tested once each day to verify that it can serve as the primary supply if necessary.

      The usage time of each supply is logged as "temperature-weighted hours" a metric that best estimates the calculated life of the supply. A front-panel LED will indicate when the supply is nearing its end-of-life. If the primary supply is interrupted for any reason the system will switch to the backup without any disruption to system operation. Power supply modules are hot-swappable for easy replacement and feature a locking mechanism to prevent the power cable from accidental disconnection.

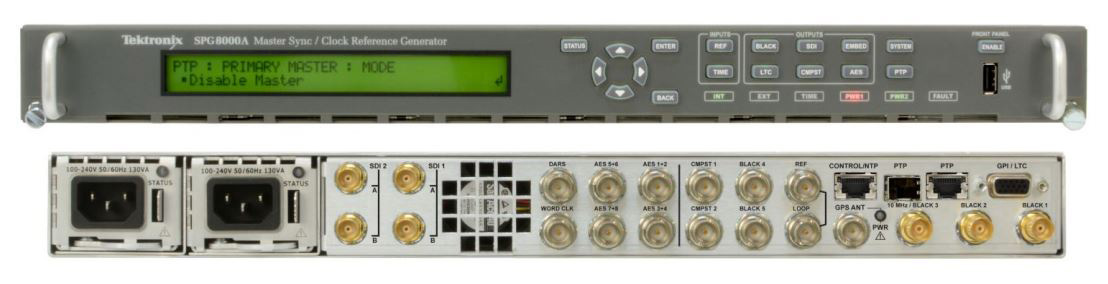

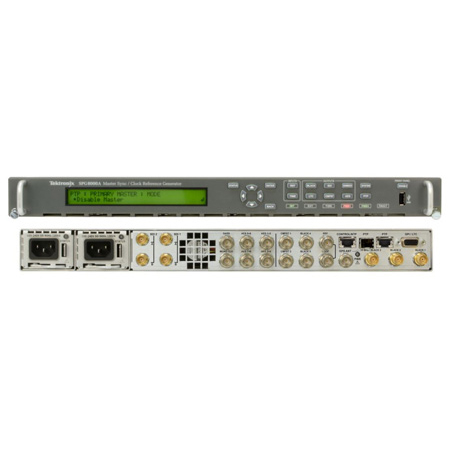

      Please note! This item is an add-on "option" to the Tektronix SPG8000A Master Sync / Master Clock Reference Generator. The SPG8000A is required and sold separately. Image is for reference only!


      • Features

        • Multiple independent black burst and HD tri-level sync outputs provide all the video reference signals required in a video broadcast or production facility
        • Four LTC outputs, VITC on black burst outputs, and NTP server provide time reference signals in a variety of formats
        • PTP (IEEE 1588) support, including SMPTE ST 2059-2 and AES67 profiles
        • GPS/GLONASS-based synchronization gives an accurate time-of-day reference and deterministic video phase reference across multiple independent systems
        • Stay GenLock and Holdover Recovery prevent synchronization shock when the external reference input, PTP, or GPS/GLONASS signal is temporarily lost
        • Wide selection of video test patterns in serial digital formats (SD, HD and 3G-SDI) and composite analog formats (NTSC and PAL)
        • 4K/UHD formats support with full frame 100% and 75% color bars (Quad Link Square Division)
        • Dual hot-swappable power supplies ensure continuous availability of reference signals
        • Easy to manage with Web-based interface for remote configuration and SNMP for status and alert information
        • DPW option Add Second Hot-Swappable Redundant (Backup) Power Supply & Second Power Cord

      • Specifications

        • Reference input
        • Connector: BNC +2, passive loop-through
        • Input impedance: 75 Ω
        • Input signal: NTSC/PAL black burst ; HD tri-level sync: 1080/60/59.94/50I, 1080/30/29.97/25/24/23.98P, 1080/24/23.98PsF, 720/60/59.94/50P; 10 MHz continuous wave
        • Amplitude range: ?8 dB to +6 dB
        • S/N ratioL: >40 dB
        • SCH phase: 0 ±40°
        • Return loss: ≥30 dB at 300 kHz to 10 MHz
        • Lock stability: ±3 dB amplitude change - <1 ns; Jitter with burst lock - <0.5°; Jitter with sync lock - <1 ns; Jitter with CW lock - <1 ns (typ. 1°)

          Genlock
        • Timing adjustment range: Anywhere in the color frame
        • Timing adjustment resolution: <0.5° of NTSC/PAL subcarrier, 1 ns with tri-level sync input
        • Color framing: Keeps accuracy even with ±45° SCH error of input reference signal
        • Genlock tune range: ±7.5 + 10-6

          Time reference
        • Source: GPS or GLONASS signal, PTP input, LTC input, VITC read from NTSC/PAL genlock input, or can enter manually
        • Time zone offset: ?23:59 to +23:59
        • Daylight saving adjustment: Start/end from recurring calendar or manually scheduled, with adjustable offset
        • Leap second adjustment: Inserted at 00:00 UTC on the scheduled date, or deferred up to 24 hours

          LTC Input
        • Connector: Available through D-sub 15-pin connector; Optional break-out cable to XLR connector available
        • Formats: 24 fps (24 Hz or 23.98 Hz), 25 fps, 30 fps, 30 fps drop-frame (29.97 Hz) per SMPTE 12M
        • Timing to video: Compliant with SMPTE 12M and continues to operate over at least 90% of possible timing range
        • Signal voltage range: 0.5 to 10 Vp-p differential, 1 to 5 Vp-p single ended
        • Noise tolerance: -30 dB SNR RMS white noise with 10 kHz BW to the p-p signal level, or -10 dB SNR for 5 MHz white noise
        • Hum tolerance: 0 dB hum-to-signal ratio
        • Error immunity: 100 consecutive frames with consistent time code must be detected for time to be considered valid
        • Input impedance: Nominal 600 Ω differential, 300 Ω single ended
