Teradek Beam 10-0571 Transmitter & Receiver Set with Transmitter V-Mount Battery Plate
  • Teradek Beam 10-0571 Transmitter & Receiver Set with Transmitter V-Mount Battery Plate
  • Teradek Beam 10-0571 Transmitter & Receiver Set with Transmitter V-Mount Battery Plate
  • Teradek Beam 10-0571 Transmitter & Receiver Set with Transmitter V-Mount Battery Plate

Questions? Ask a Markertek Expert:
800-522-2025 Email

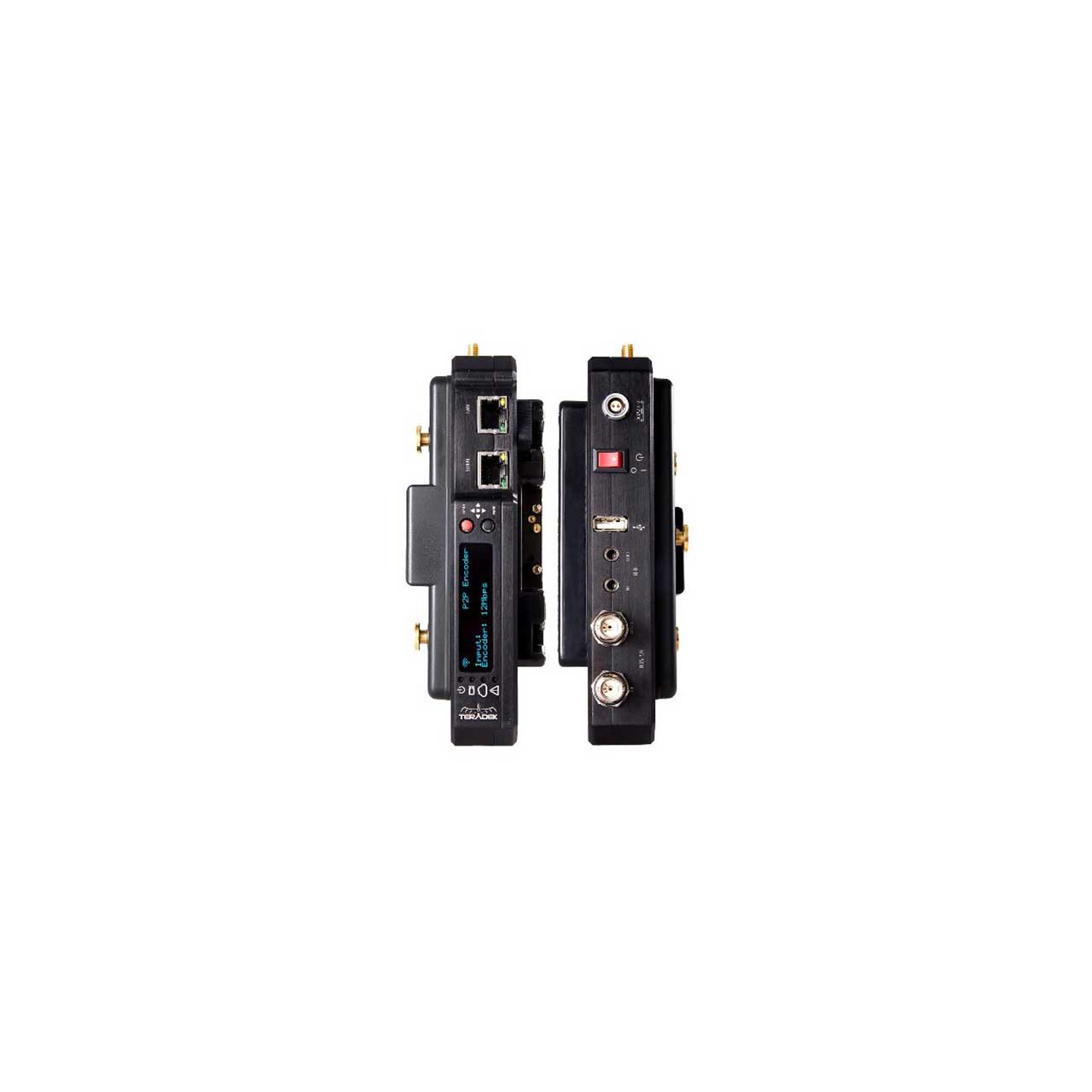

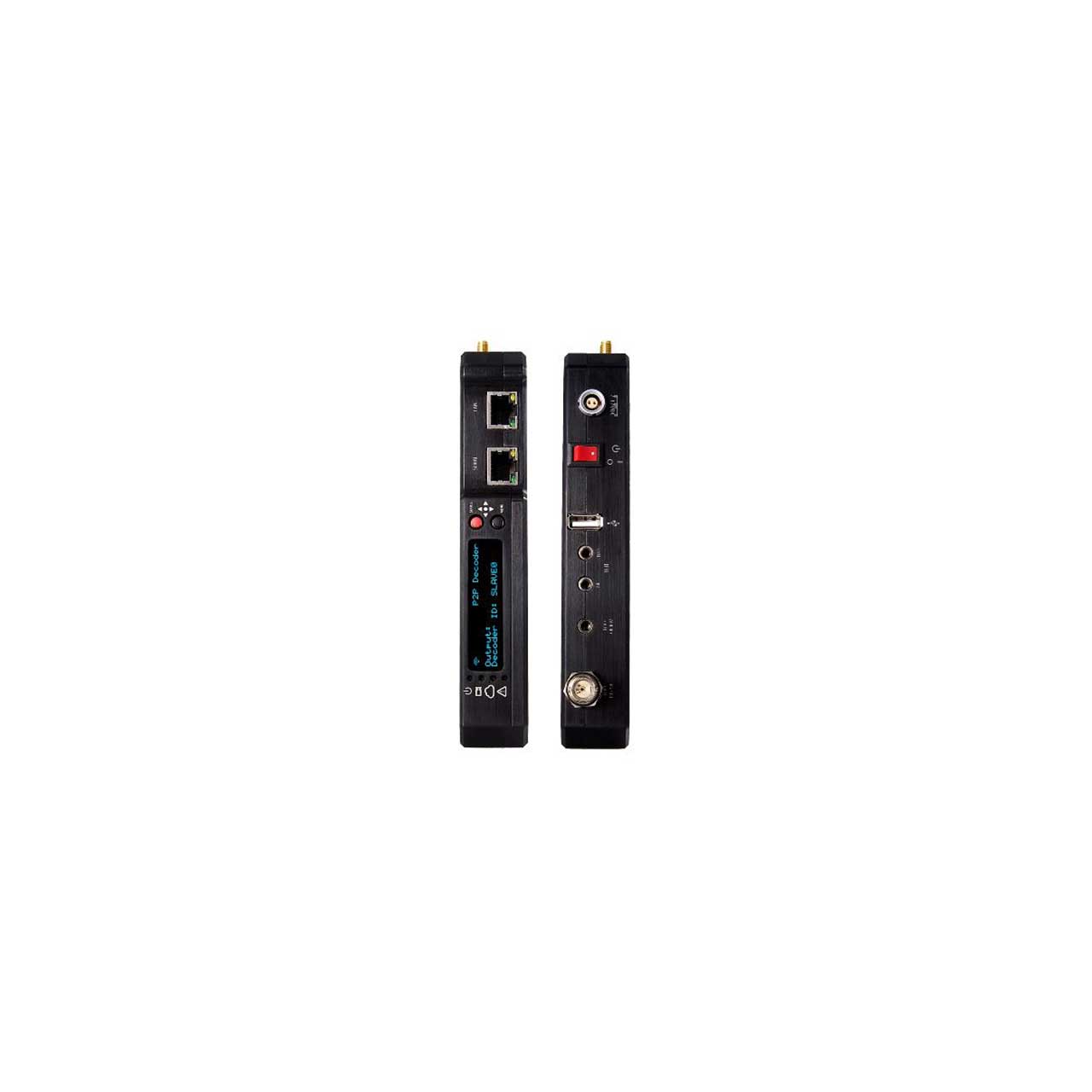

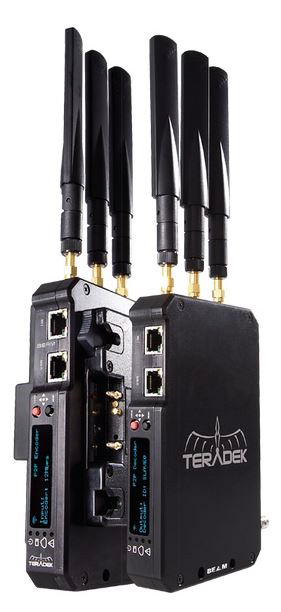

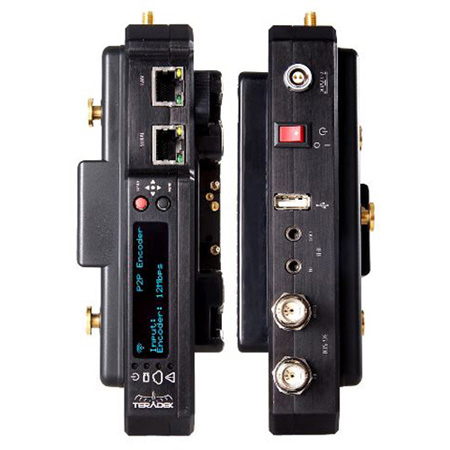

Teradek Beam 10-0571 Transmitter & Receiver Set with Transmitter V-Mount Battery Plate

Manufacturer: Teradek, LLC

Item #: TER-10-0571   •   MFG #: 10-0571




Our Price:$4,990.00

free ship


Availability:
Direct Ship from manufacturer, contact us for availability
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Teradek Beam is a full HD camera-back H.264 encoder, capable of delivering stunning video at bit rates up to 30Mbps.* Beam operates on the unlicensed 5GHz band and can transmit up to 2500ft with just 2 frames of latency. Whether the job requires a wireless link back to the OB Van or an MPEG-TS stream back to the station, Beam gives broadcasters unparalleled flexibility in the field.

    *Requires LAN port

    Multicast Capable + IFB
    Beam is multicast capable up to 4 receivers and includes a dedicated bidirectional IFB channel, which allows a news operations center to speak directly to the camera operator in the field.

    Camera Control
    Beam offers a full duplex RS-422 port for remotely controlling your camera.

    Protocol Support
    Beam utilizes the RTSP and MPEG-TS protocols, allowing broadcasters to transmit video over the Internet to a Beam decoder or directly to computers at very high bit rates. The Beam decoder can also act as an RTSP server, which will re-stream your video feed directly to a local computer.

    Functional Design
    With a 3G-SDI input and your choice of AB- or V-mount battery plates, Beam seamlessly integrates with all popular professional cameras. The chassis also includes an OLED screen for quick configuration, LAN port for broadcasting over wired networks, and support for high power transmission on the 5.15 ~ 5.25GHz band.


    • Specifications

      • Video Compression: H.264 Baseline Profile Level 4.2 with de-interlacing
      • System Latency: 90 - 110 millisecond delay between Transmitter and Receiver
      • Wireless range: 2500ft +- 200ft
      • Digital Video In/Out: SD-SDI, HD-SDI, 3G-SDI

      • SUPPORTED VIDEO RESOLUTIONS:
      • SMPTE244: 480i59.94 (NTSC), 480i60 (861-D)
      • IEC61179-5: 576i50 (PAL)
      • SMPTE 296M: 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60
      • SMPTE 274M: 1080i50, 1080i59.94, 1080i60, 1080PsF23.98,1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

      • SDI COMPLIANCE:
      • SMPTE 259M BI.656: SDTV Digital Signal/Data Serial Digital Interface
      • SMPTE 292M BT.1120: 1.5Gb/s Signal/Data Serial Digital Interface
      • SMPTE 425M: 3Gb/s Signal/Data Serial Digital Interface
      • SMPTE 299M: 16bit Digital Audio Format for SMPTE 292M
      • SMPTE 352M: Video Payload Identification for Digital Interfaces

      • Bitrate: RTSP Server: Up to 30Mbps ; MPEG2-TS Server: Up to 15Mbps
      • Main Digital Audio In/Out: TX/RX: SDI embedded audio: 48kHz 16-bit stereo linear PCM
      • Main Analog Audio Out: RX: 48kHz 16-bit stereo linear PCM with mini stereo phone output jack
      • Talk-Back Analog Audio In/Out: RX/TX: 8kHz 16-bit stereo linear PCM with mini stereo phone input/output jack
      • Radio Power: Aggregate Power: 150mW (22dBm), 50mW (17dBm)/antenna
      • Radio standard: IEEE 802.11a/n: OFDM
      • Frequencies: U-NII-1 (5.15-5.25 GHz), U-NII-3 (5.725-5.85 GHz)
      • Antenna: 3T x 3R MIMO, 3 antennas per WiMi6200TW/W1Mi6200RW
      • Security: 802.1x, 802,11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES
      • WPS: Wireless Protected Setup for easy set up and security configuration
      • Ethernet LAN: 10/100 BASE-TX, RJ-45 jack
      • Multicast: WiFi: Up to 4 Receivers
      • LAN: No limit on number of receivers
      • External Control: Full duplex RS422 serial port
      • USB: Factory reset, IP configuration or firmware upgrade without PC
      • Powe:r Input/Consumption DC 7V-17V, 12 Watt
      • Dimensions (H x W x D) (mm): 170 x 105 x 28 each board assembly (TX or RX)
      • Weight (g): TX: 990g; RX: 610g
      • Operating Temperature: 0 deg C to 50 deg C

    • Item Includes

      • 110-240V AC Power Adapter
      • 3 x Transmitter Antennas
      • 3 x Receiver Antennas
      • Lightstand Adapter 1/4 20"
      • Thumb Screw
      • Quickstart Guide
      • Hard Case
      • BNC Cable 10"
      • 1-Year Warranty

    • Warranty

      • 1-Year Warranty
