Teradek 10-2120-G Bolt 4K MAX 12G-SDI/HDMI Wireless Deluxe Transmitter/Receiver Kit - Gold Mount

ITEM #: TER-10-2120-G MFG #: 10-2120-G

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    10-2120-G - Overview

    Teradek's 10-2120-G kit includes the Bolt 4K MAX, the most reliable, highest performance wireless video system ever created. Featuring exclusive technology found only in this model, the MAX is designed to be your mission critical wireless workhorse.

    Transmit up to an 5,000 ft line of sight with the next-generation Array 4K Panel Antenna.

    Fixed Frequency Mode locks onto your designated 5GHz channel for enhanced performance in challenging RF environments.

    A unique antenna design provides a clearer wireless signal with faster reconnection times over long distances.

    • Features:

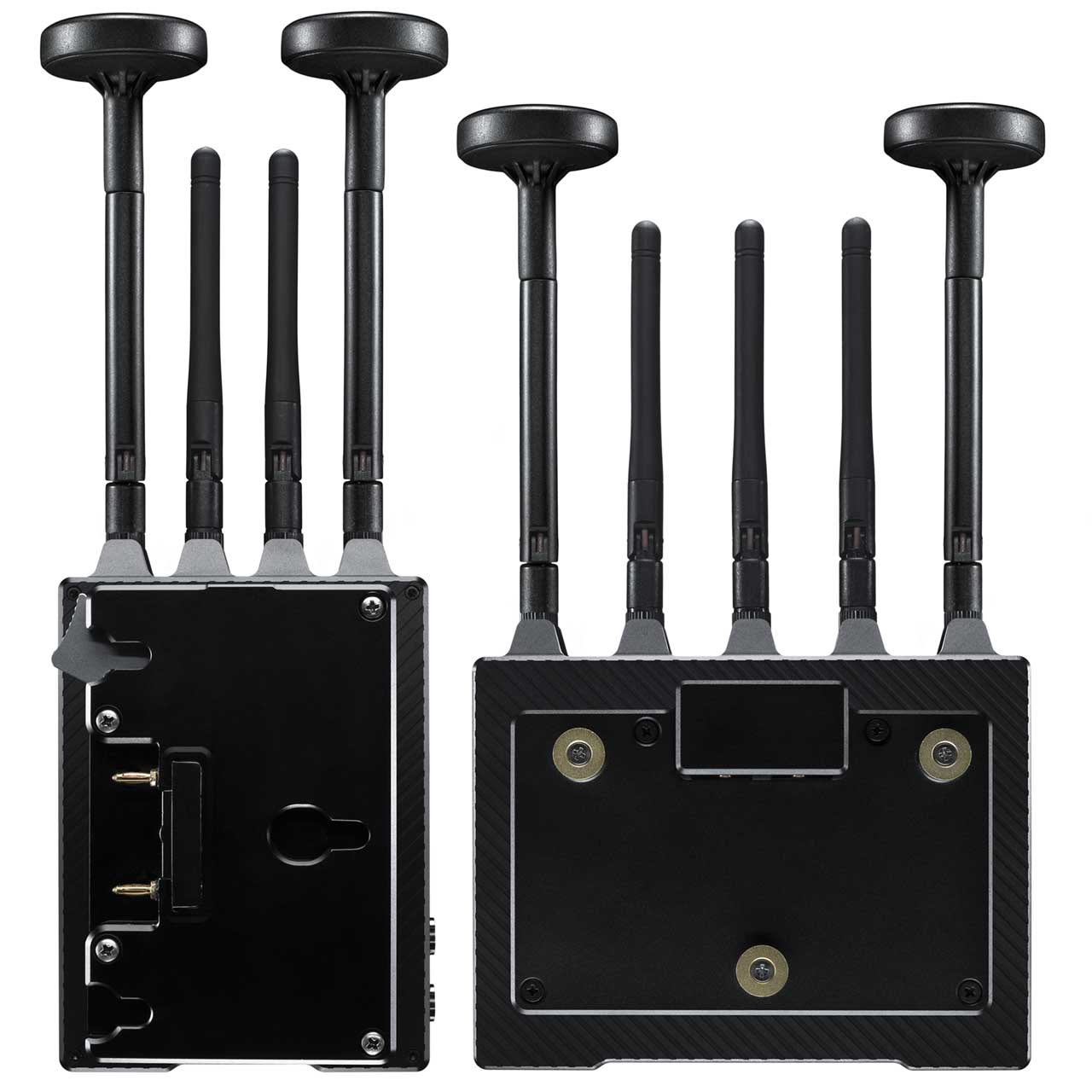

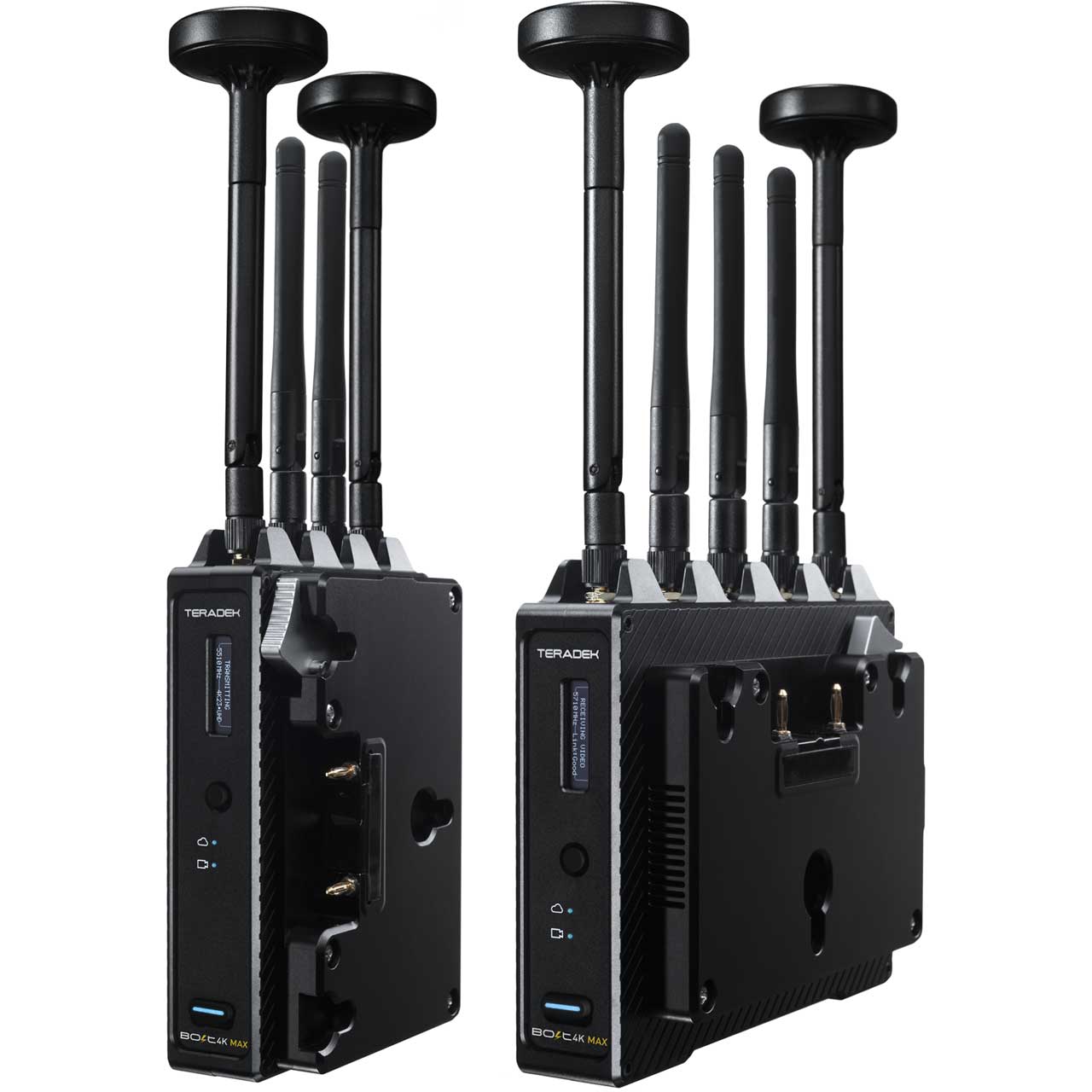

      • Includes: 1 TX, 1RX, 1 Array 4K Panel Antenna & an SKB Case
      • Video: Up to 4K60FPS
      • Range: up to 5000 ft. with Panel Antenna
      • Inputs: 12G-SDI, HDMI 2.0
      • Outputs: 12G-SDI, HDMI 2.0
      • Multicast: Up to 6 RXs
      • Compatibility: Bolt 4K 750, Bolt 4K 1500

    • Specifications:

      • Bolt 4K MAX TX Gold Mount
      • Video Inputs: 1x 12G-SDI SMPTE 2082-1 standard / 75 O (accepts 12G-SDI, 6G-SDI, or 3G-SDI), 1x HDMI Type-A receptacle accepts HDMI 2.0 or HDMI 1.4)
      • Video Outputs: 1x Loopout 12G-SDI SMPTE 2082-1 standard / 75 O
      • SDI Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from most cameras
      • Color Sampling SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
      • Input Cross Conversion: Yes, HDMI to SDI
      • Delay Tx To Rx: <0.001sec
      • Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 1080psf23.98/24/25/29.97/30, 1080i50/59.94/60, 720p50/59.94/60, 480p50 576p59.94/60, 480i(NTSC)/576i(PAL)
      • Video Compression: Visually Lossless
      • Color Correction: None
      • Audio Format: 48kHz 24-bit PCM
      • Audio Input: Embedded SDI/HDMI Audio Input (2 Channel)
      • Dimensions: 132 x91x27 mm
      • Weight:
        Bolt 4K Tx (no battery plates) = 360g
        Bolt 4K Tx with 4x antennas (no battery plates) = 408g
        Bolt 4K Rx (no battery plates) = 440g
        Bolt 4K Rx with 5x antennas (no battery plates) = 496g
        Gold-Mount battery plate set (male+female) = +172g
      • Construction: Milled Aluminum and regulation-compliant PCB
      • Mountability: 1/4"x20 and M3 holes
      • Configuration Interfaces: OSD with Menu, Joystick Navigation
      • Switches: On/Off Switch
      • USB Interface Functionality: Upgrade via Micro-USB
      • Antennas: 4 External 2dBi RP-SMA antennas (included)
      • Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz
      • DFS Frequencies: 5.270 ~ 5.670 GHz
      • Channel Bandwidth: 13x 40MHz wide channels
      • RF Channel Selection: Auto, Manual, Manual available for non-DFS Channels
      • Encryption: AES-256, RSA-1024 key exchange
      • RF Power: 19 dbm EIRP (4 external 2dBi antennas) (<80mW transmit power)
      • Range: Up to 1500 ft, line of sight
      • Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
      • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones, Can operate up to 6 sets in same location
      • Power Input: 2-Pin Circular locking Connector 7-28V DC
      • Battery: None, optional Gold or V mount battery plate
      • Nominal Power Consumption: 20 Watts
      • Operating Temperature: 0-40°C

        Bolt 4K MAX RX Gold Mount
      • Video Outputs: 2 x 12G-SDI SMPTE 2082-1 standard / 75 O (accepts 12G-SDI, 6G-SDI, or 3G-SDI), 1x HDMI Type-A receptacle accepts HDMI 2.0 or HDMI 1.4)
      • Sdi Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
      • Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
      • Input Cross Conversion: Yes, HDMI to SDI
      • Delay Tx To Rx: <0.001sec
      • Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 1080psf23.98/24/25/29.97/30, 1080i50/59.94/60, 720p50/59.94/60, 480p50 576p59.94/60, 480i(NTSC)/576i(PAL)
      • Video Compression: Visually Lossless
      • Weight:
        Bolt 4K Tx (no battery plates) = 360g
        Bolt 4K Tx with 4x antennas (no battery plates) = 408g
        Bolt 4K Rx (no battery plates) = 440g
        Bolt 4K Rx with 5x antennas (no battery plates) = 496g
        Gold-Mount battery plate set (male+female) = +172g
        V-Mount battery plate set (male+female) = +220 g
      • Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
      • Mountability: 1/4"x20 and M3 holes
      • Configuration Interfaces: OSD with Menu, Joystick Navigation
      • Switches: On/Off Switch
      • USB Interface Functionality: Upgrade via Micro-USB
      • Antennas: 5 External 2 dBi antennas (included) or optional Array Panel Antenna
      • Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz., DFS Frequencies: 5.270 ~ 5.670 GHz
      • Channel Bandwidth: 13x 40MHz wide channels
      • RF Channel Selection: Auto, Manual. Manual available for non-DFS Channels
      • Encryption: AES-256, RSA-1024 key exchange
      • RF Power: 17 dbm EIRP (one external 2dBi antenna) (<51mW transmit power)
      • Range: Up to 1500 ft, line of sight
      • Unicast Multicast: Can connect one Transmitter to up to 6 Receivers

    • Item Includes:

      • 1x Bolt MAX 12G-SDI/HDMI Wireless TX Gold Mount
      • 1x Bolt MAX 12G-SDI/HDMI Wireless RX Gold Mount
      • 1x Antenna Array with Gold Mount4 x Bolt 4K Wire Cover Plate (Machined Anodized)
      • 1x Bolt 4K TX Mounting Bracket
      • 1x Lightstand Adapter 3/8in
      • 1x Hot Shoe Adaptor
      • 4x Screw FlatHead Phillips Black Oxide 18-8 S S 0-80 x 1/8in
      • 2x Screw Socket Cap A S, M3 x 16mm
      • 1x Hex L key 2.5mm size 3-5/8" length
      • 2x HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in Cable
      • 2x 2pin Conn. to PowerTap - 18in Cable
      • 1x 2pin Conn. to 2pin Conn. 18in Cable
      • 1x USB Male Type A (Full) - USB Male Type B (Micro) -3ft Cable
      • 2x SDI 12G BNC to BNC Cable Length: 18in / 46cm

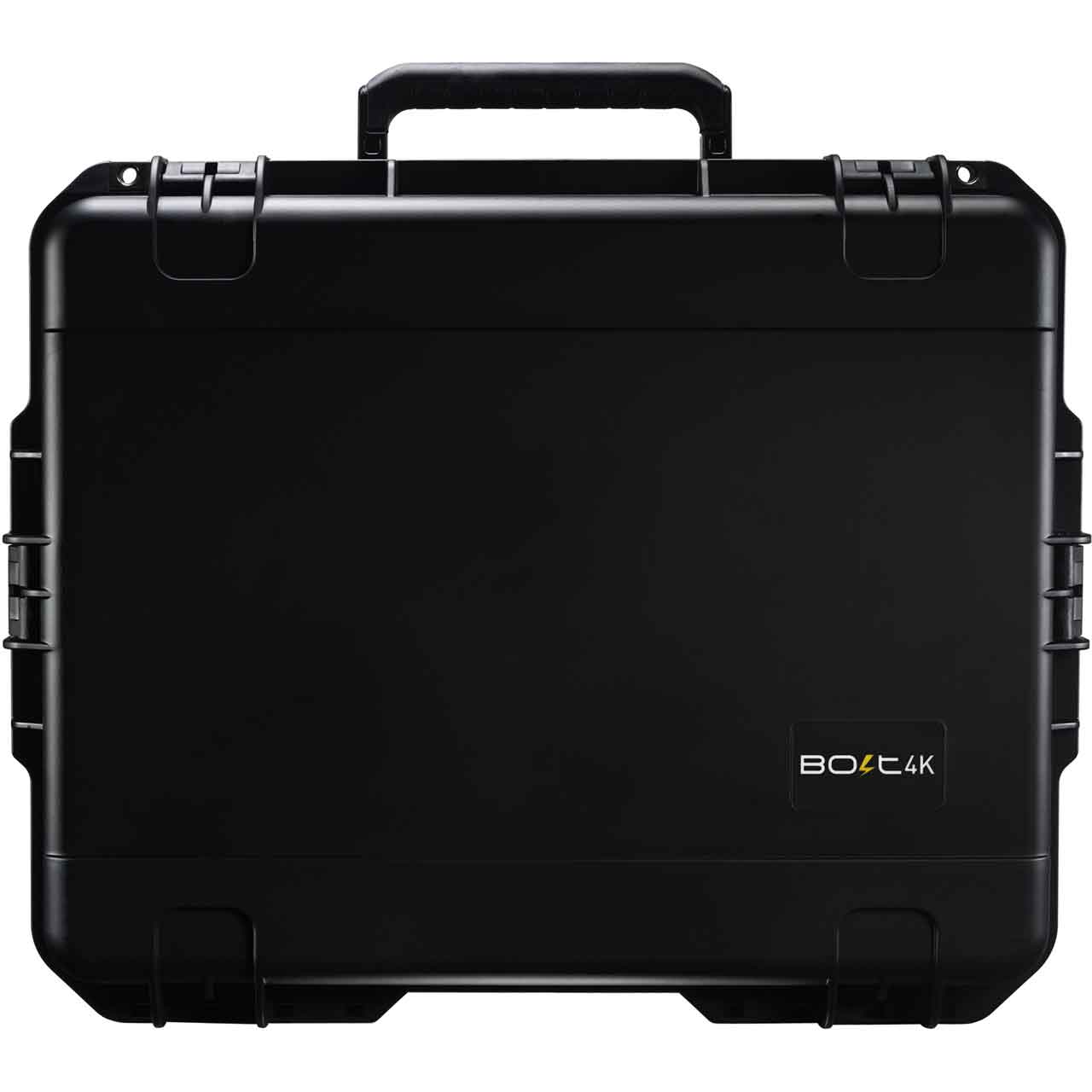

      • 1x Teradek Case XL - Bolt 4K TX/4RX
      • 1x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable
      • 9x Antenna 2dBi WIFI 2.4/5.8GHz (Small Antenna)
      • 1x Quickstart Guide - Bolt 4K 750/1500
      • 1x Wooden Camera - Ultra Arm Monitor Mount (1/4-20 to 3/8-16, 5in)

    • GTIN:

      0818264025819
