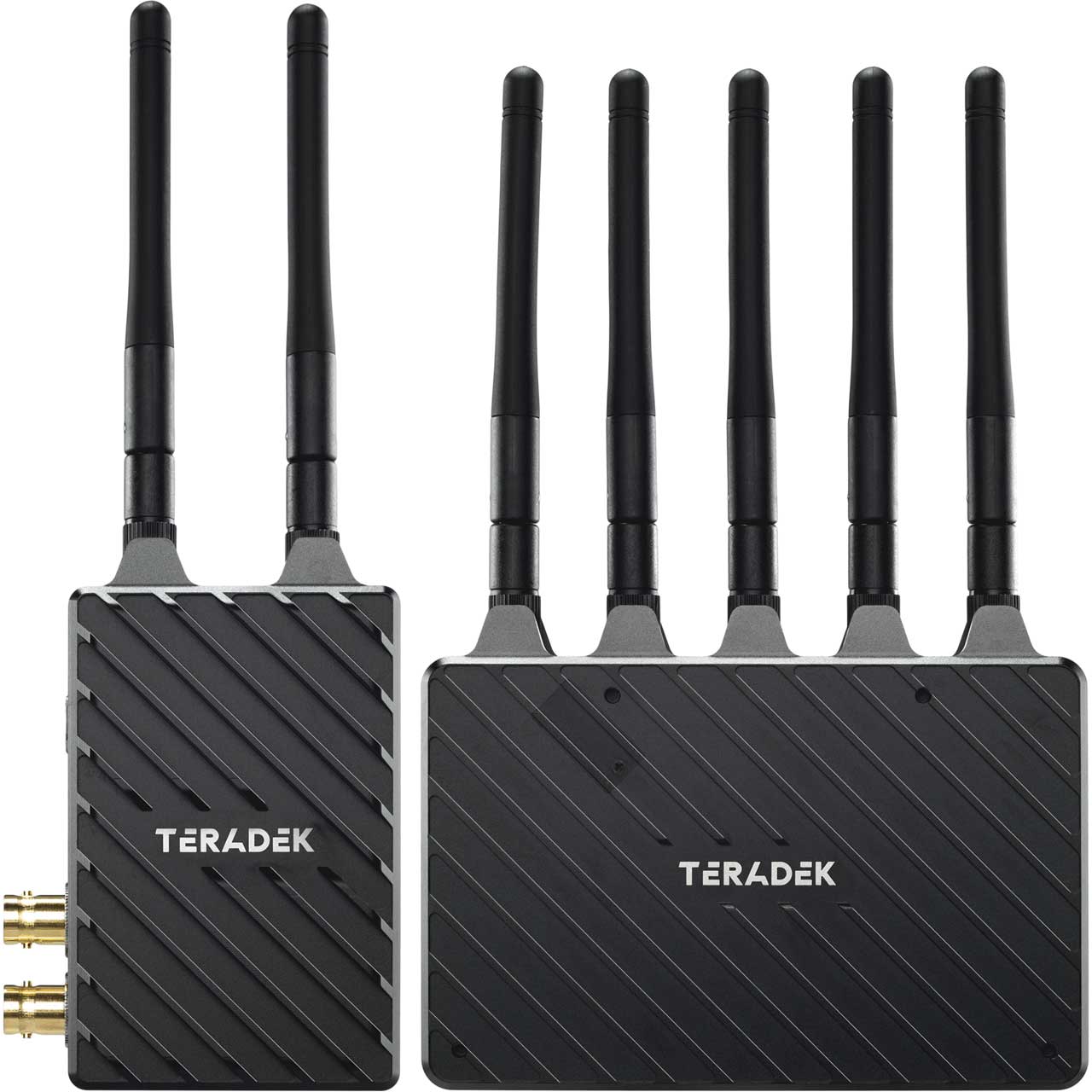

Teradek 10-2210 Bolt 4K LT 1500 3G-SDI/HDMI Wireless Transmitter and Receiver Kit - No Mount

ITEM #: TER-10-2210 MFG #: 10-2210

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

10-2210 - Overview

Zero-Delay 4K Wireless Video
Use the Teradek 10-2210 Bolt 4K LT 1500 3G-SDI/HDMI wireless kit to transmit and receive images up to 4Kp30 via HDMI at a line-of-sight distance of up to 1500ft (457m) with no image delay (>0.001sec).

Input: 1x HDMI 2.0 (up to 4Kp30), 1x 3G-SDI (up to 1080p60)
Output: 1x 3G-SDI (up to 1080p60)

Output: 1x HDMI 2.0 (up to 4Kp30), 2x 3G-SDI (up to 1080p60)

True HDR
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut. Send and receive Log-enabled camera signals with wide dynamic range in order to monitor and achieve balanced highlight and lowlight regions with accurate color reproduction.

Improved Wireless Performance
Reliable signal transmission and reception over 13x 40MHz frequencies, with upgraded hardware and less image break-up than previous Bolt generations. Faster reconnection times, automatic signal quality switching, and a more robust frequency hopping algorithm. An additional 5GHz radio frequency link is available for high-traffic locations with excessive interference from other wireless devices.

Send Signal up to 6 Receivers
Link up to 6 RX receivers to any 1 TX transmitter to enable multiple points of viewing.

Lightweight Body with Versatile Mounting
TX Mounting: M3 / 1/4"-20
RX Mounting: M3 / 1/4"-20 / 3/4"x16

Universal Cross-Compatibility between all Bolt 4K Devices
Send or receive signals between any Bolt 4K series of devices for expanding workflow requirements.

Camera Metadata
Transmit metadata, timecode, and start/stop flags from most camera manufacturers.

Bolt App for Android and Apple iOS
Remotely pair any TX/RX devices, manually designate specific 5GHz channels, and monitor interference with the 5GHz Spectrum Analyzer and Wireless Health analysis tools.

  • Features:

    • Includes: 1 TX & 1 RX
    • Video: Up to 4Kp30 / 1080p60
    • Range: 1500 ft.
    • Inputs: HDMI 2.0, 3G-SDI
    • Outputs: HDMI 2.0, 3G-SDI
    • Multicast: Up to 6 RX
    • Compatibility: All Bolt 4K Series TX/RX Devices
  • Item Includes:

    • 1x Bolt 4K LT TX 1500
    • 1x Bolt 4K LT RX 1500
    • 1x Teradek Case L
    • 1x Light Stand Adapter 1/4P-20
    • 1x Hot Shoe Adapter
    • 2x Ultra Thin HDMI Male Type A (Full) to HDMI Male Type A (Full) Cable - 18in
    • 1x 2pin Connector to PowerTap Cable (P-Tap/D-Tap) - 18in
    • 1x Micro-USB (5pin) to USB Cable (Firmware Cable) - 36in
    • 2x 3G-SDI (BNC to BNC) Cable - 10in
    • 1x 18 Watt AC Adapter Cable (2-Pin Connector) - 6ft
    • 7x Antenna (2dBi WIFI 2.4/5.8GHz, Small)
