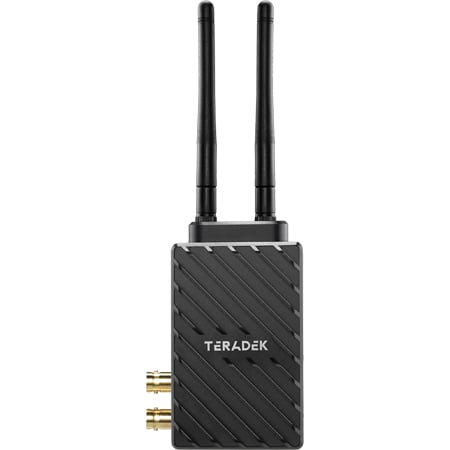

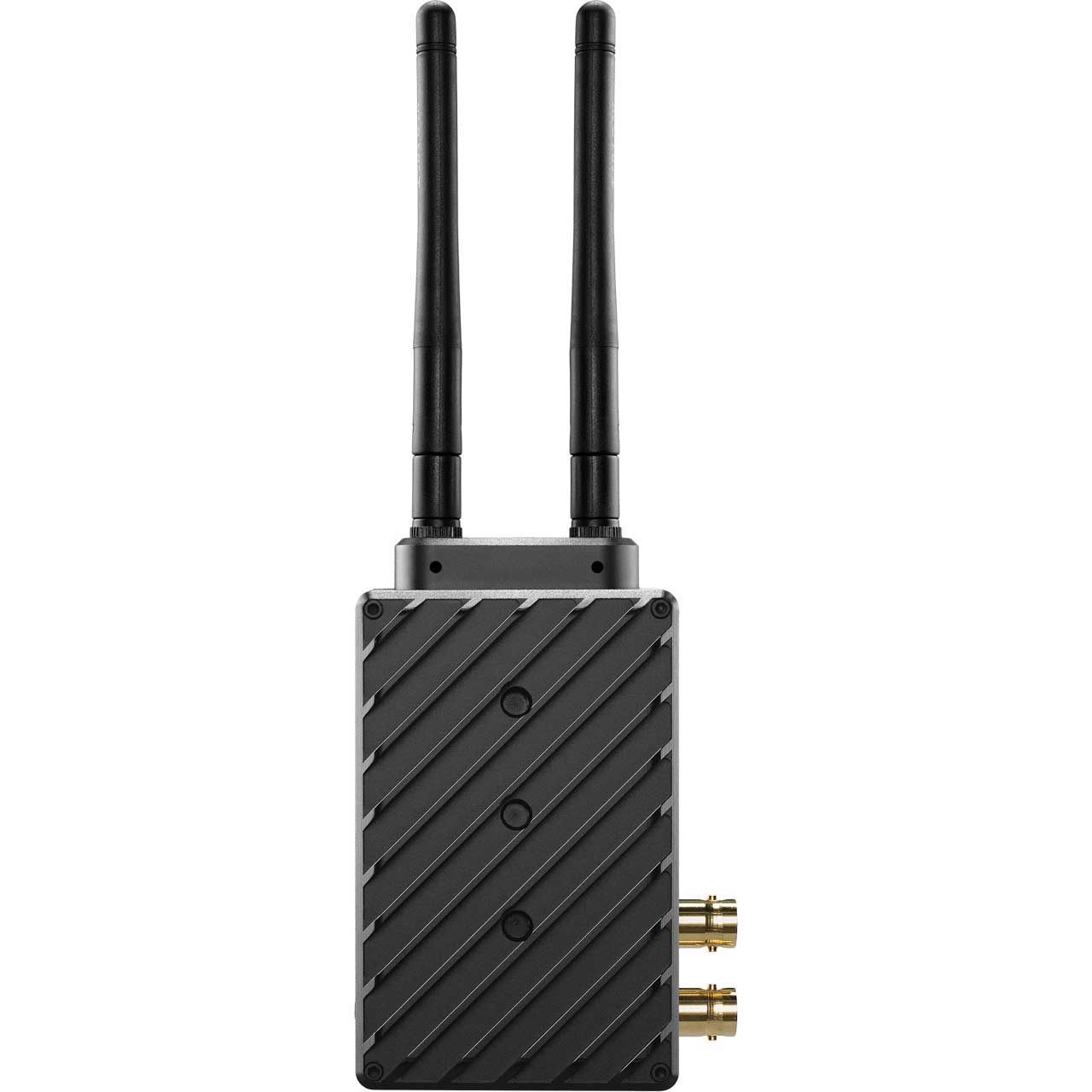

Teradek Bolt 6 LT 1500 Wireless Video Transmitter with No Battery Mount

ITEM #: TER-BLT6LT1500TX MFG #: 10-2271

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    10-2271 - Overview

    Teradek Bolt 6 LT 1500 is a Wireless Video Transmitter with No Battery Mount. The Bolt 6 XT TX is a real-time wireless video transmitter that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. This transmitter allows you to send color accurate, True HDR videos in under 0.001 seconds.

    Bolt 6 XT has been redesigned to seamlessly fit into your setup, with a smaller, lighter-weight build that runs cooler and 50% quieter than the Bolt 4K. An integrated 5-pin USB port allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors, and an improved long range wireless video mode. Bolt 6 also offers new tools for high-end users to have better visibility over their connections and signals, adding confidence to the workflow no matter how challenging the environment.

    The Transmitter is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

    Bolt 6 XT offers three line-of-sight options: 750 ft., 1500 ft., and the MAX Set, which can be configured for up to 5,000+ ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

    • Features:

      • Zero Delay
      • 6GHz Wireless Frequency Access
      • Bolt 4K Cross-Compatibility
      • Improved Long Range Mode
      • Inputs: HDMI, 3G-SDI
      • Outputs: HDMI, 3G-SDI
    • Specifications:

      • Video
      • Video Inputs: 3G-SDI SMPTE 424M standard/75Ω (BNC x 1) 1 x HDMI 1.4b Type-A receptacle
      • Video Outputs: 3G-SDI SMPTE 424M standard/75Ω (BNC x 1)
      • SDI Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
      • Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
      • Delay Tx To Rx: <0.001sec
      • Input Cross Conversion: Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout)

        Supported Resolutions
      • 4Kp23.98/24/25/29.97/30 (HDMI only)
      • 1080p23.98/24/25/29.97/30/50/59.94/60
      • 1080psf23.98/24/25/29.97/30
      • 1080i50/59.94/60
      • 720p50/59.94/60
      • 480p59.94 576p50
      • 480i(NTSC)/576i(PAL)

        Video Processing
      • Video Compression: Visually Lossless
      • Color Correction: None

        Audio Processing
      • Audio Compression: 48kHz 24-bit PCM

      • Audio Input: Embedded SDI/HDMI Audio Input (2 Channel)

      • Dimensions: 2.36 x 4.05 x 1.30"
      • Weight: 206g (7.3oz)
      • Construction: Milled Aluminum(Chassis) and regulation-compliant PCB

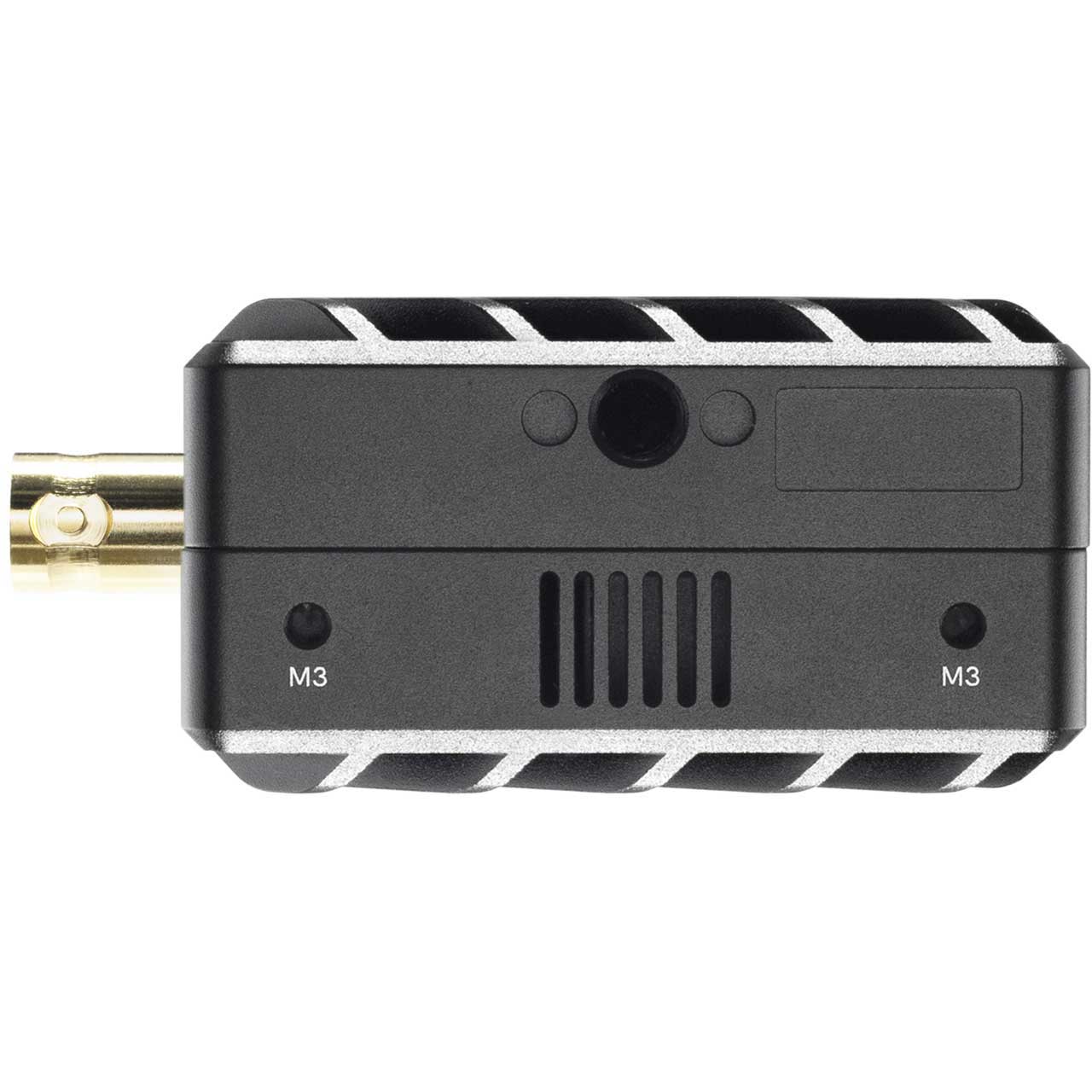

      • Mountability: Multiple mounting options with 1/4"x20 and M3 holes

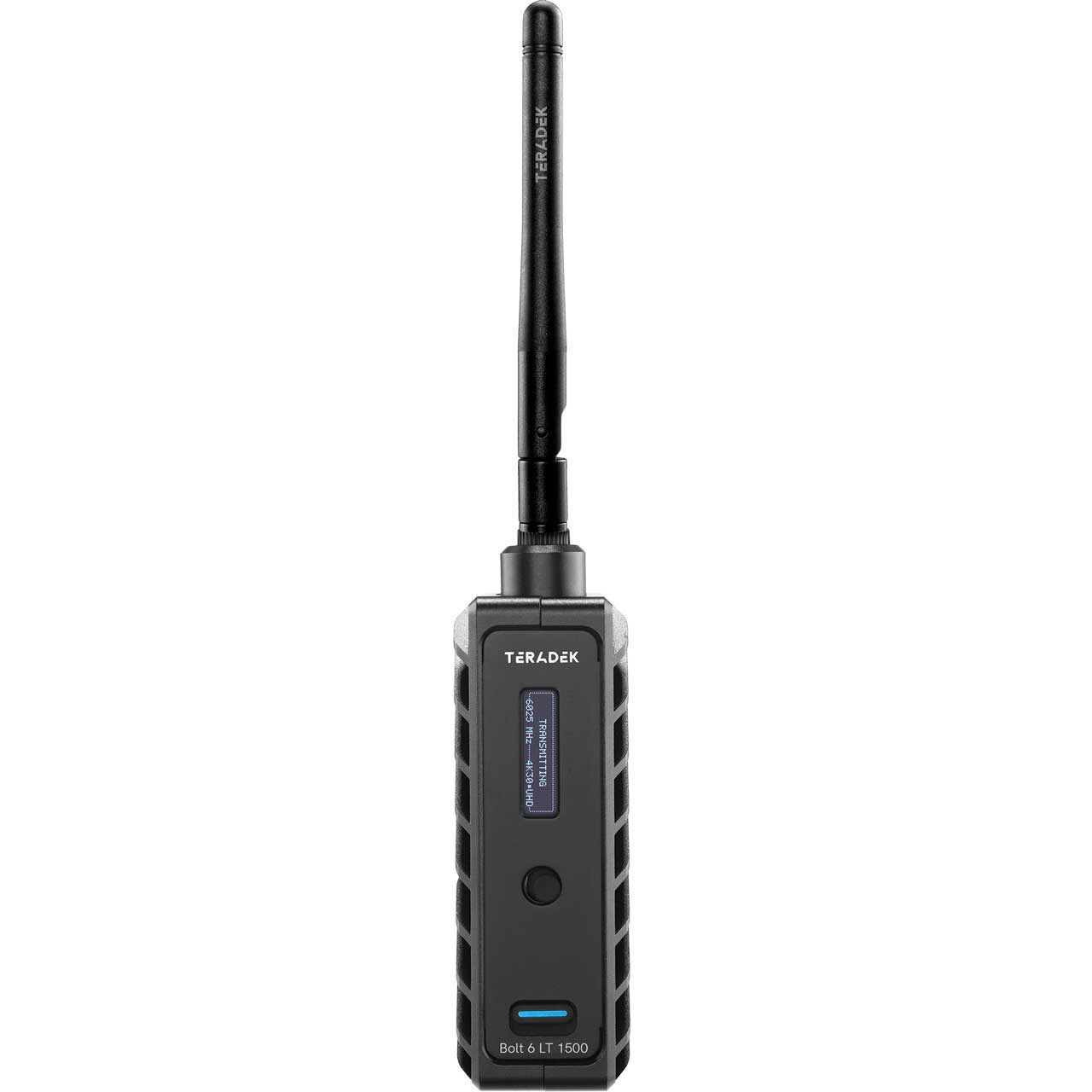

      • Configuration Interfaces: OSD with Menu, Joystick Navigation
      • Switches: On/Off Switch
      • Mobile App: Bolt App
      • Desktop App: Bolt Manager application for OSX & Windows
      • USB Interface Functionality: Upgrade via Micro-USB
      • Bluetooth: 2.4 GHz

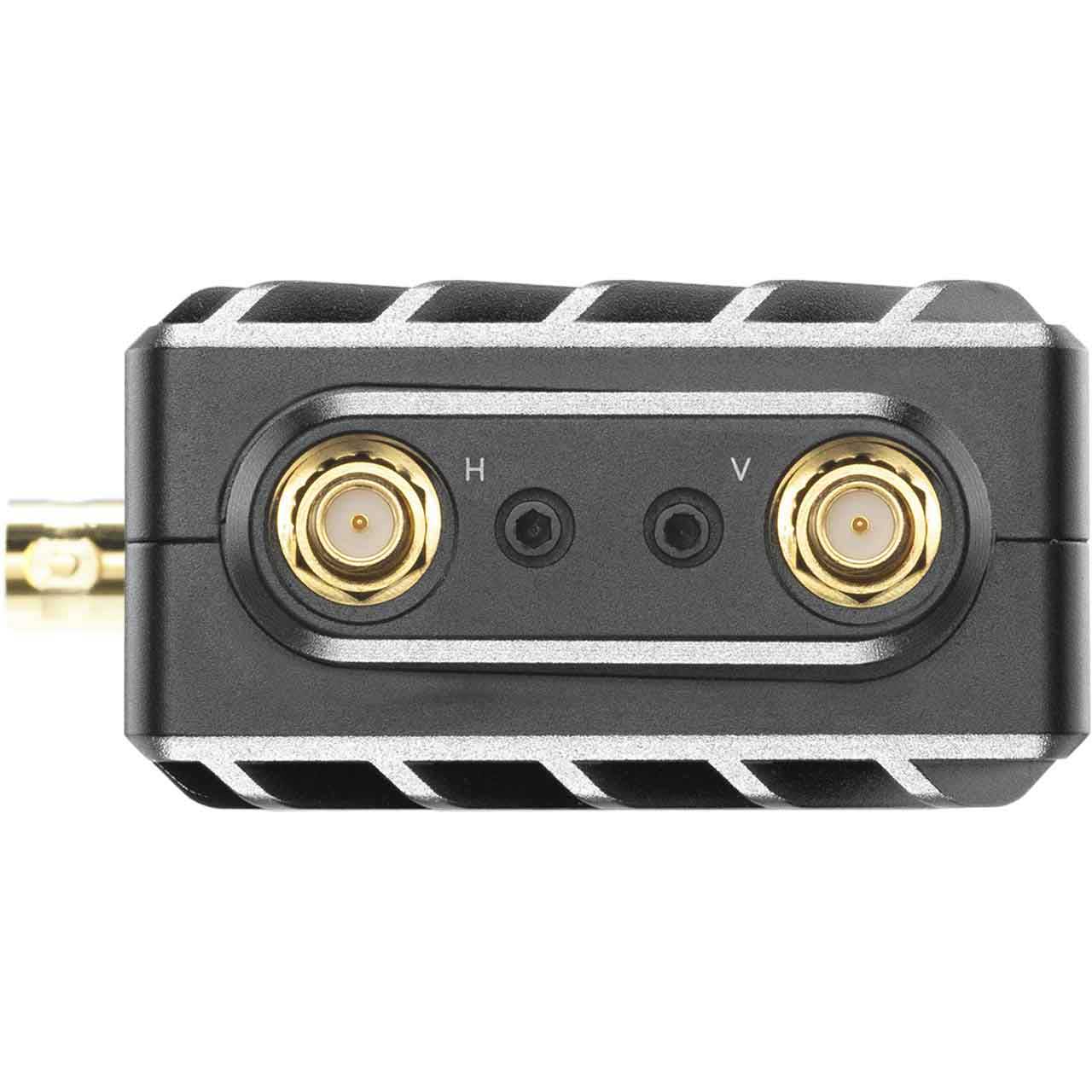

      • Antennas: 2 External 2dBi antennas (included)

      • Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
      • DFS Frequencies: 5.270 ~ 5.670 GHz
      • Rf Channel Selection: Auto, Manual
      • Encryption: AES-256, RSA-1024 key exchange
      • Rf Power: 23 dbm EIRP
      • Range: Up to 1500 ft, line of sight
      • Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
      • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones. Can operate up to 6 sets in same location
      • Interoperability: Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)

      • Power Input: 2-Pin Circular locking Connector 6-28 VDC
      • Battery: None, optional Sony/Canon dual battery plate

      • Operating Temperature: 32° to 104°F
    • Item Includes:

      • 1x Bolt 6 LT 1500 TX
      • 1x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable
      • 1x SDI - BNC to BNC Cable, 10in
      • 1x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in/46cm Cable
      • 1x PSU 2pin Conn. to 18W AC Adapter (Int) - 6ft Cable
      • 1x USB Male Type A (Full) - USB Male Type B (Micro) -3ft Cable
    • GTIN:
