Teradek CUBE-705 H.265 HEVC/AVC Encoder SDI/HDMI GbE USB

ITEM #: TER-CUBE-705 MFG #: 10-0715

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TER-CUBE-705

10-0715 - Overview

What is HEVC?

HEVC, also known as H.265, is a next-generation compression standard that offers a number of enhancements over H.264. Compared to AVC (H.264) compression, HEVC is 50% more efficient, which translates into maintaining the same video quality at half the bitrate or double the video quality at the same bitrate.

The new Cube 700 and Slice 756 series

The new Cube 700 and Slice 756 series bring the latest in compression technology at a size and price point never before seen.

What makes HEVC Cube and Slice unique

Can use both HEVC (H.265) and AVC (H.264) High Profile compression
Compatible with Core transcoding engine. This allows you to take advantage of HEVC encoding when streaming to Core, while delivering your content in AVC to your destination.
Dual input (HDMI + 3G-SDI)
Compatible with the new Bond expansion module, allowing you to turn your Cube 700 series into a professional bonding solution
GigE and 2.4 / 5Ghz 802.11ac WiFi built-in
Bitrate support up to 30Mbps
Streaming resolution support up to 1080p60
Compatible with T-21, Sencore, and Vitec HEVC decoders
Uses just 6W of power

What can Cube and Slice codecs do?

Stream to any online video platform, such as Facebook, Youtube, Twitch, Periscope, and more.
Stream point-to-point to decoders over the internet or on local networks with latency as low as 80ms
Comprehensive protocol support: MPEG-TS, RTSP, RTMP, HLS, TDS
Monitor your live video feed on an iOS device for confidence or local configuration
Turn your camera into a wireless video feed for Teradek’s Live:Air iOS switcher application

  • Features:

    • Real-Time H.265(HEVC) and H.264(AVC) Encoder
    • Ethernet and USB Interfaces (No WiFi)

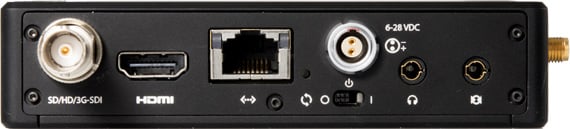

    • HDMI and SDI Video Inputs
    • Camera Top Form Factor
    • Built-In Color Grading
    • On-Board SD Card Recording
    • Two-Pin LEMO-Type Power Input
  • Item Includes:

    • Teradek Cube 705 HEVC/H.264 HD Encoder
    • 2-Pin Connector to 18W AC Power Adapter
    • Ethernet Cable
    • SDI Cable (10")
    • HDMI Cable (36")
    • Shoe Mount
    • Limited 1-Year Warranty
  • GTIN:
