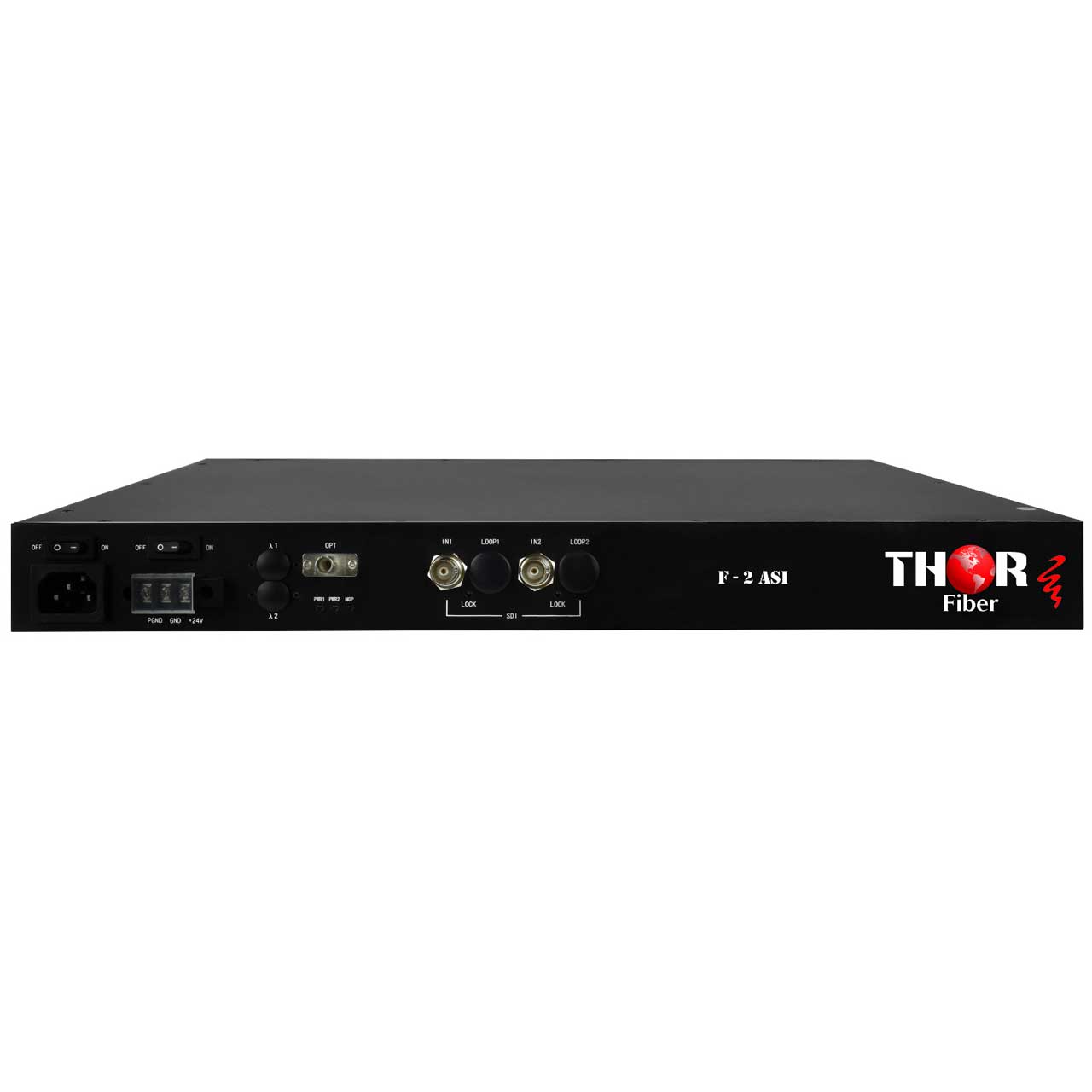

Thor F-2ASI 2 Channel DVB-ASI Fiber Optic Tx & Rx
  • Thor F-2ASI 2 Channel DVB-ASI Fiber Optic Tx & Rx
  • Thor F-2ASI 2 Channel DVB-ASI Fiber Optic Tx & Rx

Questions? Ask a Markertek Expert:
800-522-2025 Email

Thor F-2ASI 2 Channel DVB-ASI Fiber Optic Tx & Rx

Manufacturer: Thor Fiber

Item #: THR-2ASI   •   MFG #: F-2ASI



List Price:$3,743.75
Our Price:$2,995.00

free ship


Availability:
Direct Ship from manufacturer, contact us for availability
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

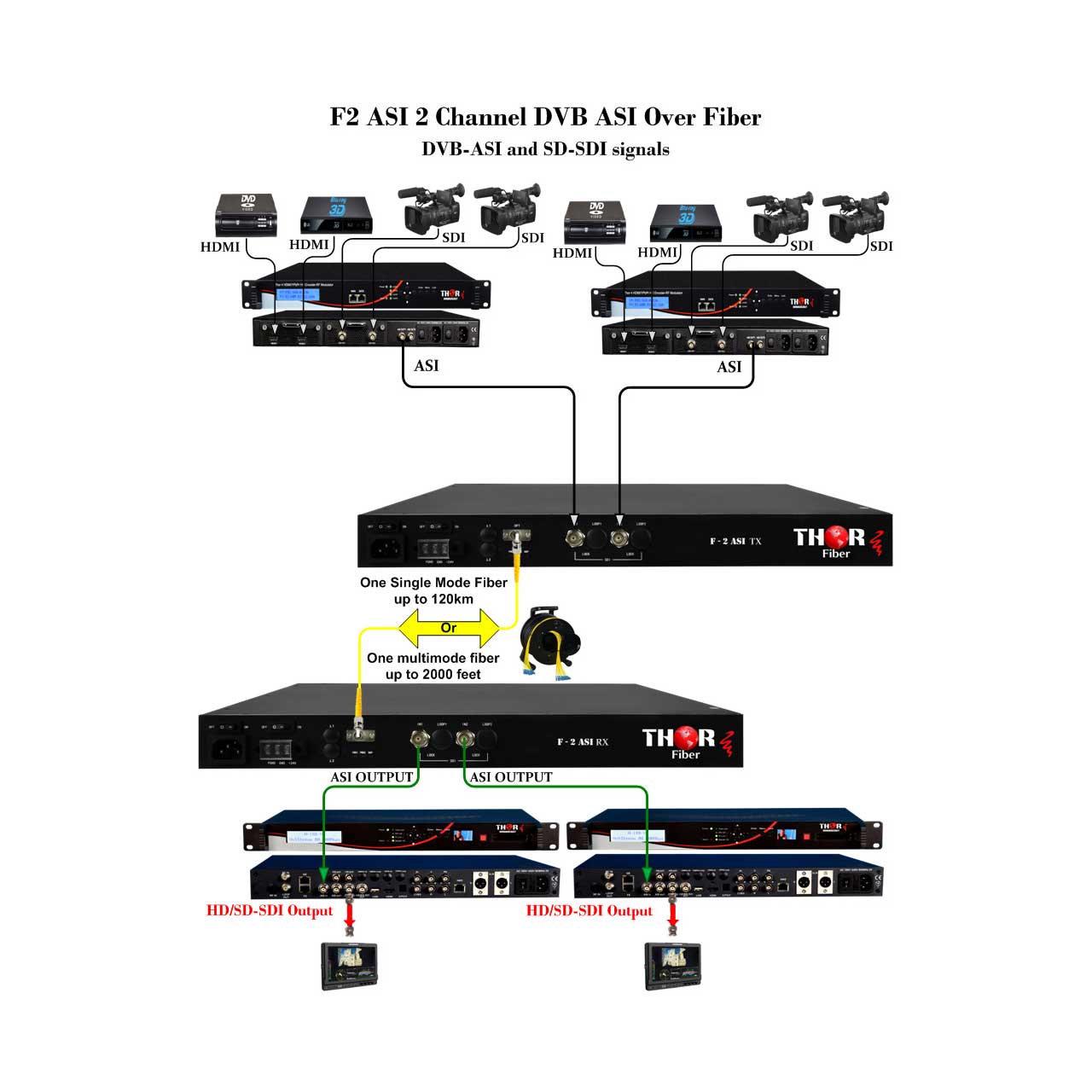

    The F-2ASI is a fiber optic transmitter and receiver set for 2 full rate DVB-ASI Broadcast signals. This is their standard ASI over fiber transport platform for the broadband and broadcast industry. The F-ASI systems are used in various applications for extending ASI over fiber to remote locations over singlemode fiber. They are ideal for delivering contribution feeds, or for STL links. ASI fiber optic transport is based on the conversion of the transport streams digital band to an optical carrier signal which can be broadcast at distances of up to 120 Km. The unit can be single, dual, or have up to eight independent multiplexed channels. The standard connector input for the ASI signal is a BNC connector however other connectors may be used if specified. Compatible with any rate DVB-ASI signal regardless of format or number of programs. They offer both compact and rackmount units. The optical connections can be configured for SC, SC(APC), ST, or FC connectors. The F-ASI features easy to read diagnostic LED's for system and link status.


    • Features

      • Paired TX+RX for 2 full rate 270 Mbps DVB-ASI with 25 dB optical loss budget
      • Designed and Manufactured in California by Thor for Broadcast applications
      • Temperature controlled chassis with laser optic stabilization system
      • Full 270 Mbps Channels on separate CWDM lasers with internal multiplexers
      • Reliable rack platform with redundant systems for mission critical links

    • Specifications

      • Inputs: DVB-ASI, MPEG-TS Over IP
      • Supported Coedec: MPEG-2 4:2:0 [email protected], MPEG-2 4:2:2 [email protected]
      • Outputs: CVBS, SD-SDI, S-Video
      • Video Format: MPEG-2 4:2:0 [email protected]
      • Video Standards: NTSC and PAL
      • Audio Output: 2 x Analog Stereo (Balanced XLR), 2 x AES/EBU outputs (optional)
      • Audio Format: MPEG-1 Layer I, MPEG-1 Layer II
      • Sampling Frequency: 32KHz, 44.1KHz, 48KHz
      • Control: Front Panel Control, 10/100BASE-T Ethernet control port, RJ-45
      • Remote Interface: SNMP and HTTP control
      • Dimensions: 44mm x 483mm x 530mm (1.75" x 19" x 21")
      • Weight: 10lb
      • Power Input: 100-120VAC or 220-240VAC
      • Power Consumption: <= 50W
      • Operating Temperature: 41° F to 104° F
      • Storage Temperature: 14° F to 158° F
      • Humidity: 80% non condensing

    • Item Includes

      • Broadcast Decoder
      • US Power Cable
      • User Manual

    • GTIN:

      0799599222282
