AJA OG-FiDO-2T-12G openGear 2-Channel 12G-SDI to Single-Mode LC Fiber Transmitter

ITEM #: AJA-OG-FIDO2T12G MFG #: OG-FIDO-2T-12G

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$1,659.00

Availability: In Stock
iAvailability Description Popup


    OG-FIDO-2T-12G - Overview

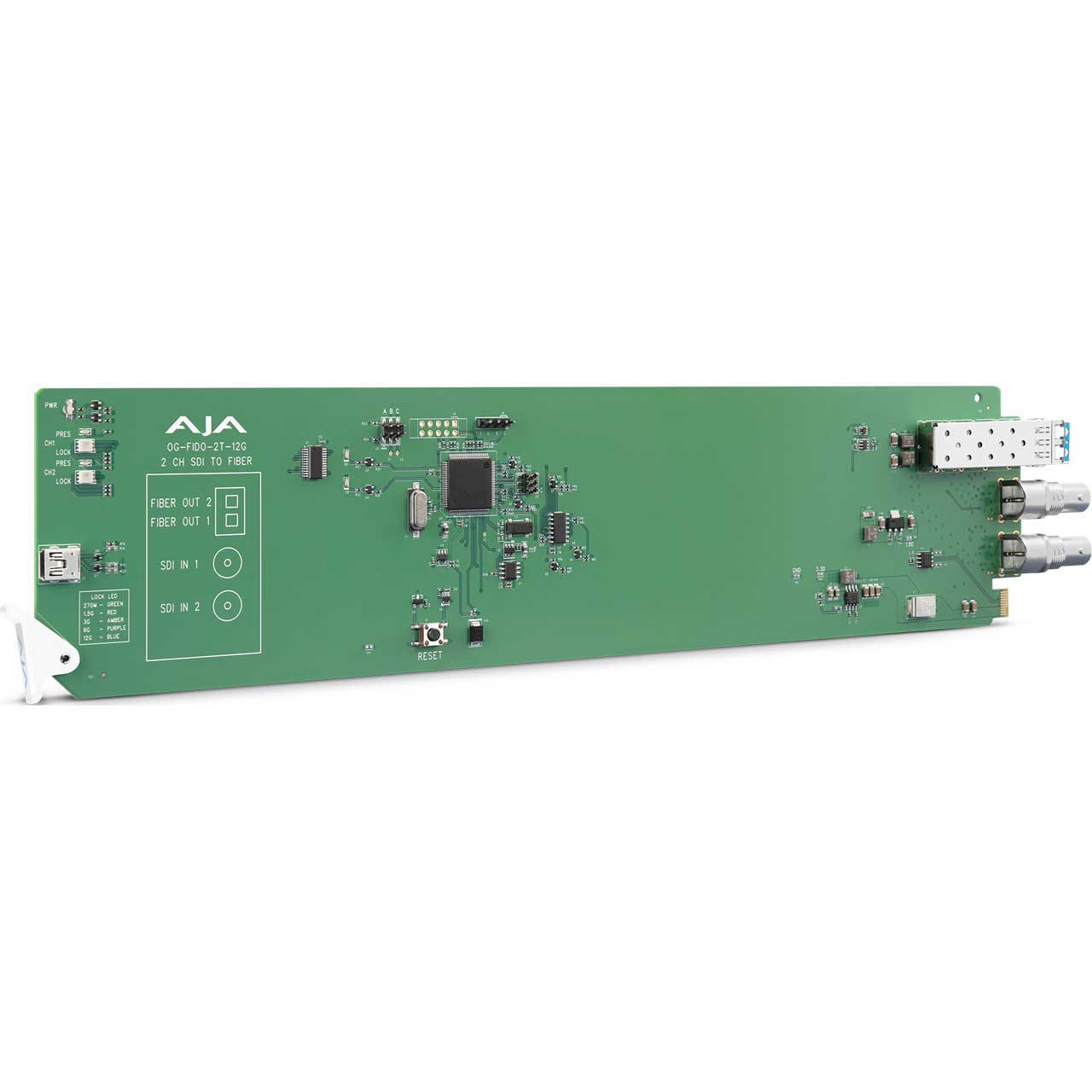

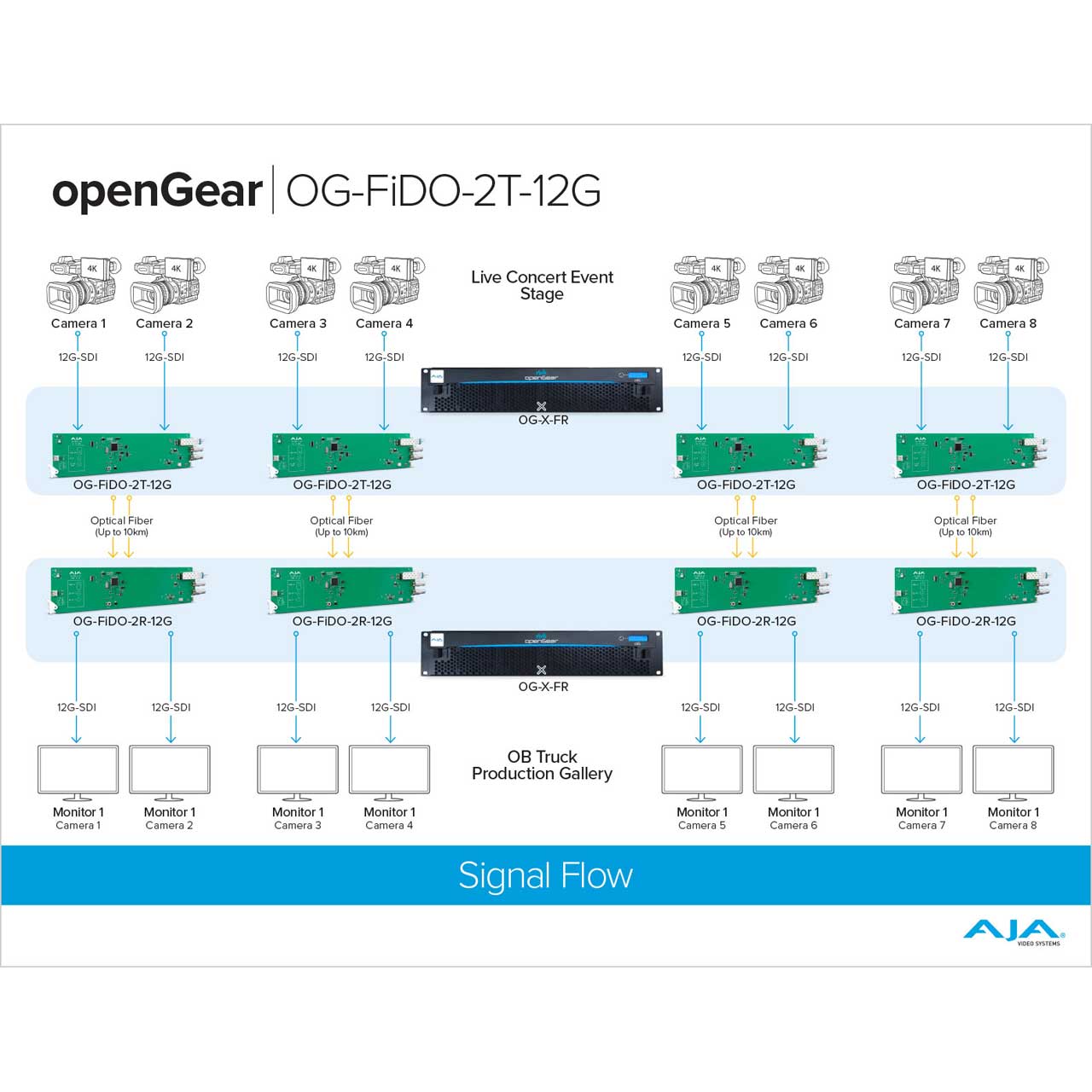

    The OG-FiDO-2T-12G is a state of the art, openGear compatible, 2-channel 12G-SDI to Fiber converter, enabling 12G-SDI signals to be extended up to 10 km (32,808 ft) over standard single mode fiber optic cable. The two 12G-SDI inputs are completely independent, allowing different 12G-SDI rates to be carried on each channel.

    Designed for use in high density openGear's 2RU frames including AJA's OG-X-FR frame, new DashBoard Software support on Windows®, macOS®, and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring, and control options over a PC or local network.

    Connectivity
    The 12G-SDI input is reclocked with best in class input jitter tolerance. All 12G-SDI input and output support, which includes 6G/3G/HD/SD-SDI. Supports single mode fiber cable.

    openGear Compatibility
    The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.

    Flexible I/O
    The modular rear panel allows custom I/O connections per card (included with individual cards).

    Failsafe
    The optional redundant power supply provides a secondary power source in the event of a primary power failure.

    Ethernet Access
    A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

    DashBoard Software
    DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows, and Linux.

    AJA Mini-Matrix
    Information on the complete line of AJA Rackframes and cards are now available in the Mini-Matrix mobile app on iOS. AJA products are extensive and this app helps you find the right converter for any situation, wherever you are.

    Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.

    • Features:

      • Monitor via openGear DashBoard software
      • Support for HDR - High Dynamic Range video
      • Input Present and Input SMPTE Lock LEDs
      • Automatic detection and reclocking
      • Hot-swappable
      • Appropriate Fiber SFP included
      • Rear I/O card included
      • Two slots required for each card
      • Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames

    • Specifications:

      • Video Formats: 270 Mbps - 12 Gbps, format agnostic
      • Video Input Digital: 2-channel independent 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082
      • Video Output Digital: 2-channel independent 12G-SDI Single Mode LC Fiber connectors, SMPTE 297/259/292/424/2081/2082
      • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
      • Optical Power: -5 dBm (min), 0.5 dBm (max)
      • Extinction Ratio: 3.5 (min)
      • Reclocking: 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select. All other rates are passed through and not reclocked
      • User Interface: openGear DashBoard network control software via Windows, macOS or Linux
      • Size: openGear standard form factor, front slot and rear card. Two slots required for each card.
      • Weight: 0.5Lbs (0.3kg)
      • Power: openGear frame compatible, 3.0 watts max per card
      • Safe Operating Temperature: 0° to 40°C (32° to 104°F)
      • Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
      • Operating Relative Humidity: 10 to 90% non-condensing
      • Operating Altitude: <3,000 meters (<10,000 feet)

    • Warranty:

      • 5 year warranty
