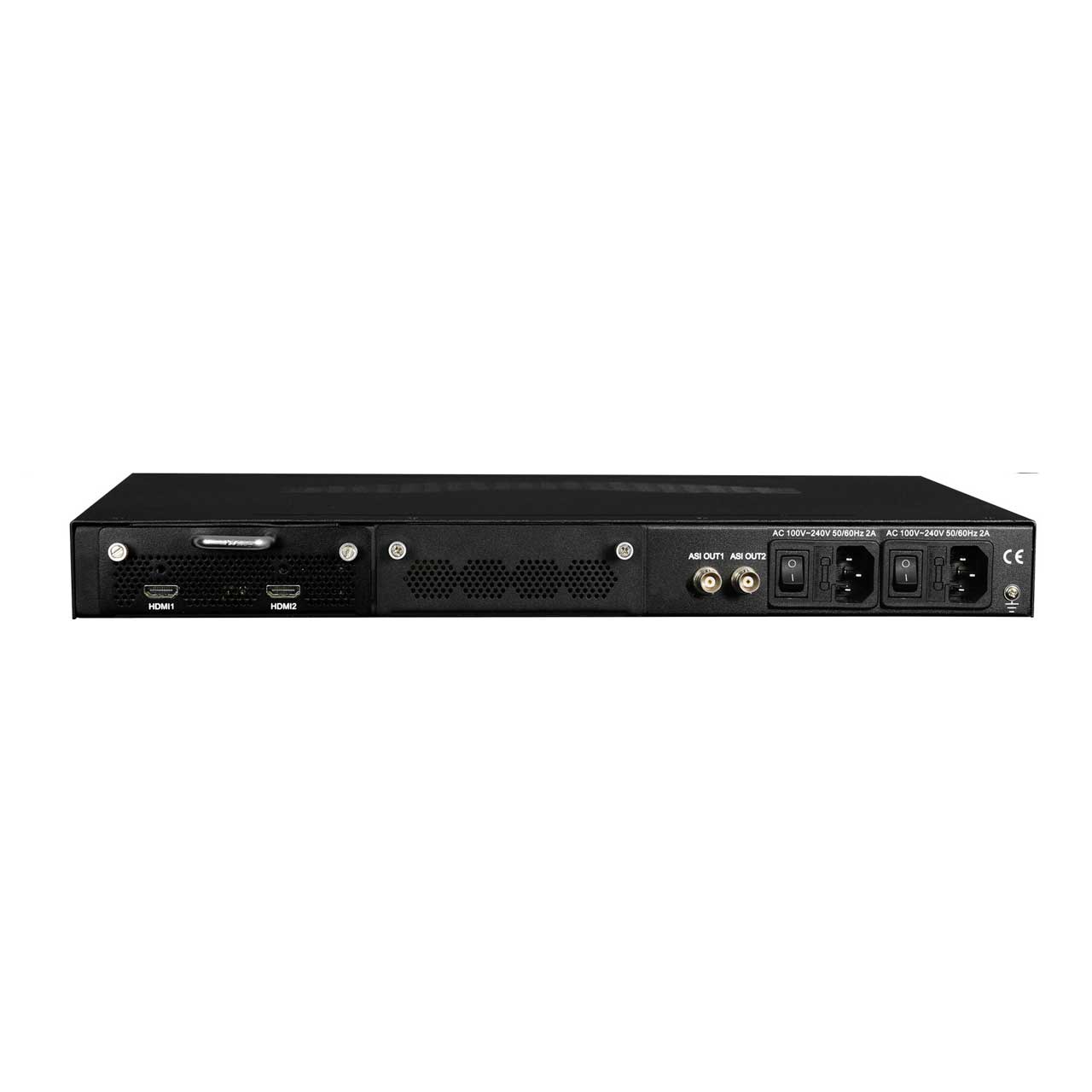

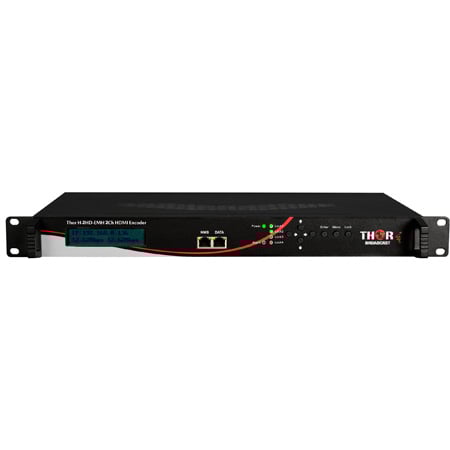

Thor Fiber H-2HD-EMH-AC3 HDMI Encoder with Dolby AC/3 & IPTV 2 Ch

Manufacturer: Thor Fiber

Item #: THR-2HD-EMH-AC3   •   MFG #: H-2HD-EMH-AC3


List Price:$4,062.50
Our Price:$3,250.00

free ship
Direct Ship from manufacturer, contact us for availability
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.

    California Residents:
    Cancer and Reproductive Harm -


    Highly reliable 2 channel broadcast encoder with HDMI inputs designed for North American television systems. This version provides support for MPEG-2 standard with Dolby AC/3 audio encoding for broad compatibility. Encodes programs to CBR or VBR H.264 or MPEG-2 transport streams on ASI and IP outputs. Features dual hot stand by power supplies to ensure system uptime and reliability. IP output is in standard IPTV format as UDP or RTP unicast or multicast with IGMP support. Both individual SPTS single program streams and an MPTS multi program stream are provided on unique IP streams. All PIDs and program information values can be configured to customize the encoded programs names and IDs. Accepts any HDMI compatible uncompressed digital video input up to 1080p60. Mirrored ASI outputs are provided for added flexibility when integrating with other broadcast equipment such as modulators or decoders. This platform is ideally suited as a high density ingest & encoding solution for broadcasters needing to transport, distribute, or archive live HDMI video.

    • Features

      • 2 Ch HDMI Encoder & Multiplexer with ASI & IP Output
      • Licensed Dolby AC/3 Audio Codec for legacy support
      • Provides all program specific information & PID tables
      • Encodes full HD programs up to 1080p60 MPEG-2 or H.264
      • Full independent settings for each input video channel
      • Adjustable bit rate from 0.5 to 19 Mbps CBR and VBR
    • Specifications

      • Input Resolutions: 1080p, 1080i, 720p
      • Video Codecs: MPEG-2, H.264
      • Audio Codecs: MPEG1/2 Layer1/2, AAC, AC3
      • Video Bit Rates: 0.5 - 19 Mbps
      • IP Output: UDP/RTP MPTS, SPTS
      • Dimensions : 480 x 455 x 45 mm
