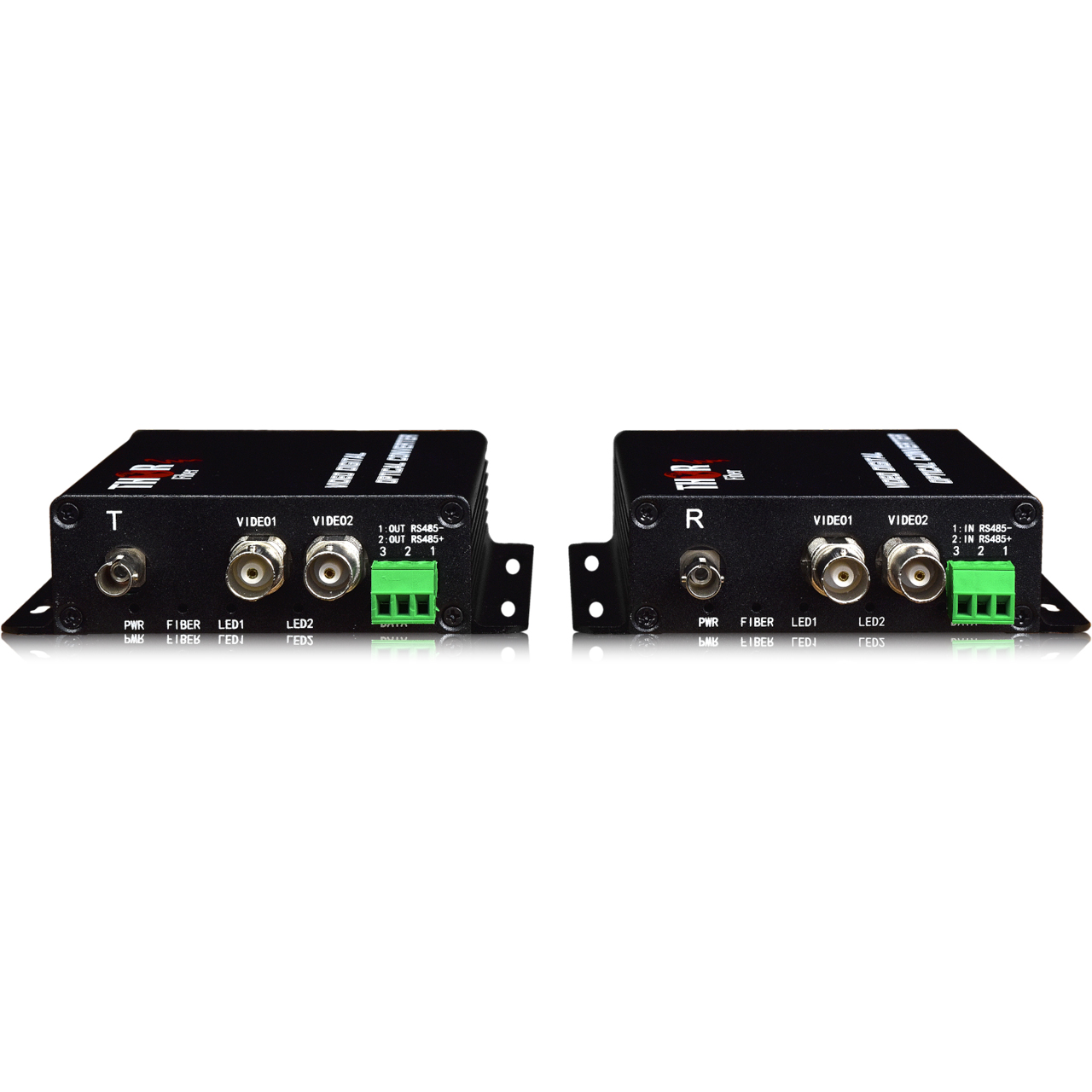

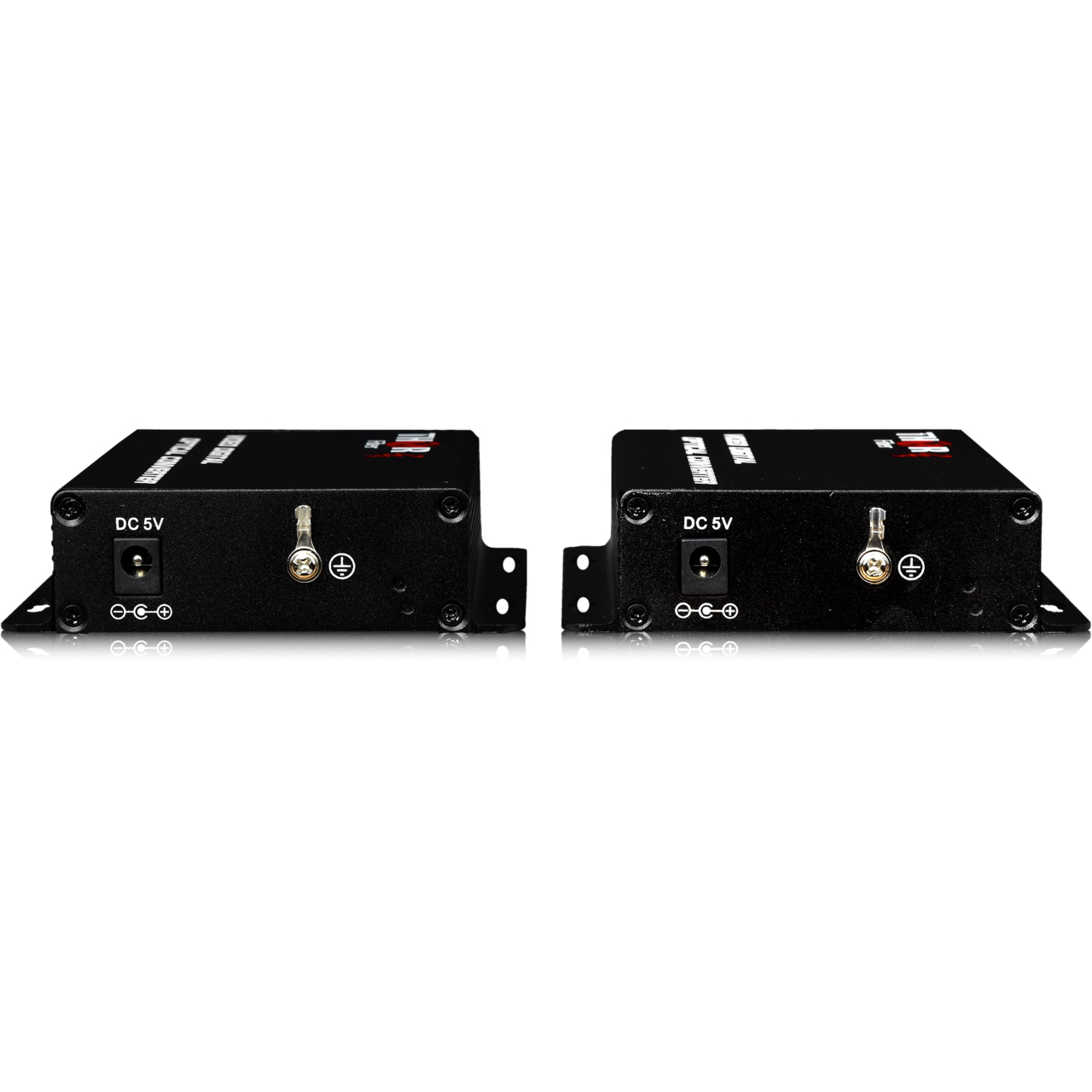

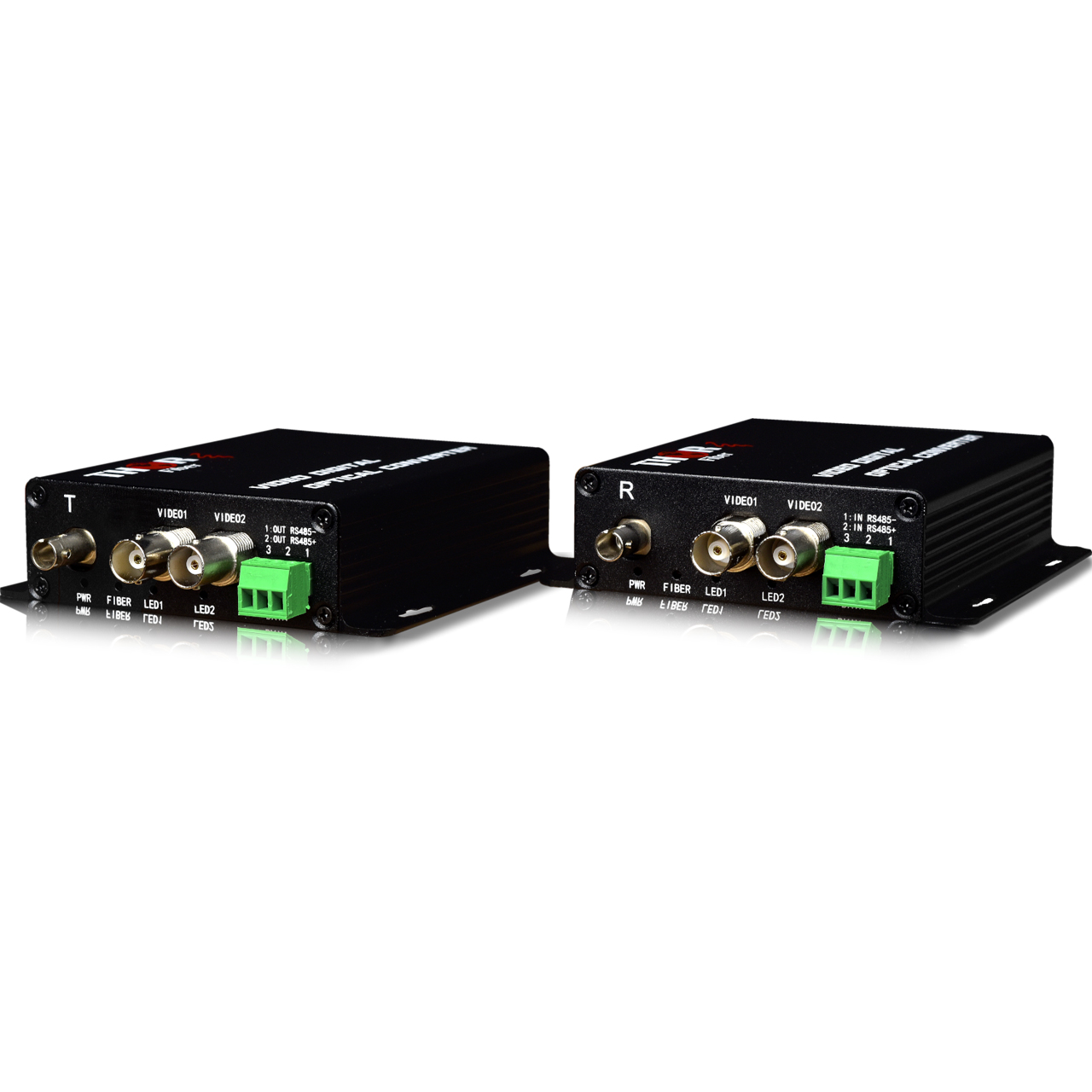

Thor Fiber F-2VD-TXRX 2-Ch Forward CVBS Video and Return RS485 Over Fiber Tx/Rx Kit - ST/PC -12 Mile Range

ITEM #: THR-F-2VD-TXRX MFG #: F-2VD-TXRX

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$714.00

Our Price:

$595.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


F-2VD-TXRX - Overview

Designed for demanding environments like security and broadcast, the Thor Fiber F-2VD-TX/RX fiber-optic transmitter and receiver kit combines video and data in a compact form. It supports 2 X CVBS analog video transmission along with RS485 data for camera control on the same fiber link. Using WDM, it operates at 1300nm for video and 1550nm for RS485, offering stable performance for applications like digital signage and CCTV

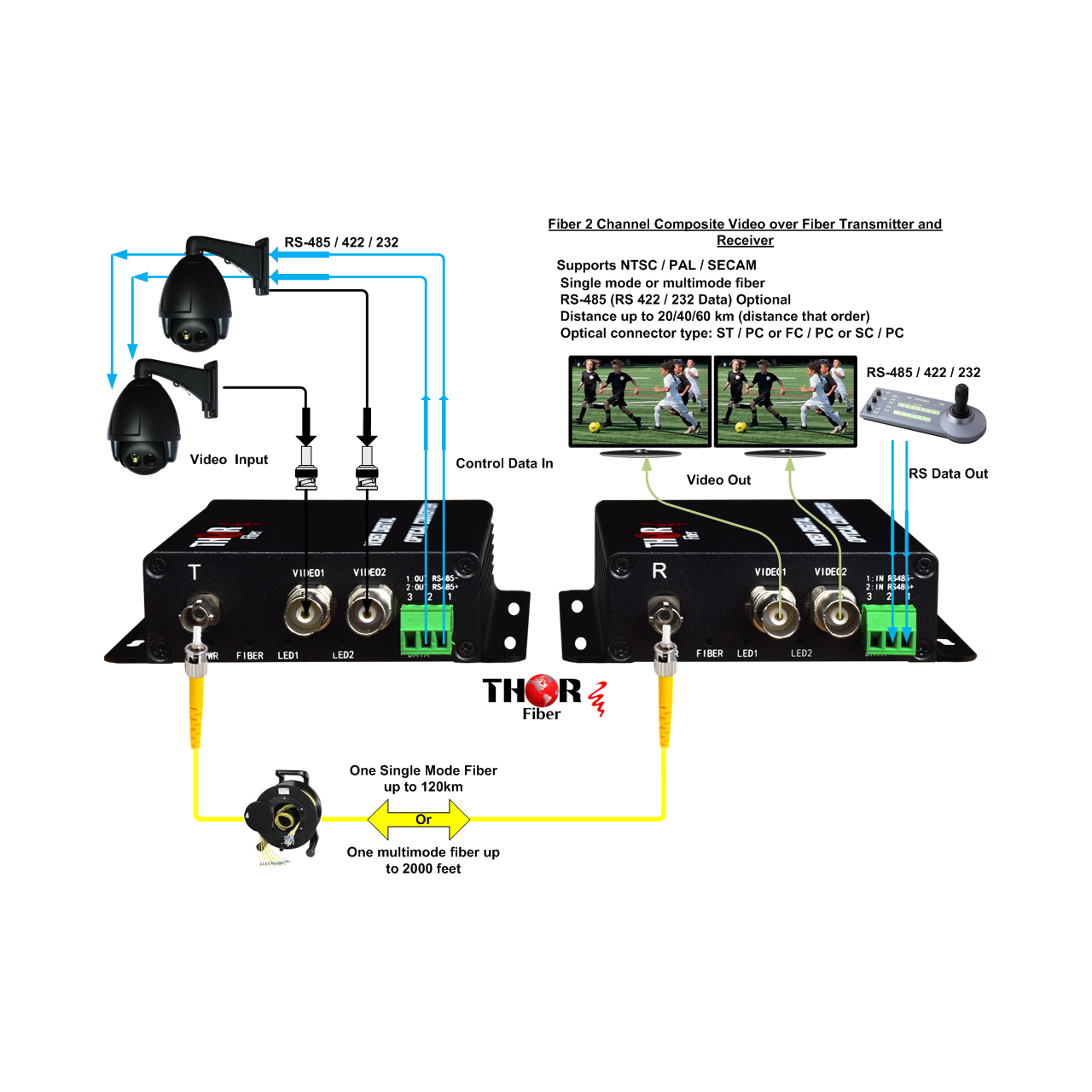

This device, the F-2VD-TX/RX, can send 2 separate CVBS baseband analog video in NTSC or PAL format from the transmitter to the receiver over fiber. It also allows control data to be sent from the receiver to the transmitter, enabling a video device, like a camera, to be remotely controlled from the receiving location.

  • Features:

    • 2 CVBS kit over Fiber
    • Up to 12.42 Miles (20km) of Singlemode Fiber or 3000Ft of Multimode Fiber
    • Led Lights
    • RS485 control
    • ST/PC Connectors
    • Compact Form Factor
    • Includes Power Supplies

  • Specifications:

      Video
    • Bandwidth: 8.0MHz
    • Quantization: 10 - bit
    • DG: 1% typical
    • DP: 1 typical
    • SNR: > 67dB

      Audio
    • Bandwidth Per Channel: 20Hz - 20kHz
    • Quantization: 24 - bit
    • SNR: > 75dB
    • THD: < 0.1%

      Data
    • Interface Type: RS-232/485/422, Manchester, Biphase
    • Operation Mode: Full-duplex/Half-duplex
    • Data Rate: D<10-9

  • Item Includes:

    • 1x Thor Fiber F-2VD-TXRX 2-Channel Forward CVBS Video and Return RS485 Data Over Fiber Transmitter
    • 1x Thor Fiber F-2VD-TXRX 2-Channel Forward CVBS Video and Return RS485 Data Over Fiber Receiver
    • 2x US Power Cord

  • Warranty:

    • 5 Year Limited Warranty
