Thor Fiber F-8VD-TXRX 8-Ch Forward CVBS Video and Return RS485 Over Fiber Tx/Rx Kit - ST/PC - 12 Mile Range

ITEM #: THR-F-8VD-TXRX MFG #: F-8VD-TXRX

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,194.00

Our Price:

$995.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


F-8VD-TXRX - Overview

There are many high end security cameras out there that still shoot in standard composite video. The Thor Fiber F-8VD-TxRx is designed to extend the life of this equipment, add range and distance to the camera's and help assist with lower cost solutions versus HD-SDI options. Thor's fiber optic security transmitters still use the same high end 10 bit digital encoding that our broadcast transmitters use, just in a less expensive chassis. We offer many different configurations and services with this line of products. In addition to video we can also carry data, Ethernet, telephone, or audio in the same unit. Speak with a sales representative today to discuss specific options and pricing. Our units come with standard singlemode optics with a transmitting distance of up to 20 km. Other options for special wavelength optics and power outputs are available upon request.

  • Features:

    • 8 CVBS kit over Fiber
    • Up to 12.42mi (20km) of Singlemode Fiber or 3000Ft of Multimode Fiber
    • Led Lights
    • RS485 control
    • ST/PC Connectors
    • Compact Form Factor
    • Includes Power Supplies

  • Specifications:

      Video
    • Video Input: 8 independent CVBS video Inputs
    • Video Connector: BNC 75Ω
    • Video Input/Output Format: PAL or NTSC or SECAM
    • Bandwidth: 8.0MHz
    • Quantization: 10 - bit
    • DG: 1% typical
    • DP: 1 typical
    • SNR: > 67dB

      Audio
    • Bandwidth Per Channel: 20Hz - 20kHz
    • Quantization: 24 - bit
    • SNR: > 75dB
    • THD: < 0.1%

      Data
    • Interface Type: RS-232/485/422, Manchester, Biphase
    • Operation Mode: Full-duplex/Half-duplex
    • Data Rate: D<10-9

  • Item Includes:

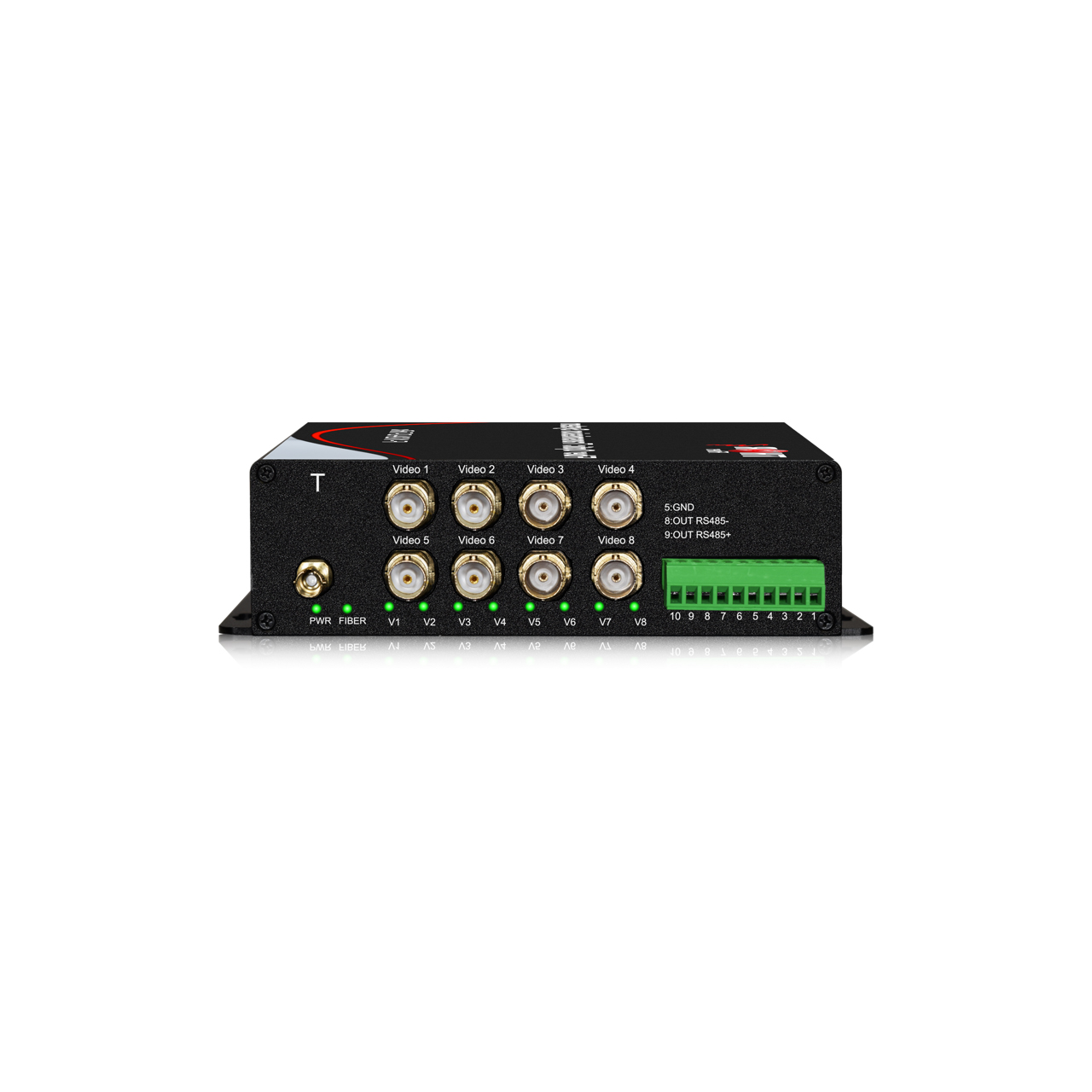

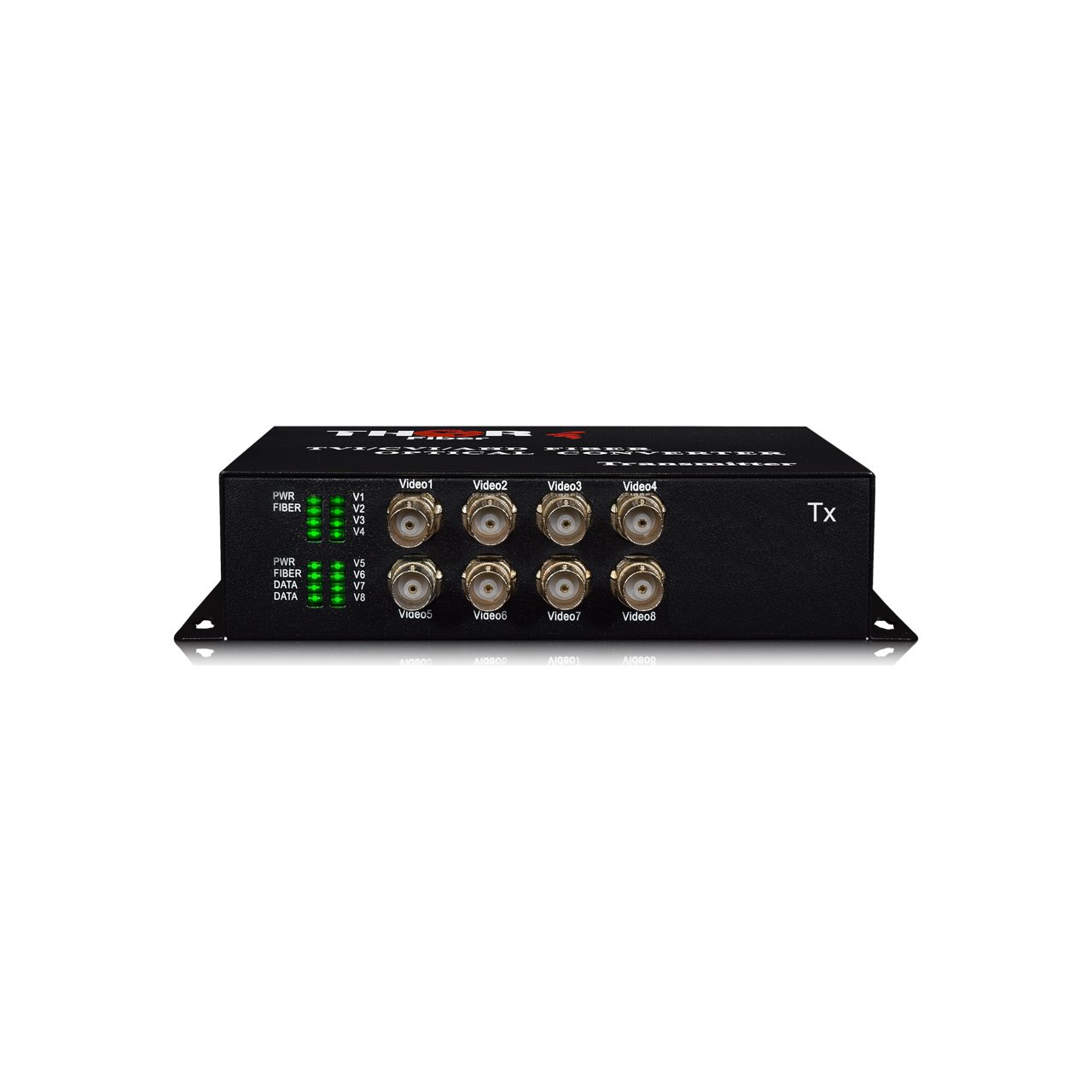

    • 1x Thor Fiber F-8VD 8-Channel Forward CVBS Video and Return RS485 Data Over Fiber Transmitter

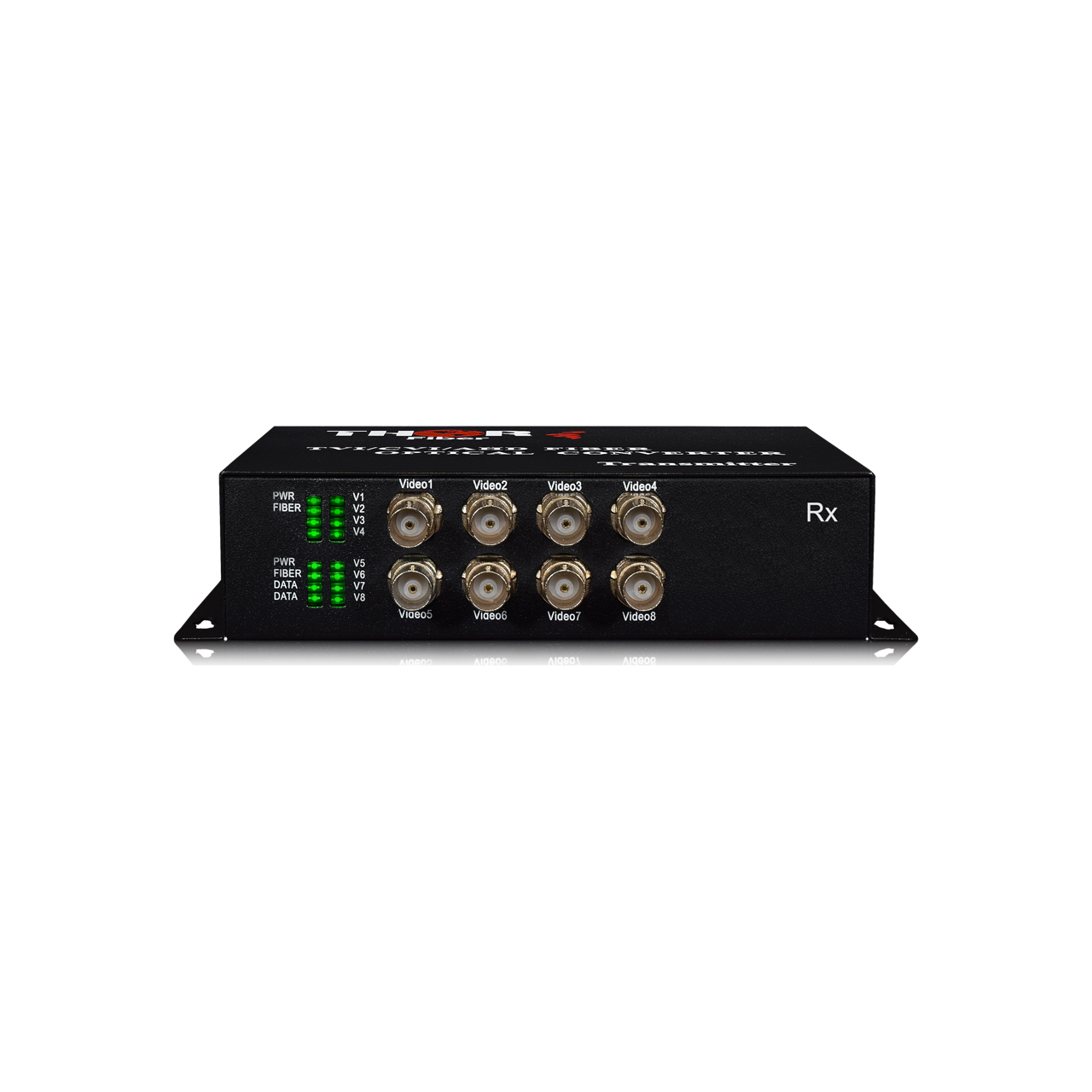

    • 1x Thor Fiber F-8VD 8-Channel Forward CVBS Video and Return RS485 Data Over Fiber Receiver
    • 2x US Power Cord

  • Warranty:

    • 5 Year Limited Warranty
