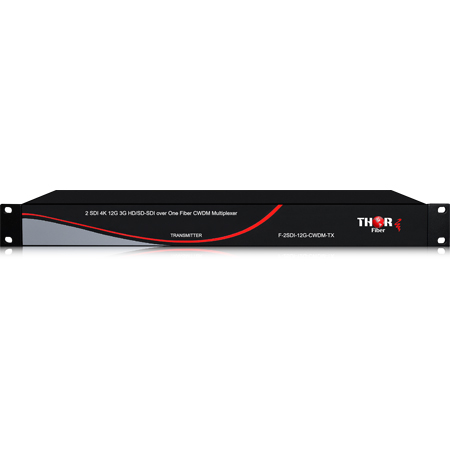

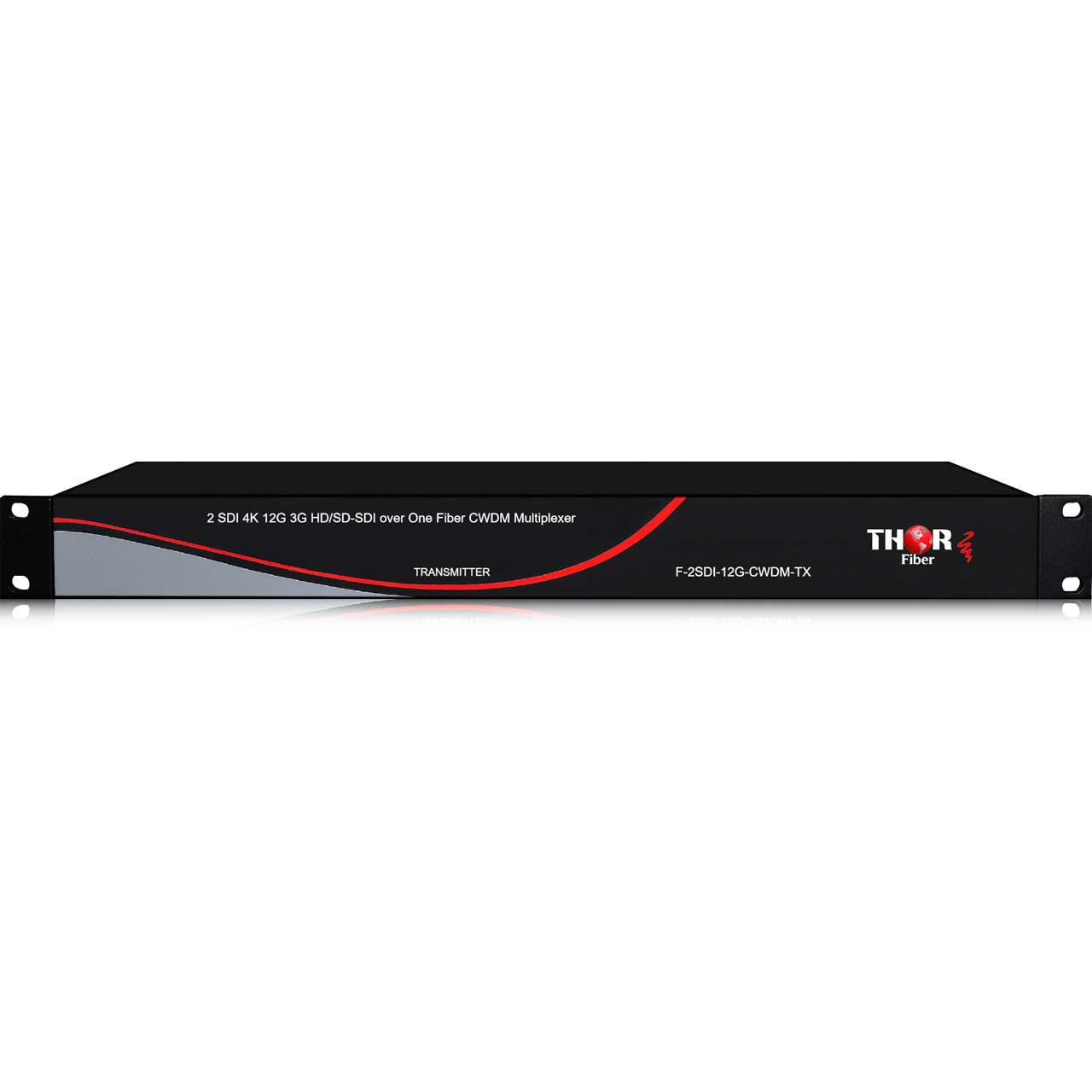

Thor Fiber 12G-2SDI-CWDM-TXRX 1RU 4K 12G/3G HD/SD-SDI over one Fiber CWDM Multiplexer - 2x SDI - Power Supplies Included

ITEM #: THR-F12G2SDICWDM MFG #: F-12G-2SDI-CWDM-TX/RX

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Thor Fiber
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$4,794.00

Our Price:

$3,995.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    F-12G-2SDI-CWDM-TX/RX - Overview

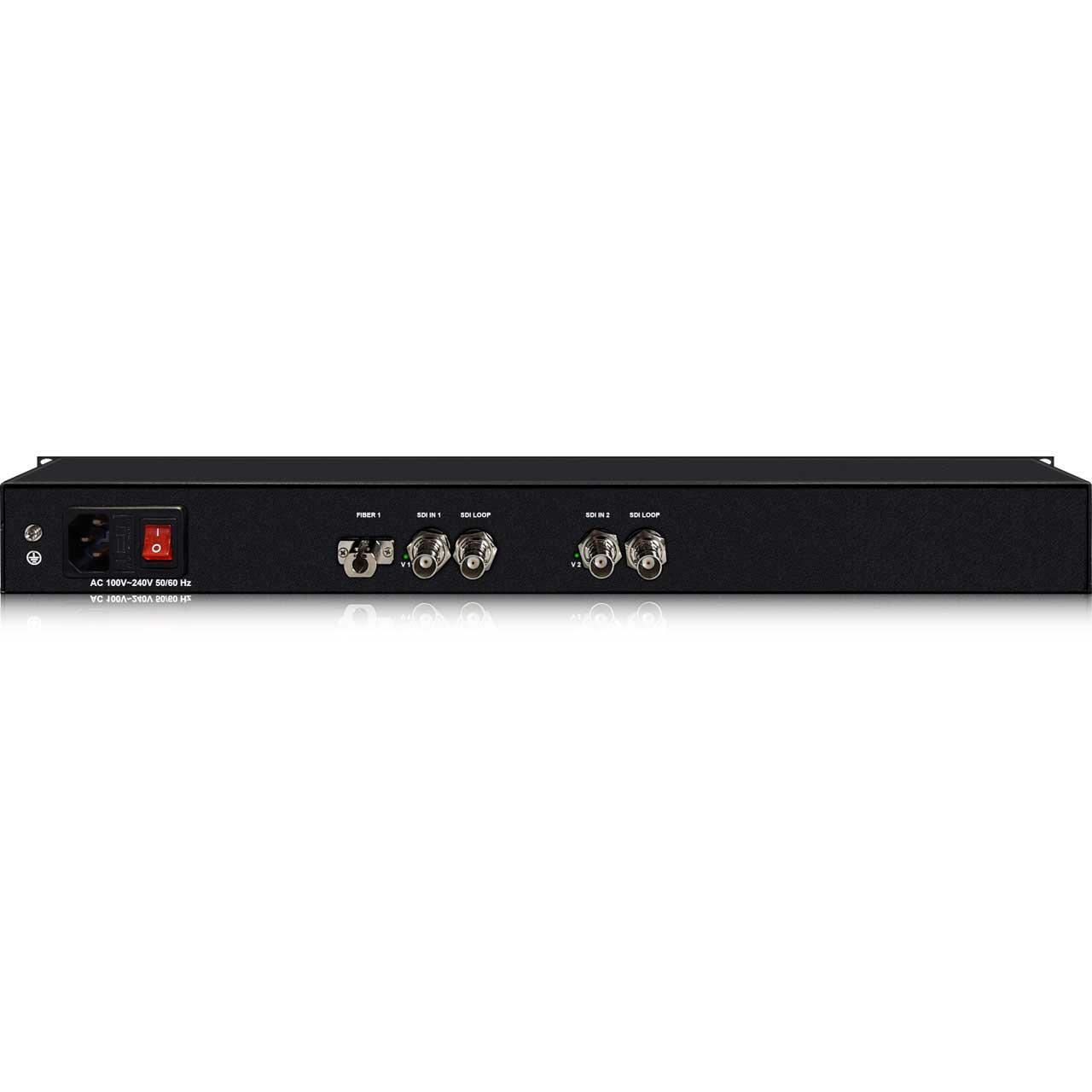

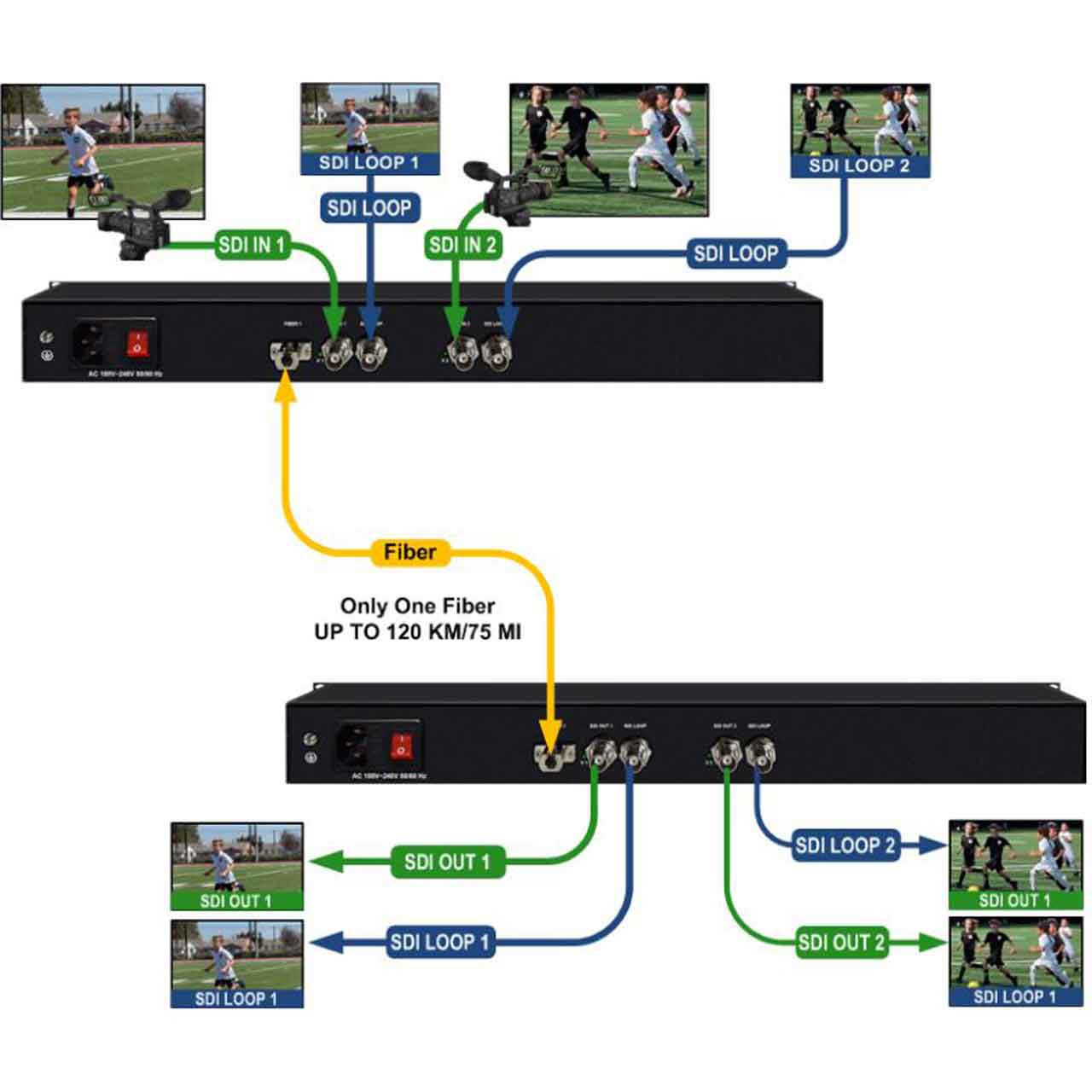

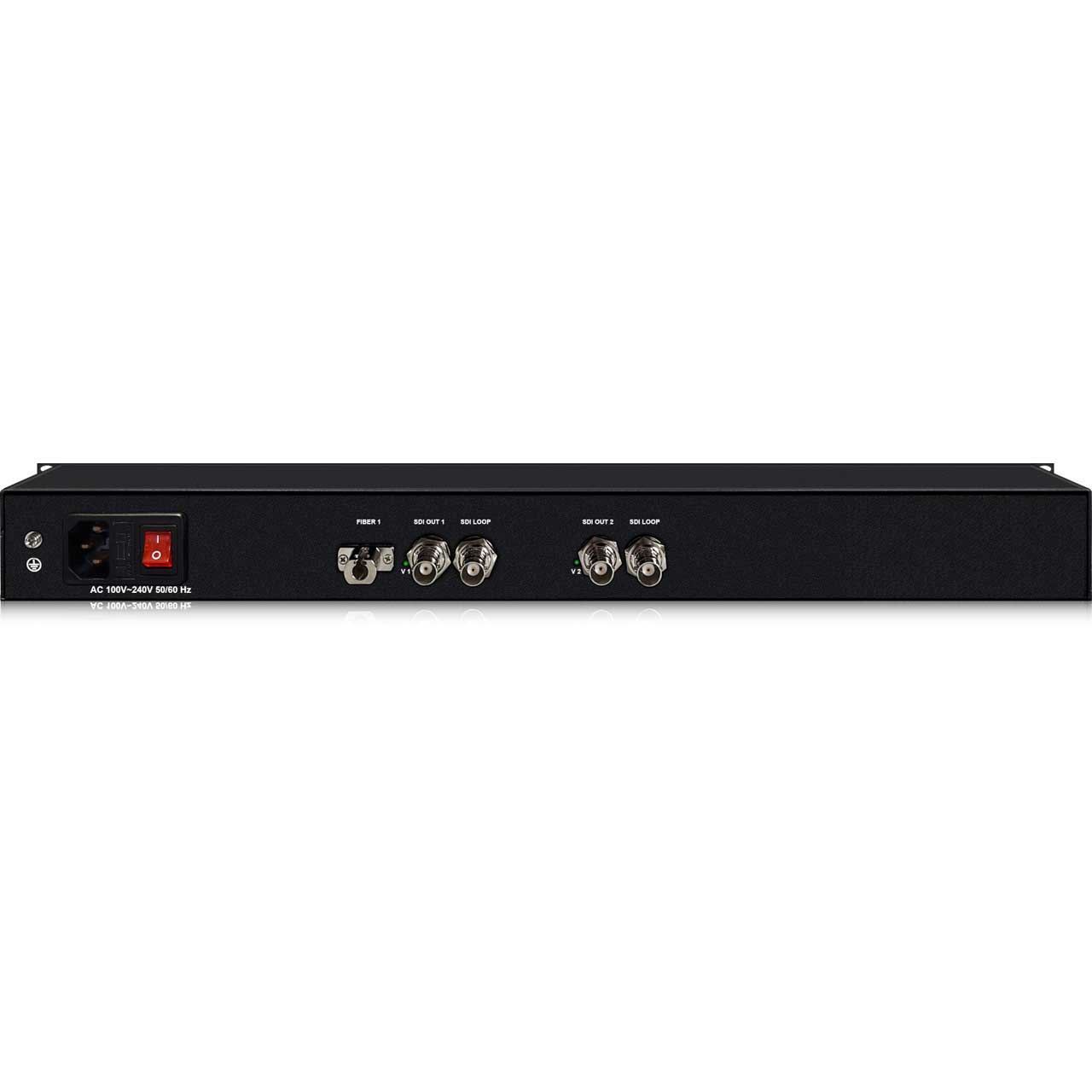

    The most powerful Thor Fiber SDI Transmitter provides one SDI input and one SDI loopout, and the Receiver provides two SDI outputs. Utilizing single mode fiber, this multirate Ultra High Definition Tx & Rx set has zero delay to perform under the most ciritcal applications in real world conditions.

    The 12G-SDI CWDM mux provides transparent and lossless transmission technology, which ensures that the quality of video is up to broadcast level PRO-DVB, and also guarantees the normal transmission of embedded audio signals. It can be widely used in 4K/8K ultra high-definition TV program production, live broadcast of large-scale concert or Sports, Racing, or Theatre events.

    12G-SDI solutions can simplify production and post workflows, providing bandwidth to handle high resolution, high frame rate and deep color content over a single cable, by directly connect camera to fiber.

    12G SDI EFP fiber transmission system is plug-and-play and has an ST/PC optical connector which requires 1 Single Mode Fiber for 10km (default) distance; can be upgraded to long haul.

    • Features:

      • Supports SDI (12G), (6G), (3G), (HD), (SD); and compatible with DVB-ASI and AES10 (MADI);
      • Both transmitter and receiver have clock recovery function; (clock restorer can reduce high frequency jitter and completely regenerate data with pure low jitter clock)
      • The clock restorer is locked to 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or 1.001 frequency division sub rate and SMPTE rate of 270Mbps;
      • Signal input has automatic cable equalization (EQ) functionality
      • 1/4 hot shoe screw
      • Plug and play SFP optical module, which can replace optical module corresponding to different distances or interfaces according to the application
      • Single-mode single-fiber transmission distance 10km (default)
      • Status light display
      • Plug and play, auto-detect SDI interfaces & resolutions


    • Specifications:

      • Wavelength: 1310nm / CWDM
      • Rate: 12Gbps
      • Transmitter power: 0~ -3dB
      • Receiver sensitivity: -12dB
      • Fiber connector: ST/PC
      • Standard Optical Distance: ~10km
      • Number of input: 2 / 4 / 8 SDI inputs (model dependent)
      • Local loop out: 1 Channel SDI per input source
      • Protocol standard: SMPTE ST-2082
      • SMPTE rate: 270Mbps / 1.48Gbps / 2.97GBps / 5.54Gbps / 11.88Gbps
      • Video Input options:
        SD-SDI 480i, 576i
        ED-SDI 480p, 576p
        HD-SDI 720p, 1080i
        3G-SDI 1080P 60Hz
        6G-SDI 2160p 30Hz
        12G-SDI 2160p 60Hz
      • EQ Mode Cable Transmission Distance:
        75m at 11.88Gbps
        120m at 5.94Gbps
        200m at 2.97Gbps
        300m at 1.485Mbps
        600m at 270Mbps
      • Signal Amplitude: 800mV +-10%
      • Impedance: 75ohm
      • Connector: BNC
      • Input Power: AC 90~240V
      • Net Weight: 3kg
      • Size: 1RU 440 x 230 x 44.5mm
      • Working Temp: -20C to +75C
      • Storage Temp: -40C to +85C
      • Relative Humidity: 5 to 95% non-condensing
      • MTBF: >10,000 hours


    • Item Includes:

      • 1x Thor Fiber 12G-8SDI-CWDM-TXRX 1RU 4K 12G/3G HD/SD-SDI over One Fiber CWDM Multiplexer - 2x SDI - Power Supplies Included


    • Warranty:

      • 2 Years
