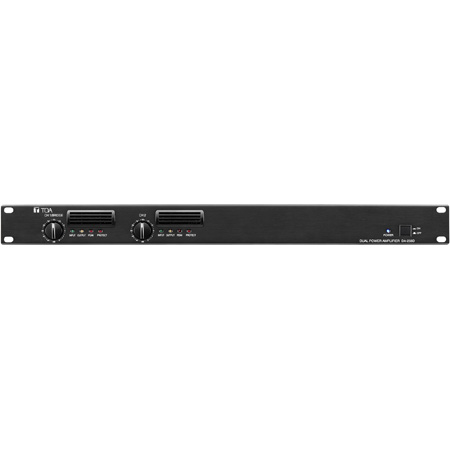

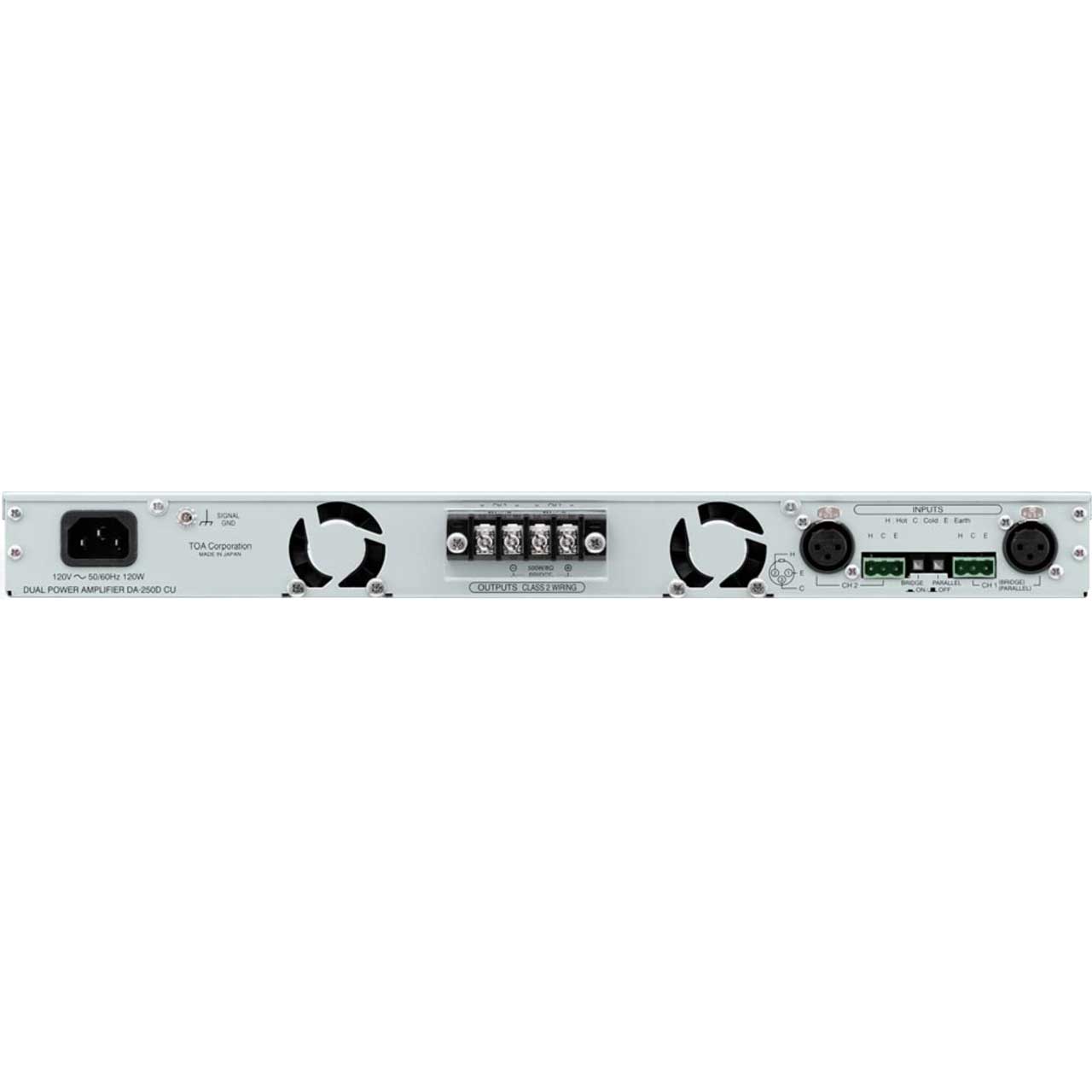

TOA DA-250DH CU Digital Power Amplifier - 2x 250 W @ 70V- 1x 500 W Bridged @ 140V (1U)

ITEM #: TOA-DA-250DH-CU MFG #: DA-250DH-CU

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
TOA Electronics, Inc.
Free Shipping with $49 Minimum Order

List Price:

$1,459.90

Our Price:

$1,179.70

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    DA-250DH-CU - Overview

    The TOA DA-250DH is a 2-Channel Digital Power Amplifier designed for 70 V line high-impedance distribution and features lightweight, compact, high power output, and high efficiency. It delivers 250 W x 2 channels (19.6 O output) using a switching power supply. Each channel is equipped with an independent power section. It can be electrically isolated from the high-impedance speaker system by attaching the MT-251H Output Transformer (optional). It can be mounted in an EIA Standard equipment rack (1 unit size).

    • Specifications:

      • Power Source: 120 V AC, 50/60 Hz
      • Amplification System: Class D
      • Power Consumption: 120 W (based on UL/CSA standards)580 W (rated output 70 V line, 19.6 Ω x 2)
      • Input: 2 circuits, +4 dB* (1.23 V) (input level control in maximum position), 10 kΩ, electronically-balanced, removable terminal block (3 pins), XLR-3-31 type connector CH 1 mode ON/OFF switch (ON: PARALLEL, OFF: STEREO)
      • Rated Output: 2 channels: 250 W x 2 (70 V line, 19.6 Ω) 1 channel (BRIDGE): 500 W x 1 (140 V line, 39.2 Ω) M4 screw terminal, distance between barriers: 8.8 mm (0.35")
      • Frequency Response: 20 - 20,000 Hz (±1 dB): HPF OFF/50 - 20,000 Hz (-3 dB, +1 dB): HPF ON (selectable with the inner jumper)
      • Total Harmonic Distortion: 0.1% (1 kHz), 0.3% (20 - 20,000Hz): HPF OFF 0.1% (1 kHz), 0.3% (100 - 20,000 Hz): HPF ON
      • Protection Circuit: Protection against excessive current flow due to overload, short circuit, unusual DC voltage output, temperature rise at power amp. heat sink (100°C or more (212°F)), temperature rise inside the unit (80°C or more (176°F))
      • S/N Ratio: 100 dB (A-weighted)
      • Crosstalk: 70 dB (A-weighted)
      • LED Indicator: Power (blue) x 1, Input (green) x 2, Output (yellow) x 2, Peak (red) x 2, Protect (red) x 2
      • Cooling: Forced air cooling
      • Operating Temperature: -10°C to +40°C (14°F to 104°F)
      • Operating Humidity: 90% RH or less (no condensation)
      • Finish: Panel - Aluminum, black, alumite, Case - Plated steel sheet
      • Dimensions: 482 (W) x 44 (H) x 401.8 (D) mm (18.98" x 1.73" x 15.82")
      • Weight: 5 kg (11.02 lb)
      • Option: Matching transformer - MT-251H


    • Item Includes:

      • 1x Power cord (2 m (6.56 ft)
      • 2x Removable terminal plug (3 pins
      • 2x Tamper-proof cap
