TOA HY-BC-580U Back-Can for PC-580RU Ceiling Speaker

ITEM #: TOA-HY-BC-580U MFG #: HY-BC-580U

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TOA-HY-BC-580U

HY-BC-580U - Overview

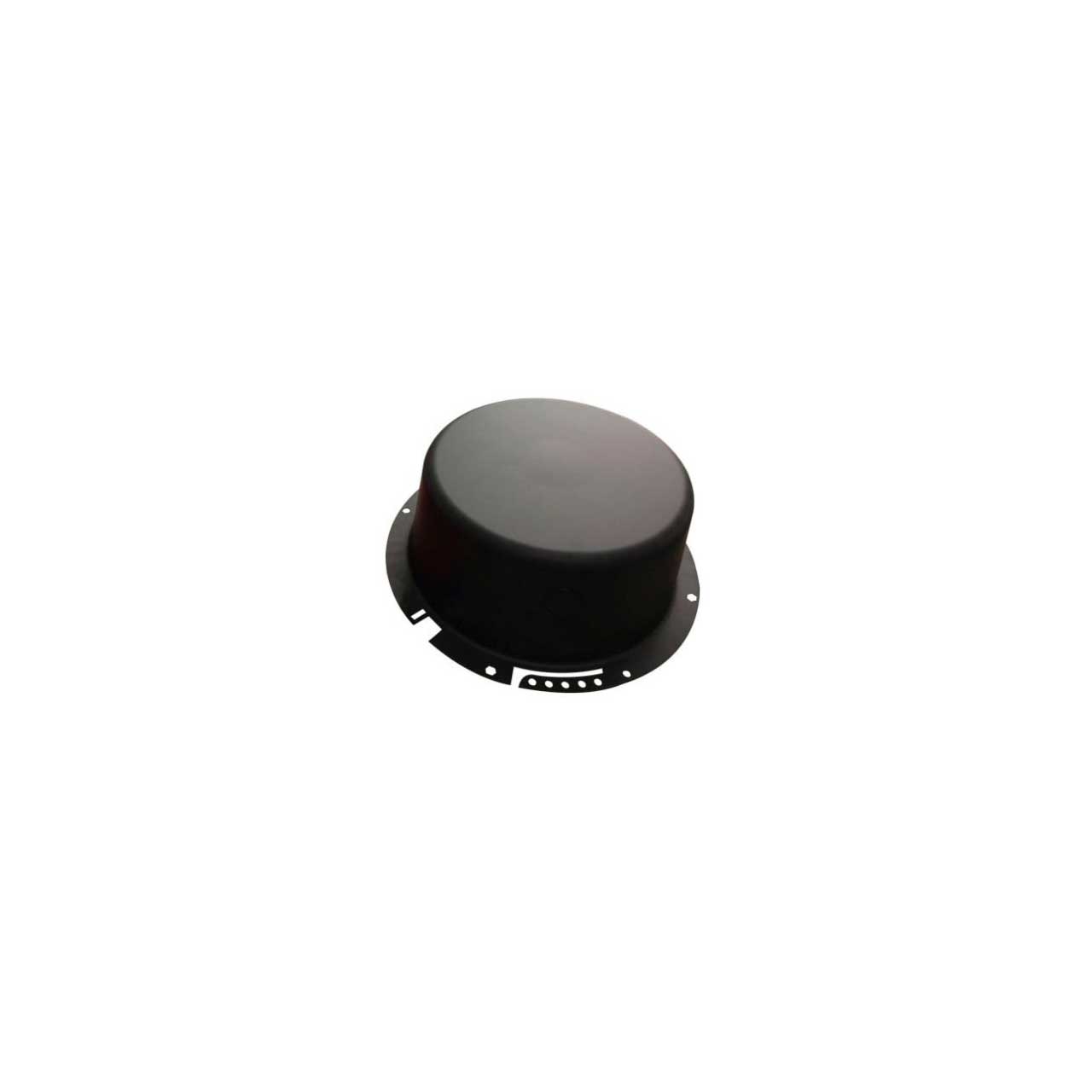

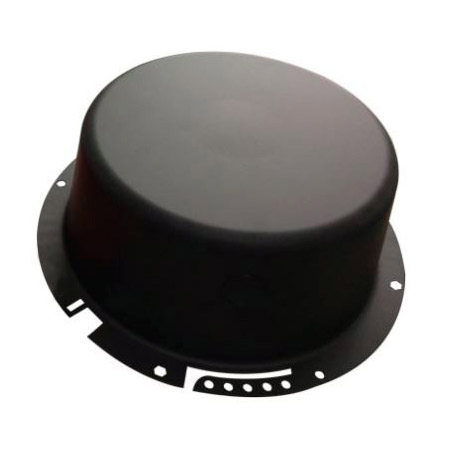

The HY-BC580U Back Can is a metal enclosure to be used with installing the ceiling speaker PC-580RU or PC-580RVU into the ceiling with UL1480 UUMW / ULC-S541 (Fire Alarm Signaling) and/or UL 2043 (use in air handling spaces) certification(s).

Because of its tapered shape, this Back Can is stackable and minimizes the stocking space and a cost for transportation.It has four combination conduit knockouts 1/2" - 3/4" (13 - 19mm), four J-clips and two flexible perforated mounting straps.The Interior of the Back Can shall be undercoated and lined to prevent mechanical and acoustical resonances.Enclosure shall be finished in textured epoxy.

  • Specifications:

    • Finish: Surface-treated steel plate, black paint.
    • Dimensions: 324 x 252 x 111 mm (12.76" x 9.92" x 4.37").
    • Weight: 1.05 kg (2.31 lbs).
    • Knockouts: Four combination conduit knockouts 1/2" - 3/4" (13 - 19 mm), four J-clips and two flexible perforated mounting straps.


HY-BC-580U - Required Accessories

HY-BC-580U - Recommended Accessories
