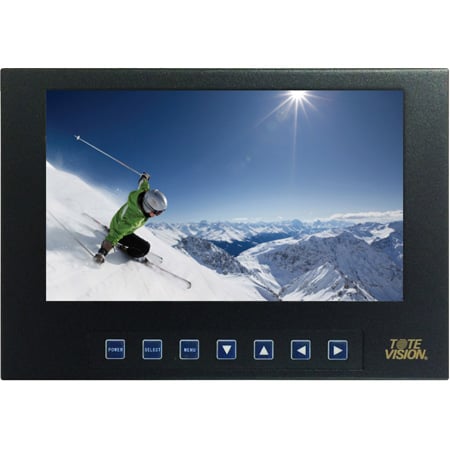

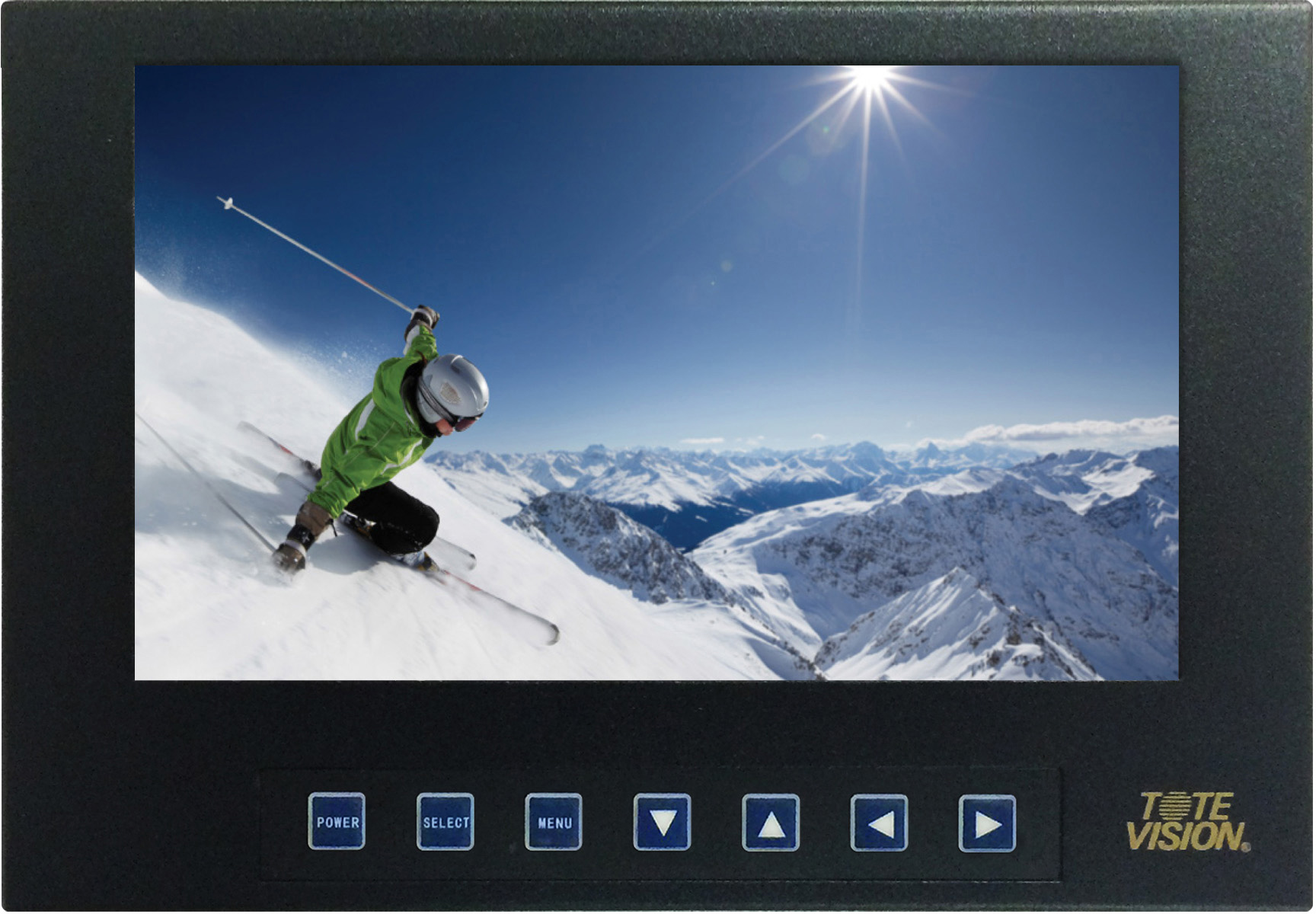

ToteVision LED-711-4K 7-Inch 1920x1200 LCD Monitor - Displays 4K and UHD

LED-711-4K - Overview

• Features:

  • LED backlight: brighter picture using less power
  • Displays HD signals (2160i/p)
  • Ultra wide viewing angle (89/89/89/89)
  • 16:9 native aspect ratio
  • Multiple software features including Peaking Filter (monochrome), Check Field (B/W/R/G/B), Center Mark, Safe Area, Under Scan / Over Scan, Ratio, DSLR Mode, Freeze, Flip (U/D/R/L), Noise Reduction, and Zoom (1.4x - 10x)
  • Battery pack options available for mobility and field use


• Specifications:

  • Mount: VESA 75 x 75mm
  • Display: 7" TFT LCD active matrix
  • Resolution: 1920 x 1200; displays up to 4K (4096 x 2160p) resolution
  • Native Aspect Ratio: 16:9
  • Visible Screen Size: 5.95 x 3.7" (151.2 x 94.5mm)
  • Back Light: LED (50K)
  • Anti-Glare Coating: Yes
  • Case: Durable Metal
  • Brightness: 450 cd/m² (Nit)
  • Contrast: 1100:1
  • Dot Pitch: 0.07875(H) x 0.7875(V) mm
  • Response Time: 10ms Rising / 15ms Falling
  • Viewing Angle (L/R/T/B): 89/89/89/89 degrees
  • HDMI:
    x1 Input
    x1 Output (loop-through)
    Displays 720 x 480i/p @59.94/60Hz up to 1920x1080psf @23.93 ~ 60Hz
    3840 x 2160p @24 ~ 30Hz
    4096 x 2160p @24Hz resolutions
  • Composite: x1 BNC Input; x1 BNC Output; NTSC-M/J/4.43; PAL B/G/HID/M/N; SECAM
  • Audio: x1 3.5mm Output
  • Power: x1 2.1mm DC Input
  • Operating Temp: 14° to 140°F (-10° to 60°C)
  • Power Requirements: 12 VDC 2A (9VDC ~ 27 VDC) Input
  • Power Consumption: ≤ 11 Watts (Max)
  • Dimensions: 7.48 x 5.5 x 1.4" (190 x 139.8 x 35.6mm)
  • Product Weight: 1.85Lbs (0.84kg)
