Tripp Lite B030-008-17-IP 8Port Rackmount Console HDMI KVM Switch 17 Inch LCD IP Remote Access

ITEM #: TRL-B030-00817IP MFG #: B030-008-17-IP

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$4,528.00

Our Price:

$2,802.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    B030-008-17-IP - Overview

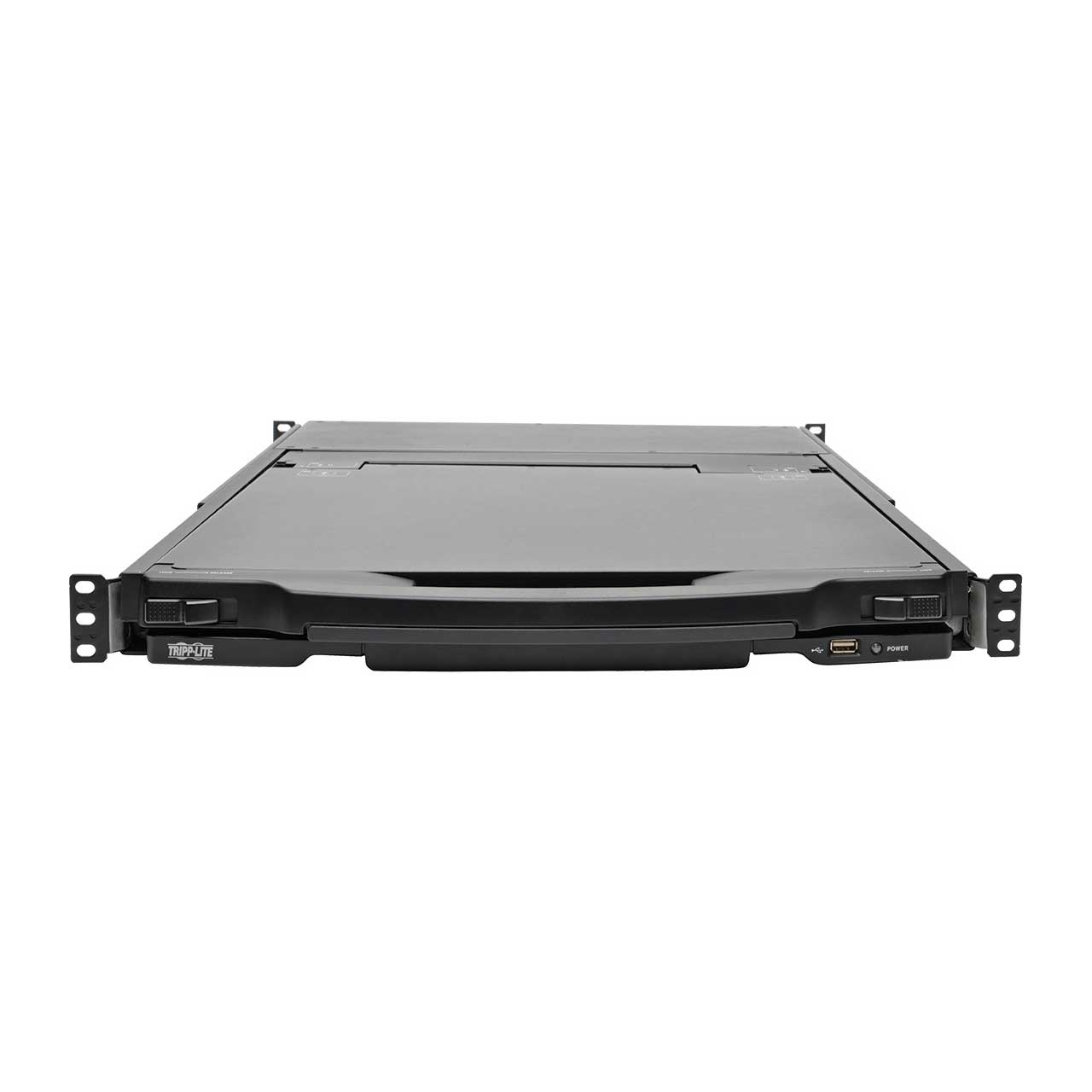

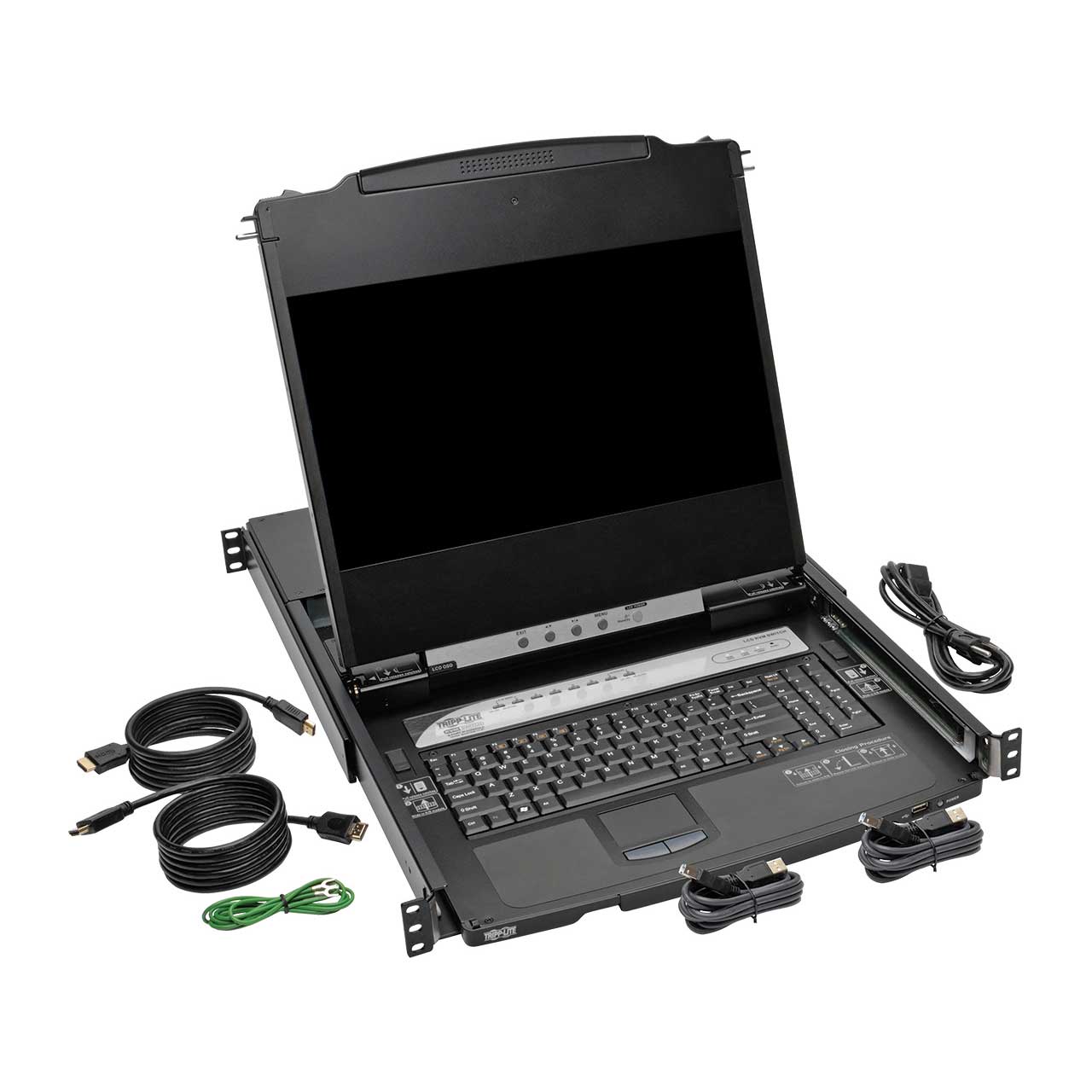

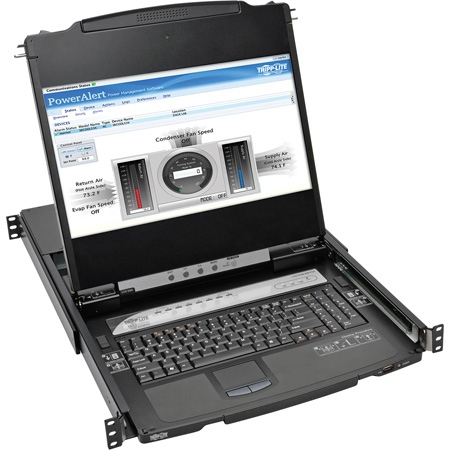

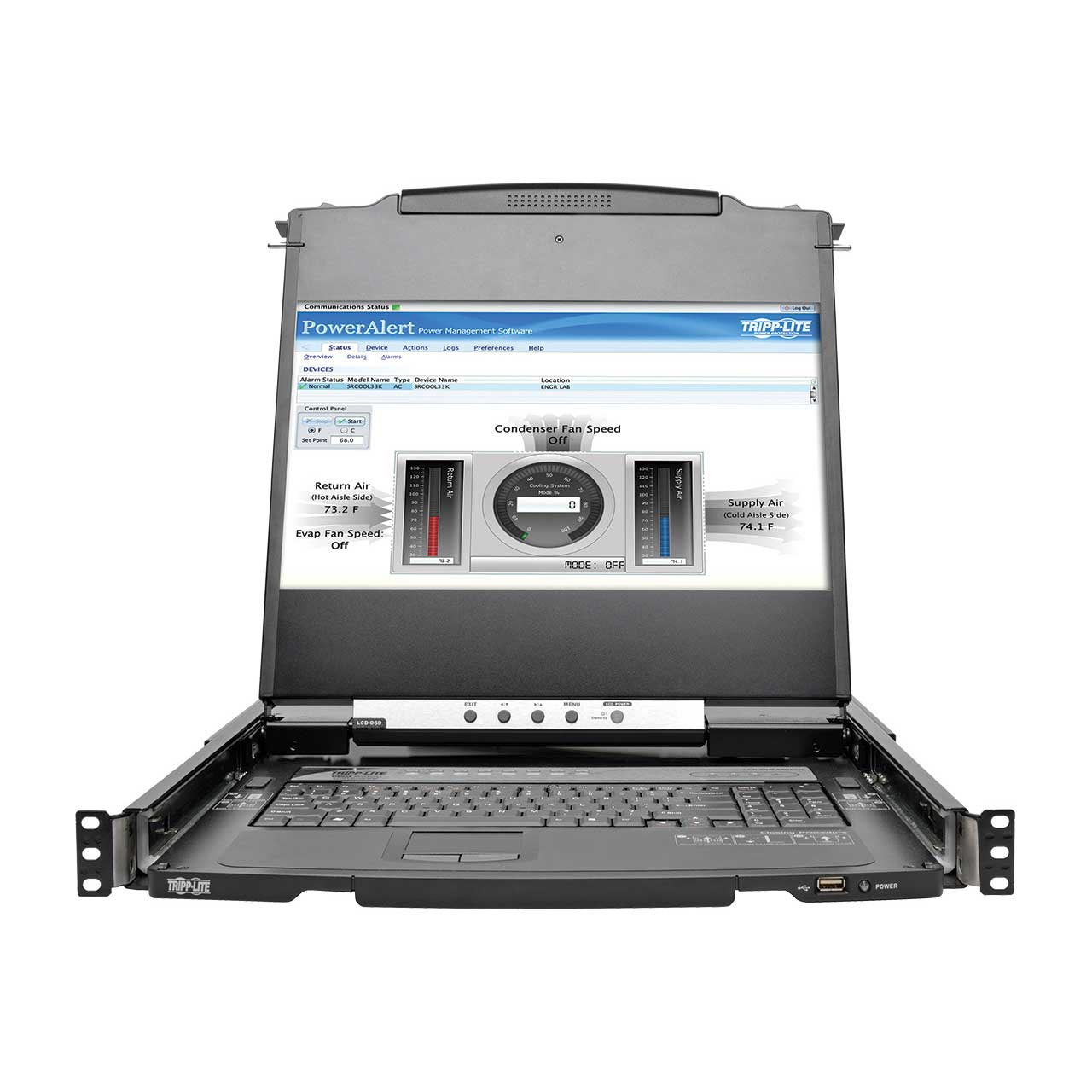

    Tripp Lite’s B030-008-17-IP NetDirector® 8-Port 1U Rack-Mount Console HDMI KVM Switch combines a rack-mountable keyboard, 17-inch LCD, touchpad and built-in IP remote access into a compact housing that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, you can access up to eight connected computers or servers from any computer via LAN, WAN or Internet. Easy to install and use, the B030-008-17-IP lets you handle complex problems without needing to be on-site, which saves money and time.

    The 17-inch LCD screen supports video resolutions up to 1920 x 1080. You can switch easily between ports using on-console push buttons, an on-screen display or keyboard hot key commands. Up to 64 users can be authorized and 32 remote users can be logged on concurrently with multi-level password security when multi-user operation is enabled. RADIUS and LDAP/S server authentication is supported.

    The B030-008-17-IP controls USB computers/servers using a P782-XXX-DH Series KVM Cable Kit (sold separately) for each. When not in use, the KVM switch stores neatly in a rack drawer and pulls out when needed. With its dual-rail design, you can slide the keyboard into the rack, while the monitor stays visible. The B030-008-17-IP is compatible with all major operating systems and web browsers. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

    • Features:

      • Control computers/servers locally or via LAN, WAN or Internet
      • Occupies just 1U of space in a rack-mountable, dual-rail drawer
      • Supports video resolutions up to 1920 x 1080
      • Allows up to 64 authorized users and 32 concurrent remote log-ins
      • Works with all major operating systems and browsers
      • 3-year limited warranty

    • Specifications:

      • Input
      • Nominal Input Voltage(s) Supported: 100V AC; 110V AC; 115V AC; 120V AC; 127V AC; 140V AC; 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
      • Recommended Electrical Service: 100-250V
      • Maximum Input Amps: 1
      • Input Frequency: 50/60Hz
      • Input Current: 120V (0.26A) / 230V (0.17A)

        Physical
      • Shipping Dimensions (hwd / in.): 5.80 x 26.69 x 32.68
      • Shipping Weight (lbs.): 42.70
      • Unit Dimensions (hwd / in.): 1.73 x 18.9 x 26.77
      • Unit Weight (lbs.): 26.01
      • Color: Black
      • LCD Monitor (in.): 17

        Environmental
      • Storage Temperature Range: -4 to 140 F (-20 to 60 C)
      • Relative Humidity: 0% to 80% RH, Non-condensing
      • Operating Temperature: 32 to 104 F (0 to 40 C)

        Communications
      • Port Control: Push Buttons, Hotkeys, OSD
      • IP Remote Access: Yes

        Connections
      • Ports: 8

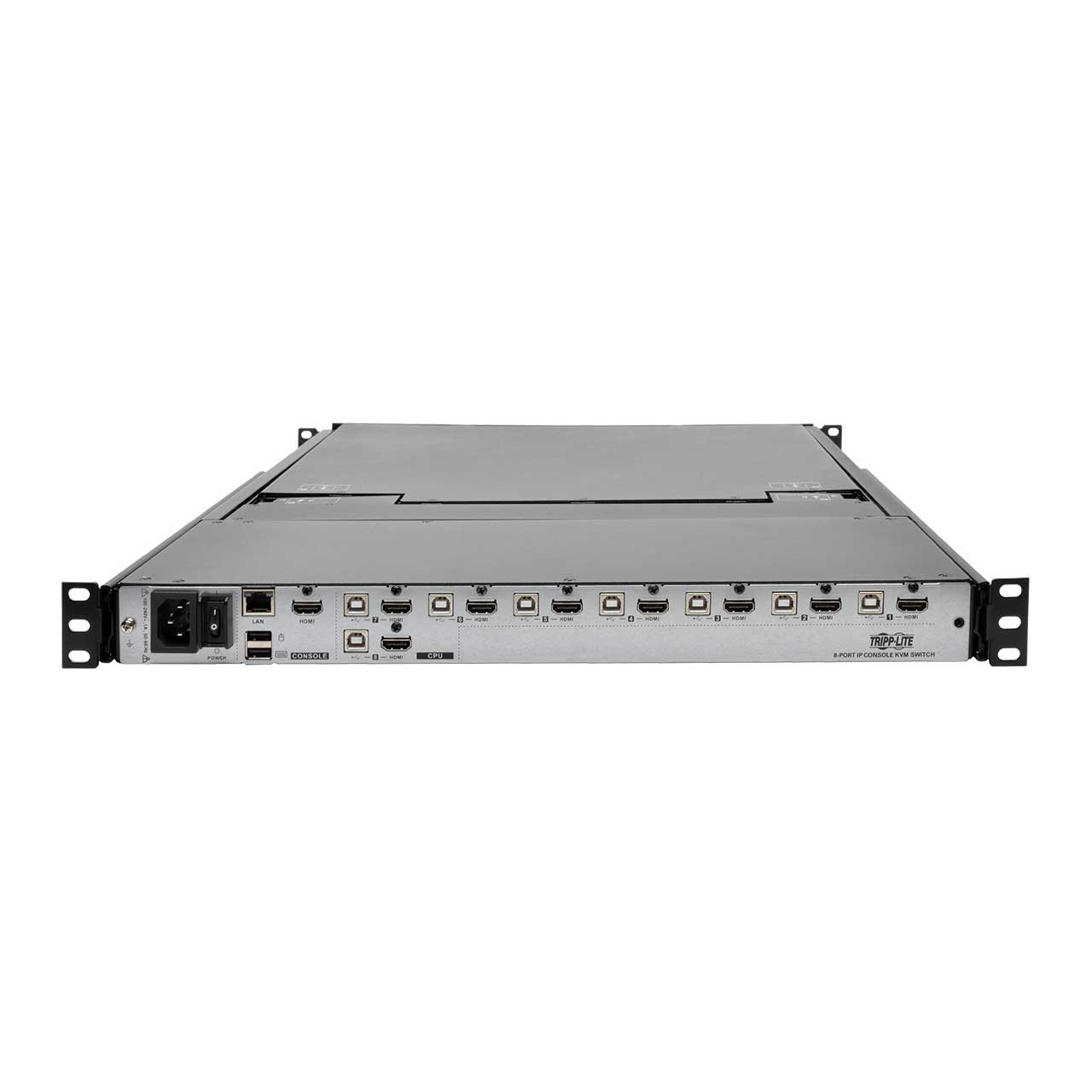

      • Computer/Server Ports: (x8) HDMI FEMALE
      • PC/Server Connections: USB; HDMI

        Features & Specifications
      • Autoscan (Y,N): Y
      • Autoscan Duration: 1 - 255 Seconds

    • Warranty:

      • 3-year limited warranty

    • GTIN:

      0037332194206
