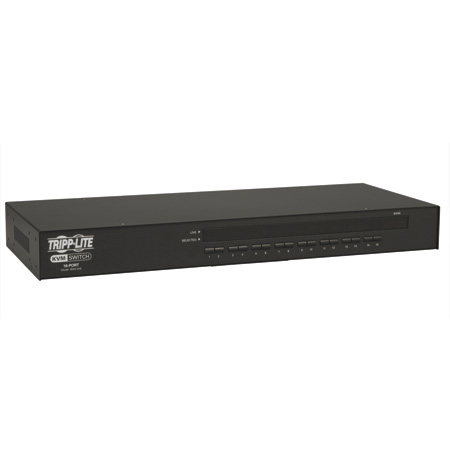

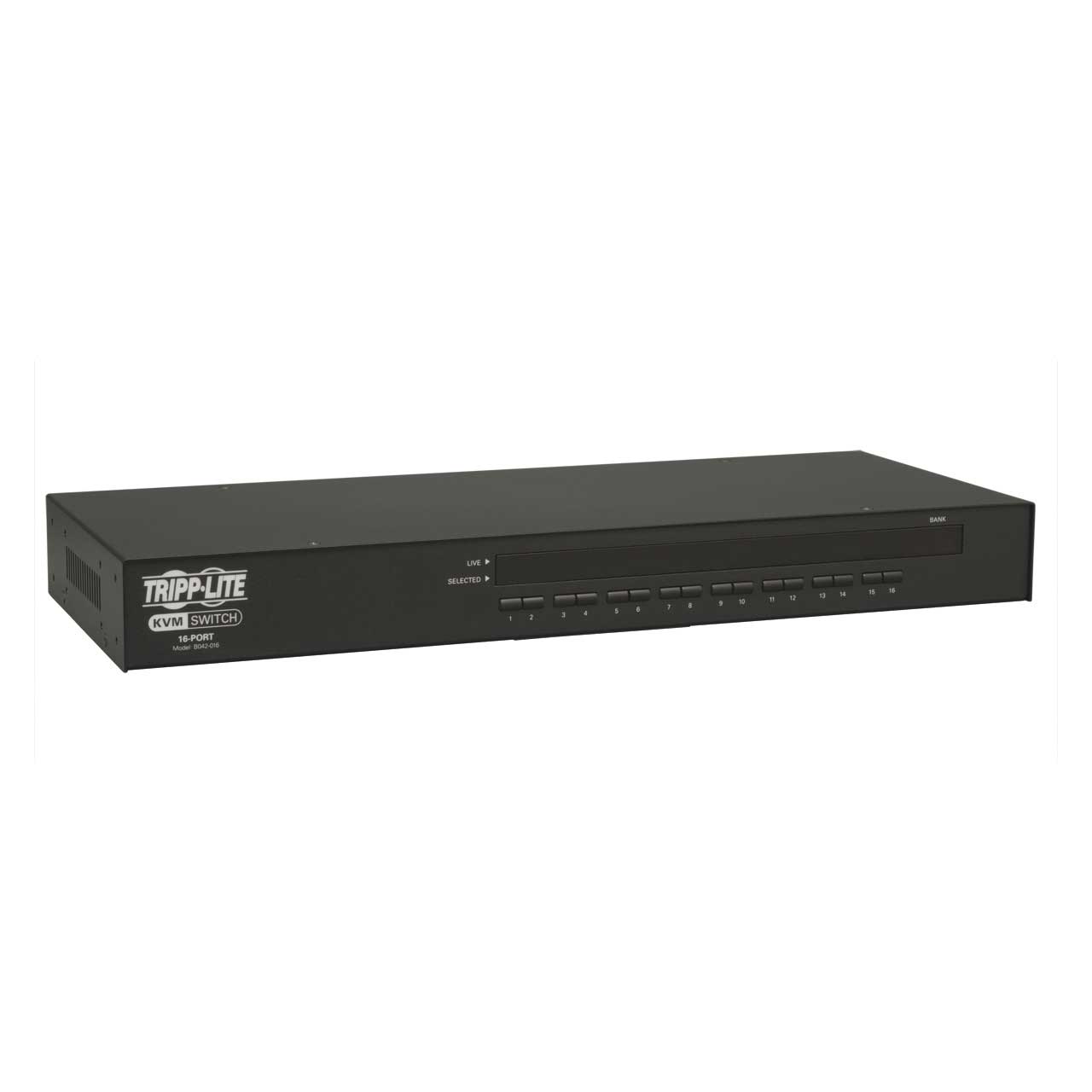

Tripp Lite B042-016 NetController KVM Switch - 16 Port

ITEM #: TRL-B042-016 MFG #: B042-016

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$1,020.00

Our Price:

$678.11

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    B042-016 - Overview

    Tripp Lite's NetController 16-Port, 1U rackmount KVM Switch is an affordable, highly-flexible enterprise class KVM Switch, which allows the user to connect either USB or PS/2 keyboards and mice. In addition, P780-Series USB/PS2 combo KVM cable kits allow you to connect either USB or PS/2 computers, without the need to purchase separate cables or adapters. Control up to 16 directly connected computers, or expand the number of connected computers to up to 256 by daisychaining up to 15 additional B040/42-Series KVM switches (Compatible with B040/42-Series KVM's only. Cannot be daisychained to other KVM series) Switch between connected computers via the On-Screen Display (OSD), pushbuttons, or keyboard hotkey commands. Other features include: password protection, auto-scanning, auto-logout, firmware upgrade and video support up to 2048 x 1536 (QXGA). Mounts easily in a standard 19" rack/cabinet and includes all necessary mounting hardware. Compatible with all major operating systems. Constructed of heavy-duty steel housing.

    • Features:

      • NetController 16-Port, 1U rackmount KVM switch
      • Control 16 computers via a single VGA monitor and USB or PS/2 keyboard/mouse
      • P780-Series USB/PS2 combo KVM cable kits allow you to connect either USB or PS/2 computers, without the need to purchase separate cables or adapters
      • Control up to 256 computers by daisychaining up to 15 additional B040/42-Series KVM switches (Compatible with B040/42-Series KVM's only. Cannot be daisychained to other KVM series)
      • Allows for easy customization of ports by daisy-chaing any combination of B042-Series KVM's (4-, 8- or 16-port)
      • Standard 19" Rackmount size - hardware included
      • On-Screen Display (OSD) menu for intuitive operation and easy control
      • Switch between connected computers via the On-Screen Display (OSD), pushbuttons, or keyboard hotkey commands
      • Supports video resolution up to 2048 x 1536
      • Password protection and auto-logout features
      • Firmware upgradeable
      • Robust metal case design ensures best EMI/RFI shielding and video quality
      • Hot-swappable: disconnect and reconnect USB computers without rebooting
      • Supports standard 5-button Microsoft, Logitech, or comparable mice
      • Supports standard Microsoft, Logitech, or comparable keyboards
      • Compatible with all major operating systems
      • Constructed of heavy-duty steel housing

    • Specifications:

      • Product Group: KVM SWITCHES
      • TAA Compliant: No
      • Users: 1
      • AC Adapter: 100-250V
      • Console: No
      • Port Control: Push Buttons, Hotkeys, OSD
      • Max CPU: 256

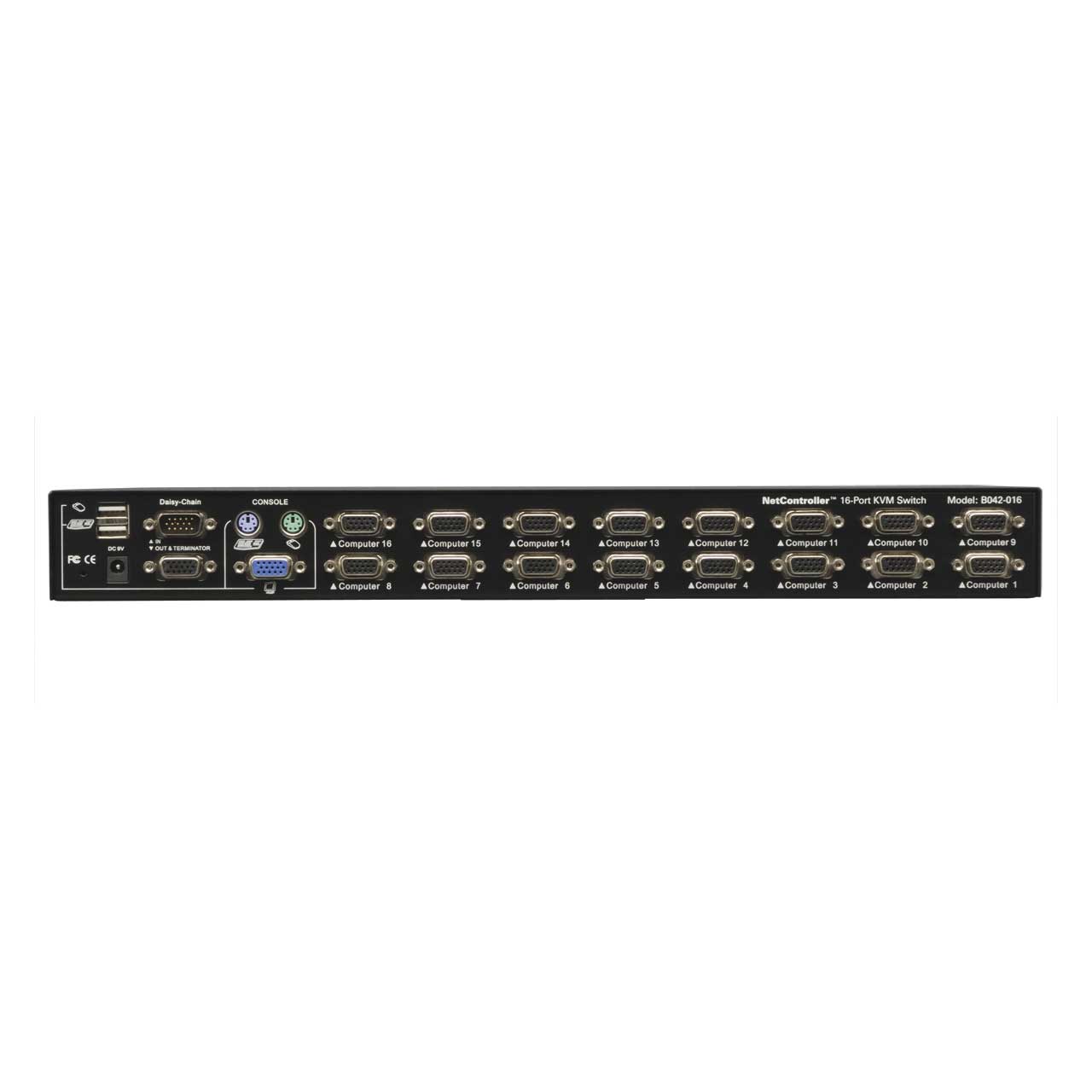

      • PC/Server Connections: VGA; USB; PS/2
      • Cat5 KVM Switch: No
      • IP Remote Access: Yes
      • Style: 1U Rackmount
      • KVM Switch Type: Rack-Mount
      • Color: Black
      • LCD Monitor (in.): Not Applicable
      • LCD Monitor (cm): Not Applicable
      • BTUs: 245.52
      • Ports: 16
      • Product Warranty Period (Worldwide): 1-year limited warranty
      • Selector Type: KVM SWITCHES

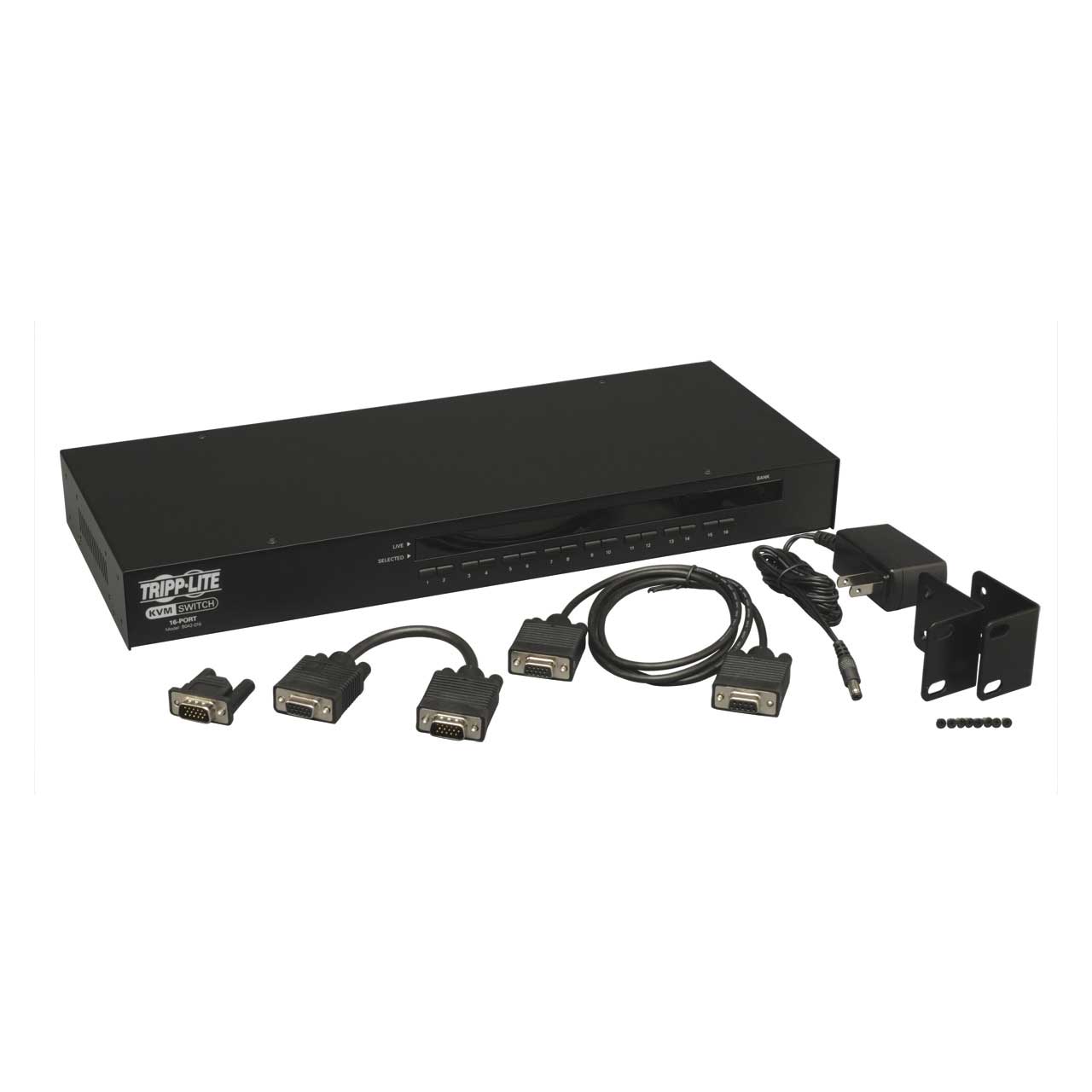

    • Item Includes:

      • B042-016 NetController 16-Port, 1U rackmount KVM switch
      • External power supply
      • Rackmount hardware
      • 8 In. Daisychain cable ( for longer daisy-chain cables, see Tripp Lite P781 series cables)
      • Daisychain terminator
      • 4 ft. HD15 to DB9 firmware upgrade cable
      • CD with owner's manual and quick start guide
      • Quick start guide

    • GTIN:

      0037332141408
