    B118-004-UHD - Overview

    1 x 4 HDMI Splitter Transmits 4K Audio/Video to 4 HDMI Displays at the Same Time
    The Tripp Lite B118-004-UHD is ideal for displaying digital signage in classrooms, healthcare facilities, churches, offices, restaurants, bars and trade shows, this Ultra HD HDMI splitter is quick and easy to install. It connects to an HDMI source device, such as a computer, media server, cable box/DVR or Blu-ray player, and transmits an audio/video signal to four HDMI monitors, projectors or televisions simultaneously. You can daisy-chain up to three levels of splitters, which expands the total number of connected displays to 256.

    Supports Ultra High Definition Signals up to 39 ft.
    Using standard 28 AWG HDMI cabling, the B118-004-UHD Ultra HD HDMI splitter distributes a 4K x 2K audio/video signal up to 39 feet. Place your HDMI source up to 16.4 feet from the splitter and the splitter up to 23 feet from an HDMI display for a maximum distance of 39.4 feet between source and display.

    Maintains 4K x 2K Video Resolutions and Rich Stereo Sound
    The B118-004-UHD 1 x 4 HDMI splitter maintains full 3D and video resolutions up to 3840 x 2160 at 30 Hz and 36-bit Deep Color (12 bits per channel). It also supports a wide range of audio formats, including DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1-channel surround sound.

    Also Works with DVI Sources and Displays
    You can also use legacy DVI-D single-link sources and displays with the B118-004-UHD to avoid an expensive upgrade to HDMI equipment. Connect DVI-D components using HDMI to DVI adapters, such as Tripp Lite's P566-Series. You will be able to transmit video only, and resolutions will be limited to those supported by the adapter.

    Ready to Use Right Out of the Package
    The plug-and-play splitter comes ready to connect right out of the package and requires no additional software or drivers. Its durable metal housing is designed to last a long time and fit seamlessly into any home or office application.

    System Requirements:
    Source device with HDMI output
    Up to 4 display devices with HDMI input
    *Will work with DVI-D single-link sources and displays when used with an HDMI to DVI adapter

    • Features:

      • Simultaneously transmit the video and audio from an HDMI source to multiple HDMI monitors
      • Supports Full 3D and video resolutions up to UHD 4Kx2K 3840 x 2160 (24Hz and 30Hz)
      • Supports 36-bit Deep Color (12-bits per channel)
      • Supports DTS-HD, Dolby True HD, Dolby Digital Plus and LPCM 7.1 Channel Surround Sound audio
      • Supports video amplifier bandwidth of 340MHz / 3.4Gbps per channel (10.2Gbps total)
      • HDCP and EDID compatible
      • Plug and play; no software or drivers required
      • Supports Lip Sync pass-through
      • Supports xvYCC and x.vColor
      • Supports the use of DVI sources and displays with the use of an optional DVI to HDMI adapter (sold separately)
      • Supports a maximum distance of 16.4 ft. (5 m) from source to splitter, and 23 ft. (7 m) from splitter to display, for a total of up to 39.4 ft. (12 m)

    • Specifications:

      • Input
      • Voltage Compatibility (VAC): 100; 110; 120; 125; 127; 200; 208; 220; 230; 240
      • External Power Supply Input Specs (V / Hz / A): 100-240V, 50/60Hz, 0.35A
      • External Power Supply Output Specs (V / A): 5V / 2A
      • External Power Supply Cord Length (ft.): 4
      • External Power Supply Cord Length (m.): 1.2
      • External Power Supply DC Barrel Connector Specs: OD: 3.5 x 1.35 x 7.5mm, Positive Pin, Negative Sleeve
      • External Power Supply Plug(s): NEMA 1-15P North America
      • External Power Supply Certifications: CE; ETL; UL
      • Bus Powered : No

        User Interface, Alerts & Controls

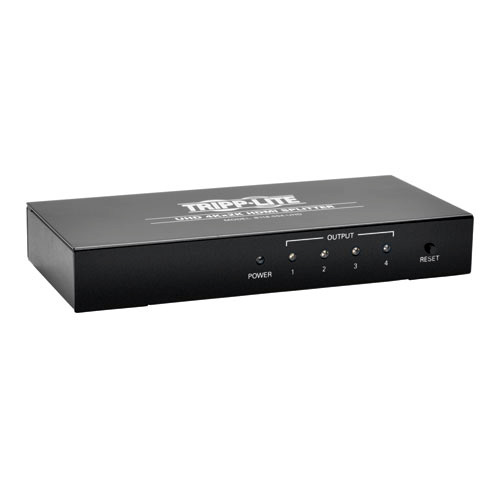

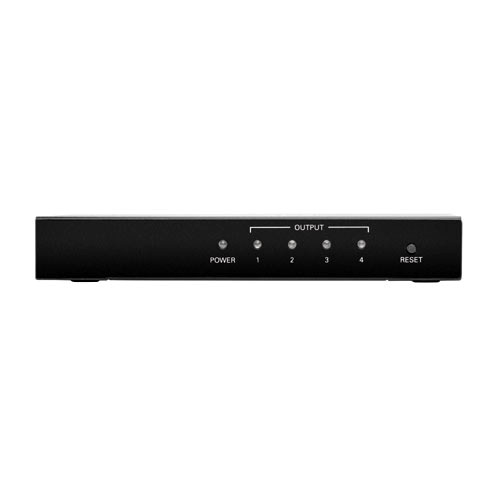

      • LED Indicators: Red (Power), Blue (1, 2, 3, 4)

        Physical
      • Color: Black
      • Material of Construction: Iron
      • Rackmountable: No
      • Shipping Dimensions (hwd / in.): 2.60 x 10.00 x 7.90
      • Shipping Weight (lbs.): 1.52
      • Unit Dimensions (hwd / in.): 0.87 x 6.1 x 2.7
      • Unit Packaging Type: Box
      • Unit Weight (lbs.): 0.6

        Environmental
      • Operating Temperature Range: 32 to 158 F (0 to 70 C)
      • Storage Temperature Range: 14 to 176 F (-10 to 80 C)
      • BTUs : 11.3 BTU/Hr
      • Power Consumption (Watts): 3.3
      • Operating Humidity Range: 10% to 85 % RH, Non-Condensing
      • Storage Humidity Range: 5% to 90% RH, Non-Condensing

        Connections
      • Ports: 4

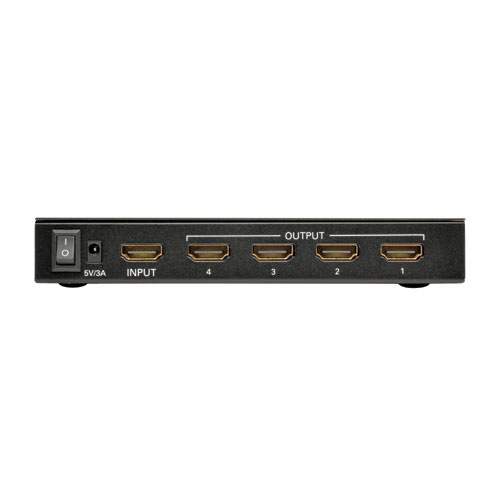

      • Side A - Connector 1: HDMI (FEMALE)
      • Side B - Connector 1: (4) HDMI (FEMALE)

        Port Expansion
      • Max Distance (Between any 2 Units): 10ft (3m)
      • Max Number of Ports (Entire Chain): 256

        Features & Specifications
      • Max Supported Video Resolution: 3840 x 2160 @ 30Hz
      • HDMI Specification: 1.4
      • HDCP Specification: 1.3
      • Audio Specification: DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1 Channel Surround Sound
      • Driver Required: No
      • Max Supported Color Depth: 36-bit Deep Color
      • EDID Compatible : Yes
      • 3D Video Supported: Yes
      • Technology: HDMI

        Standards & Compliance
      • Certifications: CE, FCC, RoHS, REACH

    • Item Includes:

      • 1x B118-004-UHD 4K 4-Port HDMI Splitter

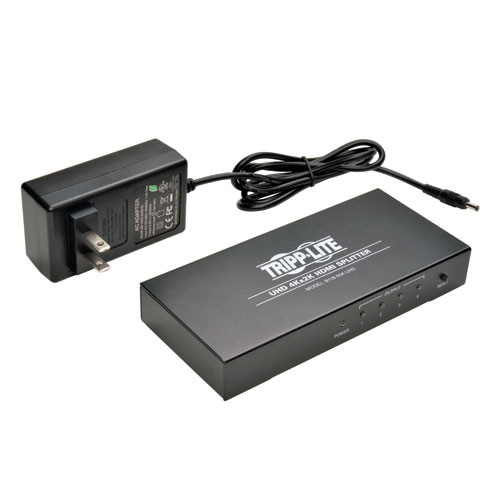

      • 1x External power supply w/NEMA 1-15P plug & 4 ft. cord (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 2A)
      • 1x Owner's manual

    • Warranty:

      • 1-year limited warranty

    • GTIN:

      0037332183897
