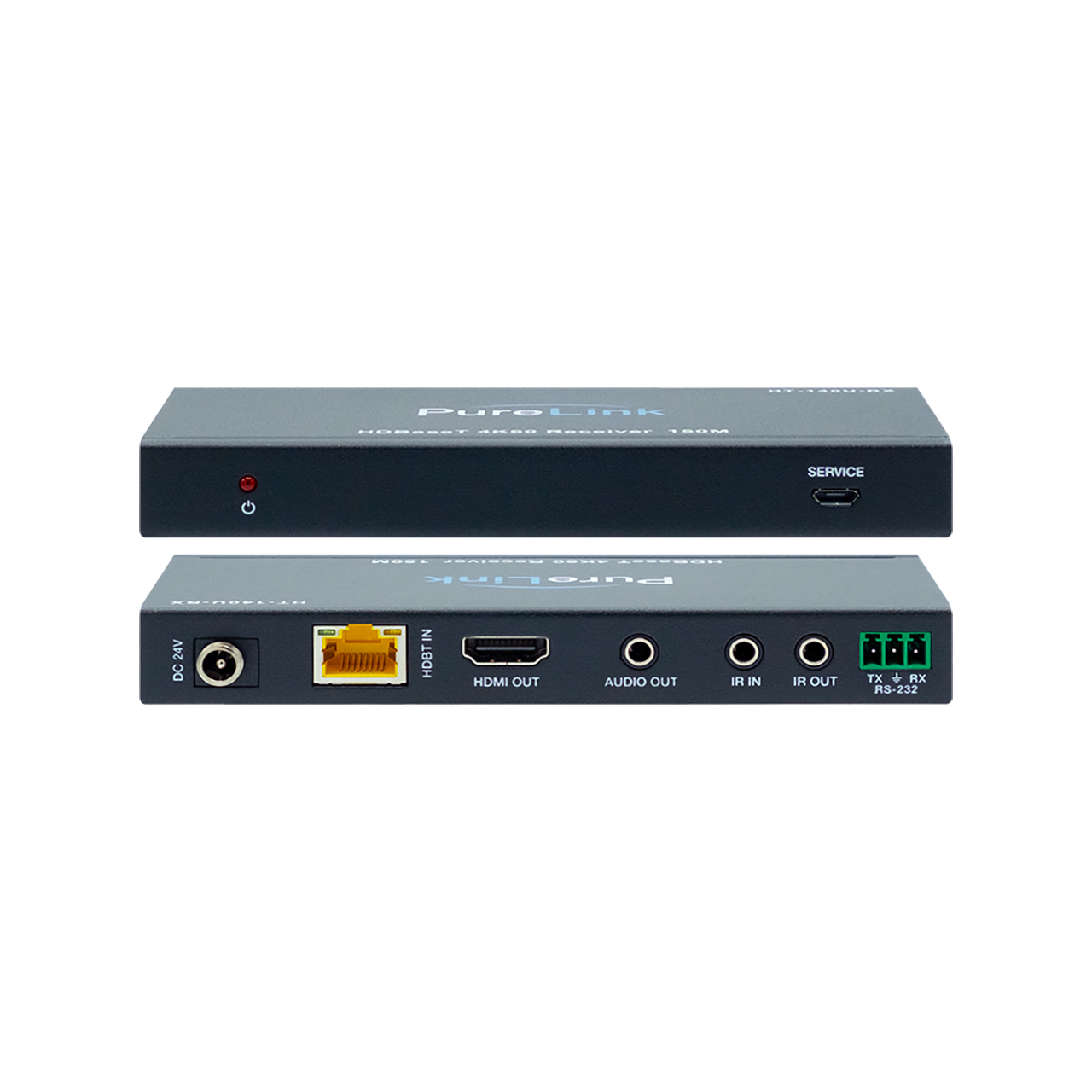

Purelink HT140-U-RX HDTools UHD 4K60 4:4:4 HDBaseT-HDMI 2.0 Receiver for HT-140U

HT140-U-RX - Overview

• Features:

  • Distribute 4K60 4:4:4 HDR signals
  • 390ft (120m) extension @ 4K60
  • 490ft (150m) extension @ 1080P60
  • Receiver(s) powered via Transmitter (PoC)
  • 32 Selectable EDID Tables
  • IR and RS232 extension
  • Diagnostic LEDs on Transmitter and Receivers


• Specifications:

  Connections
  • Inputs: 1x HDMI Type A (19-pin female)
  • Outputs:
    - 1x HDMI Type A (19-pin female)
    - 4x HDBaseT OUT (RJ45)
  • Control Ports:
    - 1x RS-232 (3-pin phoenix connector)
    - 1x EDID DIP switch (5-pin)
    - 1x IR IN (3.5mm Stereo Mini-jack)
    - 1x IR OUT (3.5mm Stereo Mini-jack)
  • Audio Output Type(s):
    - 1x Coaxial Audio OUT, (RCA)
    - 1x L/R Audio OUT (5-pin phoenix connector)

    Performance
  • Distance: Up to 390ft (120m) 4K2K@60 and Up to 1080p60 490ft (150m)
  • Resolutions: Up to 4K2K@60Hz (4:4:4)
  • Supported Audio Formats: PCM2.0, PCM 2.0CH, Dolby Digital/Plus, DTS 2.0/5.1
  • HDCP Compliance: 1.x & 2.2
  • Video Bandwidth: 18Gbps
  • HDR Support: HDR, HDR10+, HLG, & Dolby Vision
  • Color Space RGB: 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
  • Color Depth: 8-bit,10-bit,12-bit (1080p60), 8-bit (4K2K@60Hz & YUV 4:4:4), 8-bit, 10-bit, 12-bit (4K2K@60Hz, YCbCr 4:2:2/4:2:0)
  • Supported HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
  • PoC Support: PoC from TX to RX
  • Main Power: PoC from TX to RX, Optional captive 24VDC
  • Power Adapter: Optional 100-240V 50/60Hz UL Power Adapter
  • Power Supply: 100V - 240VAC 50/60Hz
  • HDMI/DP/VGA Version: HDMI 2.0b
  • Diagnostics: LED: Power, HDBaseT, API

    Enclosure
  • Product Dimensions:
    - TX: 8.7" x 5.12" x 1.57" (220mm x 130mm x 40mm)
    - RX: 5.51" x 2.56" x 0.71" (140mm x 65mm x 18mm)
  • Product Weight:
    - TX: 1.88lbs (853g)
    - RX: 0.54lbs (246g)


• Item Includes:

  • 1x IR Blaster Cable (1.5 meters)
  • 1x 20K~60KHz IR Receiver Cable (1.5 meters)
  • 1x 3-pin Phoenix Connector
  • 2x Mounting Ear


• Warranty:

  • 1 Year Limited Warranty
