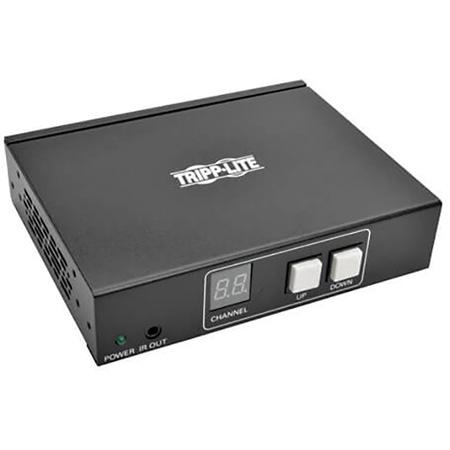

Tripp Lite B160-100-HDSI HDMI/DVI with RS-232 Serial - IR Control over IP Extender Transmitter 1080p 60hz

Manufacturer: Tripp Lite

Item #: TRL-B160-001HDSI   •   MFG #: B160-001-HDSI



List Price:$352.00
Our Price:$229.95

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

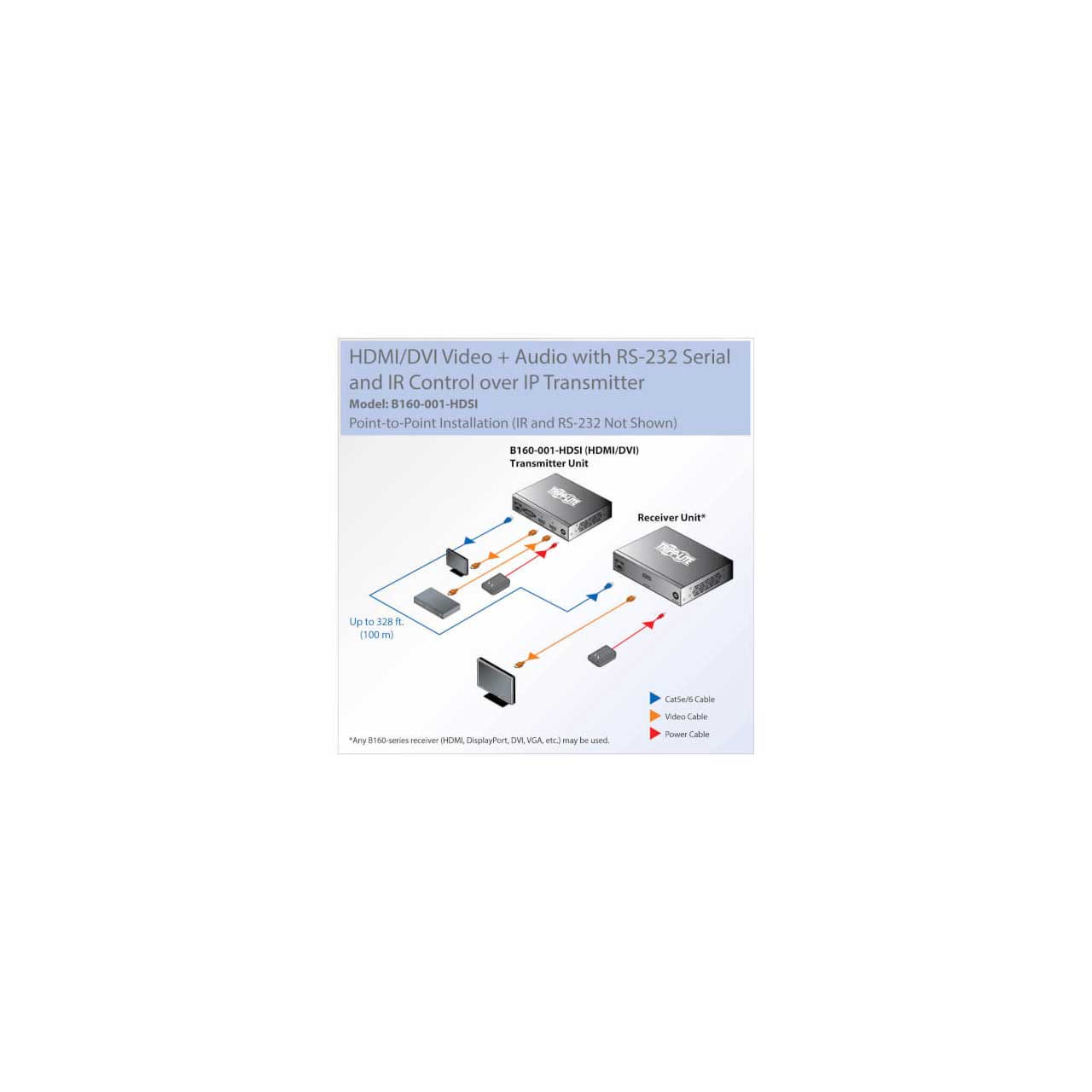

    The Tripp Lite B160-001-HDSI HDMI/DVI over IP Extender Transmitter works with a Tripp Lite B160-Series receiver (sold separately) to extend and distribute HDMI or DVI audio/video, RS-232 serial and IR (infrared) remote signals from the source to the display located up to 328 feet (100 meters) away, which is more than 200 feet farther than a traditional Cat5e/6 solution. By adding a chain of low-cost unmanaged network switches, such as Tripp Lite's NG5, you can continue extending the distance between source and display up to 328 feet per switch.

    The B160-001-HDSI displays a single source on a single display or distributes a single signal to multiple displays. Create a multi-in, multi-out installation with up to 64 transmitters and 255 receivers* by connecting dedicated managed Ethernet network switches** with Internet Group Management Protocol (IGMP), such as Tripp Lite's NSS-G16D2.

    With a compatible B160-Series receiver, you can send the HDMI or DVI video source (a DVI adapter cable is included) to any analog or digital display, including VGA and DisplayPort, allowing you to mix and match technologies and use existing monitors. An IGMP-enabled switch will let you manage all connections for centralized control over which sources show on which displays.

    The B160-001-HDSI supports video resolutions up to 1920 x 1440, including 1080p, though it's limited to the maximum resolution of the receiver. It mounts to a wall, rack or pole using the included hardware. An HDMI output port allows connection of a local display.

    *Unmanaged switch installations are limited to two transmitter units. Number of receivers is limited to number of ports remaining on unmanaged switch.
    **B160-Series designed for use with dedicated network switch. Connecting to a switch used with other networking equipment will result in degraded or non-functional performance.


    • Features

      • Converts audio/video to an IP-based signal that is transmitted point-to-point to a display 328ft away
      • Add low-cost network switches between transmitter and receiver to continue extending distance up to 328ft per switch

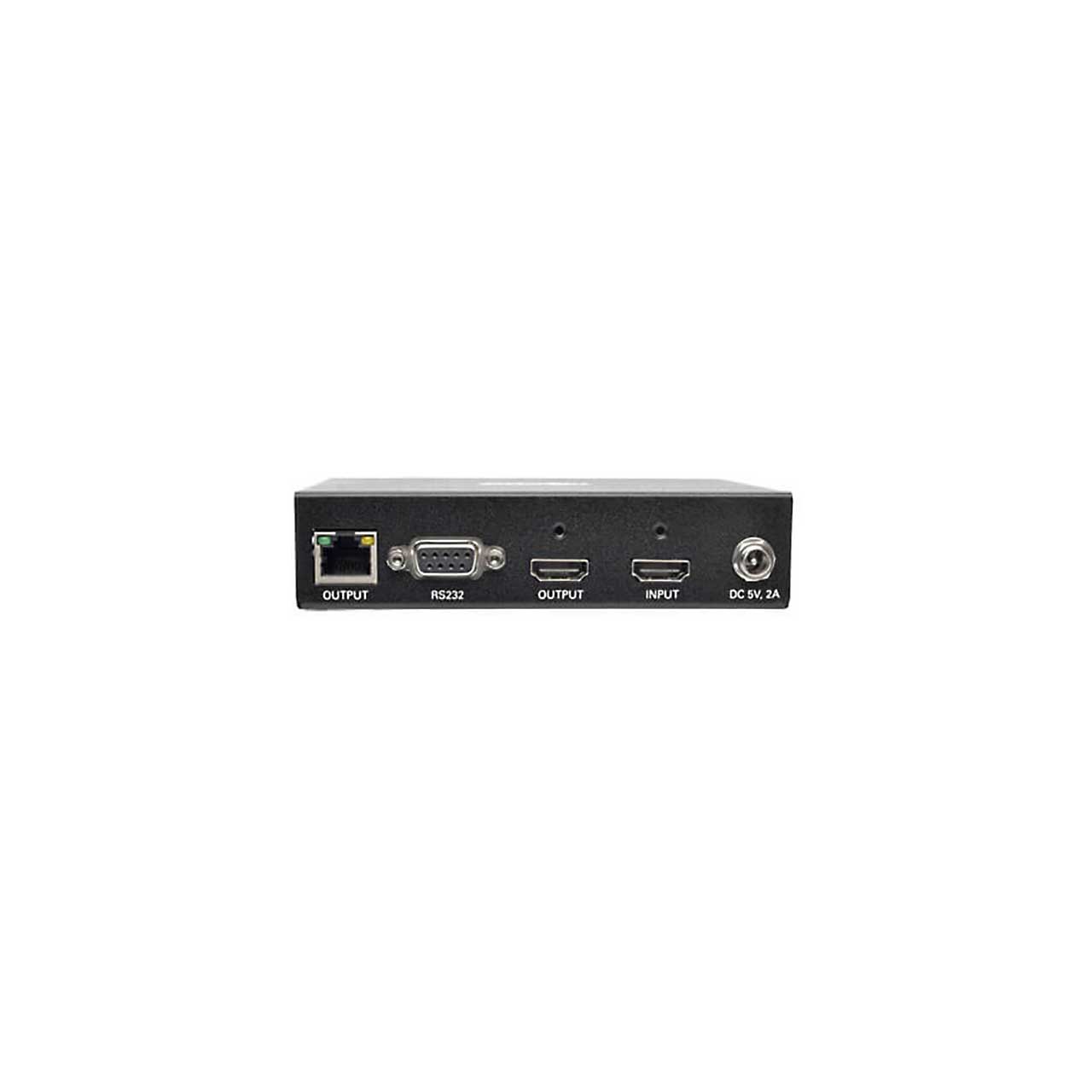

      • HDMI output for connecting a local display
      • Connect up to 64 transmitters and 255 receivers through multiple dedicated managed network switches
      • IGMP-enabled switches allow centralized control over which sources show on which displays
      • Video source can be sent to any analog or digital display, so you can mix and match technologies and use existing monitors
      • Supports video resolutions up to 1920 x 1440, including 1080p
      • Uses H.264 video compression standard
      • Transmits on 20-60kHz IR frequency
      • Extends IR control signals that control a source from a remote display
      • Supports RS-232 serial baud rates up to 57600Bps
      • HDCP and 3D compatible when used with a DisplayPort or HDMI receiver
      • No software or drivers required
      • Hardware included for mounting on wall, rack or pole
      • Compatible with all Tripp Lite B160-Series A/V over IP receivers
      • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

    • Specifications

      • Input
      • Voltage Compatibility (VAC): 100; 110; 120; 125; 127; 200; 208; 220; 230; 240
      • External Power Supply Input Specs (V/Hz/A): 100-240V/50/60Hz/1.0A
      • External Power Supply Output Specs (V/A): 5V/2A
      • External Power Supply Cord Length: 4.5ft
      • External Power Supply Plug(s): Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America

        User Interface, Alerts & Controls
      • LED Indicators: RJ45 Output (Green/Power, Orange/Signal), Channel Signal (Red), Power (Green)

        Communications
      • Signal Range: 328ft
      • Latency: 2-3 seconds

        Other Features & Specs
      • Max Supported Video Resolution: 1920 x 1440 (1080p) @60Hz
      • HDMI Specification: 1.4
      • HDCP Specification: 1.4
      • Audio Specification: 2 Channel Surround Sound, Stereo Audio
      • Driver Required: No
      • Recommended Category Cable: N202-Series Cat6 Patch Cable
      • Max Supported Color Depth: 24-bit True Color
      • IR Remote Extension Support: Yes
      • RS-232 Serial Extension Support: Yes
      • 3D Video Supported: Yes

        Environmental
      • Operating Temperature Range: 14°F - 167°F
      • Storage Temperature Range: -4°F - 176°F
      • Relative Humidity: 0% to 85%, Non-Condensing
      • BTUs: 19.8 BTU/Hr
      • Power Consumption: 5.8W

        Physical
      • Shipping Dimensions (HxWxD): 2.1" x 6.3" x 10.1"
      • Shipping Weight: 2lbs
      • Unit Dimensions (HxWxD): 1.2" x 5" x 3.9"
      • Unit Weight: 0.2lbs
      • Material of Construction: SECC
      • Color: Black
      • Rackmountable: Yes

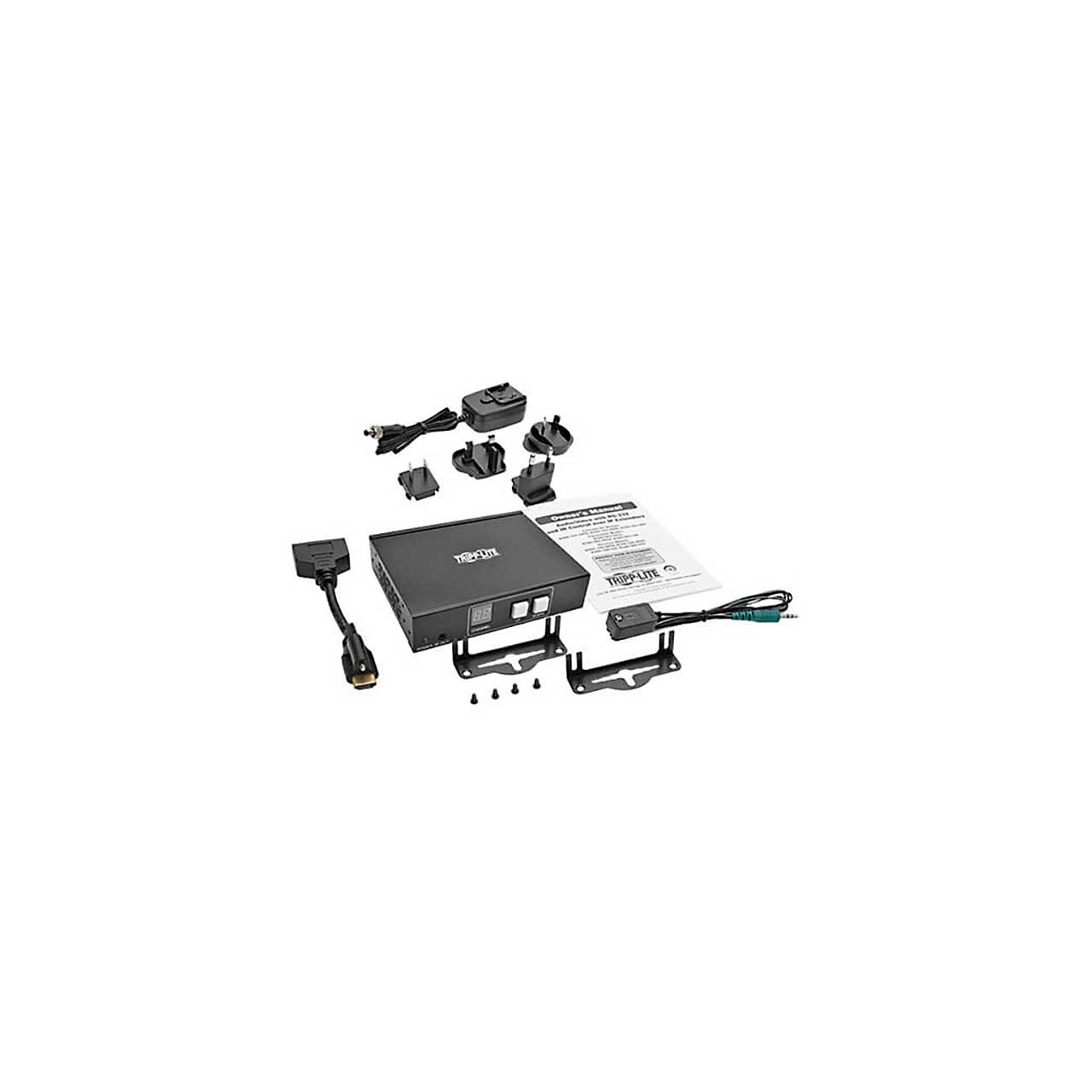

    • Item Includes

      • Transmitter unit
      • External power supply (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V 2A)
      • Plug adapters for U.S., U.K., Europe and Australia
      • IR-Out cable
      • HDMI-to-DVI adapter cable
      • Mounting hardware
      • Owner's manual

    • Warranty

      • 1 Year Limited Warranty
