Tripp Lite OMNIVSINT1500XL OmniVS 230V 1500VA 940W Line-Interactive UPS Extended Run Tower USB port C13 Outlets

ITEM #: TRL-OMNIVS1500XL MFG #: OMNIVSINT1500XL

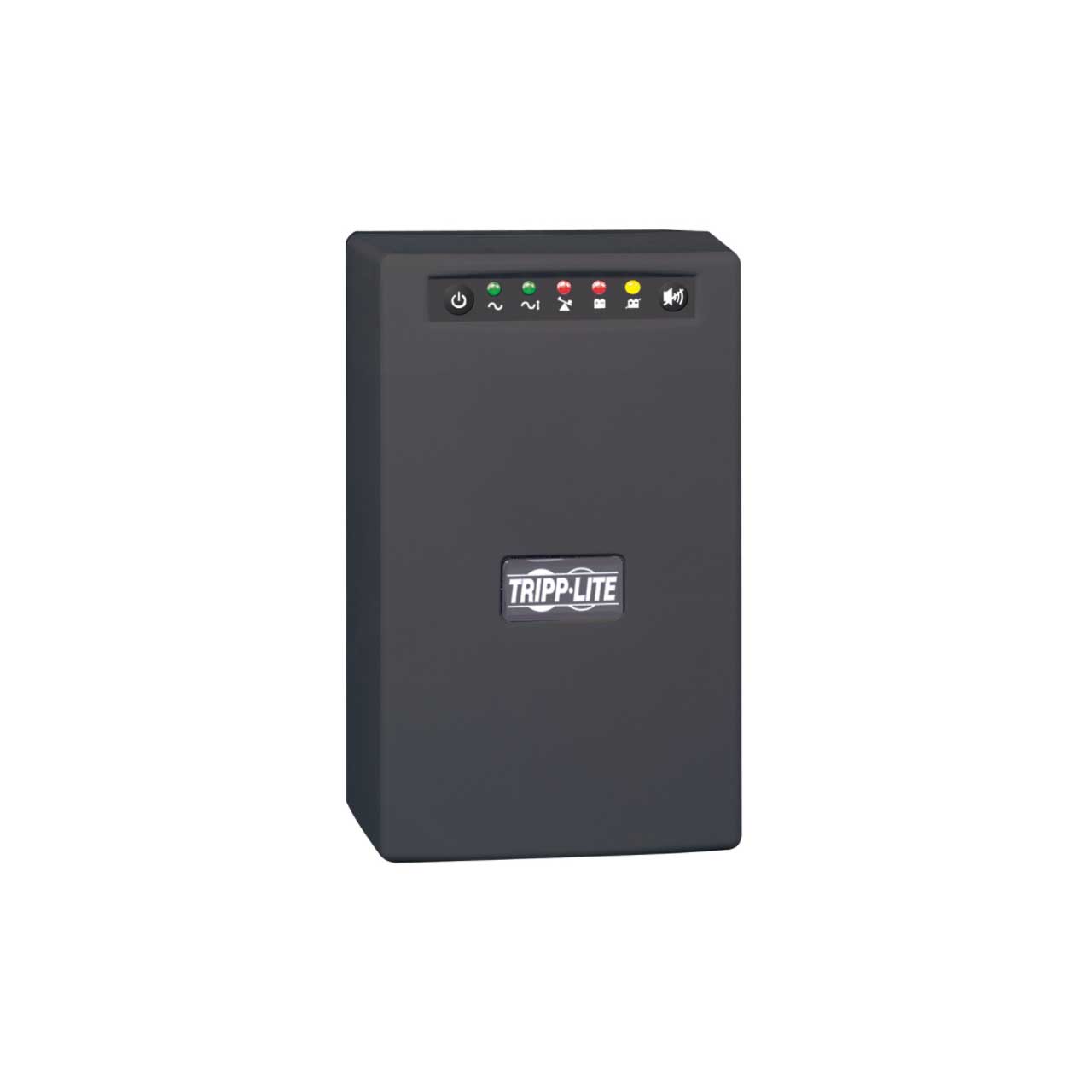

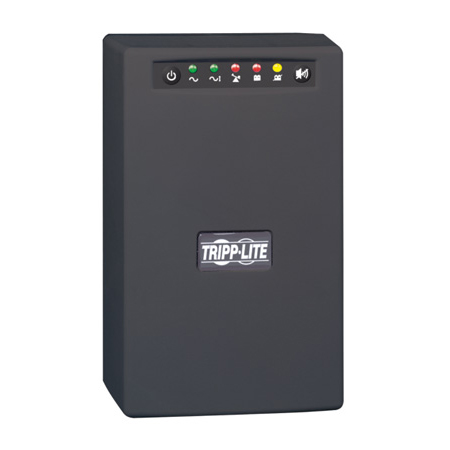

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$580.94

Our Price:

$407.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    OMNIVSINT1500XL - Overview

    Tripp Lite's OMNIVSINT1500XL line interactive UPS system offers voltage regulation, surge suppression and long lasting, expandable battery support for personal computers, internetworking equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 75 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 151 and overvoltages up to 282 volts back to usable 230V levels without using battery power.

    Offers complete desktop power protection in an attractive black tower configuration. Includes 8 IEC320-C13 outlets with battery support and AC surge suppression. USB port enables optional unattended system shutdown without data loss in the case of extended power failure, USB cable included. PowerAlert software available via free download from www.tripplite.com. Built-in single line RJ jacks protect modem, fax machine, Ethernet, cordless phone or other peripheral with a standard dialup/DSL phone connection. Built-in audible alarm and 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage boost operation.

    1500VA power handling ability supports entry-level PCs, network workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Offers 4.5 minutes battery runtime with a full load of 1500VA and 13 minutes with a half load of 750VA. Supports hot-swappable battery replacement via built-in access panel. Extended runtime available with optional BP24V15RT2U or BP24V28-2U external battery packs.

    • Features:

      • OMNIVSINT1500XL Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery support
      • Supports entry level PCs up to 75 minutes during blackouts to enable shutdown without data loss, runtime is further expandable by connecting an external battery pack
      • Regulates brownouts as low as 151 and overvoltages to 282V back to usable 230V nominal levels without using battery power
      • 8 IEC320 C13 outlets with complete AC surge suppression
      • C14 inlet accepts user-supplied AC power cord with country-specific plug
      • USB port and cable enables unattended shutdown in the case of extended power failure
      • PowerAlert software available via free download from www.tripplite.com
      • Dataline surge suppression protects standard dialup/DSL or Ethernet line connection
      • Audible alarm and 4 front panel LEDs offer complete UPS and line power status information
      • 1500VA power handling ability supports a variety of sensitive electronic equipment
      • 4.5 minutes full load runtime (1500VA), 13 minutes half load runtime (750VA)
      • Runtime is further expandable with the addition of external battery packs
      • Supports hot swappable battery replacement via built-in access panel
      • Optional PDUBHV10 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment

    • Specifications:

      • Output Volt Amp Capacity (VA): 1500
      • Output kVA Capacity (kVA): 1.5
      • Output Watt Capacity (Watts): 940
      • Nominal Output Voltage(s) Supported: 220V; 230V; 240V
      • Nominal Voltage Details: 230V nominal output in battery mode
      • Frequency Compatibility: 50 / 60 Hz
      • Frequency Compatibility Details: Automatic frequency selection
      • Output Voltage Regulation (Line Mode): -18%, +8%
      • Output Voltage Regulation (Battery Mode): +/- 5%
      • Output Receptacles: (8) C13
      • Included Output Power Cables: Includes 2 C13 to C14 output power cables
      • Hot-Swap PDU options: PDUBHV10 (2U / 8 C13 outlets)
      • Output AC Waveform (AC Mode): Sine wave
      • Output AC Waveform (Battery Mode): PWM sine wave
      • Rated input current (Maximum Load): 5A
      • Nominal Input Voltage(s) Supported: 230V AC
      • UPS Input Connection Type: C14 inlet
      • UPS Input Connection Description: Attached 15cm line cord with C14 inlet. The C14 inlet accepts user-supplied AC power cord with country-specific plug.
      • UPS Input Cord Length (ft.): 0.5
      • Input Phase: Single-Phase
      • Full Load Runtime (min.): 4.5 min. (940w)
      • Half Load Runtime (min.): 13 min. (470w)
      • Expandable Battery Runtime: Extended runtime supported via optional external battery packs
      • External Battery Pack Compatibility: BP24V15RT2U (limit 1); BP24V28-2U (limit 1); BP24V70-3U (multi-pack compatible)
      • DC System Voltage (VDC): 24
      • Battery Recharge Rate (Included Batteries): Less than 4.5 hours from 10% to 90%
      • Internal UPS Replacement Battery Cartridge: RBC51 (quantity 2)
      • Battery Access: Battery access door
      • Battery Replacement Description: Hot-swappable, user replaceable batteries
      • Expandable Runtime: Yes
      • Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 151 to 282
      • Overvoltage Correction: Input voltages between 245 and 282 are reduced by 12%
      • Undervoltage Correction: Input voltages between 177 and 199 are boosted by 14%
      • Severe Undervoltage Correction: Input voltages between 151 and 176 are boosted by 30%
      • Switches: 2 Switches control off/on power status and alarm-cancel/self-test operation
      • Alarm Cancel Operation: Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
      • Audible Alarm: Audible alarm indicates power-failure and low-battery conditions
      • LED Indicators: 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
      • UPS AC Suppression Joule Rating: 340
      • UPS AC Suppression Response Time: Instantaneous
      • UPS Dataline Suppression: 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
      • EMI / RFI AC Noise Suppression: Yes
      • Primary Form Factor: Tower
      • UPS Power Module Dimensions (hwd, in.): 11.8 x 7.2 x 7.5
      • UPS Power Module Weight (lbs.): 32
      • UPS Shipping Dimensions (hwd / in.): 15.5 x 11 x 11.2
      • Shipping Weight (lbs.): 35
      • UPS Housing Material: Polycarbonate
      • Operating Temperature Range: +32 to +104°F
      • Storage Temperature Range: +5 to +122°F
      • Relative Humidity: 0 to 95%, non-condensing
      • AC Mode BTU / Hr. (Full Load): 99
      • Battery Mode BTU / Hr. (Full Load): 657
      • AC Mode Efficiency Rating (100% Load): 0.97
      • Communications Interface: USB
      • Communications Cable: USB interface cable included
      • WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
      • Transfer Time: 2-4 milliseconds
      • Low Voltage Transfer to Battery Power (Setpoint): 151
      • High Voltage Transfer to Battery Power (Setpoint): 282
      • Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported

    • Item Includes:

      • OMNIVSINT1500XL line interactive UPS
      • 2 C13 to C14 interconnection cables
      • USB and phone line cables
      • Owner's manual with warranty information

    • Warranty:

      • 2 Year

    • GTIN:

      0037332119780
