Tripp Lite SM2200RMXL2UP SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS 2U Extended Run Network Card Options
  • Tripp Lite SM2200RMXL2UP SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS 2U Extended Run Network Card Options
  • Tripp Lite SM2200RMXL2UP SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS 2U Extended Run Network Card Options
  • Tripp Lite SM2200RMXL2UP SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS 2U Extended Run Network Card Options
  • Tripp Lite SM2200RMXL2UP SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS 2U Extended Run Network Card Options
  • Tripp Lite SM2200RMXL2UP SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS 2U Extended Run Network Card Options

Questions? Ask a Markertek Expert:
800-522-2025 Email

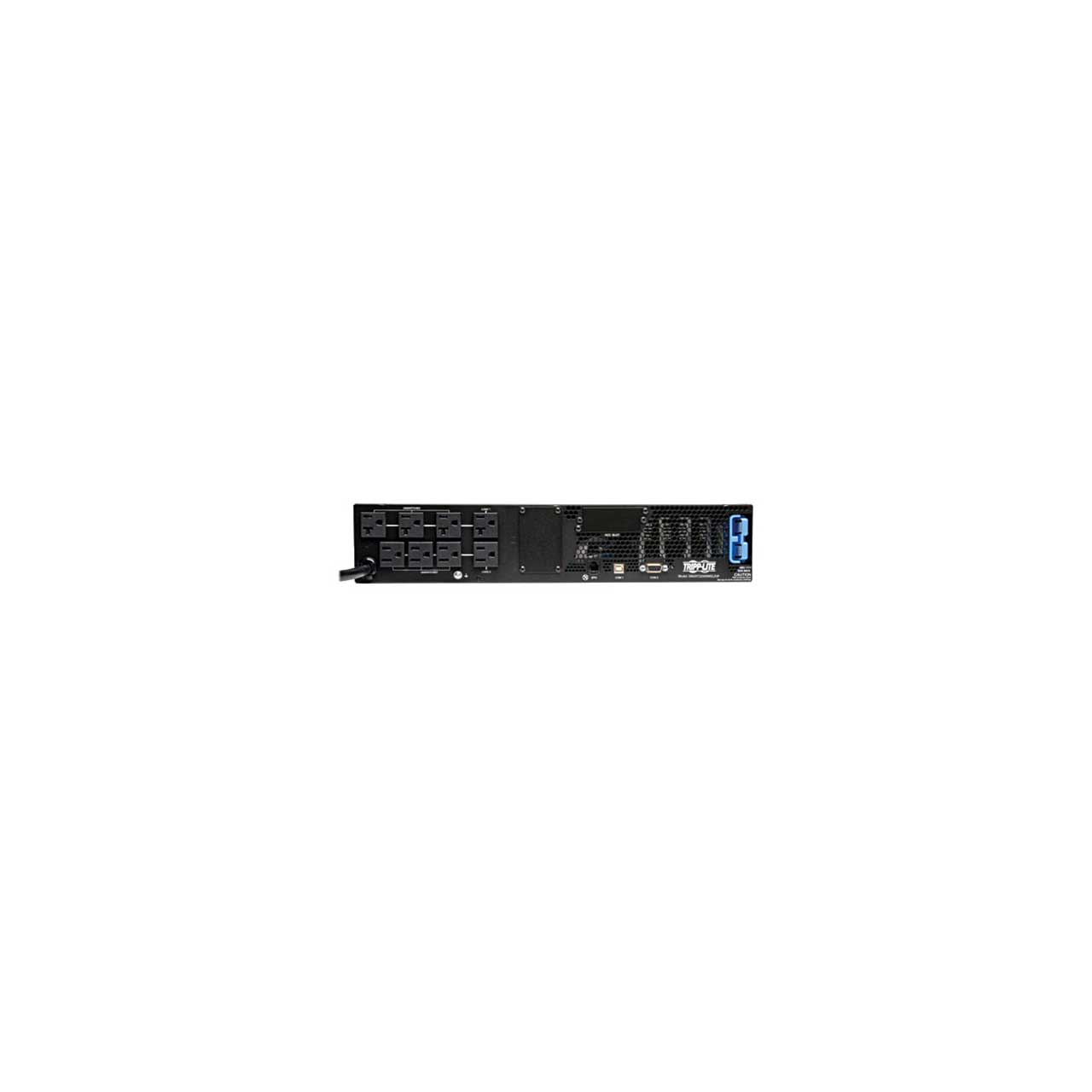

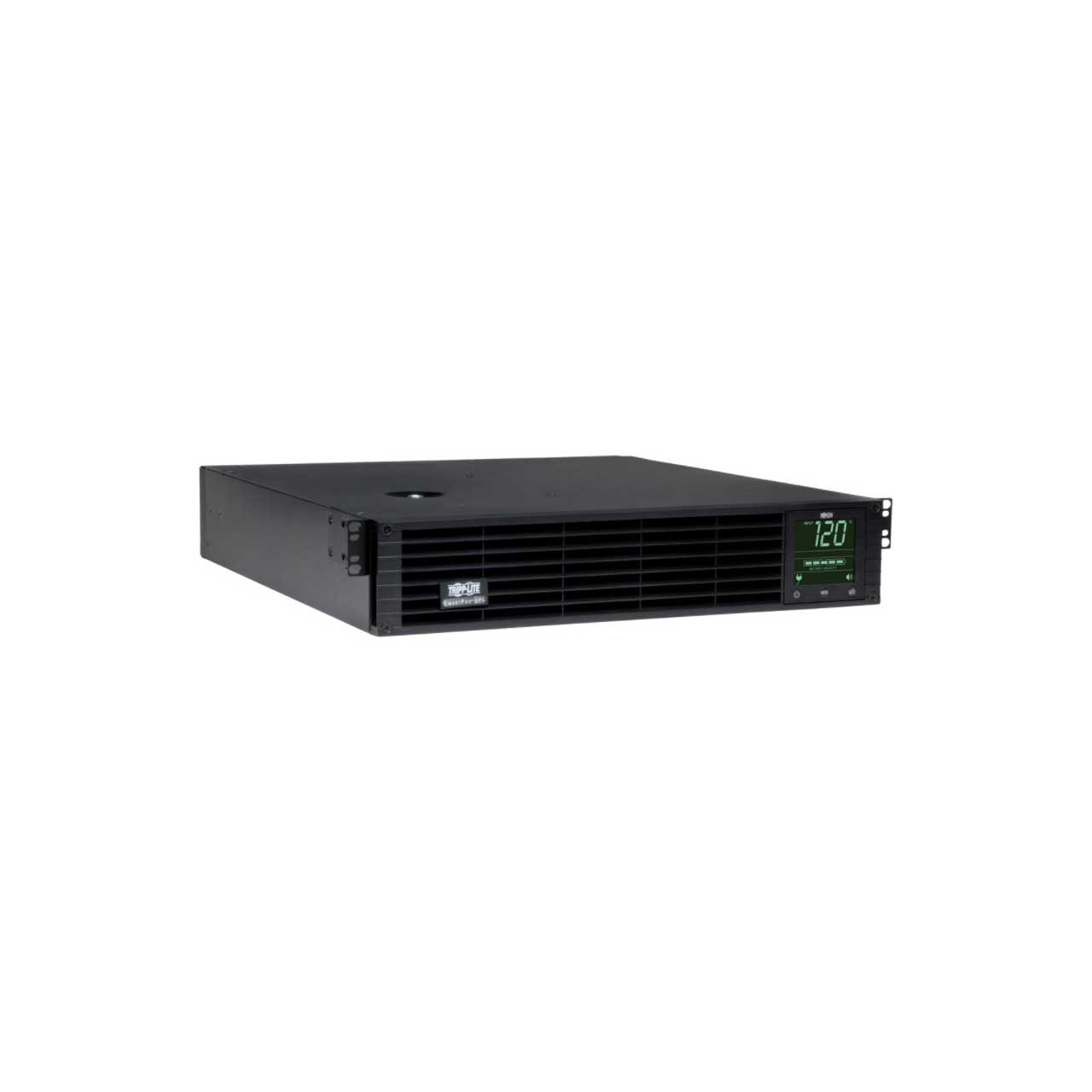

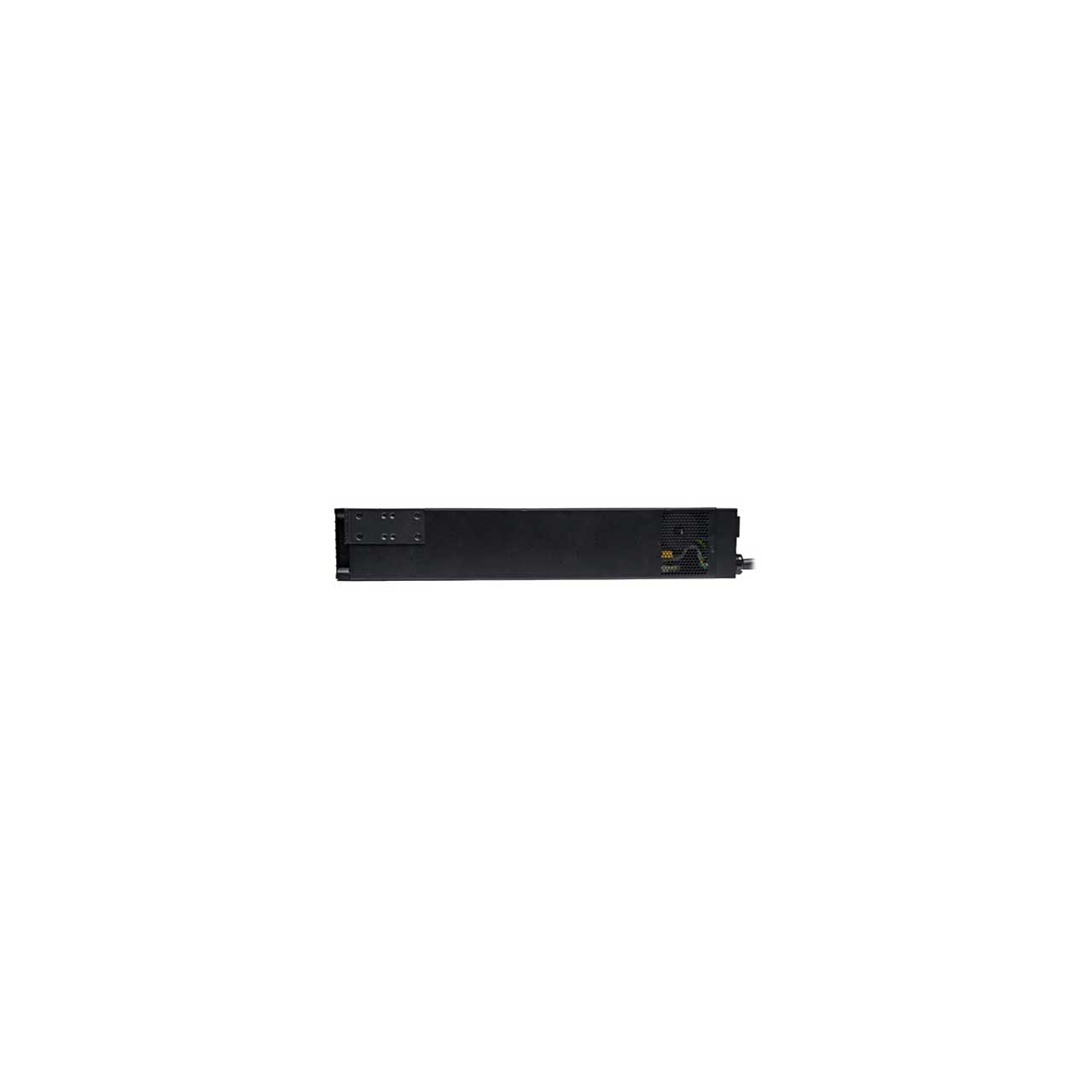

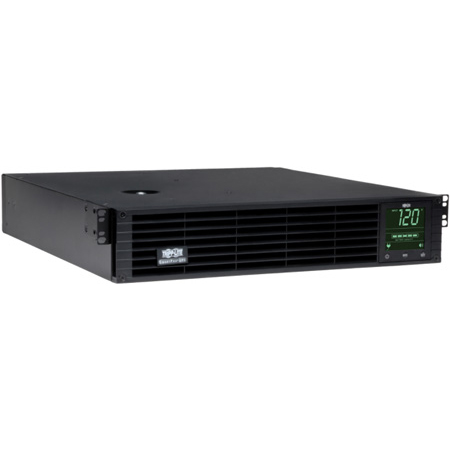

Tripp Lite SM2200RMXL2UP SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS 2U Extended Run Network Card Options

Manufacturer: Tripp Lite

Item #: TRL-SM2200RMXL2U   •   MFG #: SM2200RMXL2UP



List Price:$1,661.40
Our Price:$1,061.45

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!





    Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions.

    Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Communications interfaces support communications via USB, DB9 serial and slot for optional network management card options, such as Tripp Lite's SNMPWEBCARD. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X.

    Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.


    • Features

      • Tripp Lite SM2200RMXL2UP line interactive 2U rack/tower UPS with 2200VA / 2.2kVA / 1920W capacity and extended runtime options
      • Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 145V
      • NEMA 5-20P input plug; 4 NEMA 5-15/20R and 4 5-15R output receptacles, Two independently switched output load banks
      • Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
      • High 96% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions
      • Internal batteries offer 12 minutes at 50% load (960W) and 4.5 minutes at 100% load (1920W)
      • External battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
      • Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment
      • Intelligent battery management system extends battery life

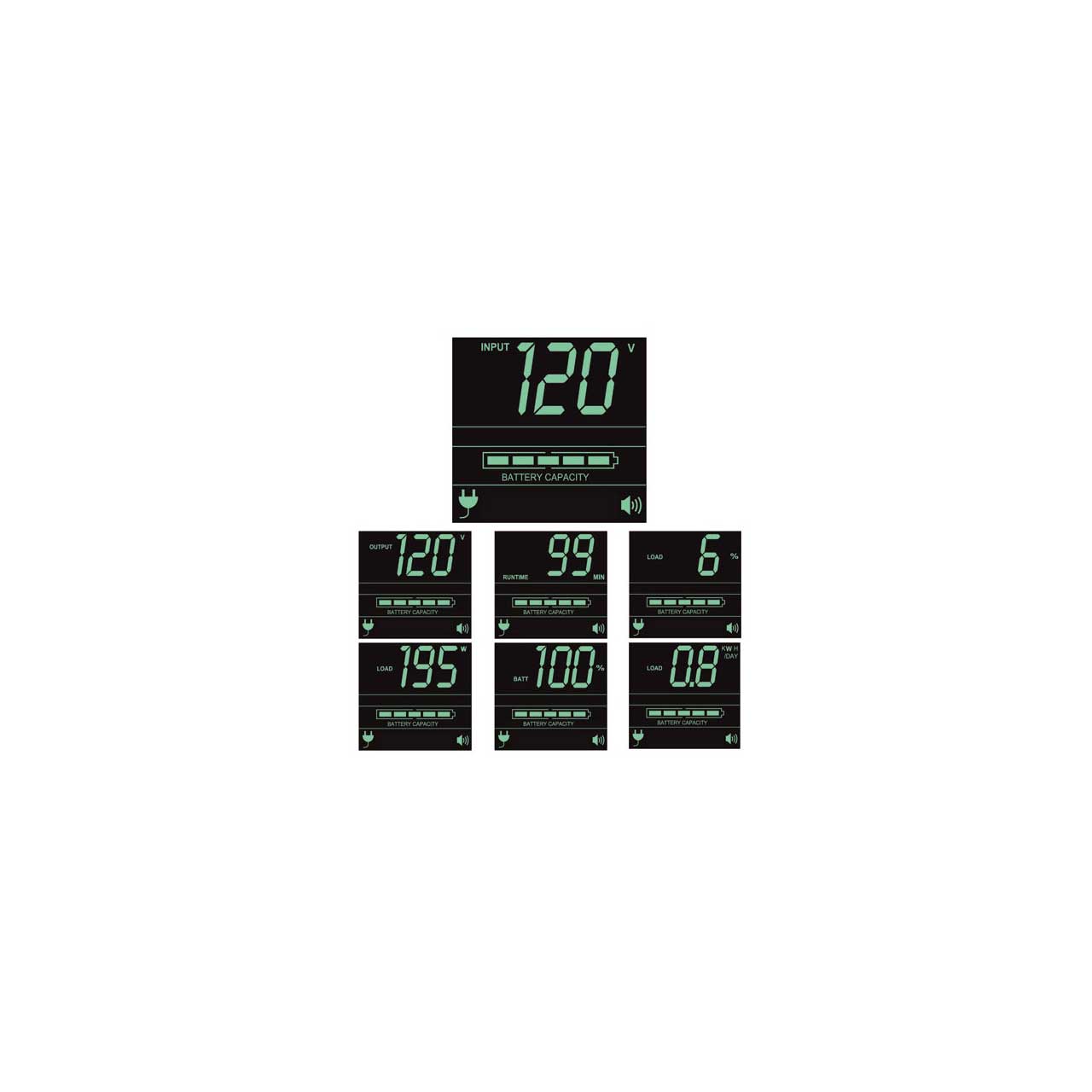

      • Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
      • LCD interface also supports a number of advanced user setup and operating preferences
      • Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
      • Built-in USB, DB9 and EPO (Emergency Power Off) interfaces
      • Included PowerAlert UPS monitoring software; Built-in Emergency Power Off (EPO) interface with cable

    • Specifications

      • Output Volt Amp Capacity (VA): 2200
      • Output kW Capacity (kW): 1.92
      • Output Capacity Details: Supports 1920 watts in standalone or extended runtime configurations
      • Power Factor: 0.87
      • Nominal Output Voltage(s) Supported: 110V; 115V; 120V
      • Nominal Voltage Details: 120v nominal output in battery mode
      • Frequency Compatibility: 60 Hz
      • Output Voltage Regulation (Line/Battery Mode): -14%, +6%; +/- 5%
      • Output Receptacles: (4) 5-15R; (4) 5-15/20R
      • Load Management Receptacles: Two switched single outlet load banks (1 5-15/20R & 1 5-15R)
      • Output AC Waveform (AC/Battery Mode): Pure Sine wave/Pure Sine wave
      • Rated input current (Maximum Load): 16A
      • Nominal Input Voltage(s) Supported: 120V AC
      • UPS Input Connection Type: 5-20P
      • UPS Input Cord Length (ft.): 10
      • Recommended Electrical Service: 20A 120V
      • Input Phase: Single-Phase
      • Full/Half Load Runtime (min.): 4.5 min. (1920w); 12 min. (960w)
      • External Battery Pack Compatibility: BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)
      • DC System Voltage (VDC): 48
      • Battery Recharge Rate (Included Batteries): Less than 4.5 hours from 10% to 90% (typical, full load discharge)
      • Internal UPS Replacement Battery Cartridge: RBC94-2U
      • Battery Replacement Description: Hot-swappable, user replaceable batteries
      • Voltage Regulation Description: Automatic voltage regulation (AVR) maintains regulated line power output with an input voltage range of 83 and 145
      • Overvoltage Correction: Voltage reduction of 12% applies when input is between 127 and 145
      • Undervoltage Correction: Voltage boost of 12% applies when input voltage is between 96 and 108
      • Severe Undervoltage Correction: Voltage boost of 24% applies when input voltage is between 83 and 95
      • Switches: 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
      • UPS AC Suppression Joule Rating: 570
      • UPS Power Module Dimensions (hwd, in.): 3.5 x 17.5 x 19
      • Minimum Required Rack Depth (inches): 26
      • UPS Power Module Weight (lbs.): 64
      • UPS Shipping Dimensions (hwd / in.): 9 x 23.5 x 20
      • Shipping Weight (lbs.): 72
      • Cooling Method: Fan
      • UPS Housing Material: Steel
      • Operating Temperature: +32 to +104°F
      • Storage Temperature: +5 to +122°F
      • Relative Humidity: 0 to 95%, non-condensing
      • AC Mode BTU / Hr. (Full Load): 250
      • Battery Mode BTU / Hr. (Full Load): 980
      • AC Mode Efficiency Rating (100% Load): 0.96
      • Communications Interface: USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
      • Network Management Cards: SNMPWEBCARD; TLNETCARD; WEBCARDLX
      • Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions
      • WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
      • Transfer Time: 5 milliseconds (line to battery mode); 1 millisecond (battery to line mode)
      • Low Voltage Transfer to Battery Power (Setpoint): 83
      • High Voltage Transfer to Battery Power (Setpoint): 145
      • Product Warranty Period (Worldwide): 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.

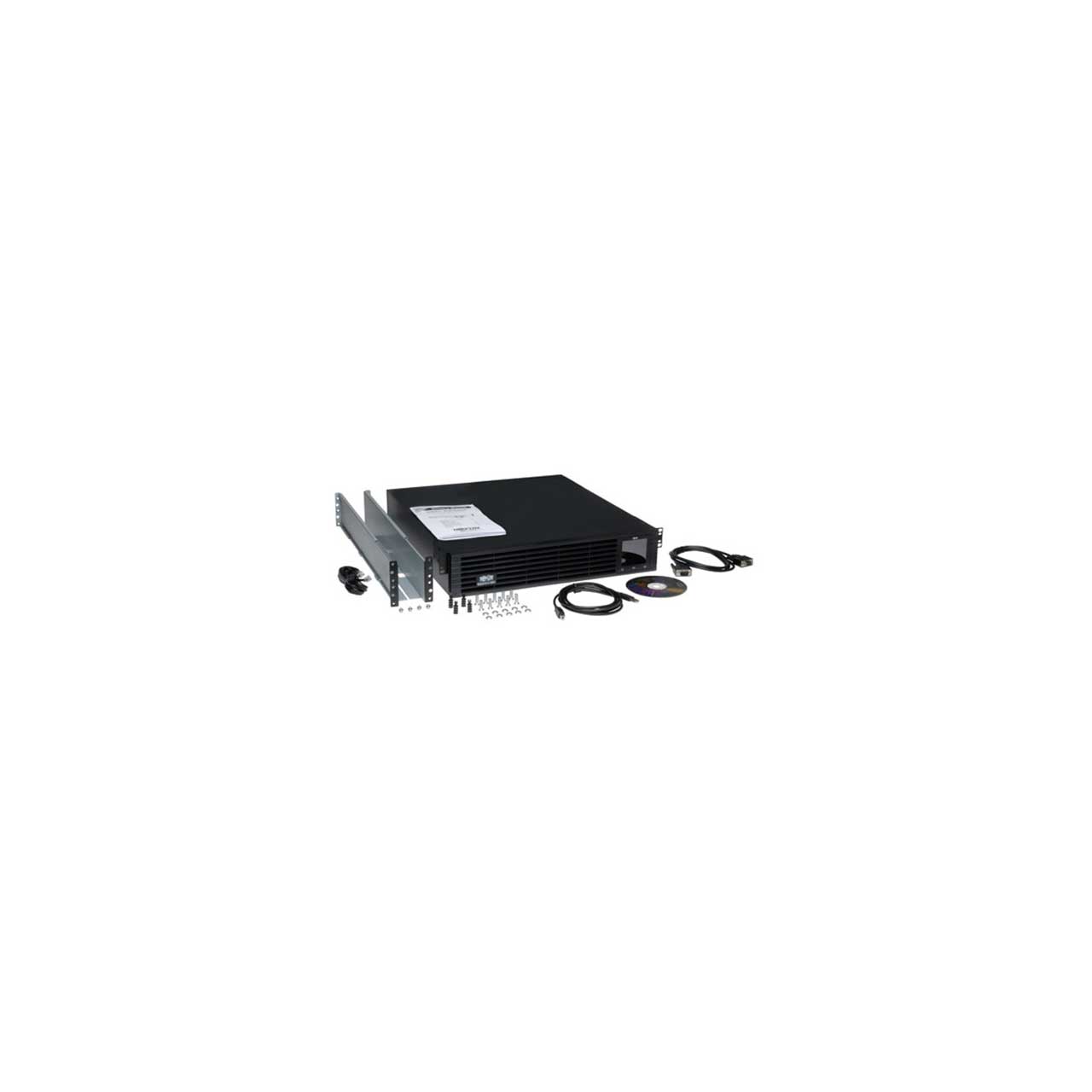

    • Item Includes

      • SM2200RMXL2UP UPS system
      • PowerAlert software with USB, Serial & EPO cabling
      • 4 post installation kit
      • Owner's manual

    • Warranty

      • 2 Year
