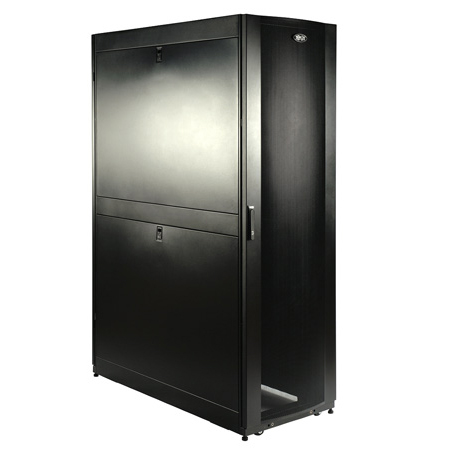

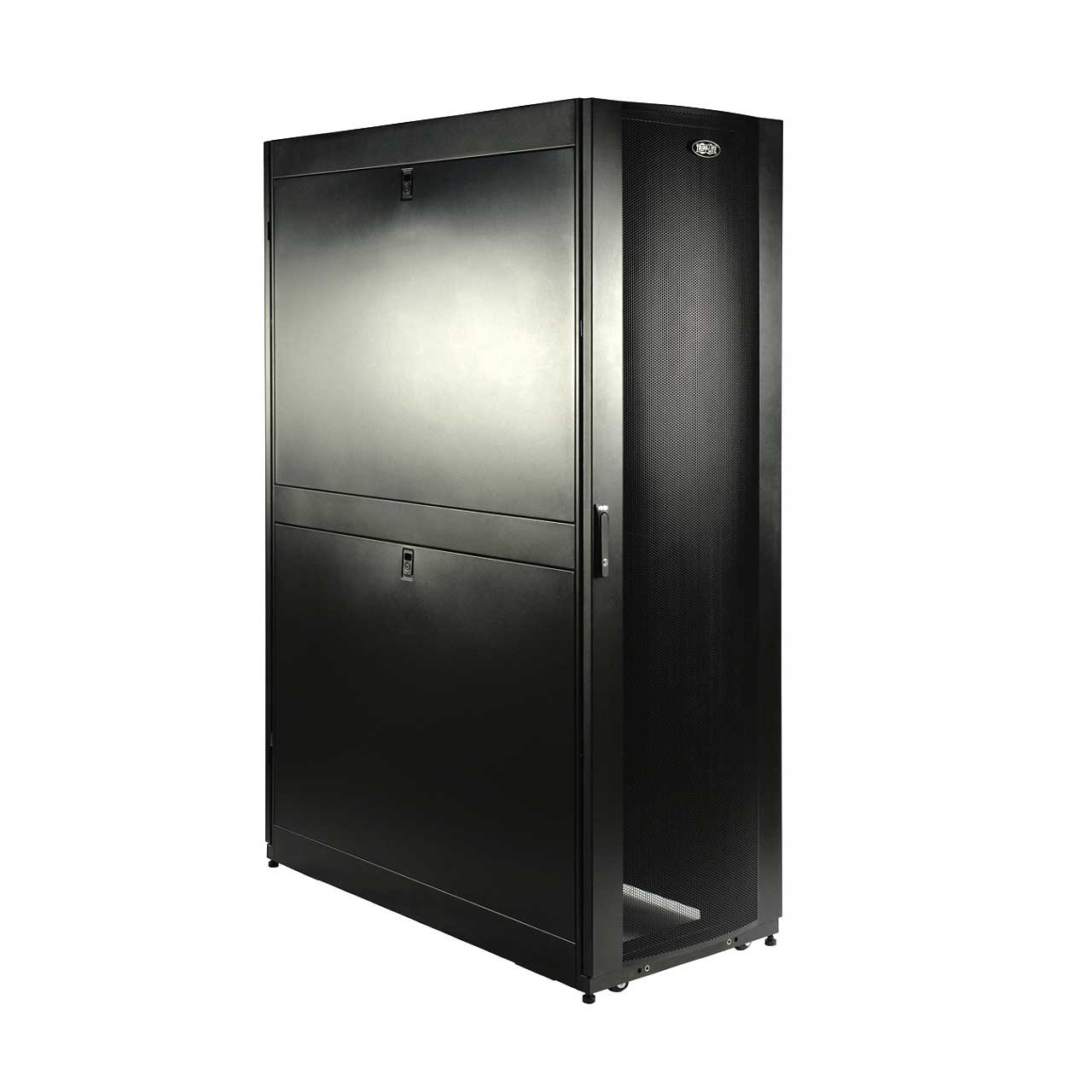

Tripp Lite SR42UBDP 42U Rack Enclosure Server Cabinet 47.25 Inch Deep w/ Doors & Sides
  • Tripp Lite SR42UBDP 42U Rack Enclosure Server Cabinet 47.25 Inch Deep w/ Doors & Sides
  • Tripp Lite SR42UBDP 42U Rack Enclosure Server Cabinet 47.25 Inch Deep w/ Doors & Sides
  • Tripp Lite SR42UBDP 42U Rack Enclosure Server Cabinet 47.25 Inch Deep w/ Doors & Sides
  • Tripp Lite SR42UBDP 42U Rack Enclosure Server Cabinet 47.25 Inch Deep w/ Doors & Sides

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tripp Lite SR42UBDP 42U Rack Enclosure Server Cabinet 47.25 Inch Deep w/ Doors & Sides

Manufacturer: Tripp Lite

Item #: TRL-SR42UBDP   •   MFG #: SR42UBDP



List Price:$2,338.20
Our Price:$1,434.10

no free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.


  • Shipped truck freight.


Share!

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

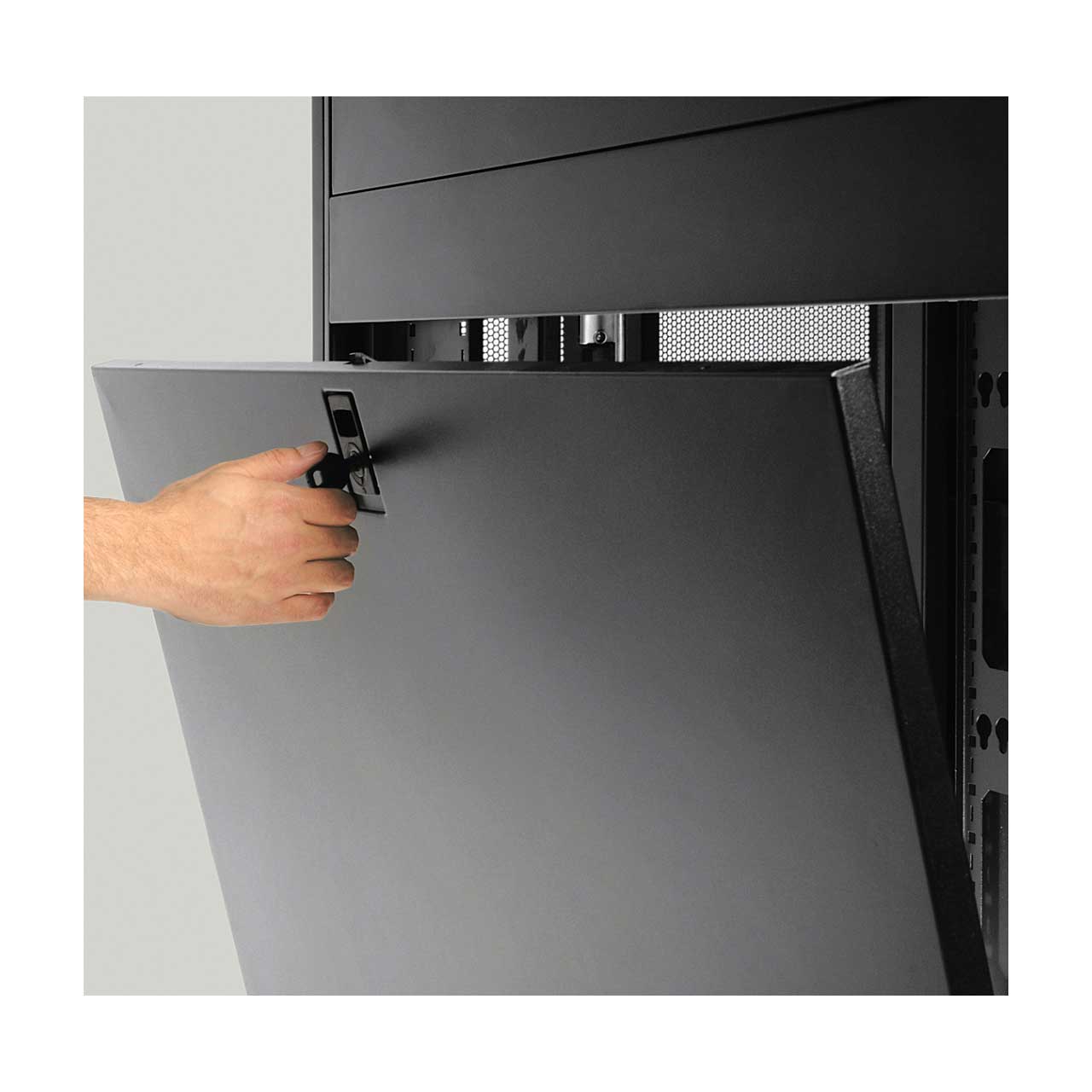

A DEEP version of our standard 42U SmartRack. This enclosure is 1200mm deep (48") compared to the standard 1050mm deep (42"). This extra depth allows for high density equipment installations. It allows extra space for moving the cable management back as well as providing space for mounted equipment that has hot-swap, removable power supplies out the back of the enclosure.The SR42UBDP houses 3000 lb of standard 19-inch rack equipment in 42U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 42 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.With its locking, reversible, removable front and rear doors, and locking, removable side panels, the SR42UBDP provides ultimate equipment safety. The side panels are half size for ease of removal and reinstallation. The split rear door design allows the enclosure to be placed closer to a wall. The SR42UBDP meets all requirements toward PCI DSS compliance.The top panel of the SR42UBDP is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing, and can be quickly removed without tools. To facilitate cable access, the SR42UBDP is open-bottom.All components of the SR42UBDP are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.To simplify deployment, the SR42UBDP comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.The SR42UBDP comes with a 5-year product warranty. As part of the SmartRack family, the SR42UBDP is compatible with Tripp Lite’s extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement.


  • Features

    • Ships fully assembled for rapid deployment and roll into place on pre-installed casters (casters are removable)
    • Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements.

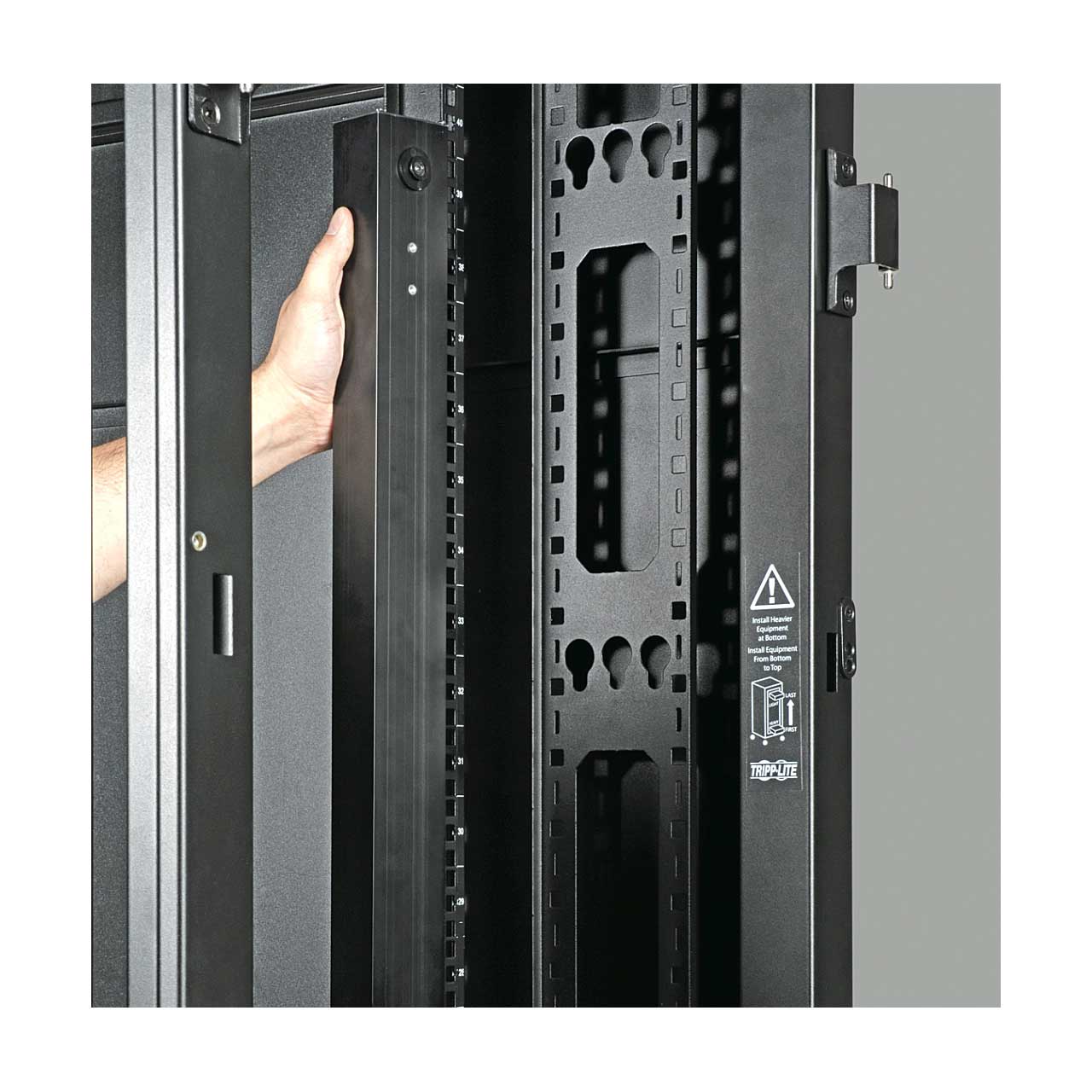

    • Toolless accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure).
    • Enclosure includes mounting hardware of M6 cage nuts and 50 pieces of M6 screws

  • Specifications

    • Style Floor Standing
    • Installed Whole System Maximum Rack Depth (in.) 42
    • Installed Whole System Maximum Rack Depth (cm) 106.7
    • Installed Whole System Minimum Rack Depth (in.) 4
    • Installed Whole System Minimum Rack Depth (cm) 10.16
    • Rack Height (U Spaces) 42
    • Shipping Dimensions (hwd / in.) 85 x 32 x 54
    • Shipping Dimensions (hwd / cm) 215.9 x 81.28 x 137.16
    • Shipping Weight (lbs.) 375
    • Shipping Weight (kg) 170.1
    • Unit Dimensions (hwd / in.) 78.5 x 29.63 x 47.3
    • Unit Weight (lbs.) 345
    • Unit Weight (kg) 156.49
    • Unit Dimensions (cm) 199.39 x 75.26 x 120.142
    • Color Black
    • Weight Capacity - Stationary (lbs.) 3000
    • Weight Capacity - Rolling (lbs.) 2250
    • Factory Preset Rack Depth (in.) 28.125
    • Factory Preset Rack Depth (cm) 71.44
    • Hinged (Swings Away from Wall Bracket) No
    • Grounding Lug Front and Back door frames
    • Certifications UL60950; RoHS, CE
    • NOM (Mexico) Tested to NOM (Mexico)
    • Approvals EIA/ECA-310-E
    • Product Warranty Period (Worldwide) 5-year limited warranty
