Theatrixx XVV-SDI2AUDIO xVision Converter - SDI De-Emdedder to HDMI + Audio - Edison Out


Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

    XVV-SDI2AUDIO - Overview

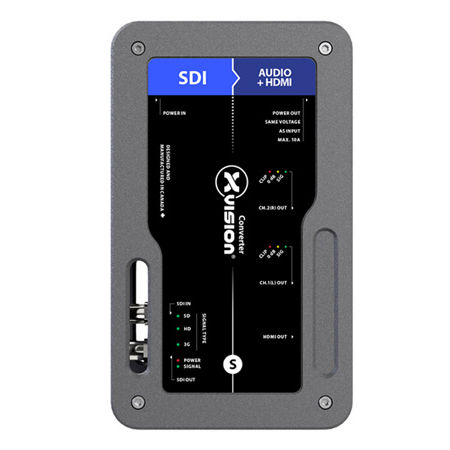

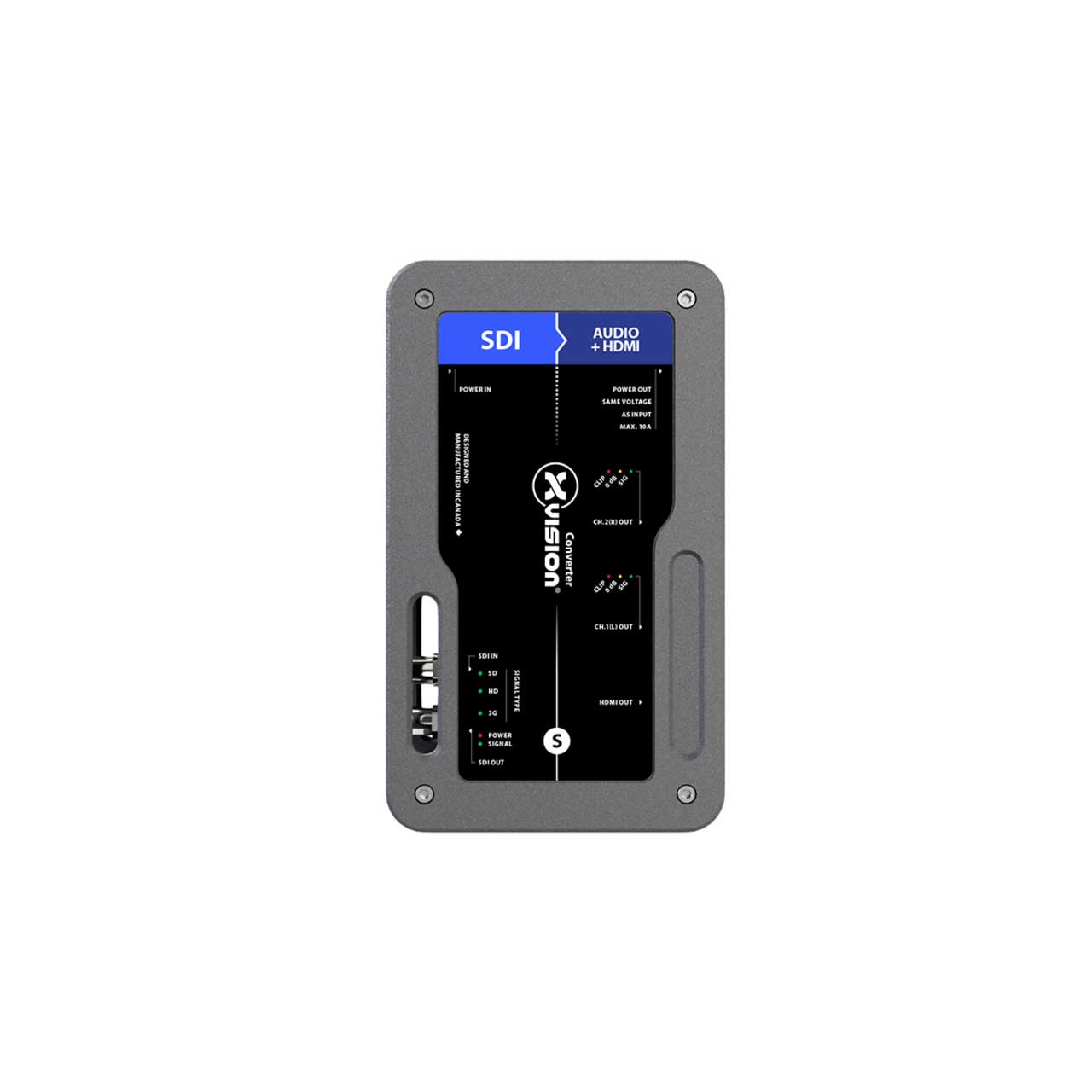

    Following Theatrixx's commitment to using only professional, locking connectors, the new xVision XVV-SDI2AUDIO SDI Audio De-Embedder boasts two Neutrik balanced XLR outputs assigned to SDI channels 1 and 2. The outputs are equipped with a 3-segment LED level meter, a unique feature to quickly identify channel status with no external equipment required.

    This Audio De-Embedder also features a reclocked SDI loop-thru and HDMI output, effectively making this unit the perfect companion for common LCD-monitor-and-powered-speaker setups, or any other application requiring professional audio and video connectivity from a SDI source.

    • Features:

      • Integrated power supply with locking PowerCON connector. Never rely on a cluster of wall-warts again
      • Built-in convenience 120V outlet to power nearby projector, TV, laptop, Power bar to power both the converter and device not required anymore
      • Magnetic stacking system and non-skid rubber pad. Saves at least 10 gaffer tape rolls a year

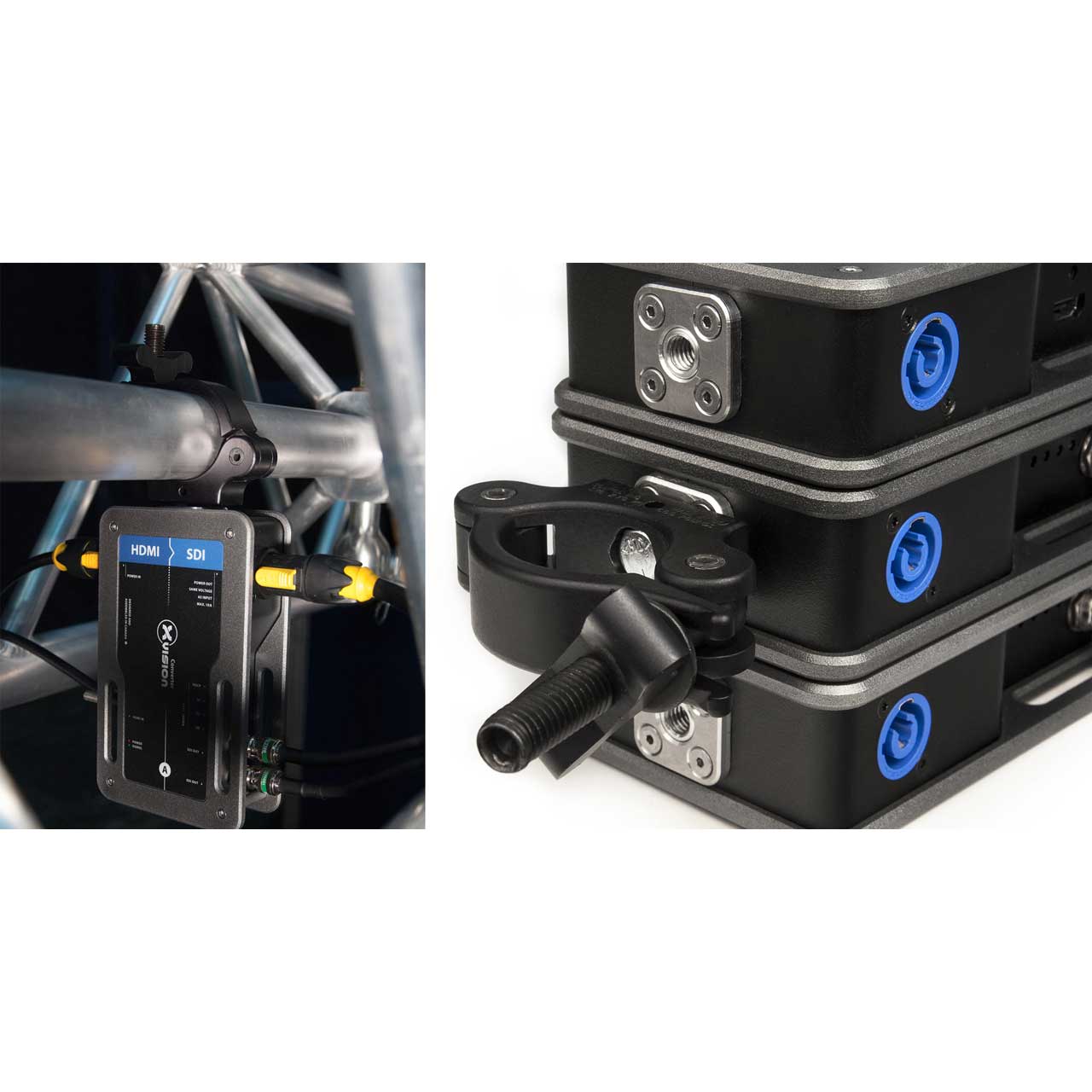

      • Multiple mounting options: Pipe coupler, wall-mount adapter, LCD mount adapter
      • Rugged, tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come
      • Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works
      • Clear and ample status LED indicators for quick troubleshooting
      • HDMI inputs tested and compatible with Apple computers and iPad
      • Easy on-the-field identification with unique color and alphabetic coding system
      • Locking HDMI port prevents accidental disconnection
      • SDI loop-thru and/or integrated splitter
      • Proudly designed and assembled in Canada
    • Specifications:

      • Supported resolutions: 3G - 1080p50/60; HD - 1080p24/25/30; HD - 1080i50/60; HD - 720p50/60; SD - 625i (PAL); SD - 525i (NTSC)
      • Audio: Up to 8 channels, 24 bits, 48kHz
      • Power: Built in power supply; PowerCON input; Edison NEMA 5-15 convenience output
      • Power Consumption: 15 watts
      • Power Input: 85-125 VAC 50/60 Hz
    • Item Includes:

      • xVision Converter
      • Locking HDMI male to DVI male cable (1 meter)
      • Edison NEMA 5-15P to PowerCON cable (1 meter)
