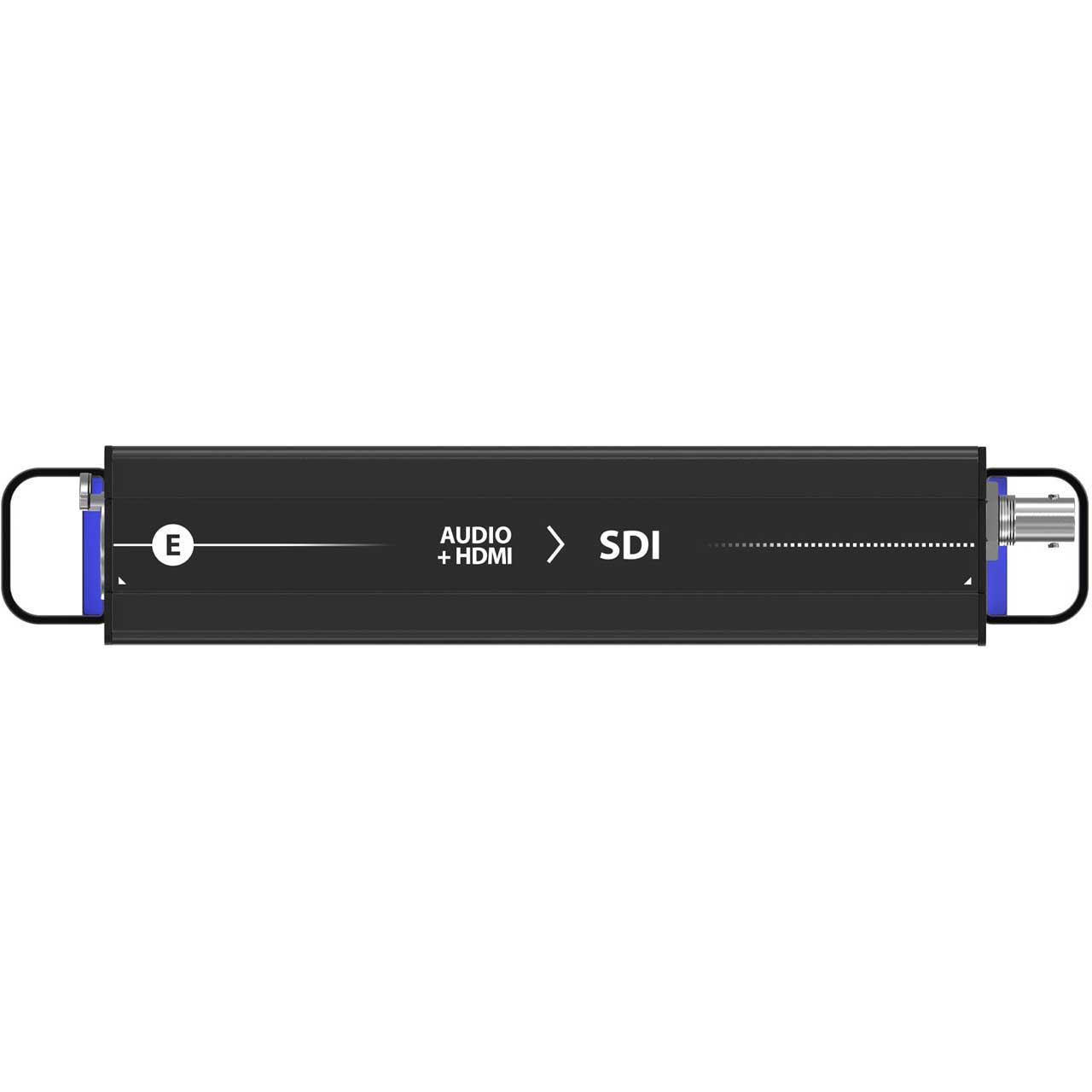

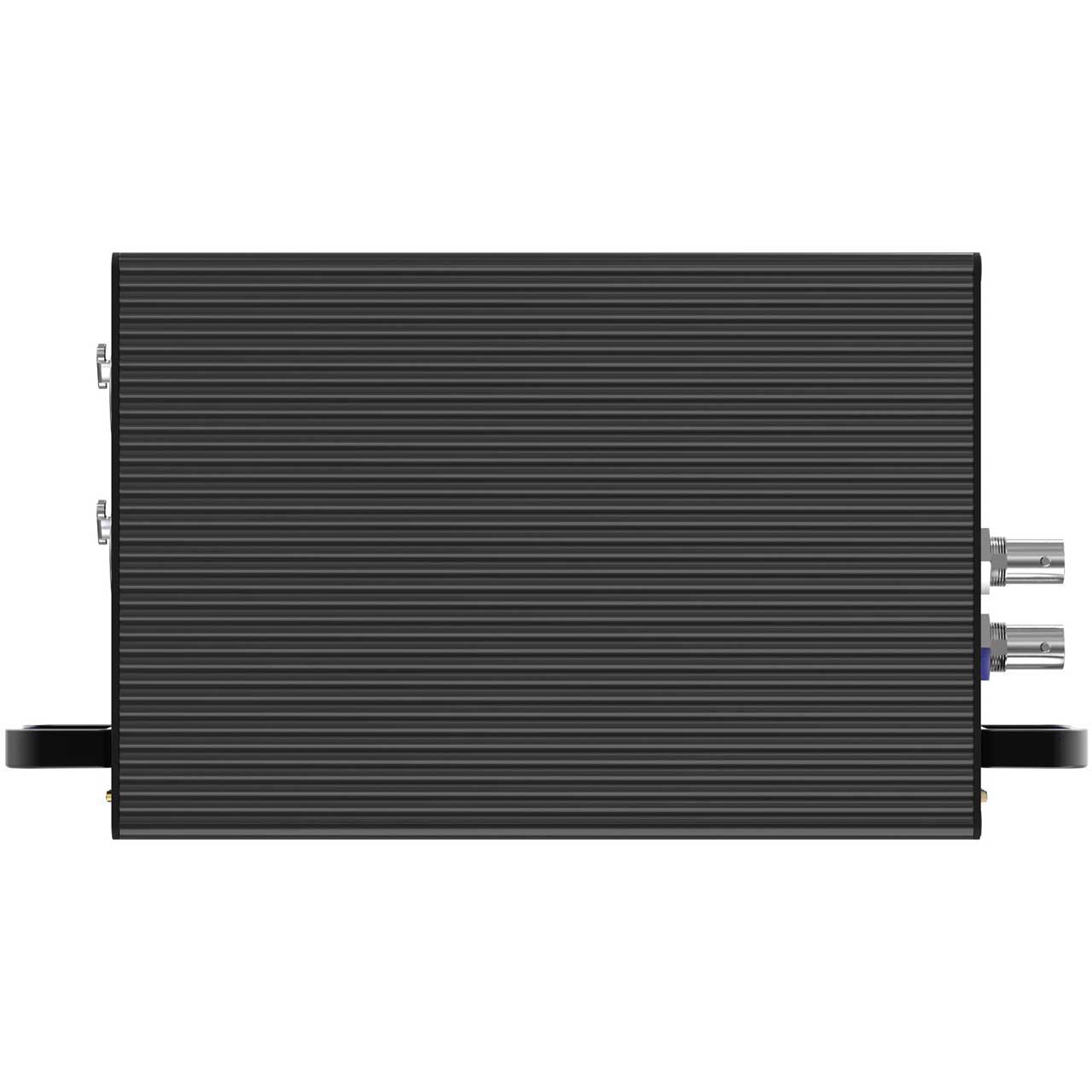

Theatrixx XVVRM-AUDIO2SDI Reversible Module - Audio Embedder - HDMI 1.2/3G-SDI + Audio to 3G-SDI

ITEM #: TTX-XVVRM-AD2SDI MFG #: XVVRM-AUDIO2SDI

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$728.00

Our Price:

$569.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


XVVRM-AUDIO2SDI - Overview

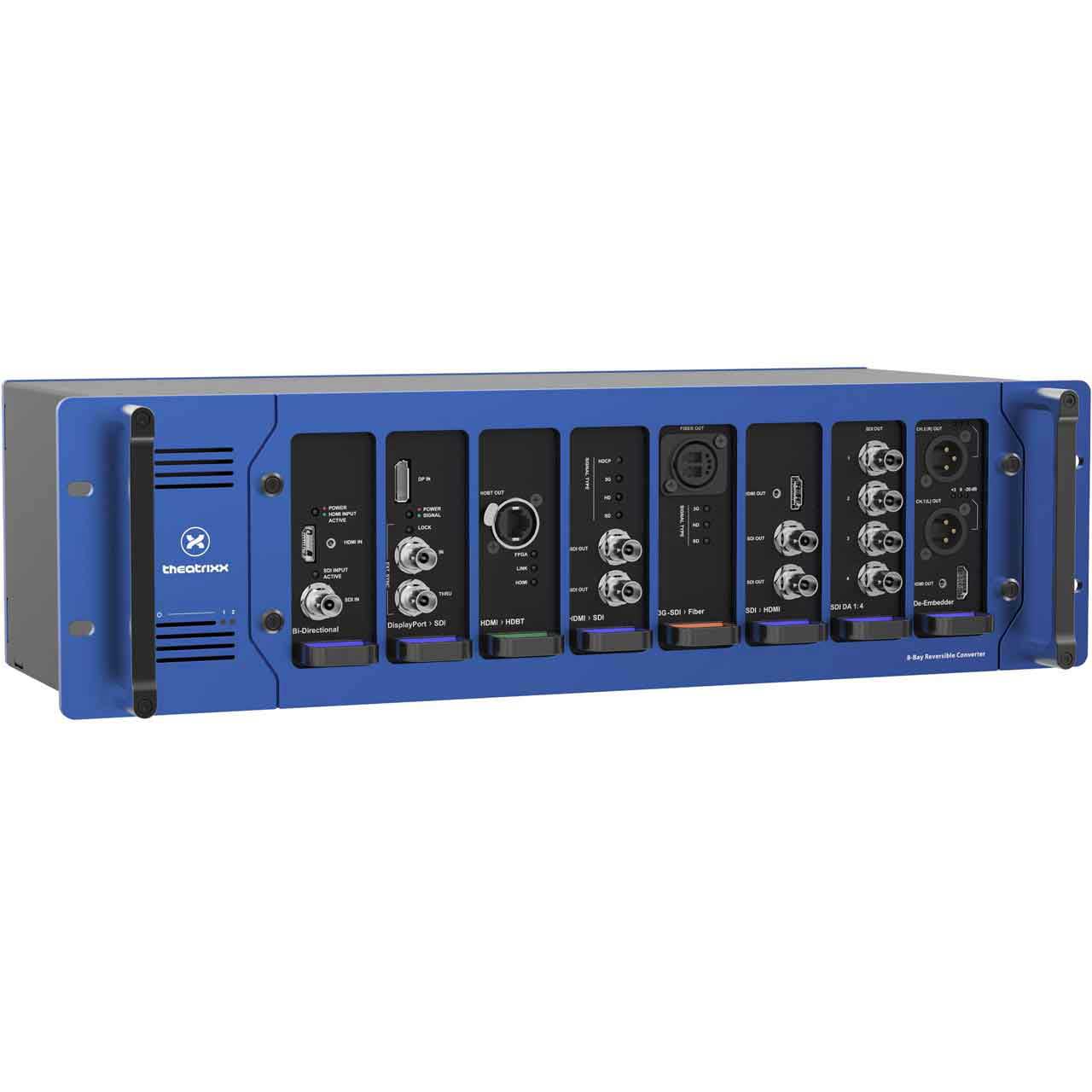

The Theatrixx SDI Audio Embedder Reversible Module fits in the 8-Bay Reversible Rackmount Converter system.

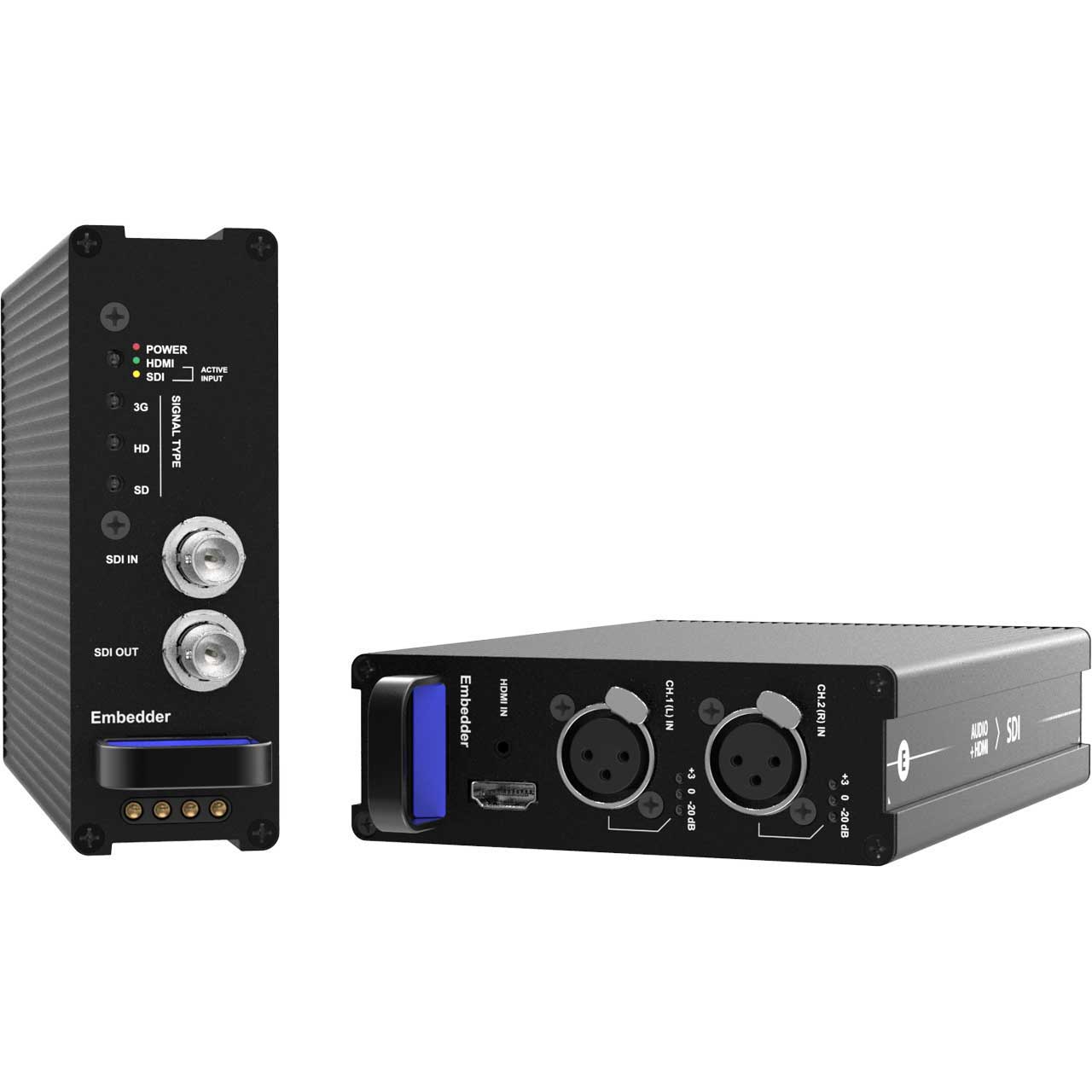

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

  • Specifications:

    • Connections:
    • Video Input: Auto switching between 1 x 3G/HD/SD SDI, BNC & 1 x HDMI 1.4 type A with locking system
    • Audio Input: 2 x Balanced + 4dB XLR (analog) each with a 3-segment LED meter
    • Video Output: 1 x 3G/HD/SD SDI BNC

      Supported Signals:
    • 3G Format Support: 1080p50, 1080p59.94, 1080p60
    • HD Format Support:
      720p50, 720p59.94, 720p60, 1080i50,
      1080i59.94, 1080i60, 1080p23.98,
      1080PsF23.98, 1080p24, 1080PsF24, 1080p25,
      1080PsF25, 1080p29.97, 1080PsF29.97,
      1080p30, 1080PsF30
    • SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
    • SDI Video Sampling: 4:2:2 and 4:4:4
    • SDI Audio Sampling: Sample rate of 48 kHz and 24 bit
    • SDI Color Space: YUV and RGB
    • SDI Auto Switching: Automatically detects incoming signal format
    • Embedding to: SDI Channels 1 & 2
    • SMPTE Standards: 425 M Level A & B, 424 M Level A, 292 M, 259 M

  • Item Includes:

    • 1x Theatrixx Reversible Module SDI Audio Embedder
