Theatrixx XVVRM-SDI2AUDIO Reversible Module - De-Embedder - 3G-SDI to HDMI1.2 + Audio

ITEM #: TTX-XVVRMSDI2AUD MFG #: XVVRM-SDI2AUDIO

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$696.00

Our Price:

$544.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    XVVRM-SDI2AUDIO - Overview

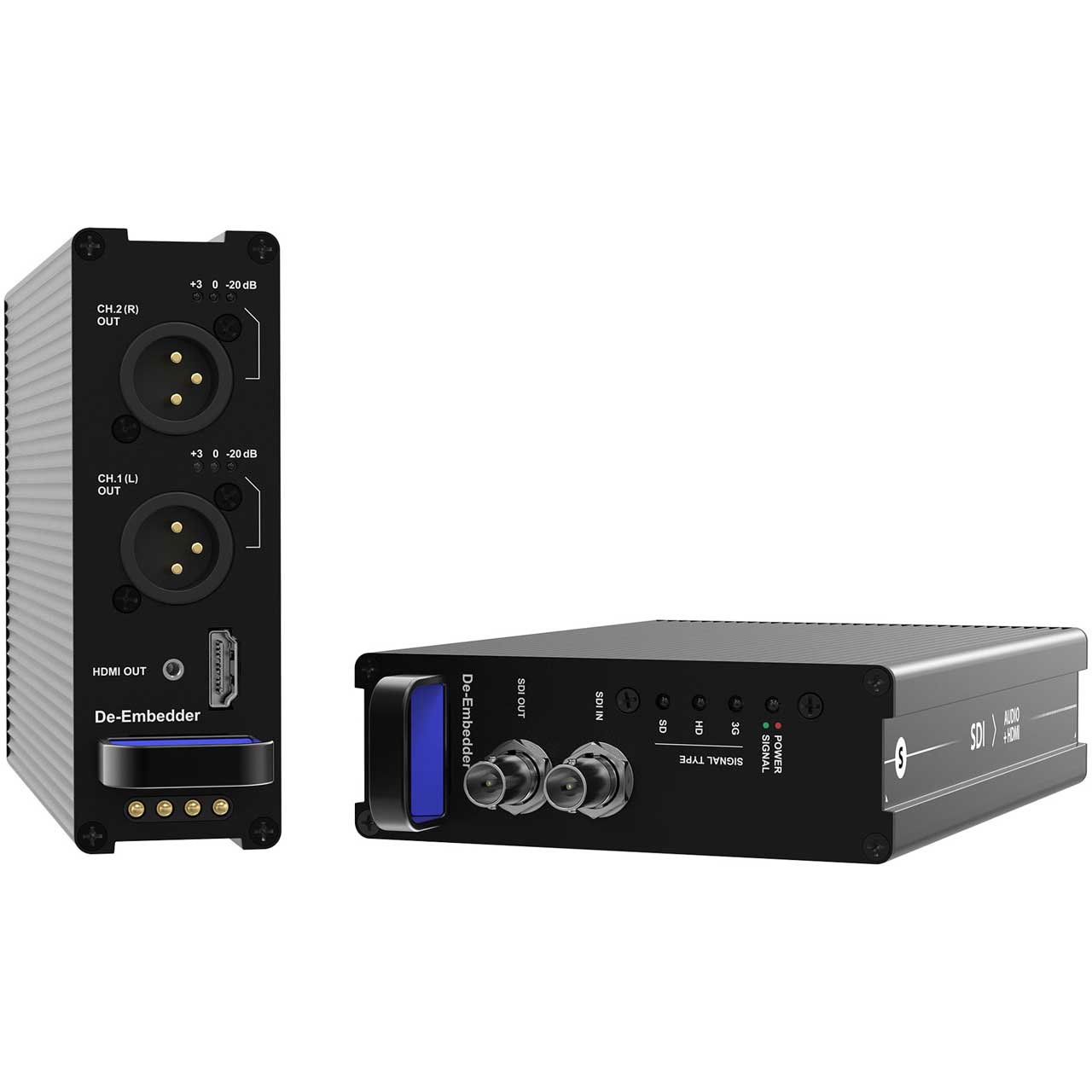

    The Theatrixx XVVRM-SDI2AUDIO is an SDI Audio De-Embedder Reversible Module that fits in the 8-Bay Reversible Rackmount Converter system. The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

    Please Note! All Modules In This Series Require the 8-Bay Reversible Rackmount Converter system for power.

    • Specifications:

      • Connections

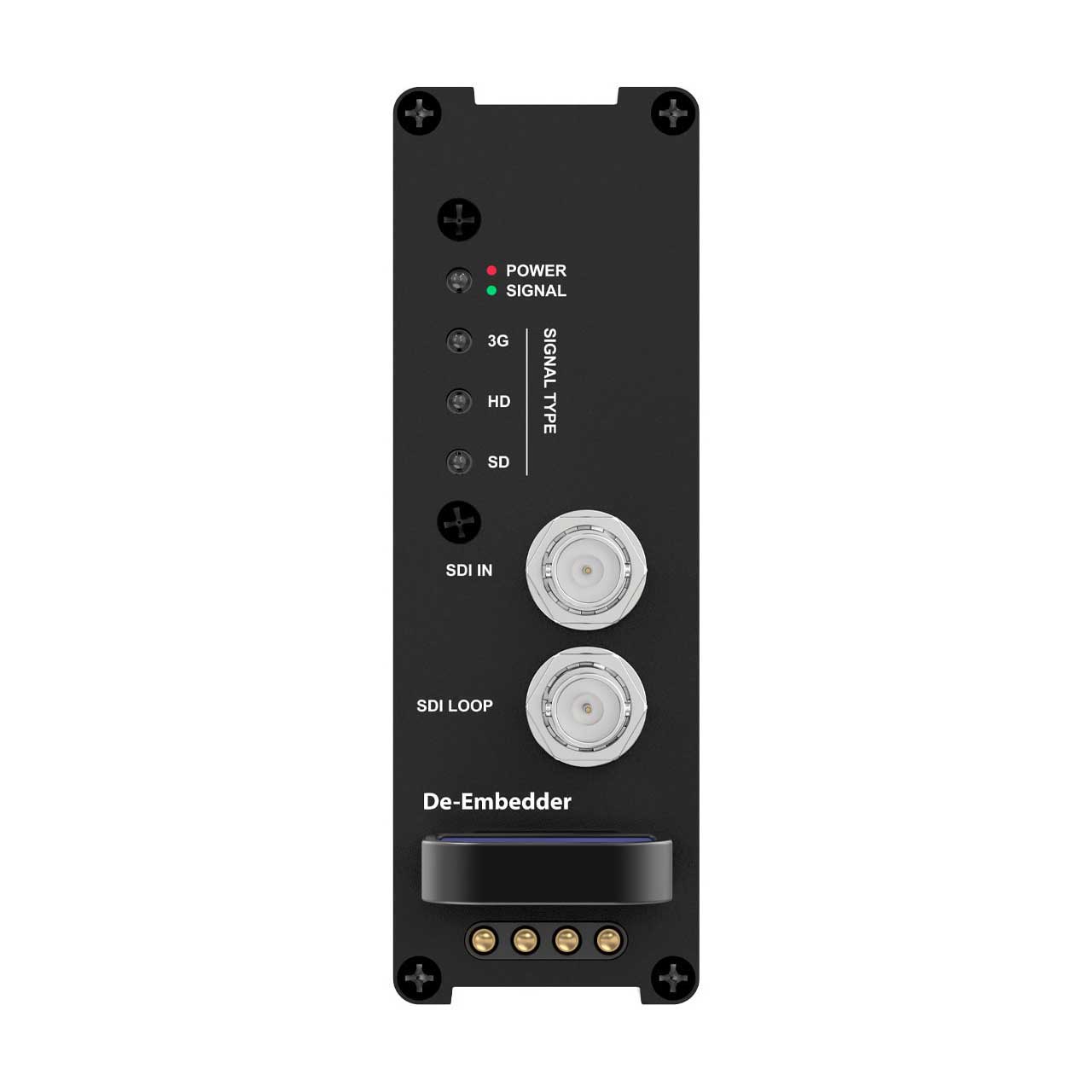

      • Video Input: 1x 3G/HD/SD SDI BNC
      • Loop-Thru: 1x 3G/HD/SD SDI BNC

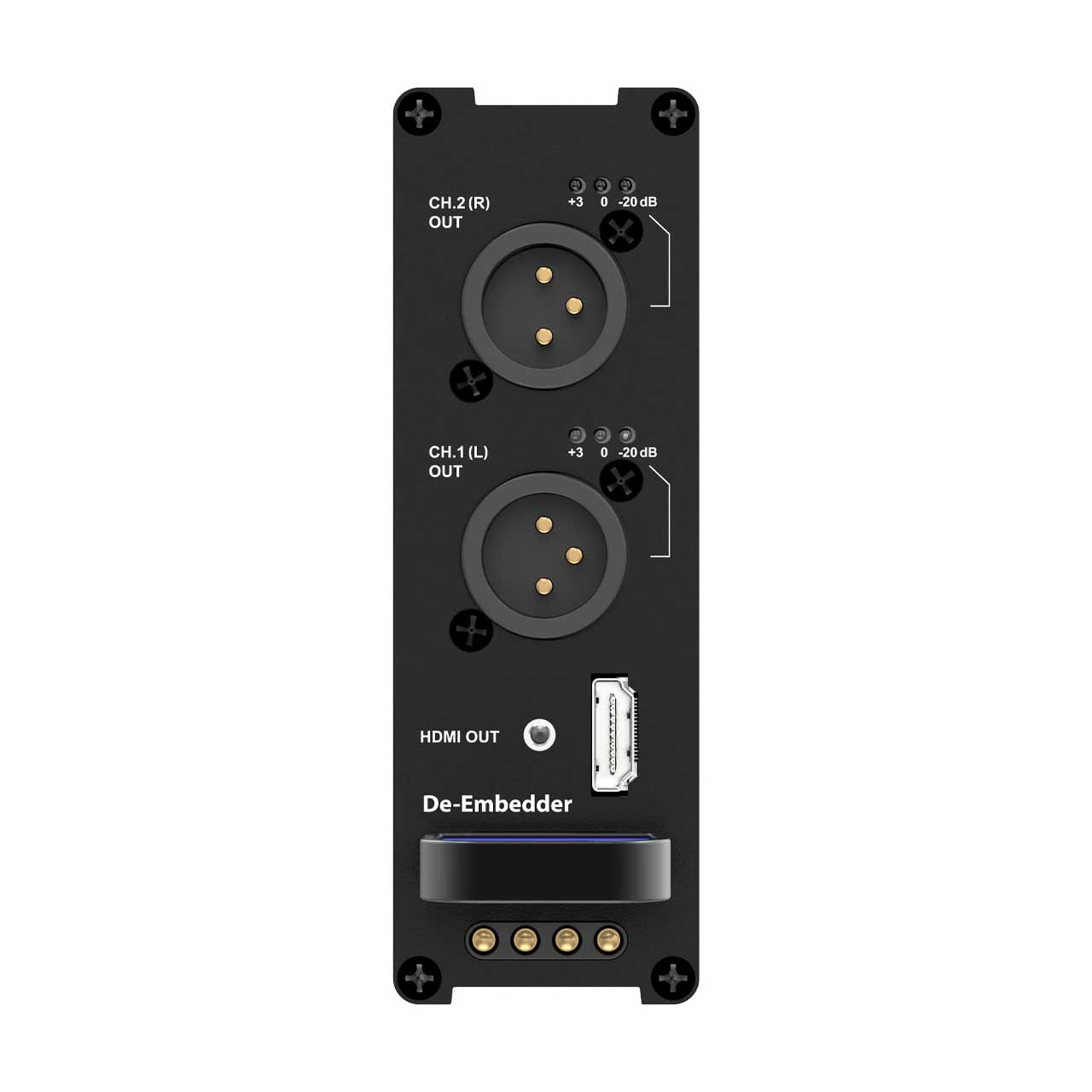

      • Video Output: 1x HDMI 1.2 type A with locking system
      • Audio Output: 2x Balanced + 4dB XLR (analog) each with a 3-segment LED meter

        Supported Signals
      • 3G Format Support: 1080p50, 1080p59.94, 1080p60
      • HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
      • SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
      • SDI Video Sampling: 4:2:2 and 4:4:4
      • SDI Audio Sampling: Sample rate of 48 kHz and 24 bit
      • SDI Color Space: YUV and RGB
      • SDI Auto Switching: Automatically detects incoming signal format
      • De-Embedding: SDI Channels 1 & 2
      • SMPTE Standards: 425 M Level A & B, 424 M Level A, 292 M, 259 M

        Physical
      • Dimensions (HxDxW): 4.78 x 8.85 x 1.61" (121.5 x 225 x 41mm)
      • Weight: 1.56Lbs (710g)
      • Alternate Form Factor: Also available as a standalone converter

        Environmental
      • Relative Humidity: 0% to 90% non-condensing
      • Operating Temperature: 32° to 104°F (0° to 40°C)

        Power Requirements
      • Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
      • Power Consumption: 20W
      • Voltage Range: 12VDC

    • Item Includes:

      • 1x Theatrixx Reversible Module SDI Audio De-Embedder
