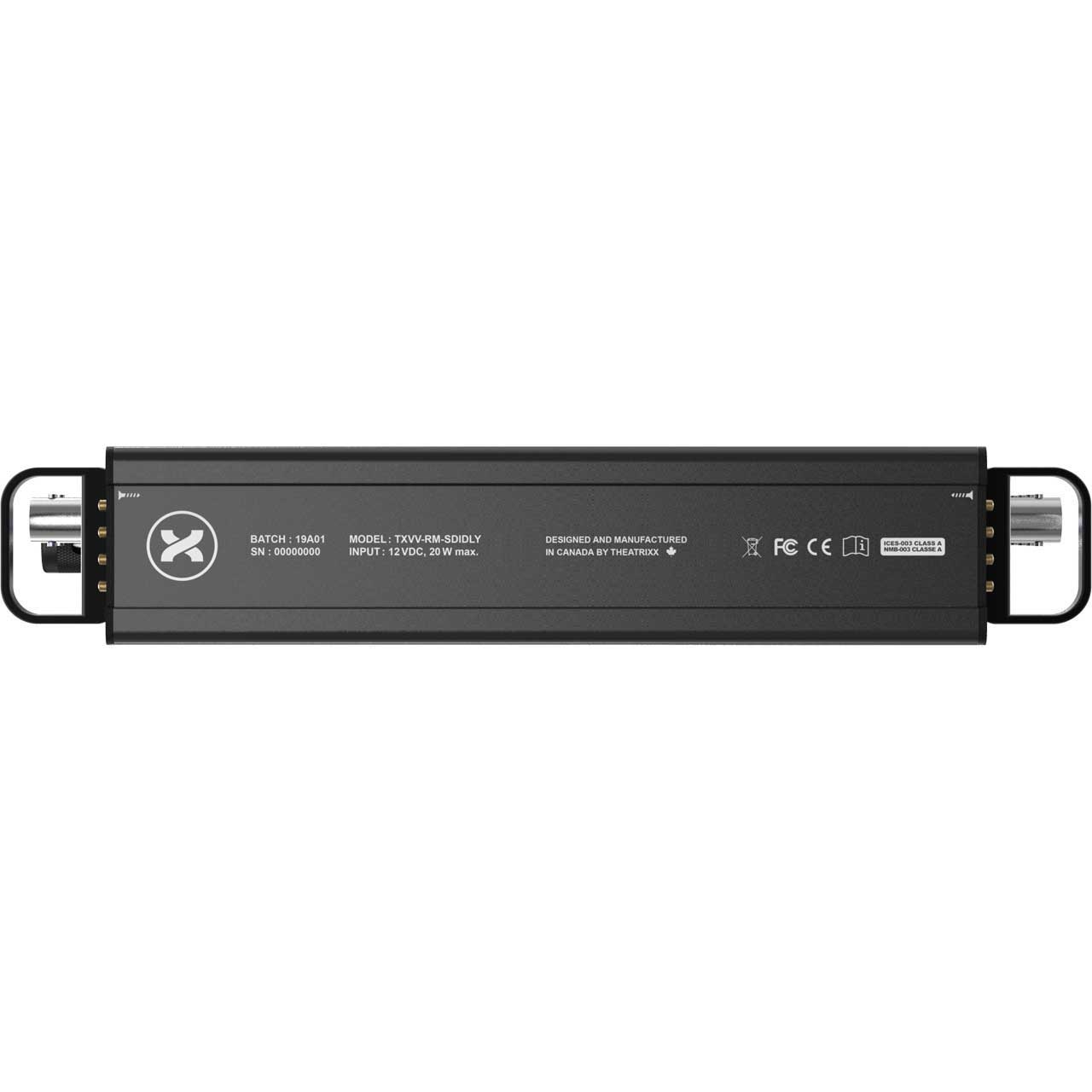

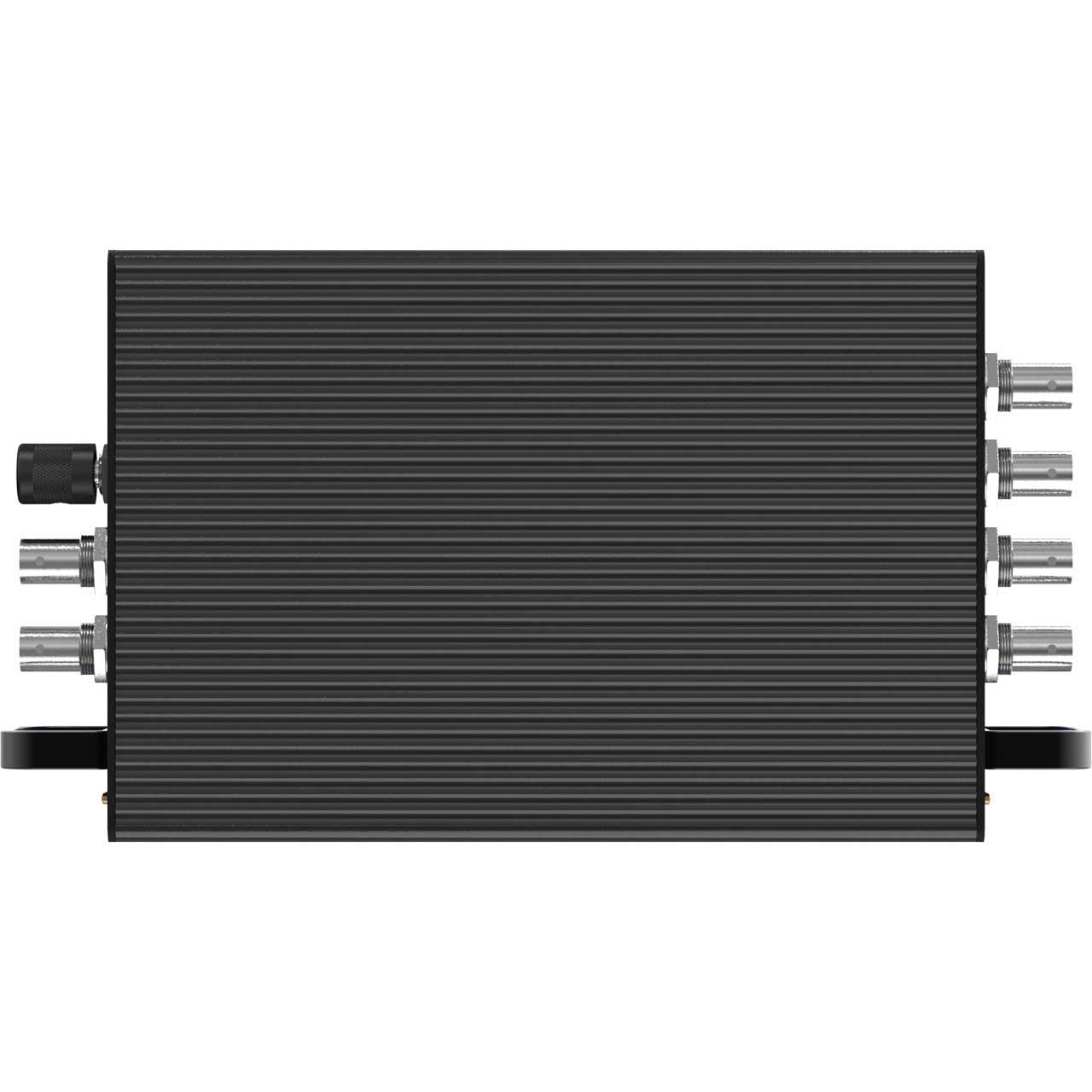

Theatrixx XVVRM-SDIDLY Reversible Module - 3G-SDI Delay - Integrated DA 1-4

ITEM #: TTX-XVVRM-SDIDLY MFG #: XVVRM-SDIDLY

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$2,127.00

Our Price:

$1,662.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


XVVRM-SDIDLY - Overview

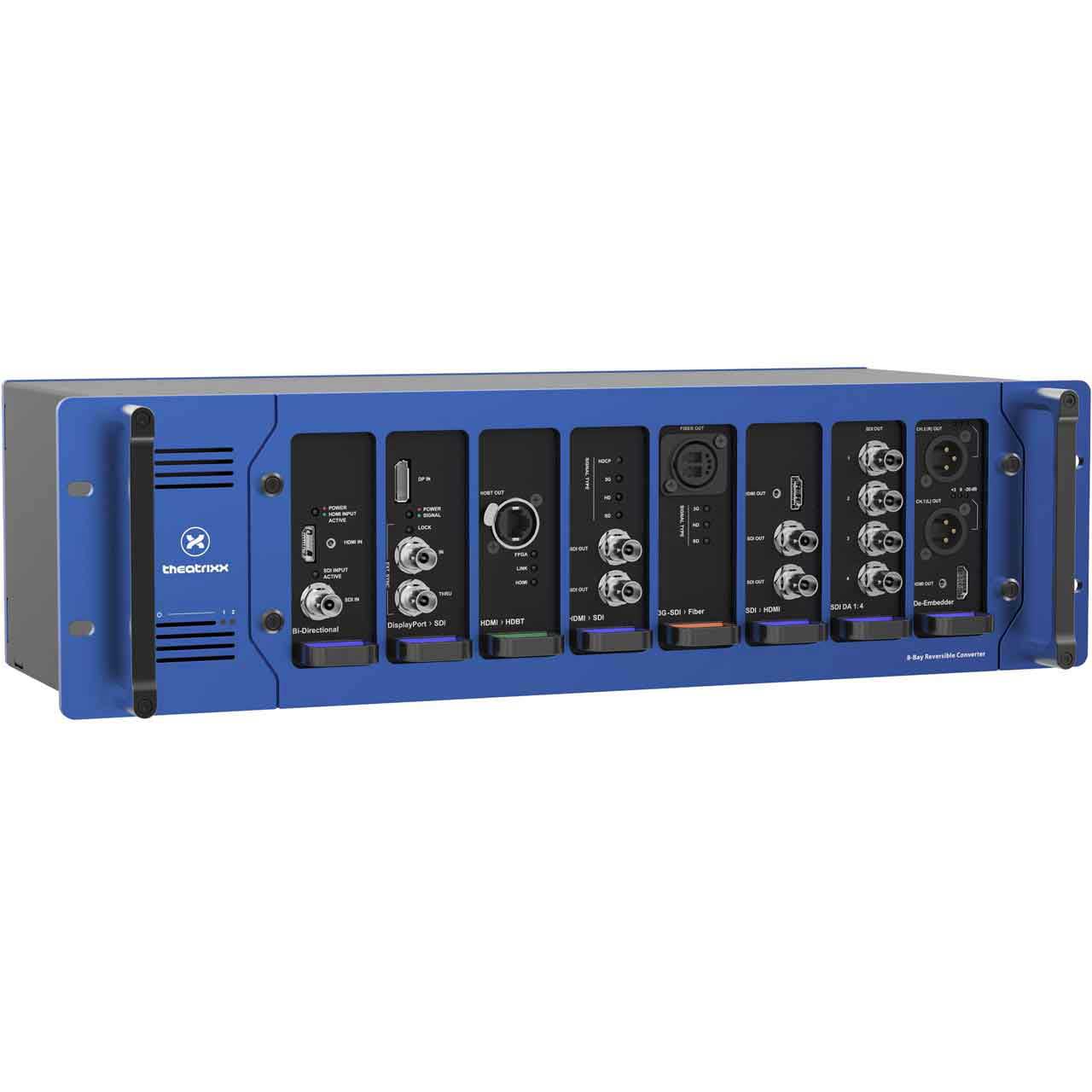

The Theatrixx SDI Line Delay Rack Module is a unit option for the 8-Bay Reversible Rackmount Converter system.

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

  • Specifications:

    • Connections:
    • Video Input: 1 x 3G-SDI BNC
    • Video Loop-thru: 1 x 3G-SDI BNC (no delay)

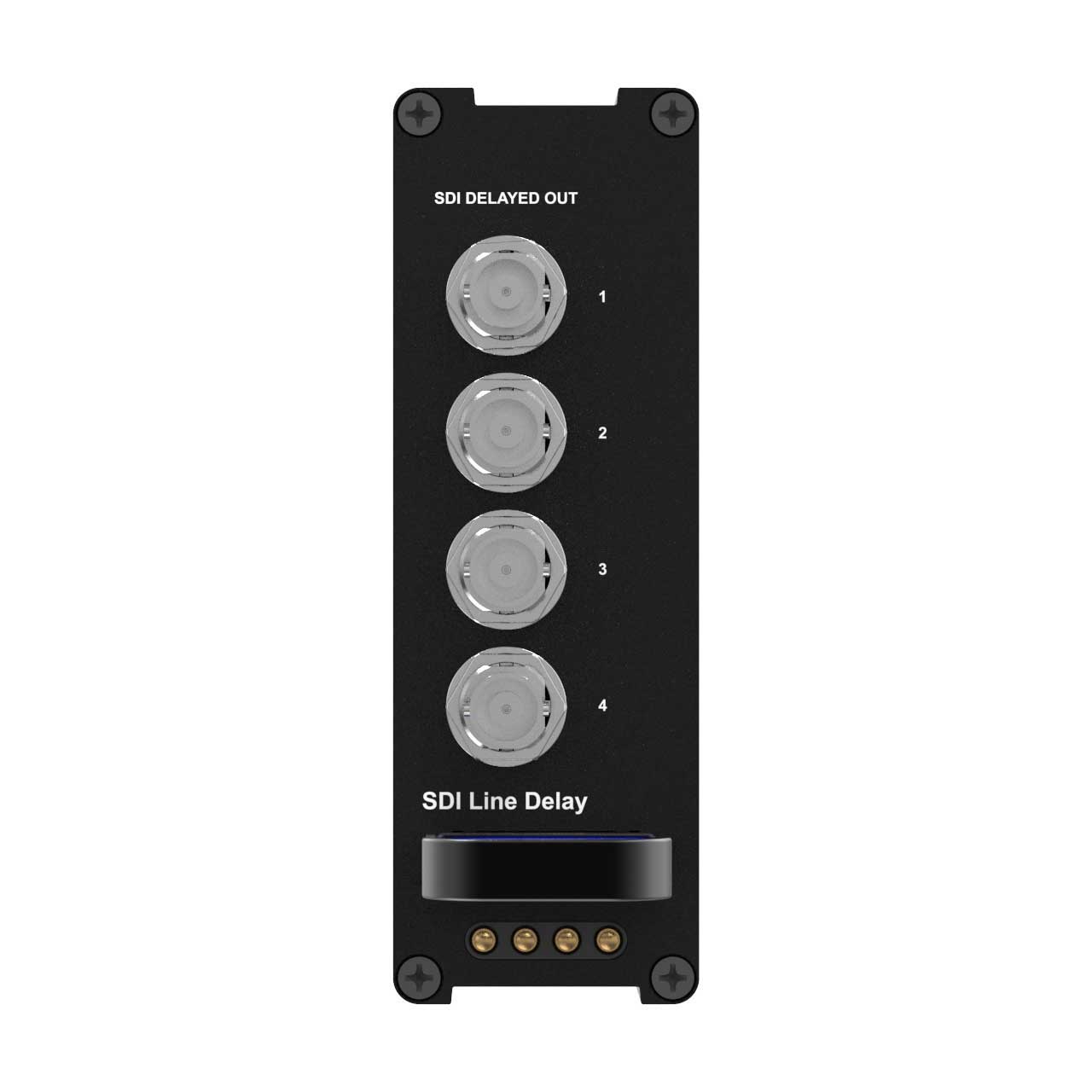

    • Video Output: 4 x 3G-SDI BNC (delayed & mirrored)

      Processing:
    • Maximum Delay: 160 frames (2690 ms @ 60 Hz)
    • Delayed elements: Entire SDI payload, including audio & meta

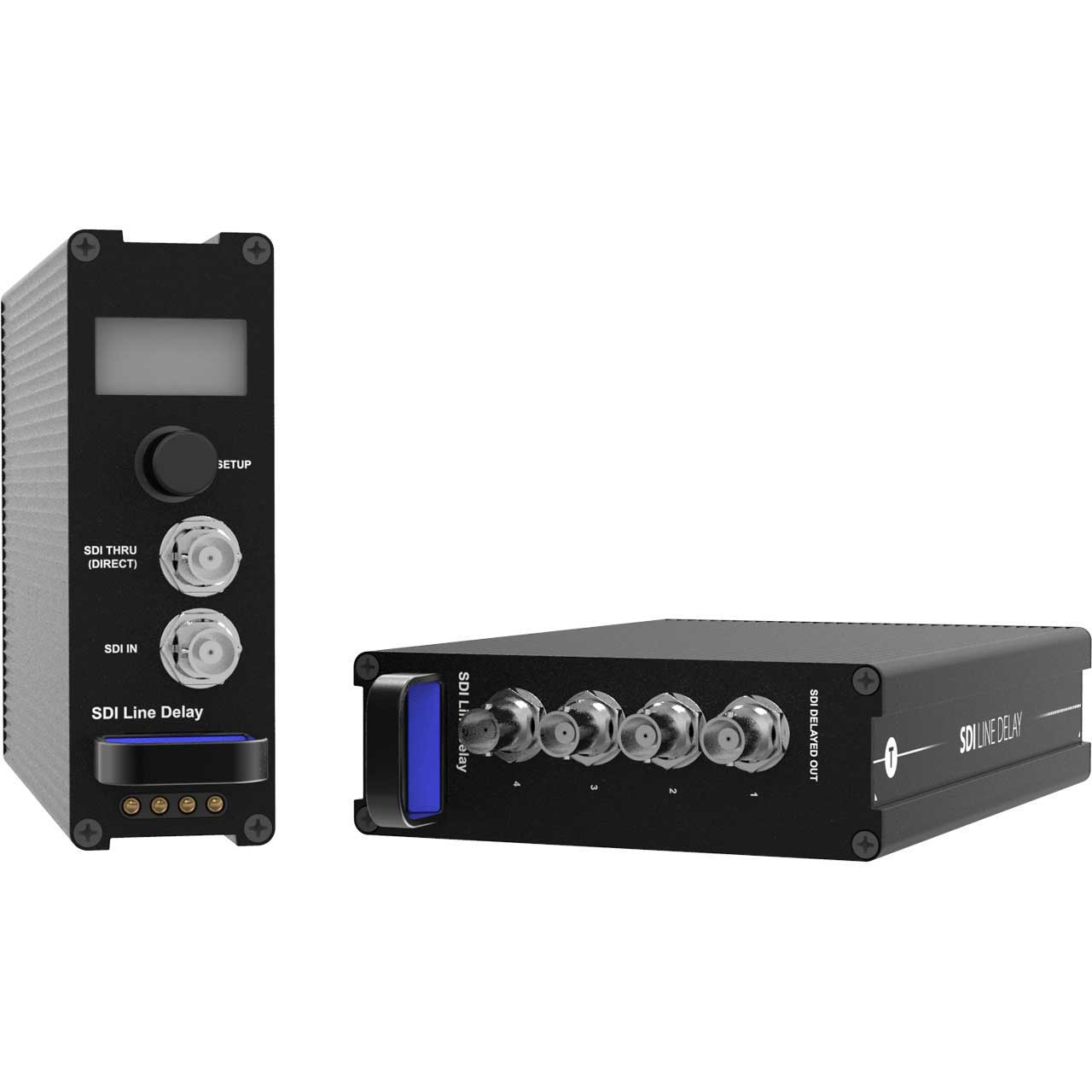

    • Adjustment: By the frame or by the millisecond, using onboard OLED display and rotary wheel

      Supported Signals:
    • 3G Formats Support: 1920x1080 p @ 60/50 fps
    • HD Format Support:
      1920x1080 p @ 30/25/24 fps,
      1920x1080 i @ 60/50 fps,
      1280x720 p @ 60/50 fps,
      1280x720 i @ 60/50 fps,
      1280x720 p @ 30/25/24 fps
    • SD Format Support: 720x480 i @ 60 fps, 720x576 i @ 50 fps
    • Embedded Audio: Up to 16 channels, 24 bit, 48 kHz
    • SMPTE Standards: ST425 M Level A & B, ST424 M, ST292 M, ST259 M

      Physical:
    • Height: 121.5 mm (4.78 in)
    • Depth: 225 mm (8.85 in)
    • Width: 41 mm (1.61 in)
    • Weight: 710 g (1.56 lbs)

      Environmental:
    • Relative Humidity: 0% to 90% non-condensing
    • Operating Temperature: 0-40 °C

      Power Requirements:
    • Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
    • Power Consumption: 20W
    • Voltage Range: 12VDC

  • Item Includes:

    • 1x Theatrixx Reversible Module SDI Line Delay
