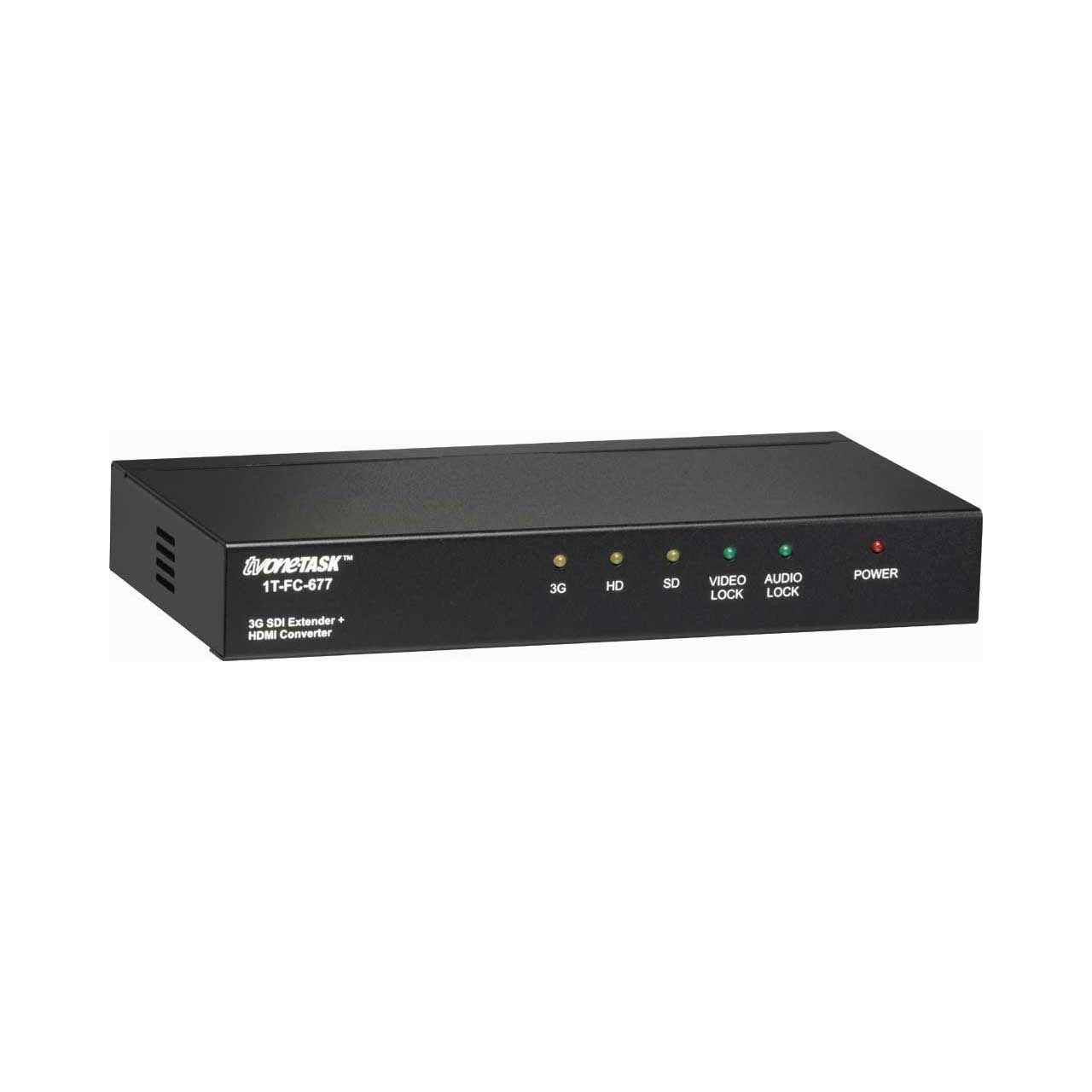

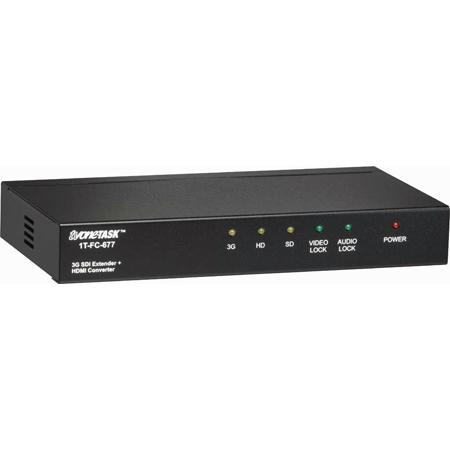

The 1T-FC-677 3G-SDI Extender with HDMI Converter allows SD-SDI, HD-SDI and 3G-SDI signals to be displayed on either an SDI and an HDMI monitor simultaneously. The high Bitrate processing of 2.970 Gbit/s ensures fast signal transmission without signal loss and also allows great flexibility in monitor selection since extremely high quality displays can be accomplished on either a high resolution SDI monitor or high resolution HDMI display. Even greater utility is provided by the unit's SDI Extender capability. Two Equalized and Re-clocked SDI outputs are provided.
Automatic input signal type detection is provided and up to 8 channels of Audio De-Embedding is possible. SDI Audio channels are automatically detected and are output over HDMI as either LPCM 2.0 or LPCM 7.1. If there are less than 8 active channels of audio, the 1T-FC-677 will automatically select the first 2 channels and output them over the analog stereo and HDMI outputs as LPCM 2.0. If there are 8 active channels, the first 2 channels will be output over the analog stereo outputs and the HDMI output will contain a full LPCM 7.1 audio signal. The unit employs the unique TV One-task locking DC power connector to enhance overall system mechanical security.
