TV Logic LEM-321P 31.5 Inch OLED 4K/UHD Multi-View Monitor - 3840 x 2160 - Table Stand Included

Name: TV Logic LEM-321P 31.5 Inch OLED 4K/UHD Multi-View Monitor - 3840 x 2160 - Table Stand Included
Brand: TVLogic
SKU: TVL-LEM-321P
Price: 10995.00 USD
Availability: Backorder

ITEM #: TVL-LEM-321P MFG #: LEM-321P

TVLogic

List Price:

$11,895.00

Our Price:

$10,995.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

LEM-321P - Overview

The TVLogic LEM-321P is a 31.5" 4K OLED reference monitor designed for HDR monitoring, color-critical production, and professional broadcast applications. Its self-emissive OLED panel delivers true black, infinite contrast, and exceptional color accuracy, ensuring precise image evaluation in any environment. Supporting HDR formats such as PQ and HLG, along with wide color gamut performance and 3D LUT capability, the LEM-321P meets the demands of modern production workflows. With comprehensive professional interfaces including 4 x 12G-SDI, HDMI, and Reference input, as well as support for AC and dual battery power, it offers maximum flexibility for both studio and field use.

Features:
- 1000nits Peak Luminance
- 1,500,000 : 1 Contrast Ratio
- DCI-P3 Coverage 99%
- HDR EOTF (PQ, HLG)
- 12G-SDI Quad-View Display
- Image Capture & Overlay
- Custom 3D LUT Import
- Auto Detection of SDI Payload ID
- Waveform / Vector Scope / Histogram
- Audio Level Meter
- Closed Caption (CC-608, CC-708) in Multi Languages
- Timecode Display
- Marker
- Focus Assist / False Color
- Blue/Mono Only
- H-Flip, V-Flip
- Scan / Anamorphic
- Dynamic UMD / Tally
- Dual V-Mount or G-Mount Brackets (optional)
Specifications:
- Size: 31.5"
- Resolution: 3840 x 2160 (16:9)
- Pixel Pitch: 0.181.4(H) x 0.181.4(V) mm
- Color Depth: 1.07B Colors (10 bit)
- Viewing Angle: 178°(H) / 178°(V)
- Luminance: of white 1000cd/m2
- Contrast Ratio: 1,500,000 : 1
- Display Area: 27.5" (H) x 15.5" (V) (699.5mm x 394.7mm)

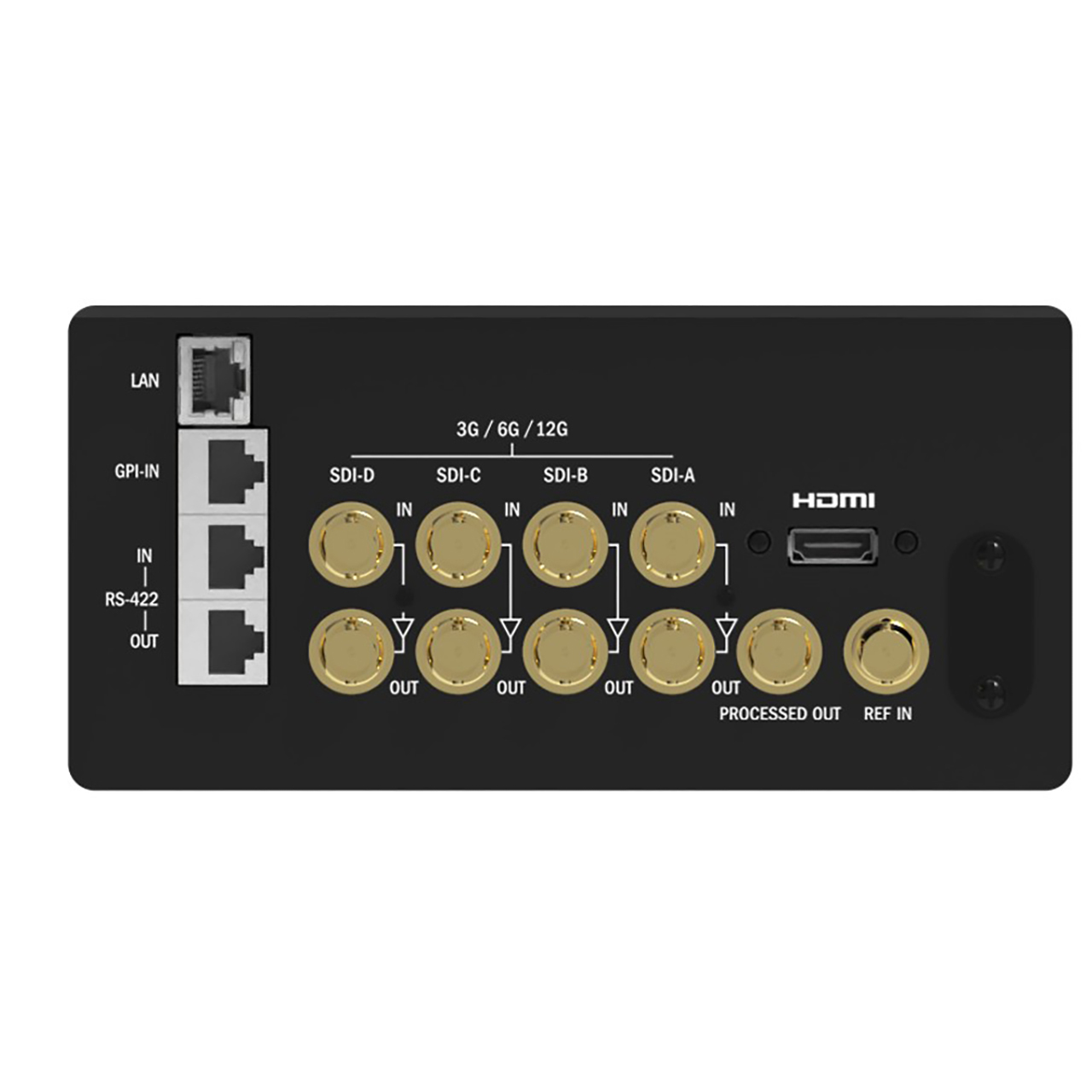

  Input
- 4 x BNC: 12G/6G/3G/HD/SD-SDI A/B/C/D Channel Input
- 1 x HDMI: HDMI 2.0 Input
- 1 x BNC: Reference Input

  Output
- 4 x BNC: 12G/6G/3G/HD/SD-SDI A/B/C/D Channel Output
- 1 x BNC: Processed Output

  Input Signal
- 12G-SDI: 12Gb/s
- 6G-SDI: 6Gb/s
- 3G-SDI: 2.970Gb/s
- HD-SDI: 1.485Gb/s
- HDMI 2.0: 480p/720p/1080p/2160p

  SDI Input Signal Formats
- SMPTE ST 2082: 3840x2160 (60/50/30/25/24p)
- SMPTE ST 2081: 3840x2160 (30/25/24p)
- SMPTE ST 2036-1: 3840x2160(23.98/24/25/29.97/30/50/59.94/60p)
- SMPTE-425M-A/B:
  - 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
  - 1080i(60/59.94/50)
- SMPTE-274M:
  - 1080i (60/59.94/50)
  - 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
- SMPTE-296M: 720p (60/59.94/50)
- SMPTE-260M: 1035i (60/59.94)
- SMPTE-125M: 480i (59.94)
- ITU-R BT.656: 576i (50)
- SMPTE ST 2048-2: 2048x1080(23,98/24/25/29.97/30p/psf, 47.95/48/50/59.94/60p)

  Remote Control and Update
- 1 x LAN: RJ-45 Input(Ethernet), Firmware Update & Remote Control
- 1 x REMOTE: RJ-45 Input, GPI Control
- 2 x RS-422: RJ-45 Input & Output, Monitor Control by TVLogic Protocol or TSL Protocol
- 1 x USB: USB A type, Firmware Update

  General
- Audio Out: Analog Stereo (Phone Jack)
- Power
  - AC: 100-240V (50/60Hz), 1.1-0.45A
  - DC: 24V, Max 4.5A
- Power Consumption: TBD
- Operating Temperature: 32°F to 95° (0°C to 35°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Dimensions (Main Body): 30.04" x 18.70" x 2.09" (763mm x 475mm x 53mm)
- Dimensions (With Stand): 30.04" x 19.11" x 5.91" (763mm x 485.5mm x 150mm)
- Dimensions (Shipping Box): 36.22" x 14.17" x 27.36" (920mm x 360mm x 695mm)
- Weight (with stand): 22.93lbs (10.4kg)
Item Includes:
- 1x LEM-321P
- 1x AC Power Cord
- 1x Stand
