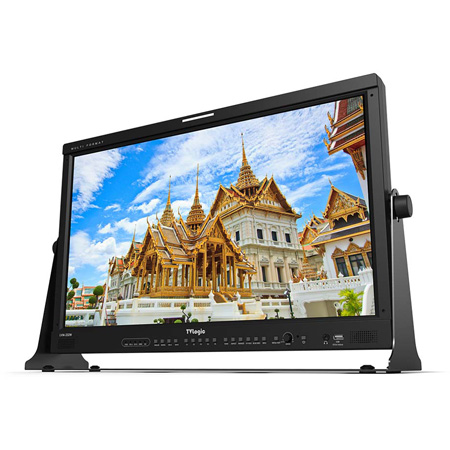

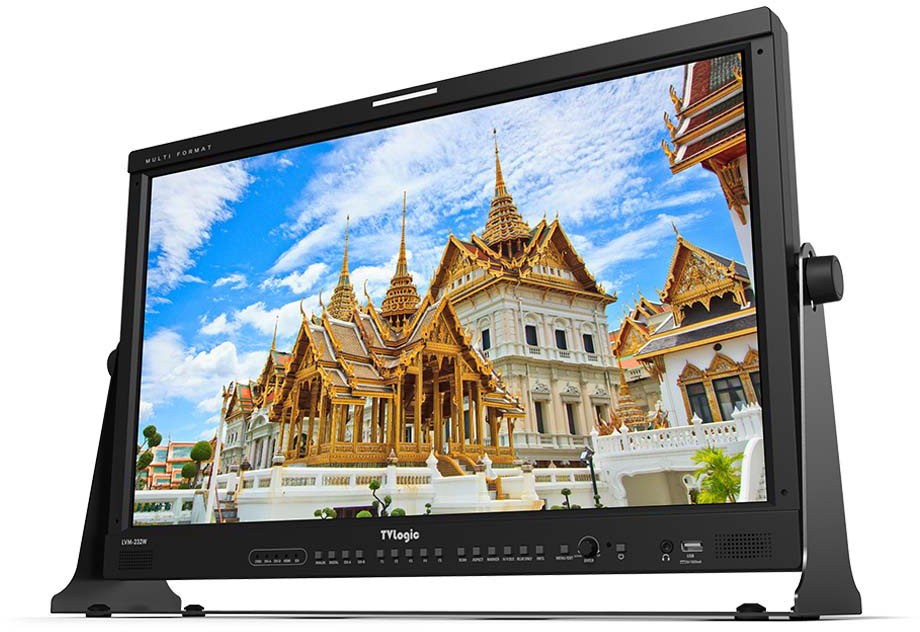

TVLogic LVM-232W-A 21.5inch 1920 x 1080 19inch Rack-Size LCD Monitor - 2x 3G/HD/SD-SDI Inputs

LVM-232W-A - Overview

• Features:

  • Audio Level Meter Display
  • Closed caption
  • Blue Only / Mono
  • Focus Assist
  • H/V Delay
  • Key Lock
  • Luma(Y') Zone Check
  • Range Error
  • Time Code Display
  • User Aspect
  • Various Scan Modes
  • Waveform/Vector Scope
  • Zoom
  • 3G-SDI Level A/B
  • UMD


• Specifications:

  • Display Specifications
  • Size: 23"
  • Resolution: 1920 X 1080 (16 : 9)
  • Pixel Pitch: 0.2652mm
  • Color Depth: 16.7M
  • Viewing Angle: 178°(H) / 178°(V)
  • Luminance: 300cd/m2
  • Contrast Ratio: 1000:1
  • Display Area: 509(H) x 286(V) mm

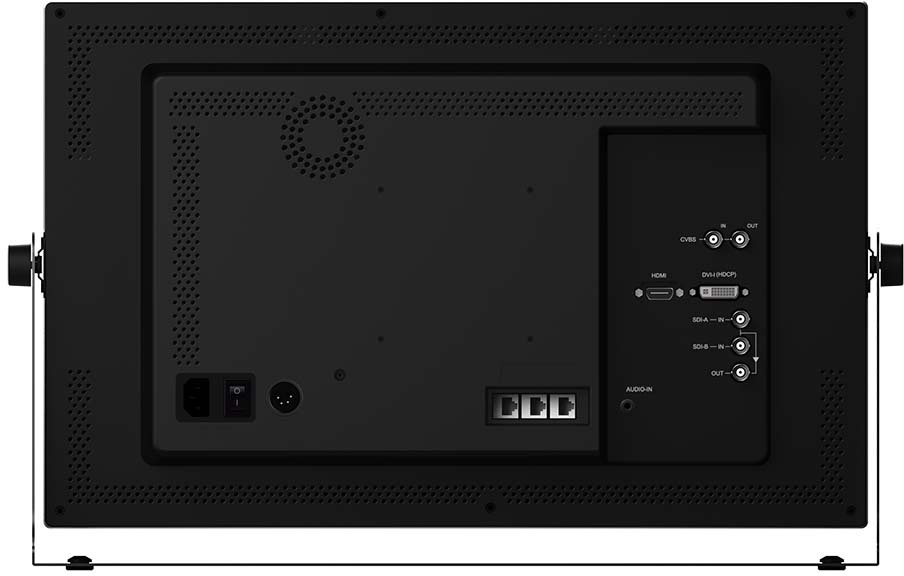

    Input
  • 1x BNC: Analog Input (Composite)
  • 2x BNC: 3G-SDI A/B Channel Input
  • 1x HDMI: HDMI Input
  • 1x DVI: DVI Input

    Output
  • 1x BNC: Analog Output (Composite)
  • 1x BNC: SDI A/B Selected Channel Output (Loop Through Out)

    Input Signal
  • Analog: CVBS
  • 3G SDI: 2.970Gbps
  • HD SDI: 1.485Gbps
  • SD SDI: 270Mbps
  • HDMI: 640x480/720x400/800x600/1024x768/1280x768/ 1280x1024/1366x768/1920x1080/1080p(24/25/30/ 50/60)/1080i(50/60)/720p(50/60)/480i(60)/ 480p(60)/576i(50)/576p(50)
  • DVI Analog: 640x480/720x400/800x600/1024x768/1280x768/ 1280x1024/1366x768/1920x1080
  • DVI DP: 640x480/720x400/800x600/1024x768/1280x768/ 1280x1024/1366x768/1920x1080/1080p(24/25/30/ 50/60)/1080i(50/60)/720p(50/60)/480i(60)/ 480p(60)/576i(50)/576p(50)

    SDI Input Signal Formats
  • SMPTE 425M-A/B: 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
  • SMPTE 296: 720p (60/59.94/50)
  • SMPTE 274: 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
  • SMPTE 260: 1035i (60/59.94)
  • SMPTE 125: 480i (59.94)
  • ITU-R BT.656: 576i (50)

    Audio
  • Audio In: Embedded Audio/Analog Stereo (Phone Jack)
  • Audio Out: Analog Stereo (Phone Jack), Internal Speaker(Stereo)

    FPGA Functions
  • 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, Zoom

    Closed Caption
  • CC-608 ANC, CC-608 LINE 21, CC-708

    Calibration
  • TVLogic Color Calibration Utility

    Other Functions
  • REMOTE: TVLogic's specification
  • USB: Firmware update by USB memory stick
  • Ethernet:

    Options
  • Carrying Case, Gold Mount, ND Acrylic Filter, Rack Mount Kit(Single), V-Mount

    Dimensions:
  • Main Body: 21.75 x 13.93 x 2.6" (552.5 x 354 x 66.1mm)
  • With Stand: 23.61 x 15.03 x 5.59" (599.7 x 381.8 x 142mm)
  • Weight: 12.21Lbs (6.9kg)
