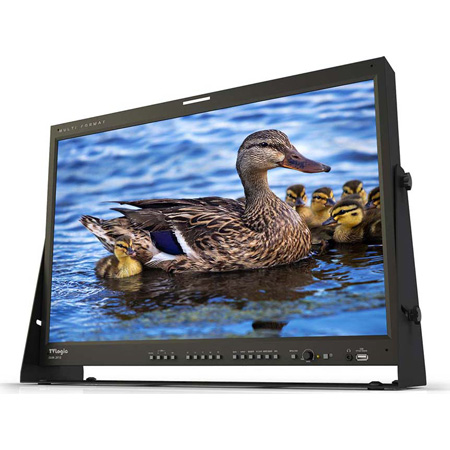

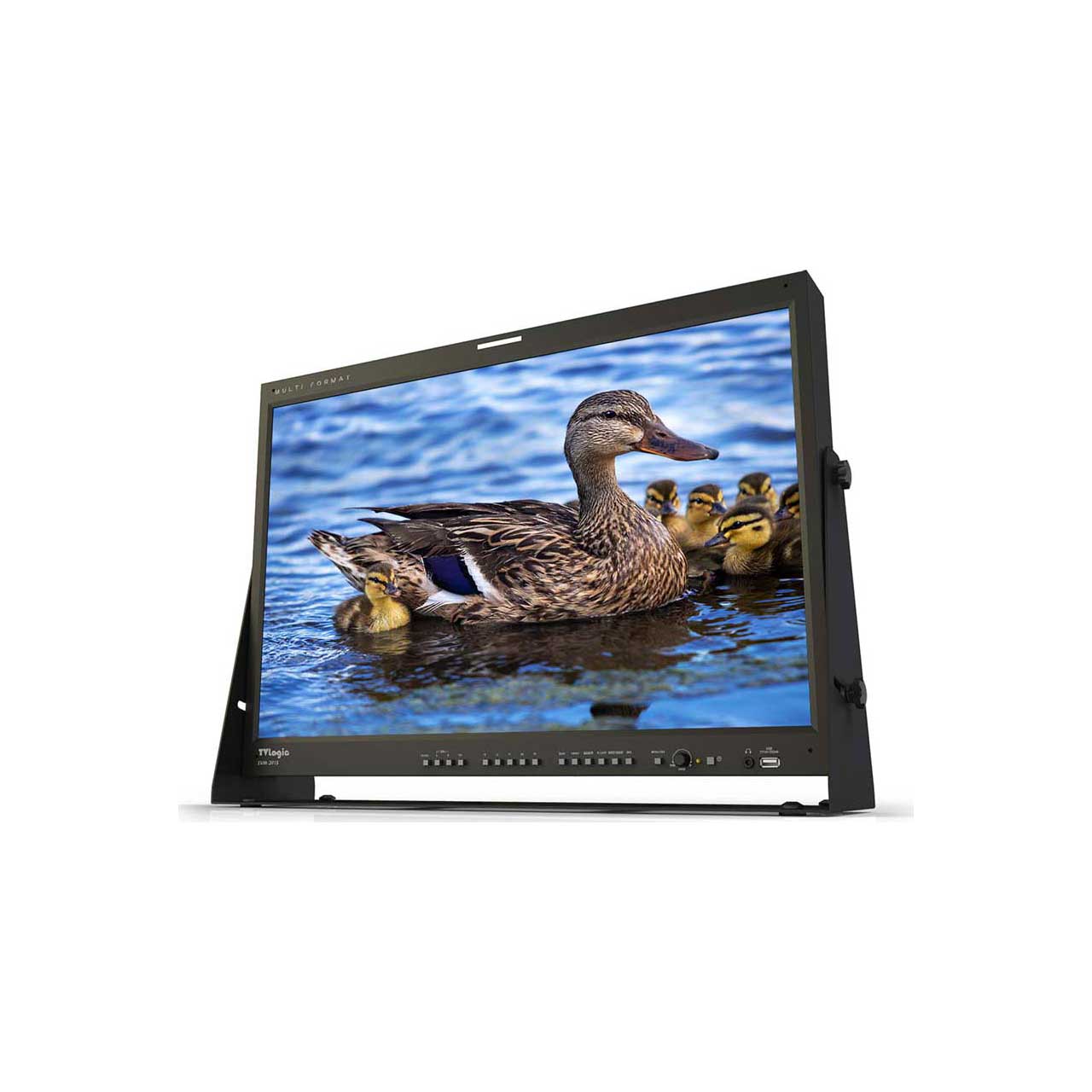

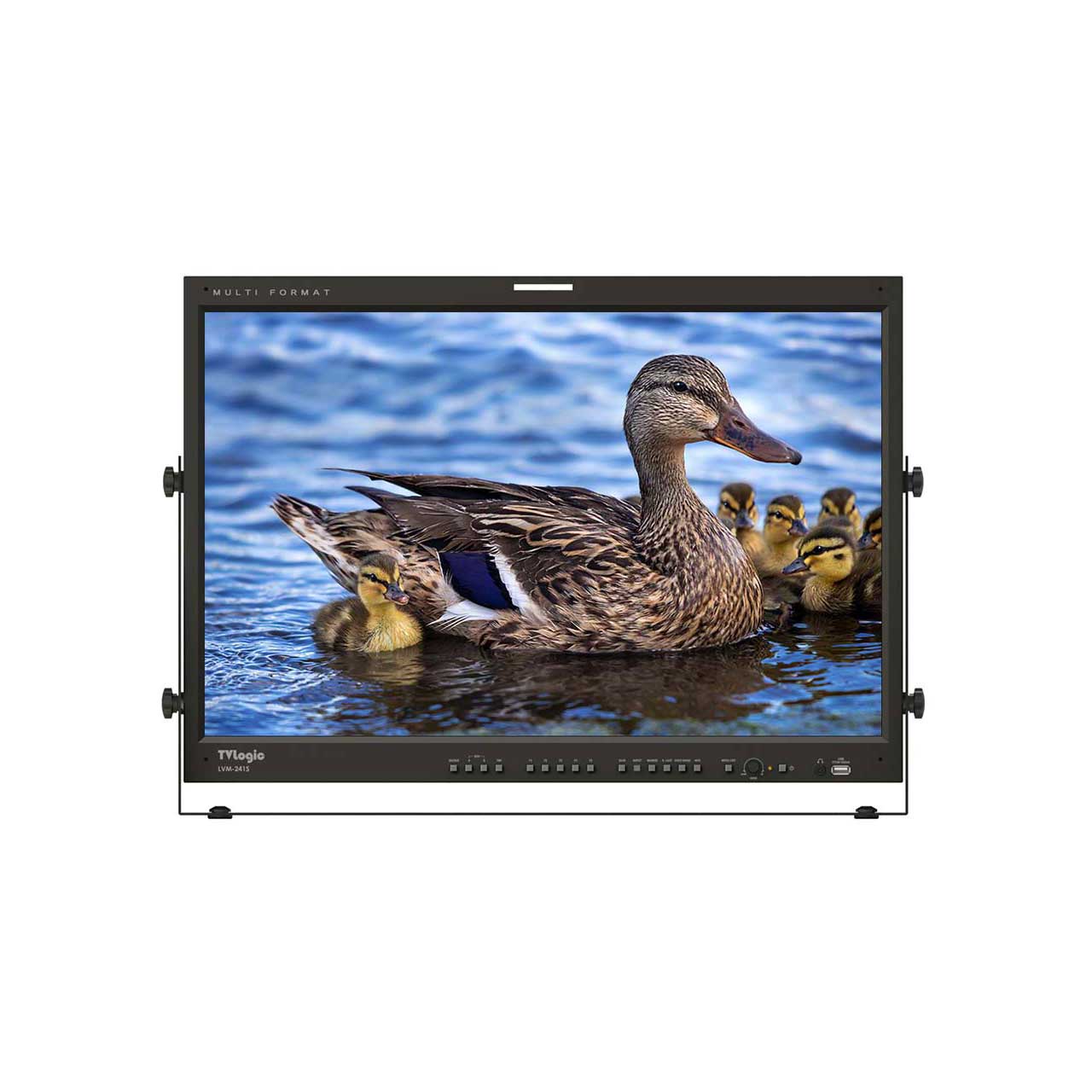

TVLogic LVM-241S 24 Inch High-End WUXGA LCD Monitor

ITEM #: TVL-LVM-241S MFG #: LVM-241S

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:

$4,390.00

Our Price:

$3,951.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    LVM-241S - Overview

    LVM-241S : 24" High-End LCD Monitor
    The TVLogic LVM-241S is their top QC-Grade 24" model with a 24 inch IPS LCD panel with 1920x1200 resolution, wide-gamut reproduction (up to DCI-P3), enhanced contrast ratio and wide viewing angle all unmatched by other LCD monitors. A completely redesigned video processing unit provides powerful dual-channel performance and artifact-free image reproduction. Support for various cinema camera log-to-linear LUTs, easy field upgradability and a full array of image processing features are standard.

    HDR Emulation
    A true HDR monitor must employ a special display panel with high dynamic range and a wide color gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000 : 1; in addition, they cover 99% of the DCI color gamut.

    Blue Only / Mono
    The Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

    • Features:

      • HDR Emulation
      • 1:1 Pixel Mapping Modes for SD/HD
      • 3G-SDI Level A/B
      • Audio Level Meter Display
      • Blue Only / Mono
      • Applies the LUTs to the outbound Log signal. A LUT for every major camera manufacturer has been included(LOG-C, C-LOG, S-LOG 1,2,3 and RED Gamma 3,4).
      • Custom 3D LUT Import
      • Closed caption
      • Focus Assist
      • H/V Delay
      • Key Lock
      • PAP(Picture above Picture)
      • Range Error
      • Time Code Display

    • Specifications:

      • Display Spec.
      • Size: 24"
      • Resolution: 1920 X 1200 (16:10)
      • Pixel Pitch: 0.27mm
      • Color Depth: 1.07B
      • Viewing Angle: 178°(H) / 178°(V)
      • Luminance: 400cd/m2
      • Contrast Ratio: 1500:1
      • Display Area: 518(H) x 324(V) mm

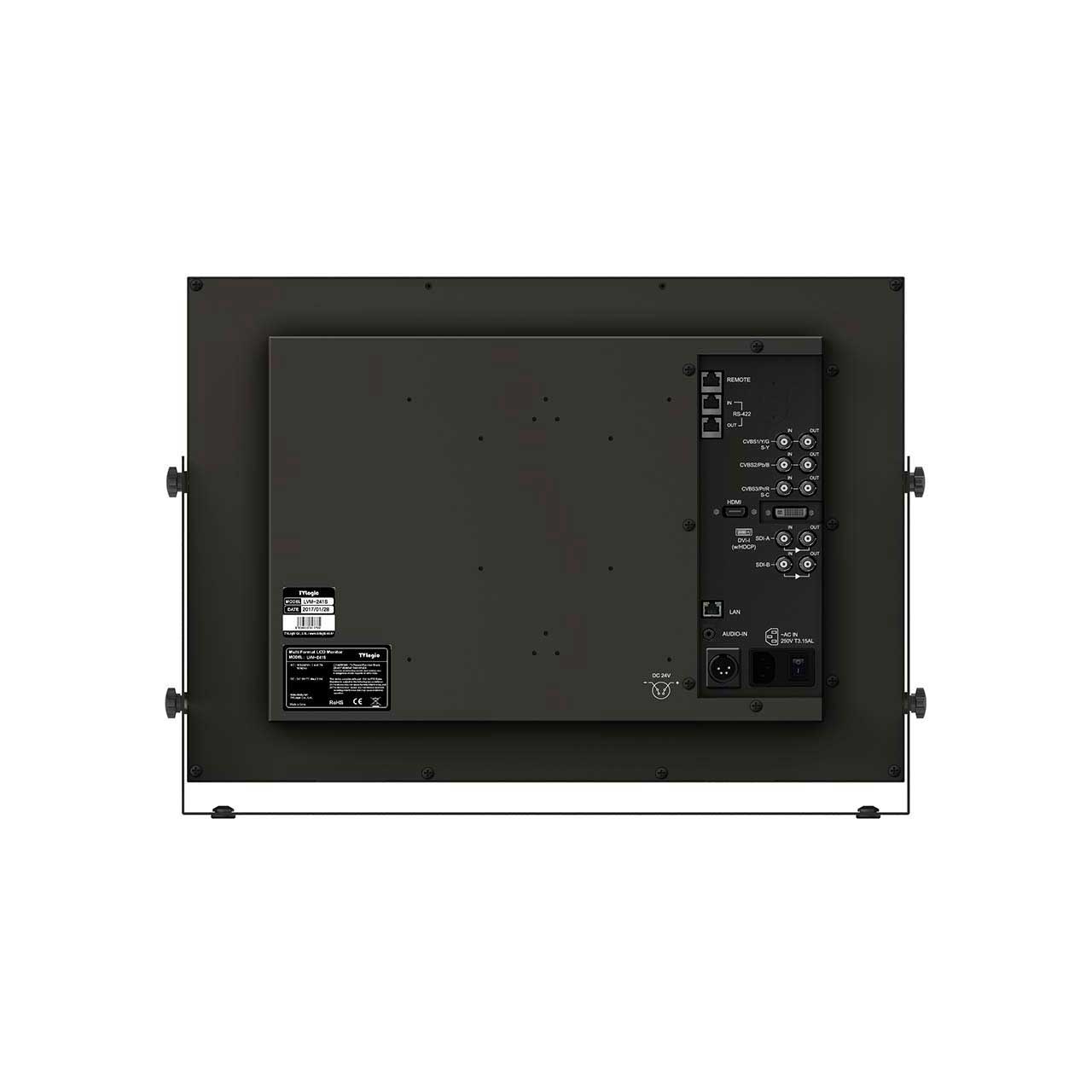

        Input
      • 3 X BNC: Analog Input
      • 2 X BNC: 3G-SDI A/B Channel Input
      • 1 X HDMI: HDMI Input
      • 1 X DVI: DVI Input

        Output
      • 3 X BNC: Analog(Loop Through Out)
      • 2 X BNC: SDI A/B Channel Output (Loop Through Out)
      • External Output Port:

        Input Signal
      • Analog: CVBS / S-Video / Component / RGB(D-TV)
      • 3G SDI: 2.970Gbps
      • HD SDI: 1.485Gbps
      • SD SDI: 270Mbps
      • HDMI: 480i/480p/576i/576p/720p/1080i/1080p/640x480/ 720x400/800x600/1024x768/1280x1024/1366x768
      • DVI Analog: 640x480/720x400/800x600/1024x768/1366x768
      • DVI DP: 640x480/720x400/800x600/1024x768/1366x768

        SDI Input Signal Formats
      • SMPTE 425M-A/B: 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF)
      • SMPTE 372: Dual HD-SDI YCbCr(4:2:2) 1080p (60/59.94/50)Dual HD-SDI YCbCr/RGB(4:4:4) 1080i (60/59.94/50) 1080p (30/29.97/25/24/ 4sF/23.98/23.98sF)
      • SMPTE 296: 720p (60/59.94/50)
      • SMPTE 274: 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
      • SMPTE 260: 1035i (60/59.94)
      • SMPTE 125: 480i (59.94)
      • TU-R BT.656: 576i (50)
      • 2K Format: 2048 x 1080p (24/24sF/23.98/23.98sF)

        Audio
      • Audio In: Embedded Audio/Analog Stereo (Phone Jack)
      • Audio Out: Analog Stereo (Phone Jack), Internal Speaker(Stereo)

        FPGA Functions
      • 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, X3 Zoom(PBP), Camera Lut., Picture by picture

        Closed Caption
      • CC-608 ANC, CC-608 LINE 21, CC-708, CC-KOR

        Calibration
      • TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import

        Other Functions
      • REMOTE: GPI (RJ45)
      • REMOTE: TVLogic's specification
      • USB: Firmware update by USB memory stick
      • Ethernet: Ethernet Control support

    • Item Includes:

      • 1x TVLogic LVM-241S 24 Inch High-End WUXGA LCD Monitor


    LVM-241S - Required Accessories

      LVM-241S - Recommended Accessories
