Advanced audio analysis option; bar graphs and CineSound; view up to 8 audio channels; includes 4 analog stereo inputs, 8 AES/EBU inputs with 4 shared outputs and 16 channels of embedded audio; analog monitoring outputs of up to 8 channels simultaneously; custom meter labels; full decoding of Dolby D or Dolby E with up to 8 analog outputs and Dolby metadata display; loudness monitoring and audio true peak metering to ITU-R BS.1770-3. Pre-configured for ARIB TR-B32, ATSC A/85 and EBU R128 regional standards.

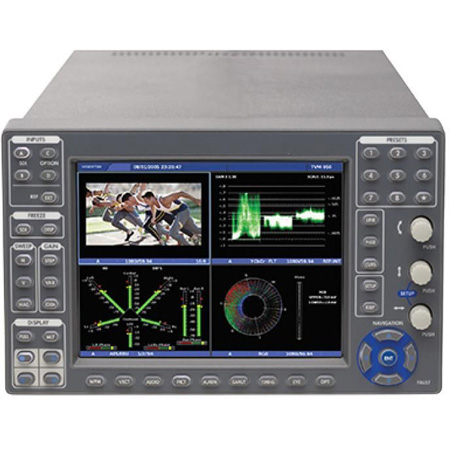

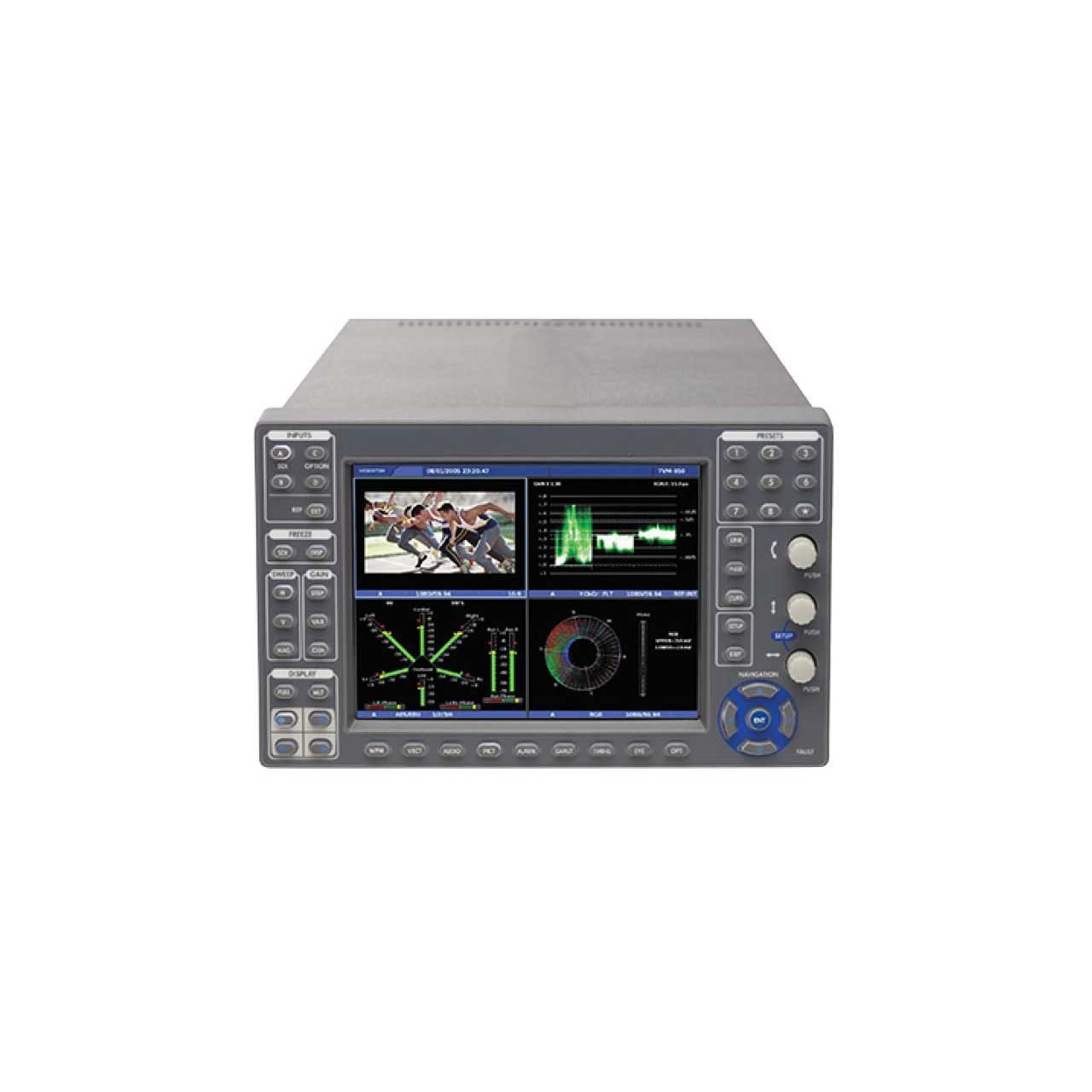

The Videotek TVM9150PKG multiformat video waveform monitor and audio signal analyzer with integral XGA TFT color LCD display is the most advanced and intuitive test instrument available in a half-rack scope package. Versatile and modular, the TVM9150PKG is ideal for all 3G/HD/SD-SDI, analog composite and ASI video and audio applications.
Users can display and evaluate up to four input sources, in up to four formats, simultaneously. One hundred percent digital signal processing enables precision presentation of waveform, vector, gamut, audio, picture, timing and data analyzer screens, each of which can be viewed in any quadrant. With full-screen, multiple pictures, thumbnails and powerful MULTI mode, complete display flexibility is a reality.
TVM9150 packages are predefined module groupings designed to quickly deliver the monitoring solution you need. The unit can be rackmounted or used in the field, and integrates seamlessly into any broadcast, post-production, telecine, satellite or cable facility, making the TVM9150 the ultimate choice for quality control, troubleshooting and compliance-check applications. Select among 3 Gb/s, HD/SD-SDI, SD-SDI, analog composite and ASI video monitoring with advanced physical jitter, Dolby, advanced audio and lip sync monitoring options to build a system customized to your requirements.
