F.01U.315.625 - Overview

Designed for for Digital Audio Audinate Over IP - OMNEO Open Media Networking Standard!

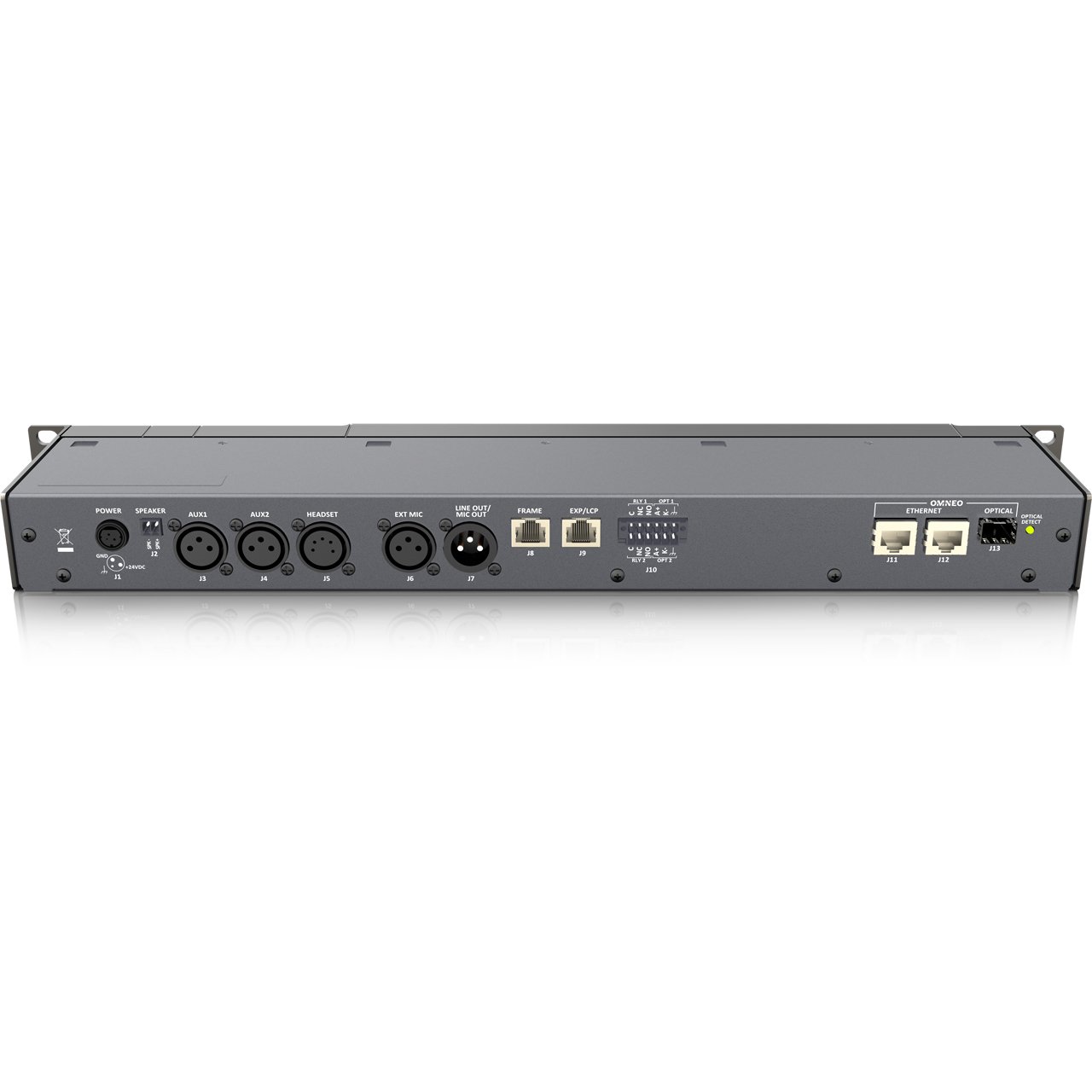

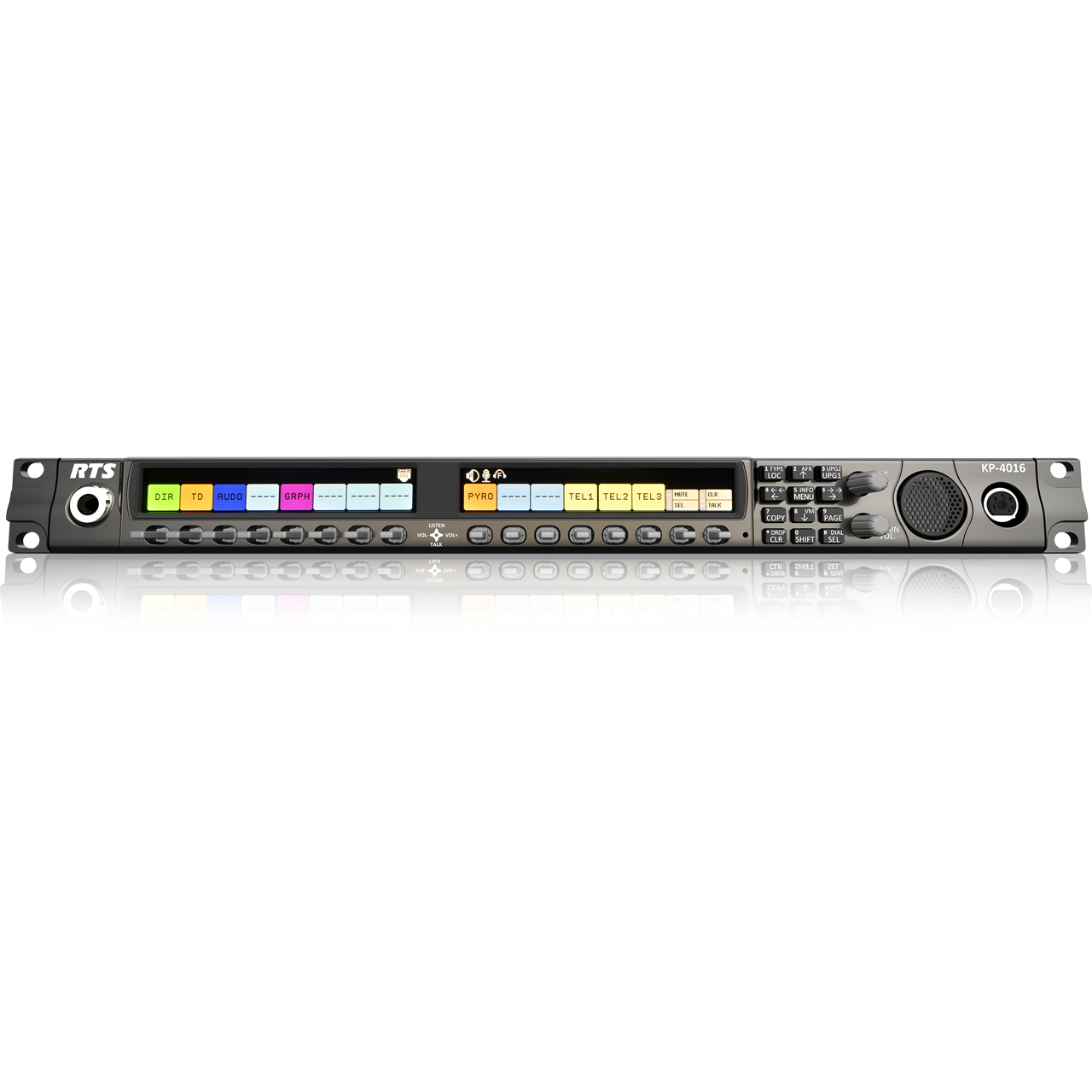

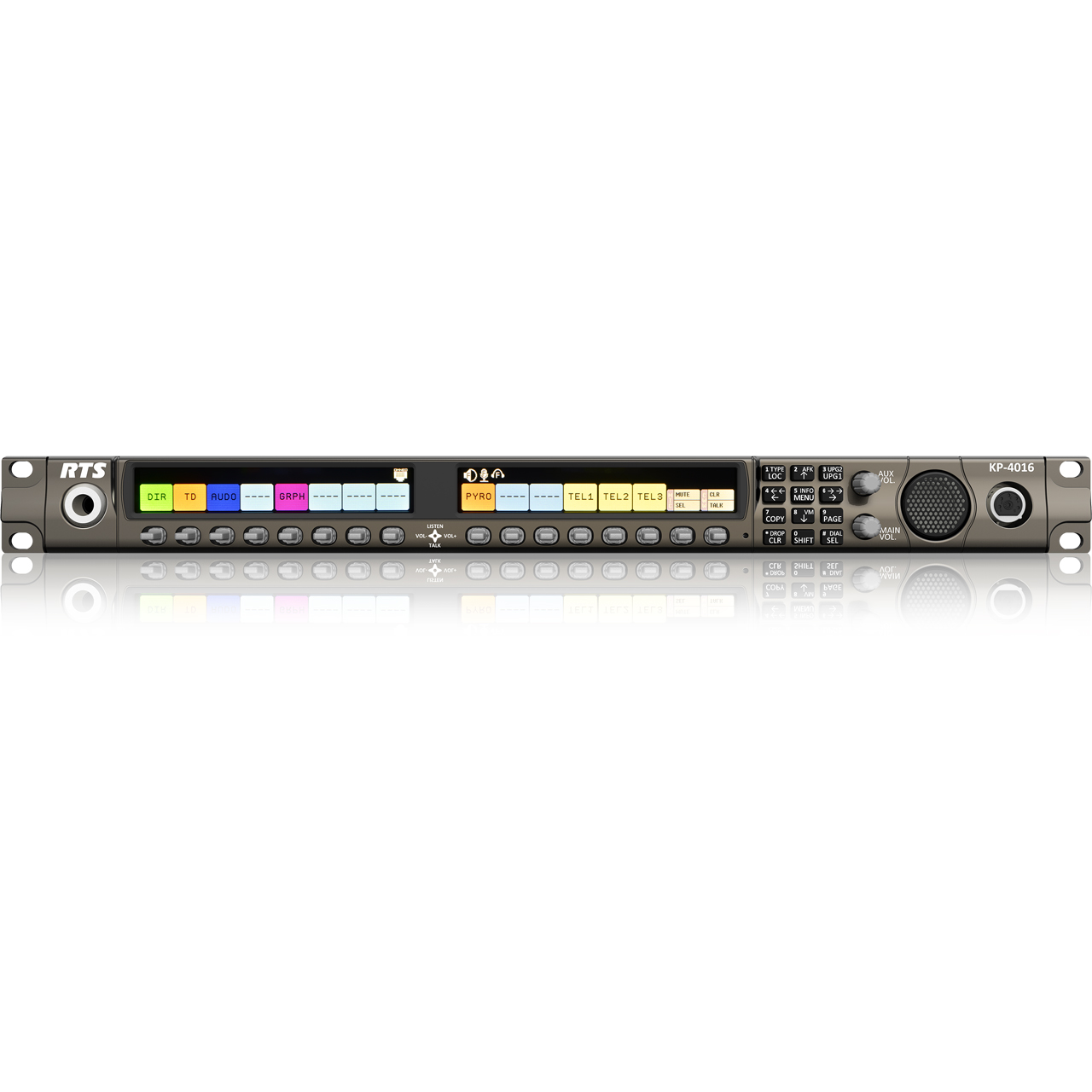

The Telex F.01U.315.625 - KP4016 A4F is a 1RU rackmount,14 Position OMNEO Capable Color Display Keypanel for Digital Audio with Audinate Over IP. This 14 Position Key Panel with menus and programming keypad has extended DSP Functions, 2 full HD color displays, 2 channel OMNEO via RJ45, a fiber connection and a standard analogue RTS matrix connection. Additional rear end audio connections and GPIOs are avilaiable and the headset connector is an A4F. A4M and A5M versions are available, sold separately. The unit supports EKP-4016 and LCP-32-16CLD and it uses OPTIONAL MCP-90X microphones (also sold separately).

  • Features:

    • Full IP Connectivity and TCP-IP Layer 2 & 3 Compatibility
    • Advanced Signal Processing and AD/DA
    • User-Friendly, High-Res Color Display
    • Backward compatibility
    • Enhanced navigation menus
    • Front panel headset connector

  • Specifications:

    • Output Type (relays): SPDT
    • Contact Rating: 1AMP @ 30VDC
    • Input Type: Optically Coupled
    • Input Voltage: 5-18 VDC on A+ ( A+ is internally pulled to 5VDC. Connect K- to to activate).
    • Matrix Input Type: Balanced
    • Typical Input Level +8dBu
    • Typical Input Impedance: >10kO
    • Maximum Input Level: +20dBu
    • Supported Bandwidth: 100Hz to 20KHz
    • Typical Input Level: +8dBu
    • Typical Input Impedance:: >10 k O
    • Typical Input Level: -42dBu
    • Typical Input Impedance: 1kO
    • Maximum Input Level: -25dBu

  • Item Includes:

    • 1x F.01U.315.625 - KP4016 A4F - 14 Position OMNEO Capable Color Display Keypanel
    • 1x PSU mounting bracket
