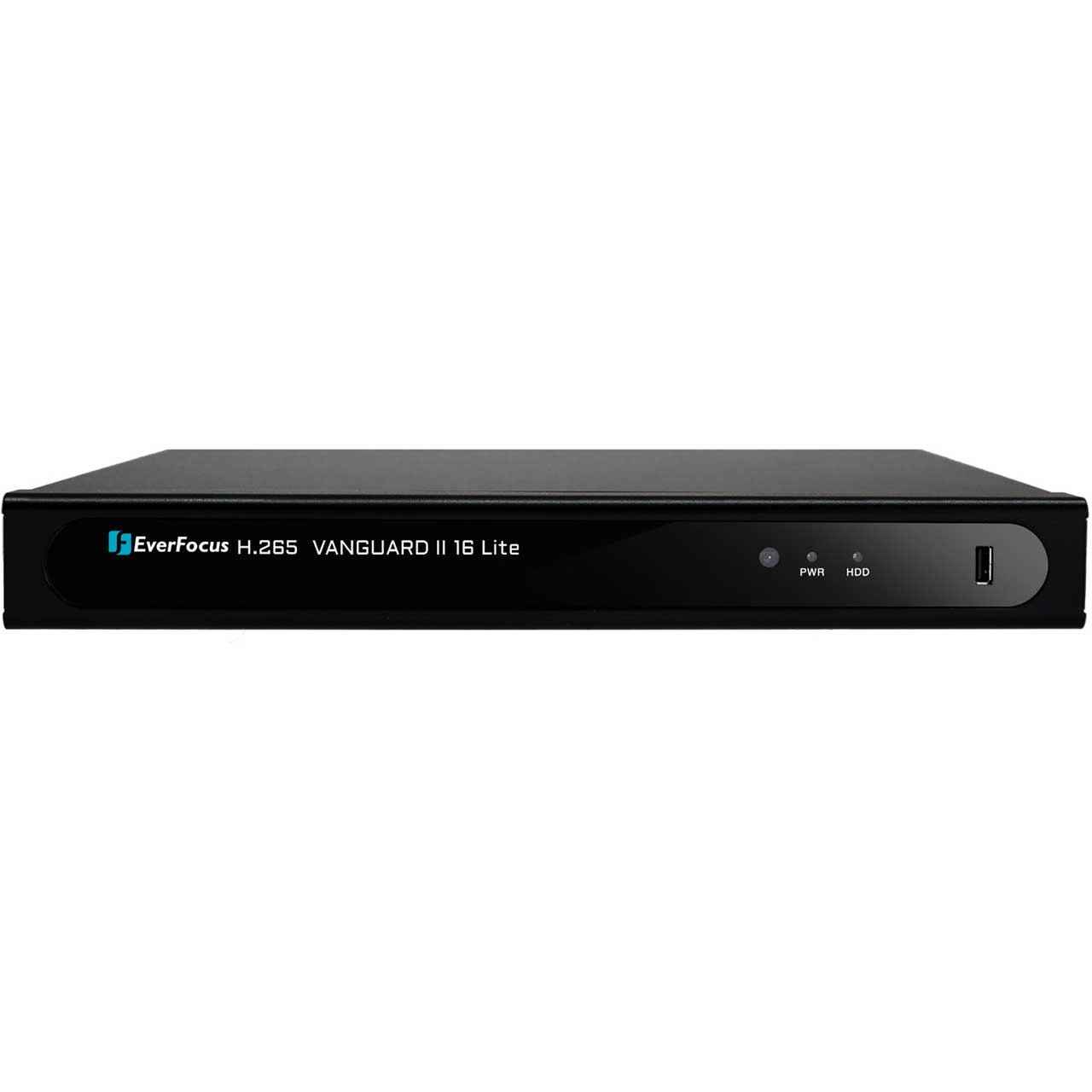

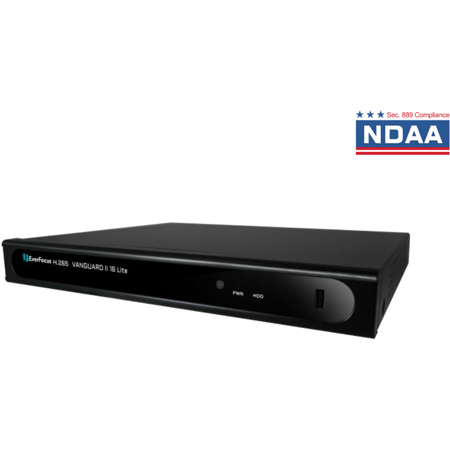

EverFocus VANGUARD II 16 LITE 2TB 16-Channel Hybrid DVR- H.265 / H.264 - BNC/HDMI/VGA/CVBS

VANGUARD II 16 LITE - Overview

VANGUARD II 16 LITE - Overview

• Features:

  • Supports hybrid mode: Analog: Up to 16CH 5MP Lite AHD/TVI/CVBS cameras IP: Up to 4CH 5MP IP cameras (up to 20CH if only IP cameras are connected)
  • Supports H.265 / H.264 compression format
  • Supports cloud storage with Dropbox (Snapshot)
  • Supports ONVIF 2.0 IP cameras
  • Control methods: mouse / IR remote controller
  • Remote configuration from built-in web interface
  • Supports video analytics
  • Integrates with EverFocus CMS
  • Supports multi-language
  • Supports mobile App: eFVMS App


• Specifications:

  • Operating System: Embedded Linux
  • Number of Channels: Analog: Up to 16CH 5MP Lite AHD/TVI/CVBS cameras IP: Up to 4CH 5MP IP cameras (up to 20CH if only IP cameras are connected)
  • RAM: 2GB
  • Watchdog: Supported
  • Dual Stream: Supported
  • OSD Menu: Supported
  • System Control: Mouse, IR remote control
  • Multiplex Operation: Live display, record, playback, backup and network
  • PTZ Protocol Supported: Pelco D, Pelco P
  • Compression Format: H.265 / H.264
  • Video Format: NTSC / PAL

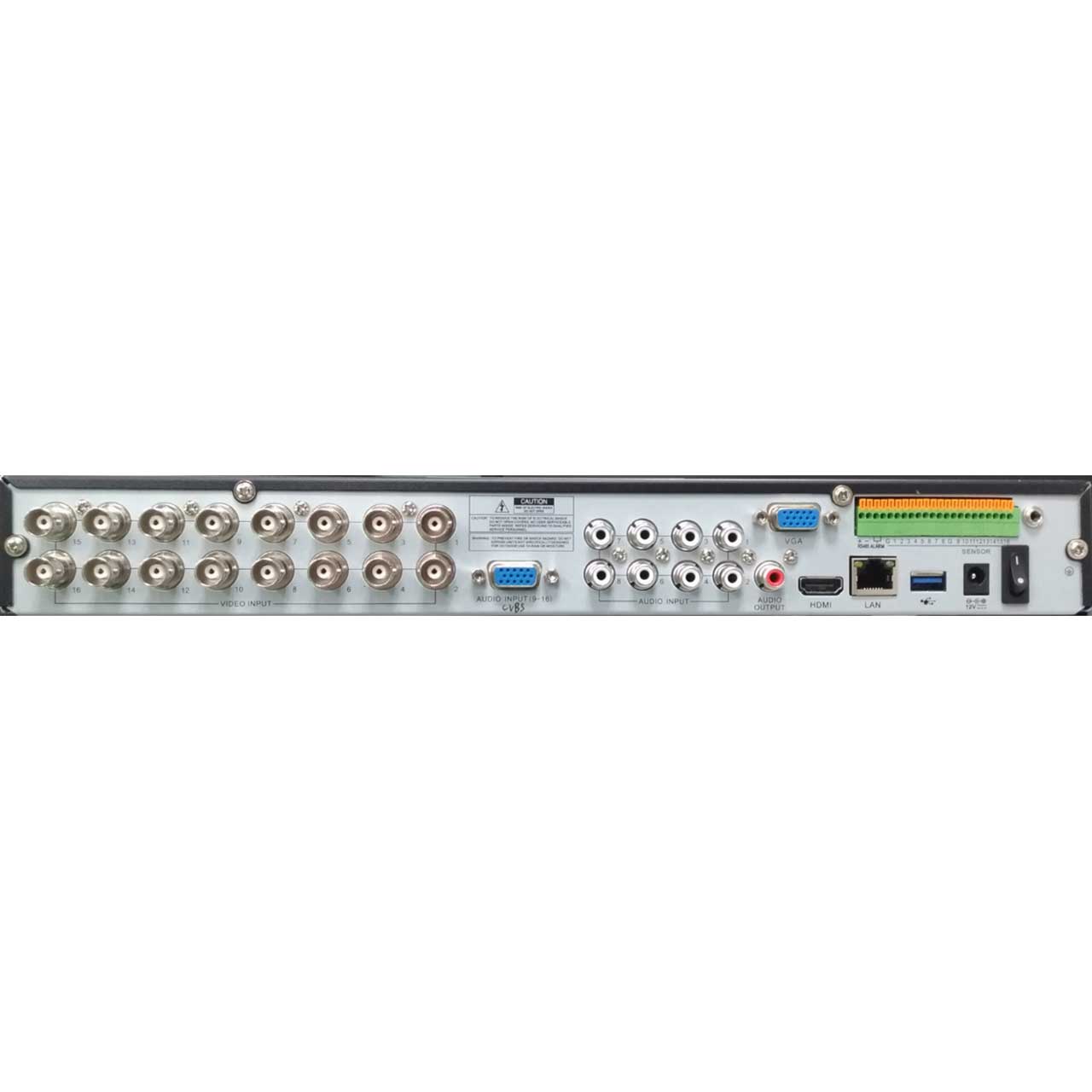

  • Video Inputs: Analog: 16 x BNC IP: 4CH 5MP IP cameras
  • Video Looping Outputs: Unsupported
  • Video Outputs: HDMI/VGA/CVBS: 704x576 (CVBS only), 1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080 (1080P), 2560x1440 (2K HDMI only), 3840x2160 (4K, HDMI only)
  • IP Bandwidth Incoming: Max. 16Mbps ~80Mbps (default is 16Mbps, decrease one Analog channel can increase 4Mbps )
  • IP Bandwidth Outgoing: Max. 96Mbps
  • Live Resolution / Frame Rate: Analog: 5MP Lite: 20fps/CH; 1080P/720P/960H: 30fps/CH IP: 5MP/1080P/720P
  • Recording Resolution / Frame Rate: Analog: 5MP Lite: 12fps/CH (PAL); 15fps/CH (NTSC); 1080P: 12fps/CH (PAL); 15fps/CH (NTSC) IP: 5MP/1080P/720P: 25fps/CH (PAL); 30fps/CH (NTSC)
  • Recording Modes: Continuous/Manual/Motion Detect
  • Synchronized Playback: 16CH
  • Playback Performance: 5MP Lite:96fps (Max 8CH playback ) 1080P: 120fps(Max 8CH playback) 720P:240fps(Max 8CH playback)
  • Search Modes: Time, Event, Motion in Recorded Video
  • Audio Input: 16
  • DVD Burner: Not supported
  • Ethernet: 10/100/1000 Ethernet
  • Ethernet Protocol: TCP-IP / DHCP / PPPoE / DDNS / SMTP / NTP
  • USB: 1 x USB2.0 (for mouse and backup/upgrade);1 x USB3.0
  • RS-485: 1 x RS-485 (for PTZ Control)
  • Ethernet: 1 RJ-45
  • Power Input: 12VDC / 5A
  • Power Consumption: 60W max.
  • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F (20 ~ 80% humidity)
  • Dimensions (W x D x H): 378 x 318.2 x 52mm / 14.9" x 12.5" x 2"
  • Weight (without HDDs): 2.3kg / 5.07lb
  • Language: English, Japanese, Traditional Chinese, German, Russian, Dutch, Italian
  • Regulatory: CE, FCC
  • Video Pause: Yes
  • Video Loss Detection: Yes
  • Motion Detection: Yes
  • Event Log: Yes
  • User Interface: GUI (Graphical User Interface)
  • Control PTZ via OSD: Yes (via both local and remote interfaces)
  • Schedule Setting: Yes
  • User Access: 2 Levels of User Access Defined
  • Video Analytics: Perimeter Intrusion Detection, Line Crossing Detection, Foreign/Missing Object Detection, Pedestrian Detection, Face Detection, Cross-Counting Detection, Sound Detection, Tamper Detection
  • Operating System: Win7 (32 and 64-bit) / Win10 (32 and 64-bit)
  • CPU: Intel Core I3-2100
  • RAM: 2GB
  • VGA: Intel HD 2000
  • LAN Speed: 10 / 100 / 1000 Mbps (RJ45)
  • Web Browser: IE11 and later
  • Other Remote Application: 1. EverFocus CMS 2. EverFocus eFVMS (mobile app)


• Item Includes:

  • 1x EverFocus VANGUARDII16 LITE 2TB 16-Channel Hybrid DVR - BNC/HDMI/VGA/CVBS
