LevelOne NVR-0504 Gemini 4 Channel 8MP 4K PoE Network Video Recorder NVR 802.3at with 4x PoE H.265/264

NVR-0504 - Overview

Easily connects to network, PTZ and smart-ip cameras!

• Features:

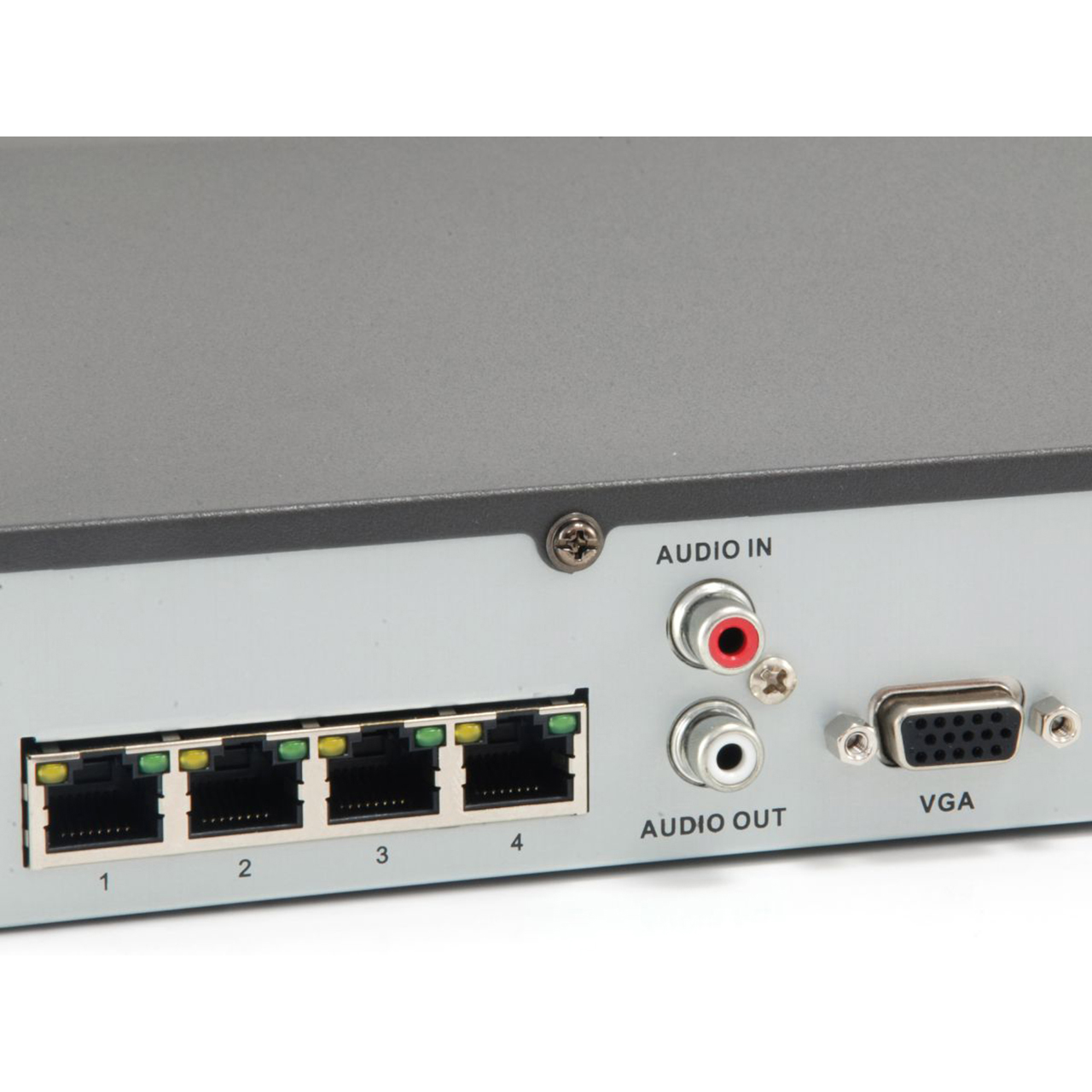

  • Interface Handshake: 4 built-in 802.3at PoE ports (Power + Data over one cable)
  • Throughput Logic: Supports 4-Ch 8MP (4K) resolution; H.265/H.264+ compression
  • Storage Architecture: 1x 3.5" HDD bay (up to 6TB capacity)
  • Software: Guarding Vision CMS compatible (up to 256 channels)
  • Pre-Recording/Post-Recording
  • Search Date/Time/Event
  • Export video by USB/Web browser/CMS
  • Liveview & Playback on Smart phone iOS, Android


• Specifications:

  • Max. Channels: 4
  • RAID Supported: No
  • Embedded System: Lunix
  • Power Consumption: 65W
  • Number of Client: 32
  • Drive Bays: 1
  • Indicators: Power, HDD
  • Power Supply Included: Yes
  • Protocols: HTTP, HTTPS, NTP, IPv4, IPv6, TCP, UDP, SNTP, DHCP, DDNS, PPPoE, RTP, SSL, SMTP
  • Resolution: Recording at up to 8 MP resolution
  • Decoding:
    - 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/CIF/QCIF
    - Capability 4-ch @ 1080p
    - Local Display
    - HDMI Video output at up to 4K (3840 * 2160) resolution
  • Supported Storage Capacity: 6TB
  • Supported Drive Capacity: 6TB
  • Video Bandwidth:
    - Incoming Bandwidth: 40Mbps
    - Outgoing Bandwidth: 80Mbps
  • Video Format: H.265/H.264/MPEG4
