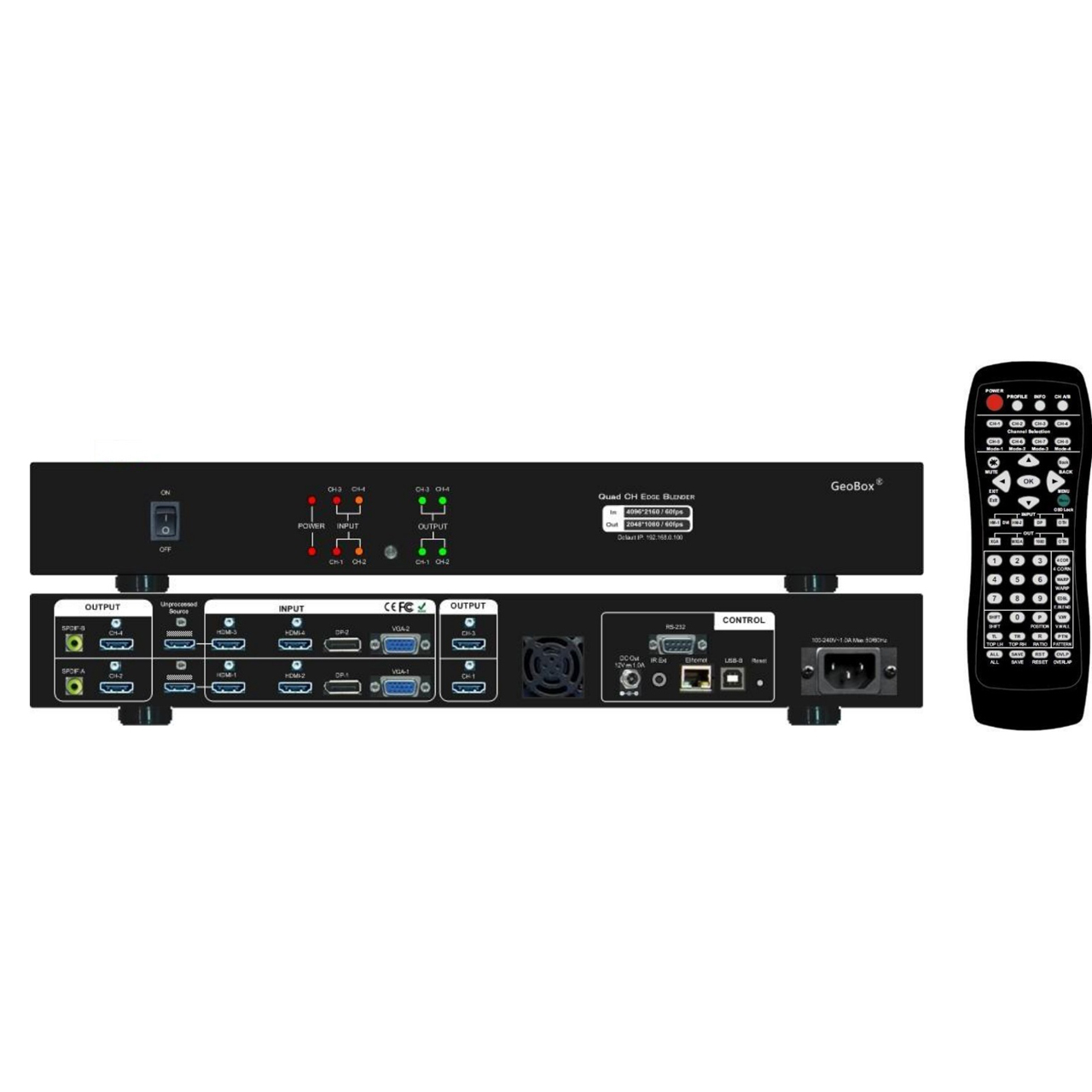

Introducing the Vigilink G814: Your Ultimate Quad Channel Curved Screen Edge Blending Processor
The G814 is a powerhouse, a quad-channel professional curved screen edge blending processor designed to elevate your visual experiences to new heights. Whether you're into sophisticated edge blending, image warping, stacking, or projection mapping, the G814 is your all-in-one solution. Comprising two G812 processing modules, it can also function as a dual G812 setup.
Unmatched Connectivity and Processing Power
With eight inputs-4x HDMI, 2x DP, and 2x VGA-coupled with four HDMI outputs, the G814 offers unparalleled connectivity. It supports input resolutions up to 7680x1200 @30Hz and 4096x2160 @60Hz with 4:4:4 full-color sampling, while its output capabilities reach up to 2048x1080 @60Hz. Under the hood, a 10-bit high-end processor, motion adaptive de-interlace, and a low-angle smooth algorithm ensure your content shines. Non-VESA standard input timing support means compatibility with various input sources.
Advanced Warp Technology for Precision Geometry
Our advanced warp technology, seamlessly integrated into the G814, empowers you to achieve precise geometry alignment and curved screen edge blending. Control is at your fingertips through the remote controller, WebGui, USB, or Ethernet. Fine-tune with confidence, thanks to a maximum of 17x9 grid control points with 120x68 pixel position adjustments. The Linearity Grid Line Adjustment and "W" type Corner Wall image adjustment enhance your geometry alignment toolkit.
Perfect Color Control and Uniformity
The G814 offers separate RGB gamma correction for edge blending color fine-tuning and individual color correction for each output. Achieve fine pixel color uniformity and optimize visuals with nine regions for non-edge blending area black level uplift. Witness real-time geometry and color adjustments for an optimized visual experience.
Seamless Connectivity and Video Wall Function

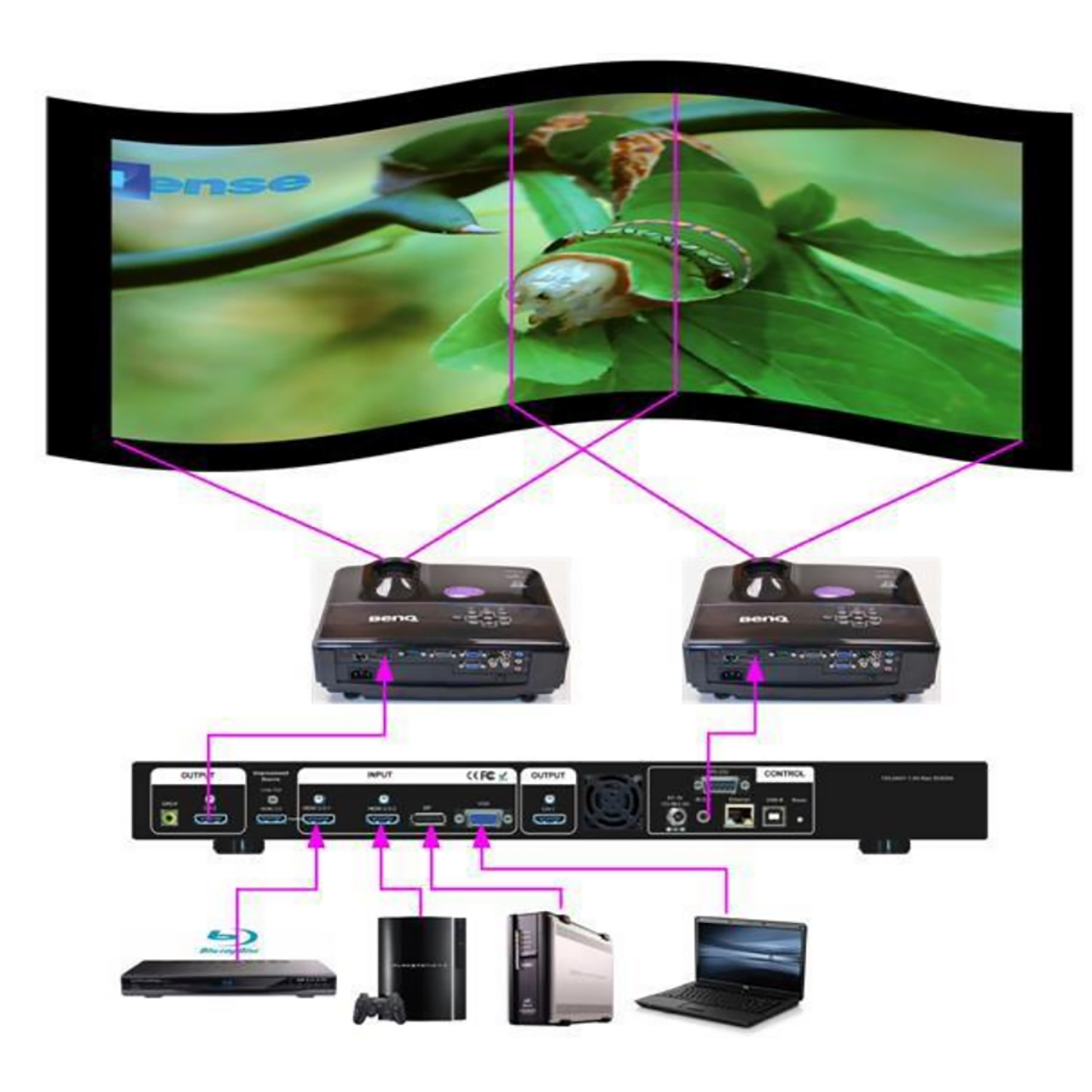

Experience hassle-free connectivity with HDMI 2.0 loop-out support, enabling daisy-chaining of multiple units, reaching up to 7680x1200 @30Hz. The G814 simplifies complex setups with its video wall function, allowing you to crop and allocate source images for each projector and set overlap pixels for flawless edge blending. Bid farewell to PC software, video distributors, and splitters.
Customizable EDID and Versatile Input Support
The G814 is designed to support programmable EDID and non-VESA standard input. Create custom EDID timings ranging from 1024x768 to 3840x2400, optimizing your video performance with ease.
Elevate your visual content to unprecedented levels with the G814. Experience the future of visuals with uncompromising edge blending, image warping, and projection mapping. Embrace the G814-it's where limitless possibilities meet unmatched performance.
