VigilLink VLEX-HT2150K-TR HDBaseT 2.0 4k@60Hz 4:4:4 HDMI 2.0 Extender with KVM - 18Gbps - 492 Foot/150m

VLEX-HT2150K-TR - Overview

• Features:

  • HDMI2.0b, HDCP 2.2, and USB 1.1 compliant
  • Supports 18Gbps video bandwidth
  • Supports video resolution up to 4K2K@60Hz YUV 4:4:4
  • The transmission distance can be extended up to 492ft / 150m at the resolution of 1080P@60Hz, or 394ft / 120m at 4K2K@60Hz 4:4:4 via a single CAT6 cable

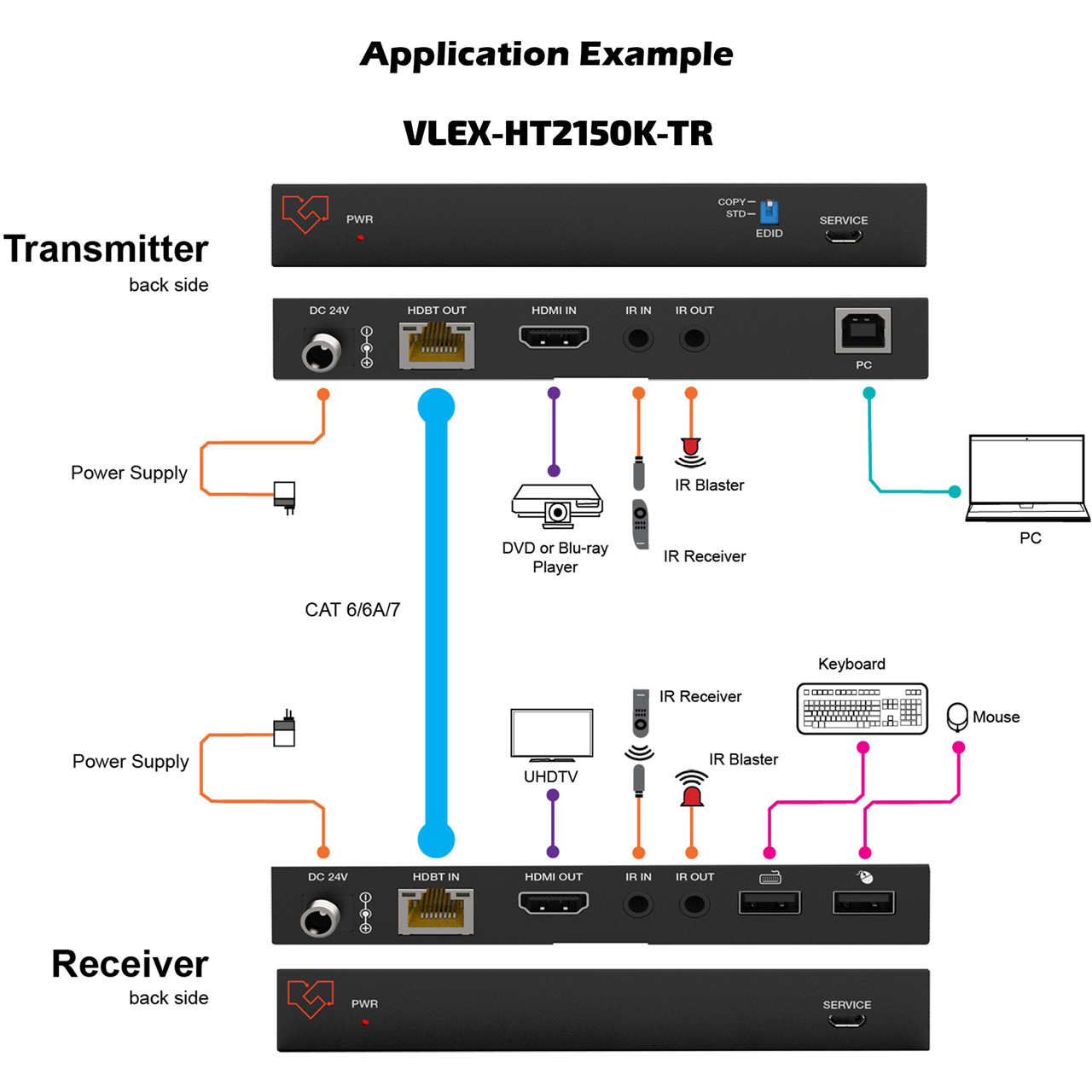

  • Supports bi-directional IR signal and USB KVM signal pass-through
  • Supports bi-directional POC (Power over Cable) function
  • Compact design for easy and flexible installation


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2
  • Video Bandwidth: 18Gbps
  • Video Resolution: Up to 4K2K @ 60Hz YUV 4:4:4
  • USB Compliance: USB 1.1
  • IR Level: 5Vp-p
  • IR Frequency: Wideband 20K - 60kHz
  • Transmission Distance: 1080p @ 60 - 150m, 4K60 - 120m
  • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
  • Color Depth:
    - 8-bit, 10-bit, 12-bit (1080p @ 60Hz)
    - 8-bit (4K2K @ 60Hz YUV4:4:4)
    - 8-bit, 10-bit, 12-bit (4K2K @ 30Hz)
  • HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
  • Audio Formats: LPCM 7.1CH, Dolby True HD, and DTS-HD Master
  • ESD Protection: Human Body Model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

    Connections

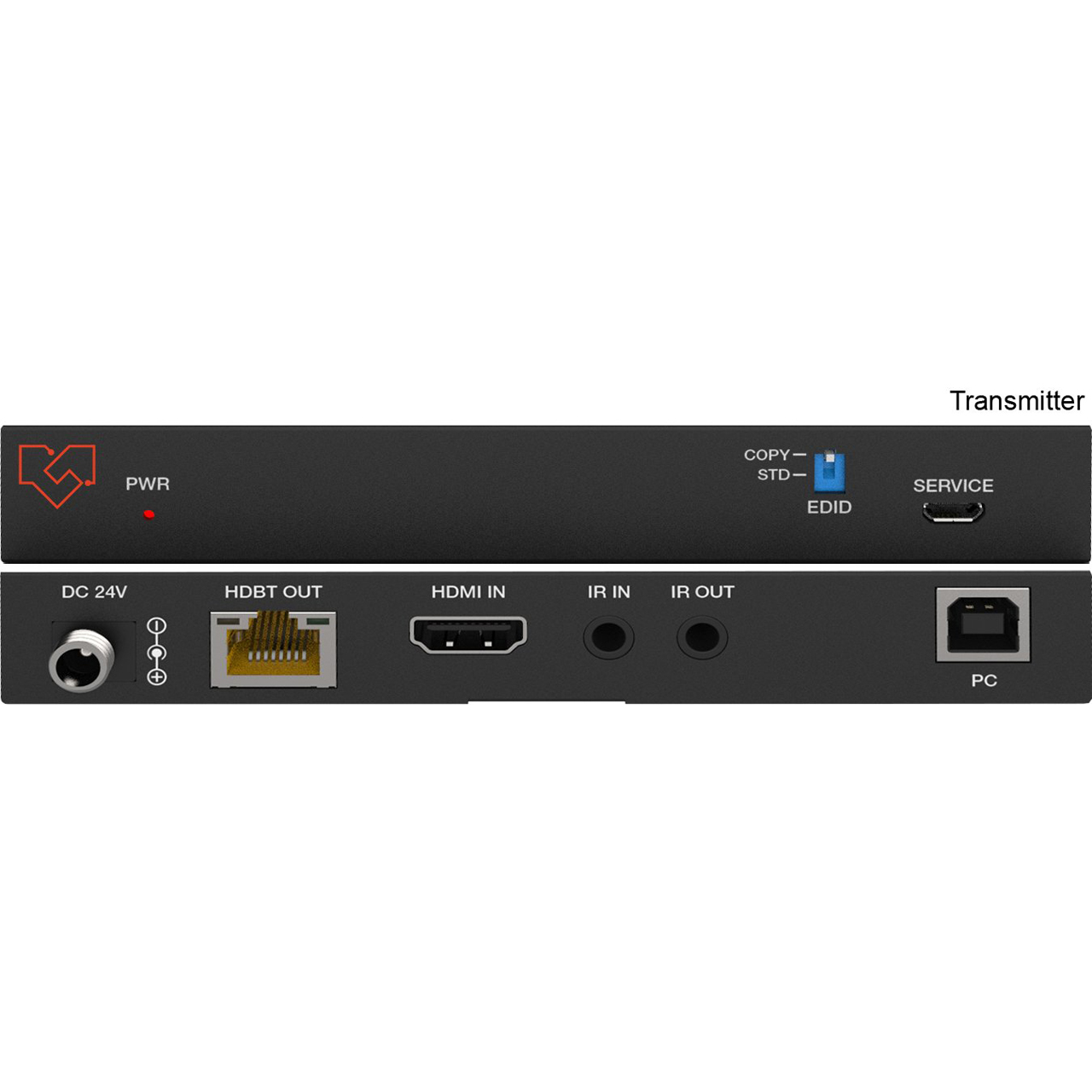

  • Transmitter Input:
    - 1x HDMI IN (Type A, 19-pin female)
    - 1x IR IN (3.5mm Stereo Mini-jack)
    - 1x SERVICE (Micro-USB jack)
    - 1x USB (USB-B, 4-pin female)
  • Transmitter Output:
    - 1x HDBT OUT (RJ45)
    - 1x IR OUT (3.5mm Stereo Mini-jack)

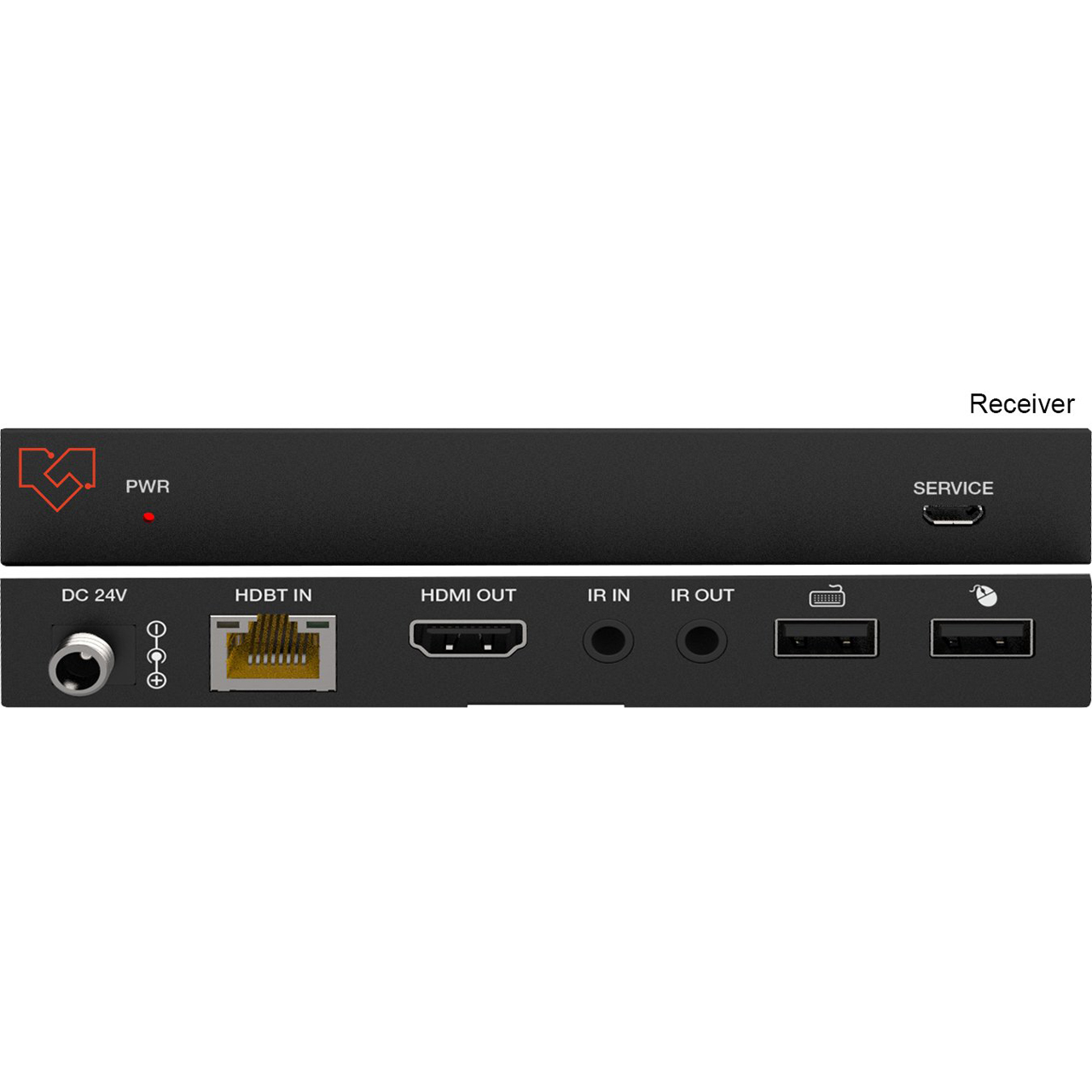

  • Receiver Input:
    - 1x HDBT IN (RJ45 with light)
    - 1x IR IN (3.5mm Stereo Mini-jack)
    - 1x SERVICE (Micro-USB jack)
  • Receiver Output:
    - 1x HDMI OUT (Type A, 19-pin female)
    - 1x IR OUT (3.5mm Stereo Mini-jack)
    - 2x USB (USB-A, 4-pin female)

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions: 5.77" x 2.81" x 0.82" (144mm x 78mm x 23mm)
  • Weight: 0.71lbs
  • Power Supply: DC 24V/1A - Support bi-directional PoC function
  • Power Consumption: 9.6W (max)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)


• Item Includes:

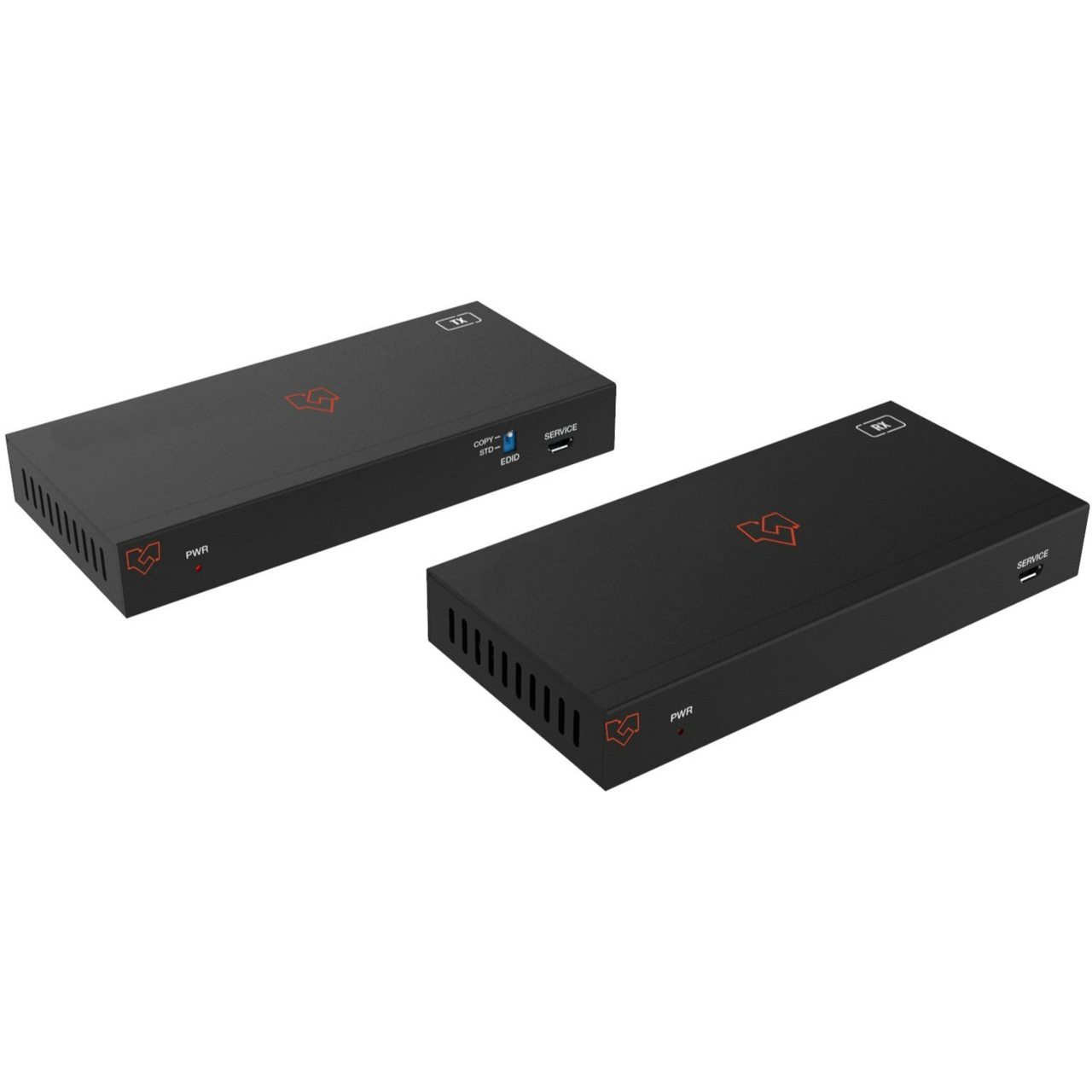

  • 1x 18Gbps HDBaseT Extender (Transmitter)
  • 1x 18Gbps HDBaseT Extender (Receiver)
  • 1x IR Blaster cable (1.5 meters)
  • 1x IR Receiver cable (1.5 meters)
  • 1x USB cable (1.5 meters)
  • 4x Mounting Ears
  • 8x Machine Screws (KM3*4)
  • 1x 24V/1A Locking Power Supply
  • 1x User Manual


• Warranty:

  • 6 Years
