VigilLink VLEX-HT2150U-TR 18Gbps HDBaseT 2.0 4K@60Hz 4:4:4 HDMI 2.0 Extender with USB - 229 Foot/70m

VLEX-HT2150U-TR - Overview

• Features:

  • HDMI 2.0b, HDCP 2.2 compliant
  • Up to 4K / 2K @60Hz with 24bit RGB / YCbCr (4:4:4)
  • HDR, HDR10, HDR10+, Dolby Vision pass through
  • Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
  • Up to 120m (4K) and 150m (1080P) using CAT6/6A cable
  • Two-way IR transmission
  • USB 2.0 protocol, transmission rate up to 480Mbps transmission
  • EDID management
  • Two-way PoC (Power over Cable)


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2
  • Video Bandwidth: 18Gbps
  • Video Resolution: Up to 4K2K @ 60Hz YUV 4:4:4
  • USB Compliance: USB 2.0
  • IR Level: 5Vp-p
  • IR Frequency: Wideband 20K - 60kHz
  • Transmission Distance: 1080p @ 60 - 150m, 4K60 - 120m
  • Color Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
  • Color Depth:
    - 8-bit, 10-bit, 12-bit (1080p)
    - 8-bit (4K60)
    - 8-bit, 10-bit, 12-bit (4K24/30)
  • HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
  • Audio Format: LPCM 7.1CH, Dolby True HD, and DTS-HD Master
  • ESD Protection: Human-Body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

    Connections

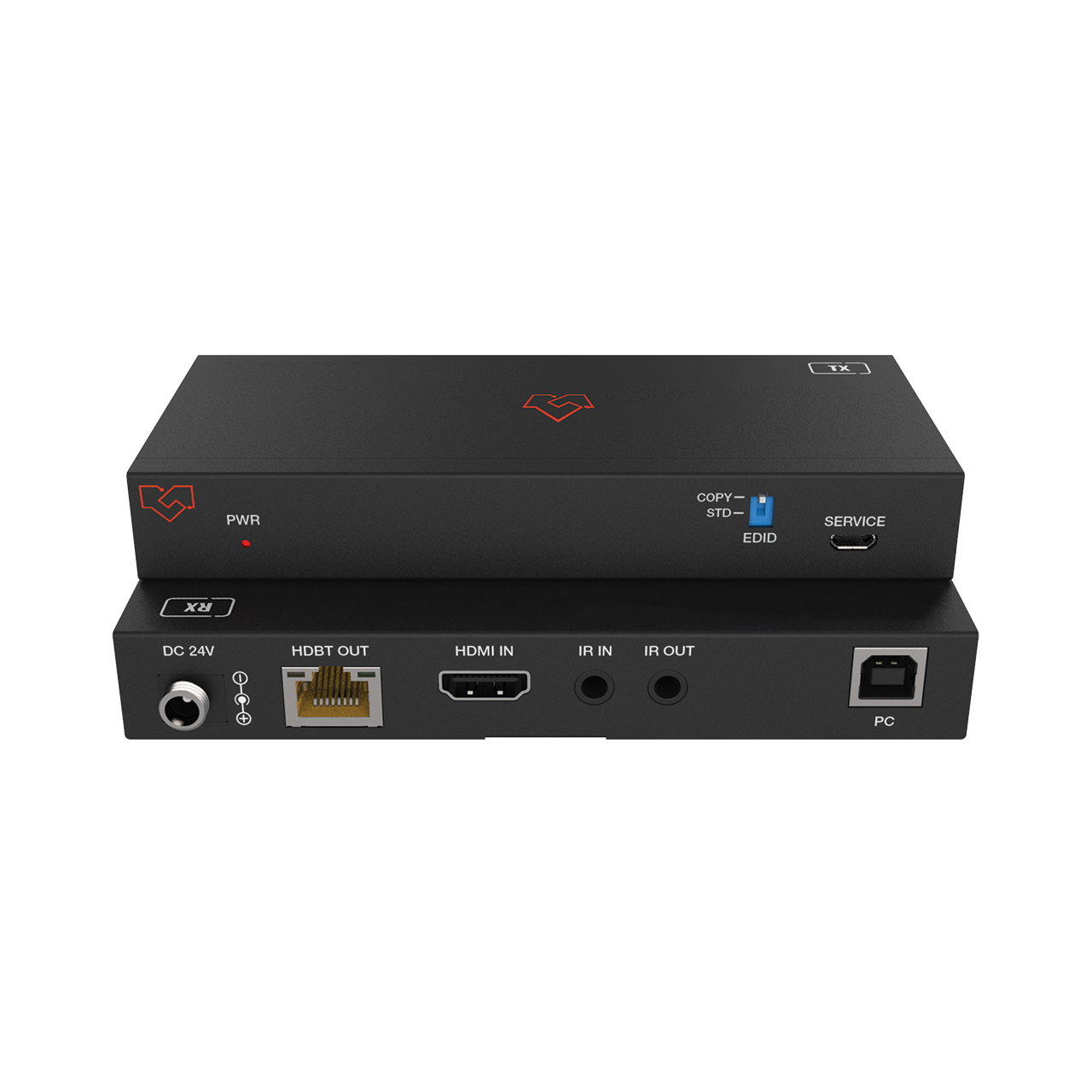

  • Transmitter Input:
    - 1x HDMI IN (Type A, 19-pin female)
    - 1x IR IN (3.5mm Stereo Mini-jack)
    - 1x SERVICE (Micro-USB jack)
    - 1xUSB (USB-B, 4-pin female)
  • Transmitter Output:
    - 1x HDBT OUT (RJ45)
    - 1x IR OUT (3.5mm Stereo Mini jack)
  • Receiver Input:
    - 1x HDBT IN (RJ45 with light)
    - 1x IR IN (3.5mm Stereo Mini jack)
    - 1x SERVICE (Micro-USB jack)

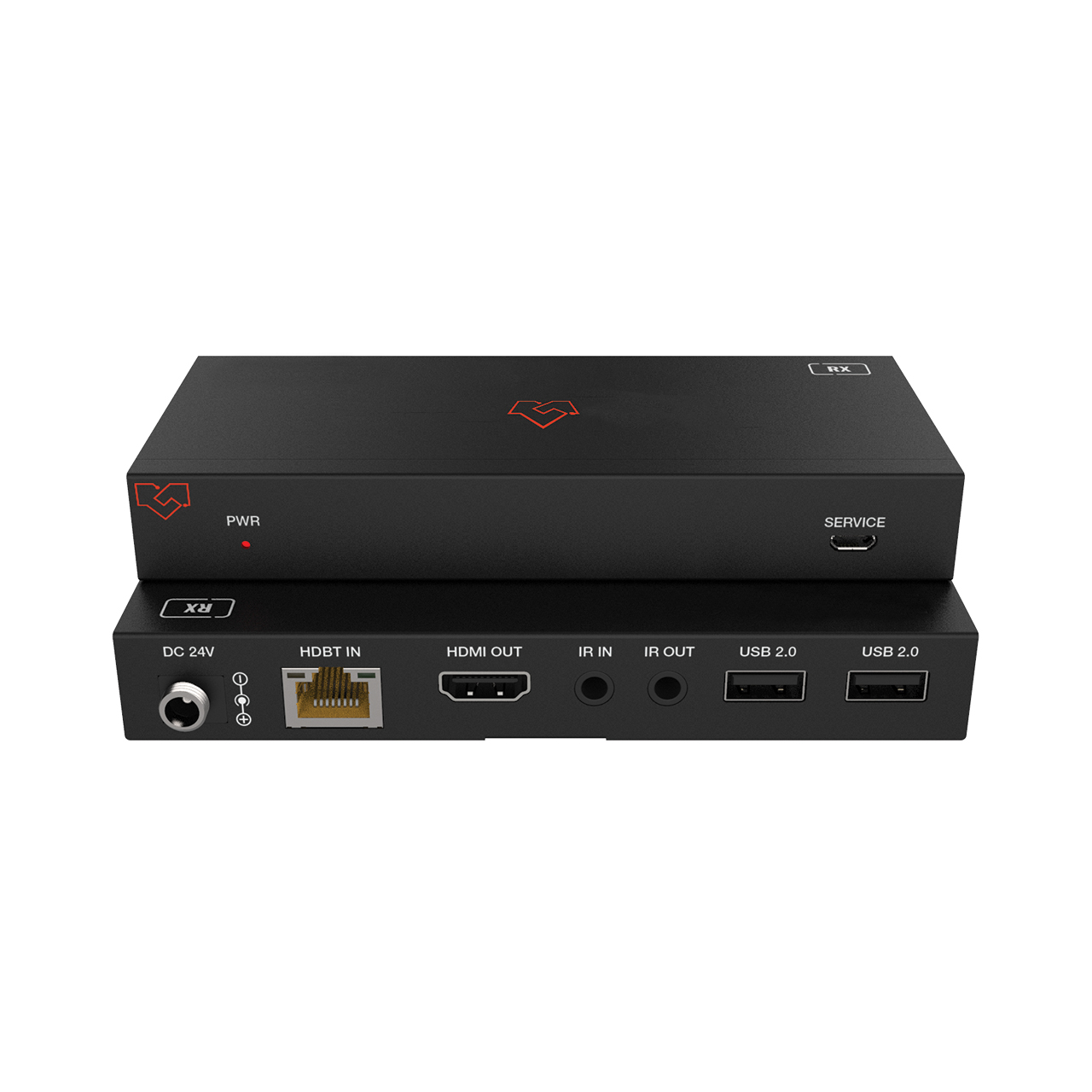

  • Receiver Output:
    - 1x HDMI OUT (Type A, 19-pin female)
    - 1x IR OUT (3.5mm Stereo Mini-jack)
    - 2x USB 2.0 (USB-A, 4-pin female)

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions TX/RX: 6.69" x 4.01" x 0.86" (170mm x 102mm x 22mm)
  • Weight:
    - Transmitter: 0.93lbs (425g)
    - Receiver: 0.96lbs (437g)
  • Power Supply:
    - DC 24V/1A
    - Supports bi-directional POC function
  • Power Consumption: 13.2W (Max.)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)


• Item Includes:

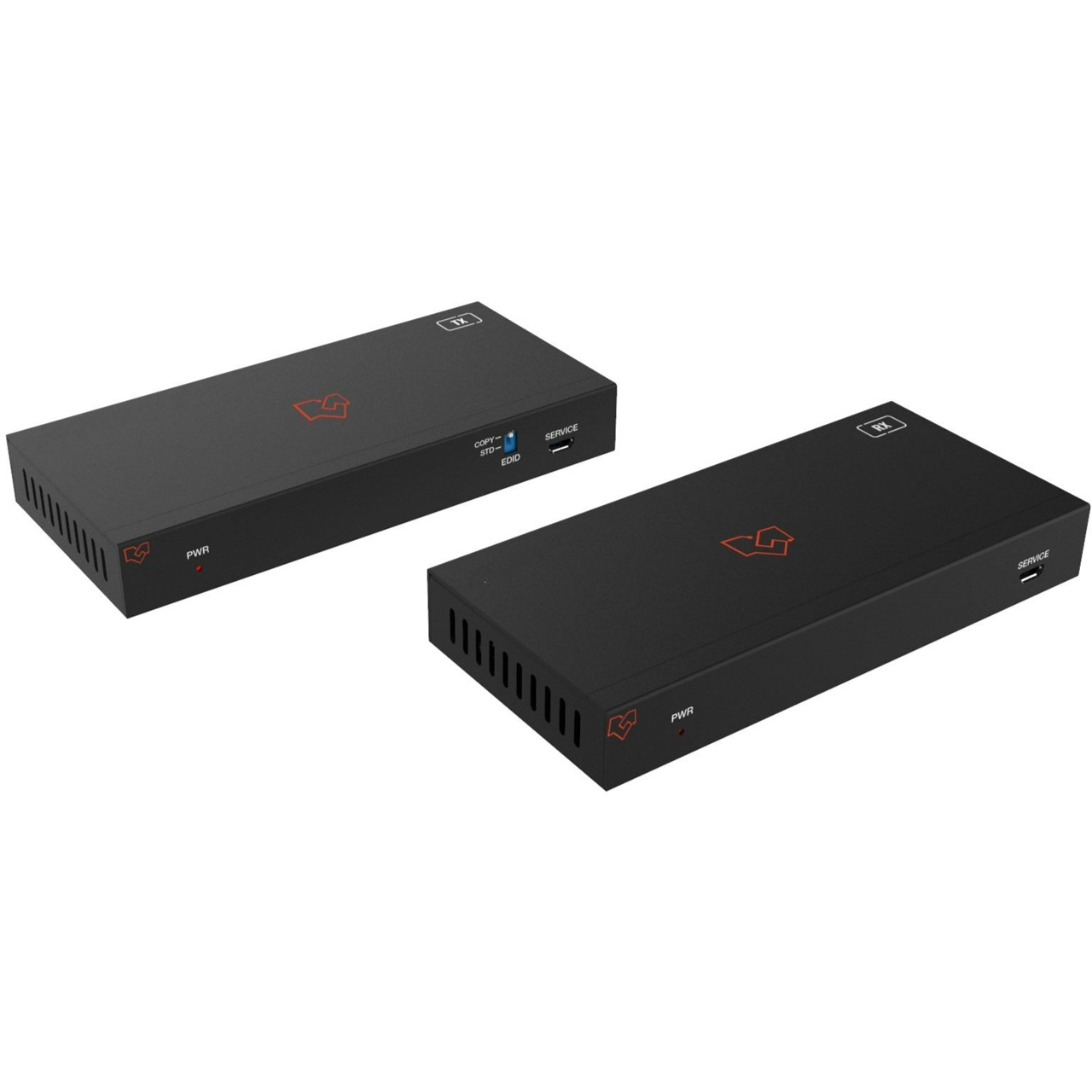

  • 1x 18Gbps HDBaseT Extender (Transmitter)
  • 1x 18Gbps HDBaseT Extender (Receiver)
  • 1x IR Blaster cable (1.5 meters)
  • 1x IR Wideband Receiver cable (1.5 meters)
  • 4x Mounting Ears
  • 8x Machine Screws (KM3*4)
  • 1x 24V/1A Locking Power Supply
  • 1x User Manual


• Warranty:

  • 6 Years
