VigilLink VLEX-HT3100U-TR 18Gbps HDBaseT 3.0 4K@60Hz 4:4:4 HDMI 2.0 Extender with EARC - 328 Foot/100m

ITEM #: VGL-VLEXHT3100UT MFG #: VLEX-HT3100U-TR

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
VigilLink
Free Shipping with $49 Minimum Order

Our Price:

$1,404.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VLEX-HT3100U-TR - Overview

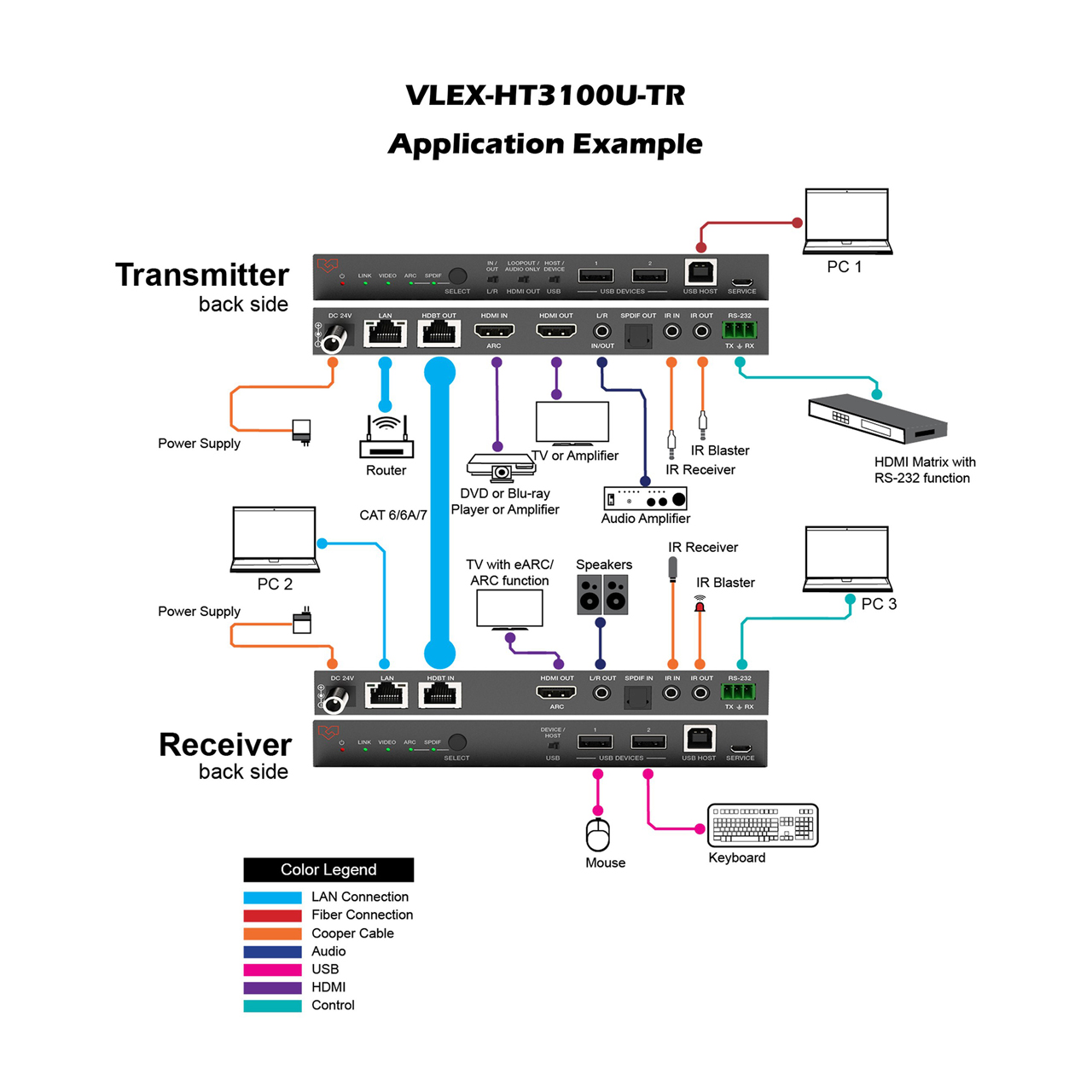

The VigilLink VLEX-HT3100U-TR HDBaseT 3.0 Extender can extend uncompressed HD/UHD video and audio signals, eARC/ARC, RS-232, bi-directional IR, 1GbE ethernet, and USB2.0 signals up to 100m/328ft via a single Cat6A/7 cable. The transmitter supports audio embedding/de-embedding and the receiver supports audio de-embedding. It also supports eARC/ARC from RX's HDMI output pass-through to TX's HDMI input or de-embedding to TX's HDMI audio only and SPDIF output ports, USB 2.0 (host/device is configurable), and bi-directional PoC. The Extender offers the most convenient solution for HDMI extension via a single CAT cable with long-distance capability and is the perfect solution for home/commercial applications.

  • Features:

    • HDMI 2.0b, HDCP 2.2 compliant
    • Uncompressed 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4 over CAT
    • HDR, HDR10, HDR10+,Dolby Vision pass-through
    • Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
    • Up to 100 meters using CAT6/6A cable
    • Supports eARC/ARC/SPDIF from RX to TX
    • TX HDMI OUT can be set to audio only (eARC/ARC/SPDIF) for legacy AVR
    • TX supports audio de-embedded or embedded
    • RX supports audio de-embedded
    • USB 2.0 high speed, LAN and two-way IR and RS-232 transmission
    • Two-way 24V POC (Power over Cable)
    • Relate


  • Specifications:

      Technical
    • HDMI Compliance: HDMI 2.0b
    • HDCP Compliance: HDCP 2.2
    • Video Bandwidth: 18Gbps
    • Video Resolution: Up to 4K @ 60Hz 4:4:4
    • HDBaseT Bandwidth: 16Gbps on the main and 2Gbps on the return link
    • HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
    • Color Depth: 8/10/12-bit
    • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
    • Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
    • L/R Audio Formats: PCM 2.0
    • SPDIF Audio Formats: LPCM2.0, AC3 5.1, DTS 5.1
    • IR Level: 12Vp-p
    • IR Bandwidth: Up to 350Mbps
    • Ethernet: Up to 921600bps
    • Transmission Distance: 100m (via a single CAT 6A/7 cable)
    • ESD Protection: Human Body Model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

      Connections

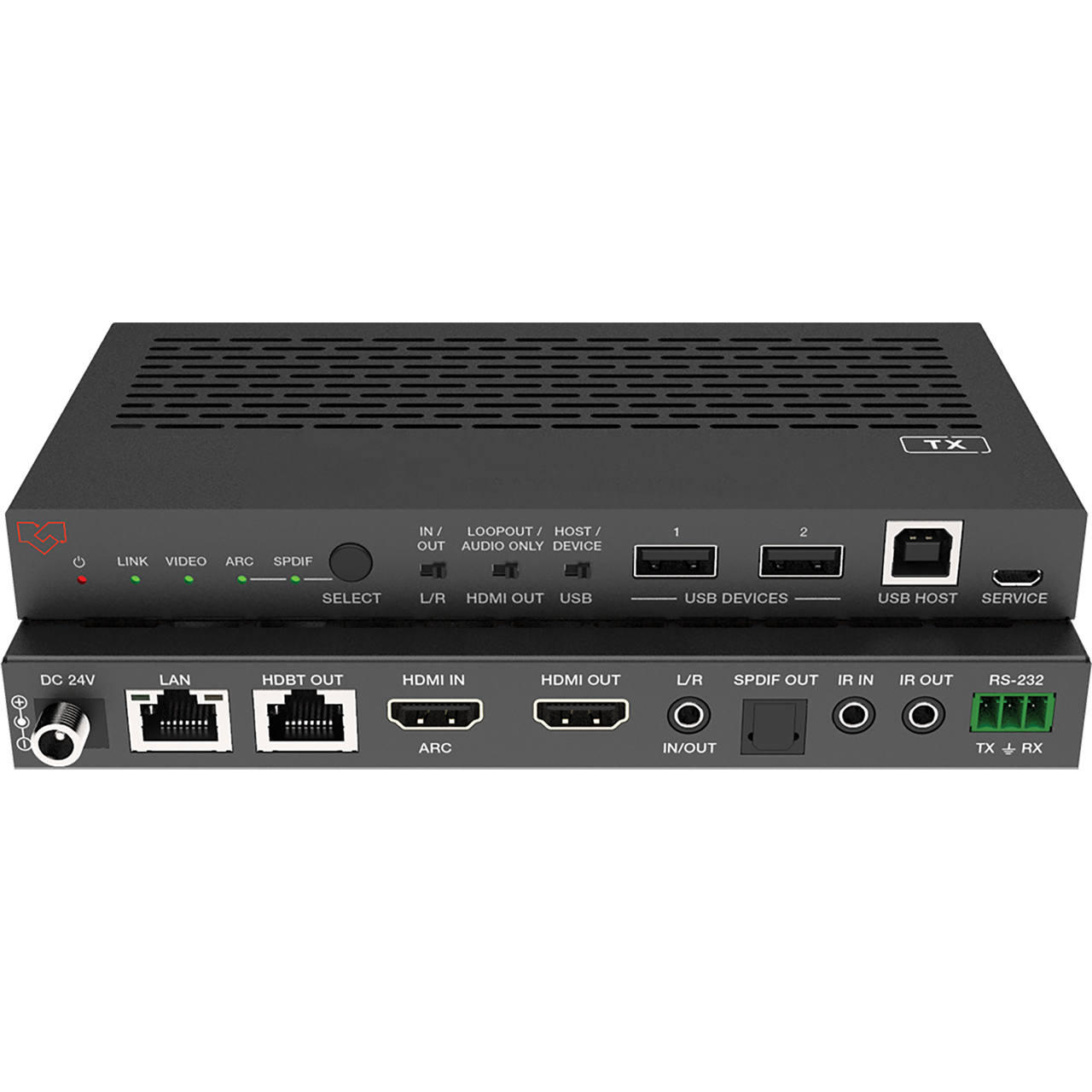

    • Transmitter:
      - Inputs: 1x HDMI IN (Type A, 19-pin female)
      - Outputs: 1x HDMI OUT (Type A, 19-pin female), 1x HDBT OUT (RJ45, 8-pin female), 1x SPDIF OUT (S/PDIF)

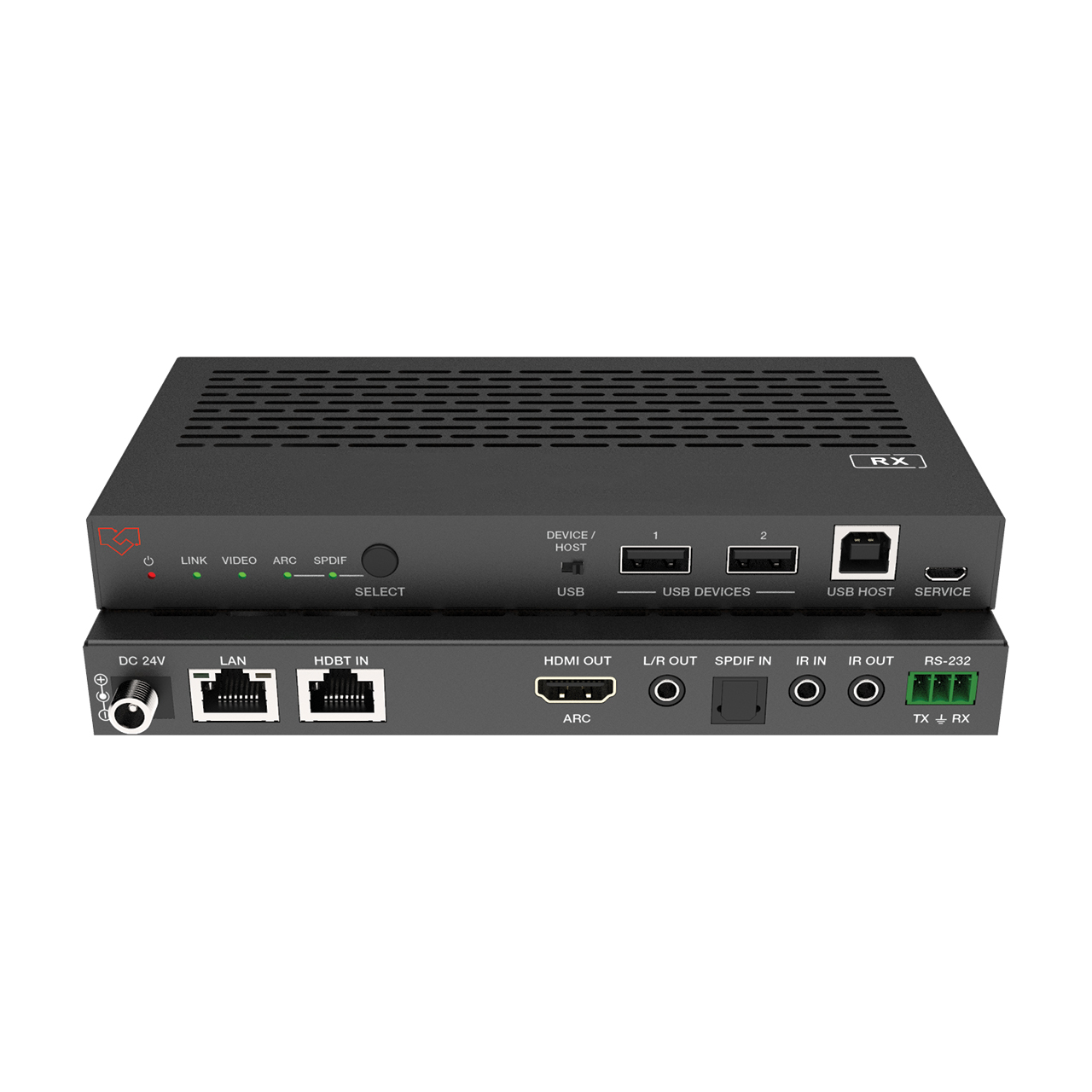

    • Receiver:
      - Inputs: 1x HDBT IN (RJ45, 8-pin female), 1x SPDIF IN (S/PDIF)
      - Outputs: 1x HDMI OUT (Type A, 19-pin female), 1x L/R OUT (3.5mm Stereo Mini-jack)
    • Controls:
      - 1x IR IN (3.5mm Stereo Mini-jack)
      - 1x IR OUT (3.5mm Stereo Mini-jack)
      - 1x RS-232 (3pin-3.81mm Phoenix jack)
      - 1x SERVICE (Mini-USB, Update port)
      - 1x USB HOST (USB Type B)
      - 2x USB DEVICES (USB Type A)
      - 1x LAN (RJ45)

      Mechanical
    • Housing: Metal enclosure
    • Color: Black
    • Dimensions Transmitter/Receiver: 6.69" x 4.01" x 0.86" (170mm x 102mm x 22mm)
    • Weight:
      - Transmitter: 0.93lbs (425g)
      - Receiver: 0.96lbs (437g)
    • Power Supply:
      - Input: AC 100V - 240V, 50/60Hz
      - Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified)
    • Power Consumption: 15.36W (POC)
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (No condensation)


  • Item Includes:

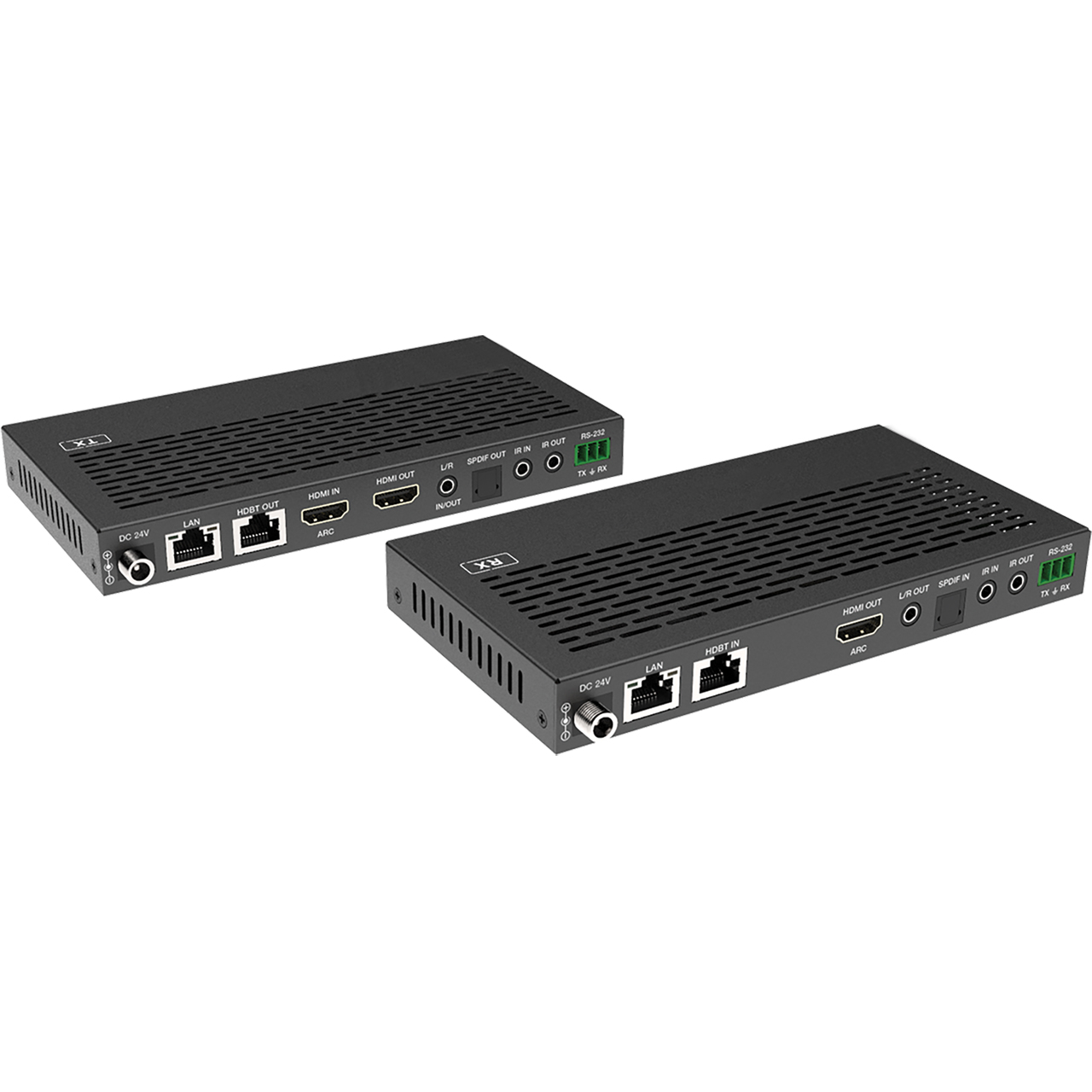

    • 1x HDBaseT 3.0 Extender (Transmitter)
    • 1x HDBaseT 3.0 Extender (Receiver)
    • 1x IR Blaster Cable (1.5 meters)
    • 1x IR Receiver Cable (1.5 meters)
    • 4x Mounting Ears
    • 8x Machine Screws (KM3*4)
    • 2x 3pin-3.81mm Phoenix Connector
    • 1x 24V/1A Locking Power Adapter
    • 1x User Manual


  • Warranty:

    • 6 Years
