VLHA-H21ERAD - Overview

High-Speed HDMI Audio De-Embedding with eARC/ARC Support

The VigilLink VLHA-H21ERAD is a 48Gbps eARC Audio Adapter designed for de-embedding audio signals from an HDMI source or TV with ARC/eARC, and outputting HDMI audio, digital S/PDIF audio, or analog audio to an AV Receiver. It supports data rates up to 48Gbps, complying with HDMI 2.1 and HDCP 2.3 requirements. It includes several features for ease of integration, such as EDID management and cable equalization. It provides an easy solution for HDMI installations to send audio signals to a soundbar, amplifier, or any 5.1/2.0CH sound system. CEC control from TV to the source, amplifier, or soundbar is also supported.

Features:
- HDCP 2.3 compliant
- Support 48Gbps video bandwidth and video resolution up to 8K@60Hz 4:2:0
- 12bit and 4K@120Hz 4:4:4 12bit, as specified in HDMI 2.1
- VRR, ALLM, QMS, QFT, and SBTM are supported
- Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
- Support LPCM 7.1CH, Dolby TrueHD, Atmos, and DTS-HD Master, DTS:X Audio pass-through
- HDMI input source and TV eARC/ARC audio are de-embedded to S/PDIF, L/R, and HDMI audio to output
- HDMI input source is de-embedded to any eARC/ARC soundbar to output
- Support full audio up to Dolby Atmos/DTS:x from eARC TV to SONOS ARC & beam or any eARC soundbar
- Support CEC control from the TV to the source
- Support CEC volume control from the TV to any eARC sound system
- Advanced EDID management
Specifications:
- HDMI Compliance: HDMI 2.1
- HDCP Compliance: HDCP 2.3
- Video Bandwidth: 48Gbps FRL and 18Gbps TMDS
- Video Resolution: Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
- Color Depth: 8-bit,10-bit,12-bit
- Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
- HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG

  Audio Formats
- HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
- eARC Audio Out: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
- Amp Audio Out: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
- Audio De-Embedding Output:
  - Optical: PCM 2.0CH/Dolby/DTS 5.1CH
  - L/R: PCM 2.0CH
- ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

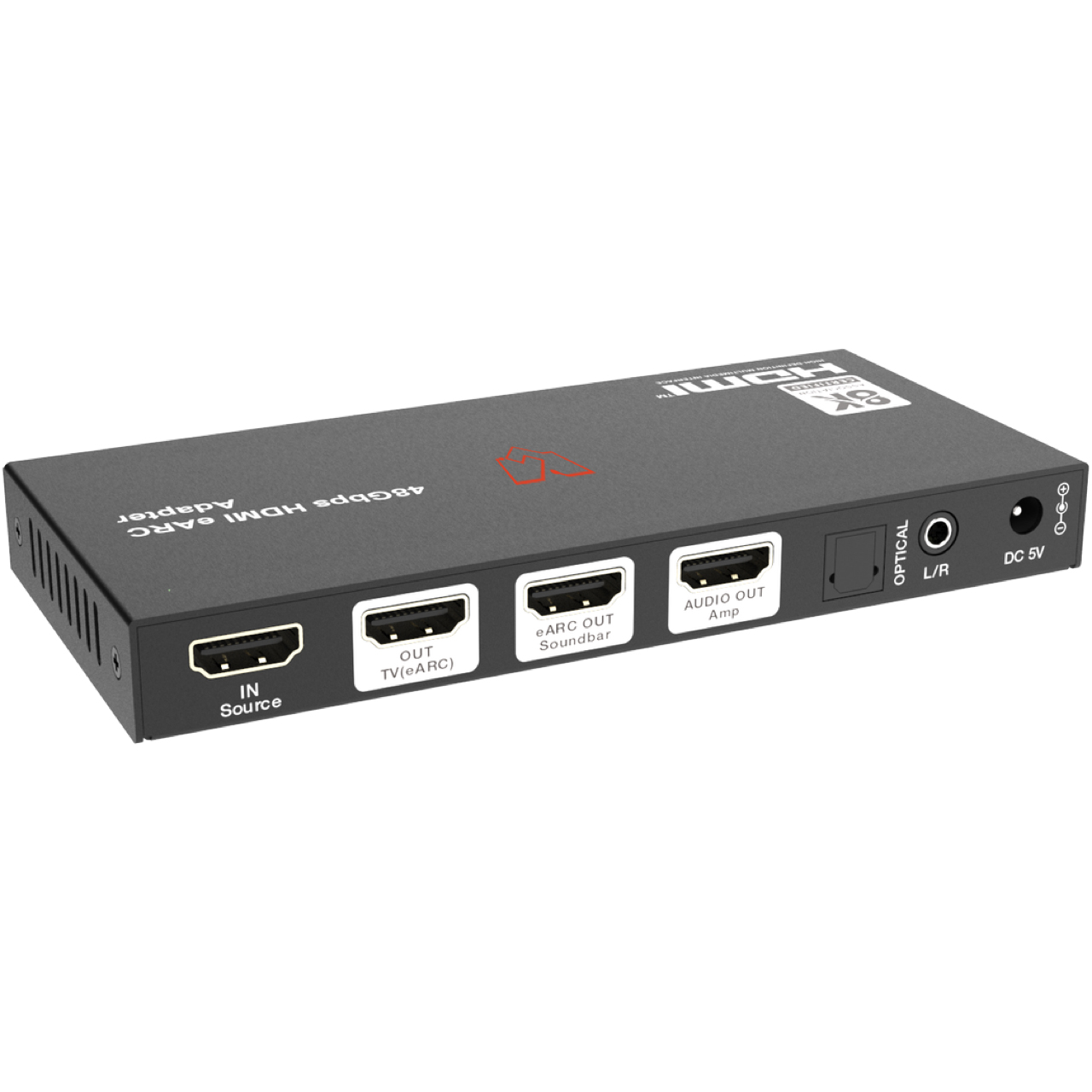

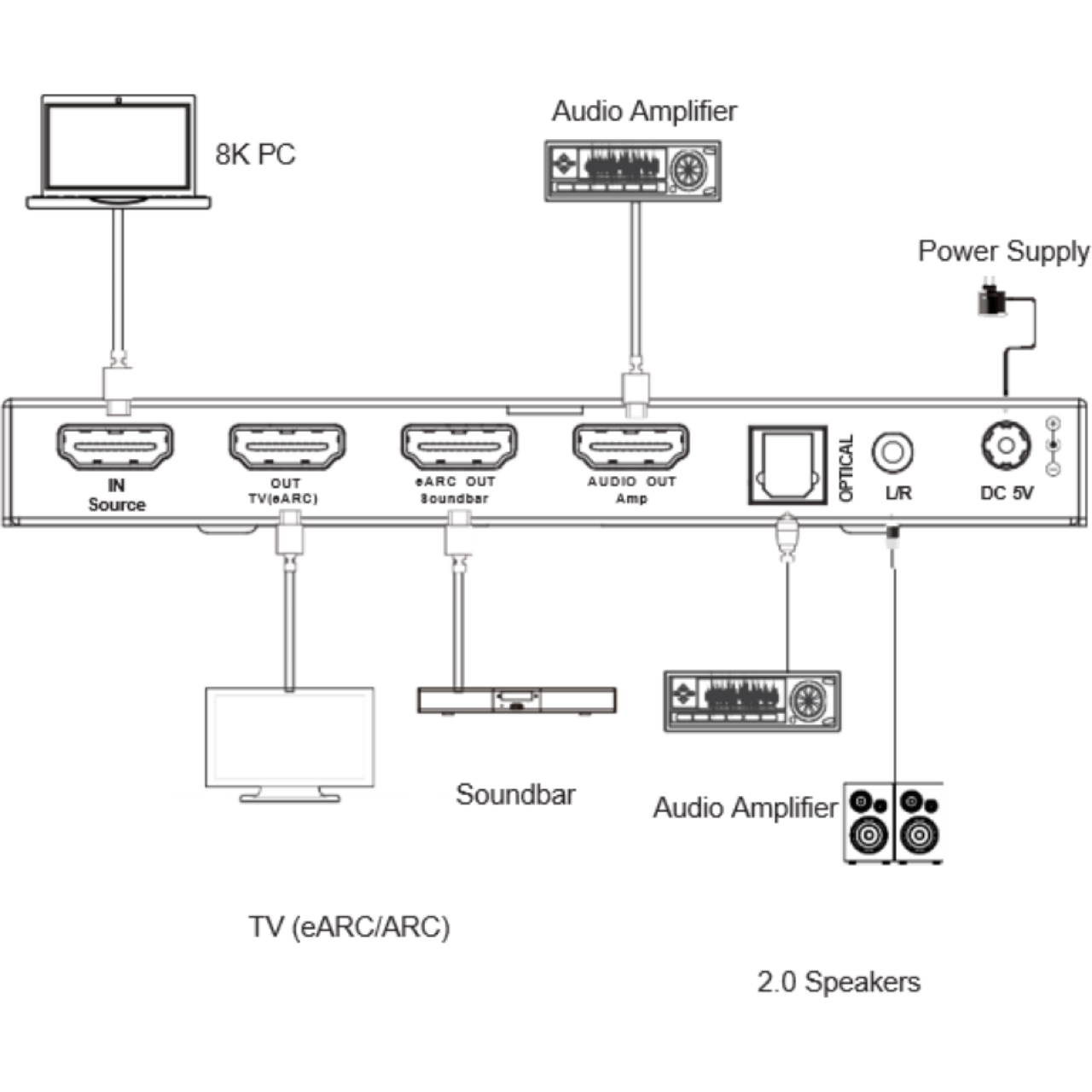

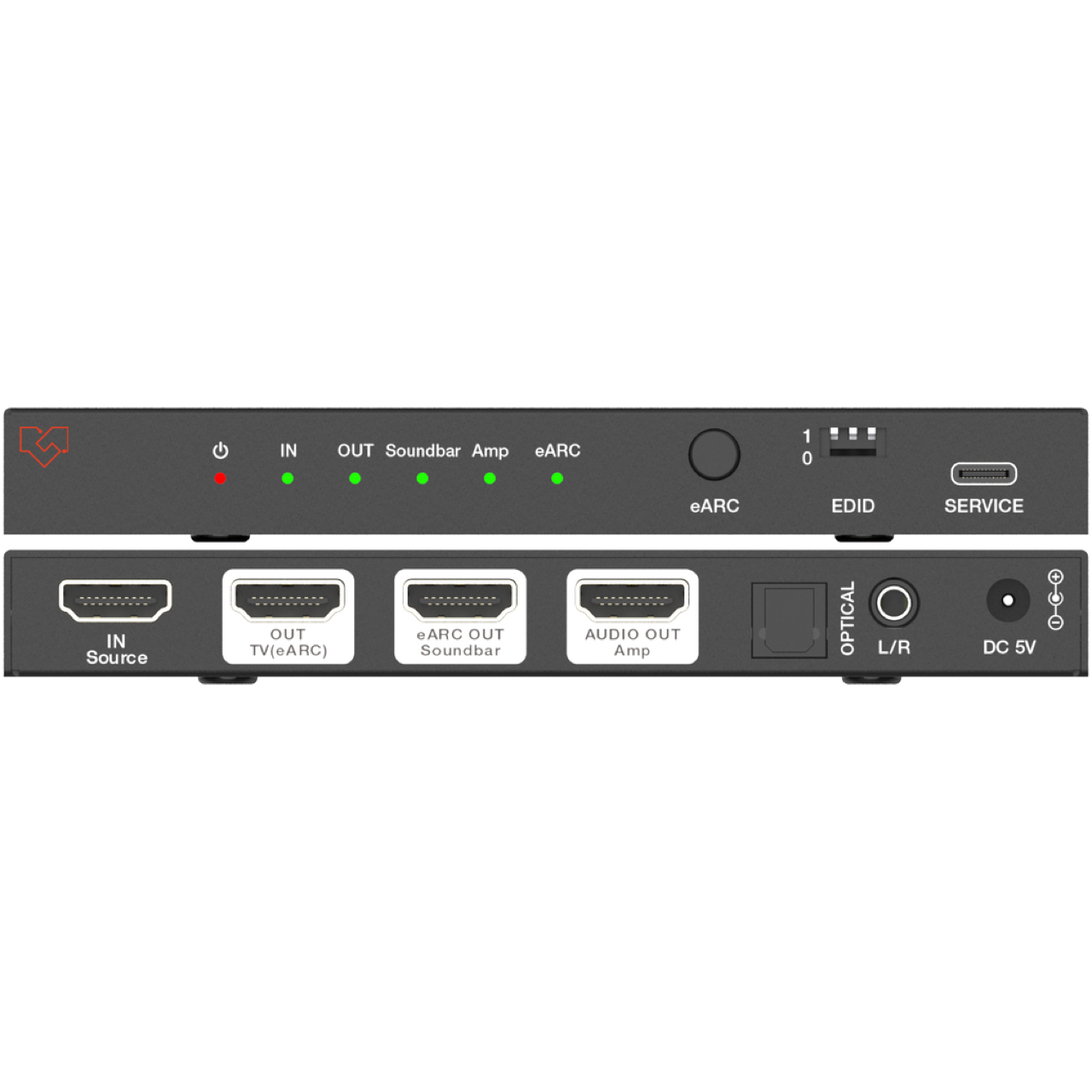

  Connection
- Input: 1x Source In (HDMI Type A, 19-pin female)
- Output:
  - 1x TV (eARC) Out (HDMI Type A, 19-pin female)
  - 1x Soundbar eARC OUT (HDMI Type A, 19-pin female)
  - 1x Amp Audio Out (HDMI Type A, 19-pin female)
  - 1x Optical (S/PDIF)
  - 1x L/R (3.5mm Stereo Mini-jack)
- Control: 1x SERVICE (USB Type C, Update port)

  Mechanical
- Housing: Metal Enclosure
- Color: Black
- Dimensions: 5.7" x 2.7" x 0.7" (145mm x 68mm x 18mm)
- Weight: 0.6lbs (262g)
- Power Supply:
  - Input: AC 100V - 240V 50/60Hz
  - Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified)
- Power Consumption: 5.2W (Max)
Item Includes:
- 1x 48Gbps eARC Audio Adapter
- 1x 5V/2A Multinational Power Supply
- 1x User Manual
Warranty:
- 6 Year Limited Warranty
GTIN:
0810119591661
