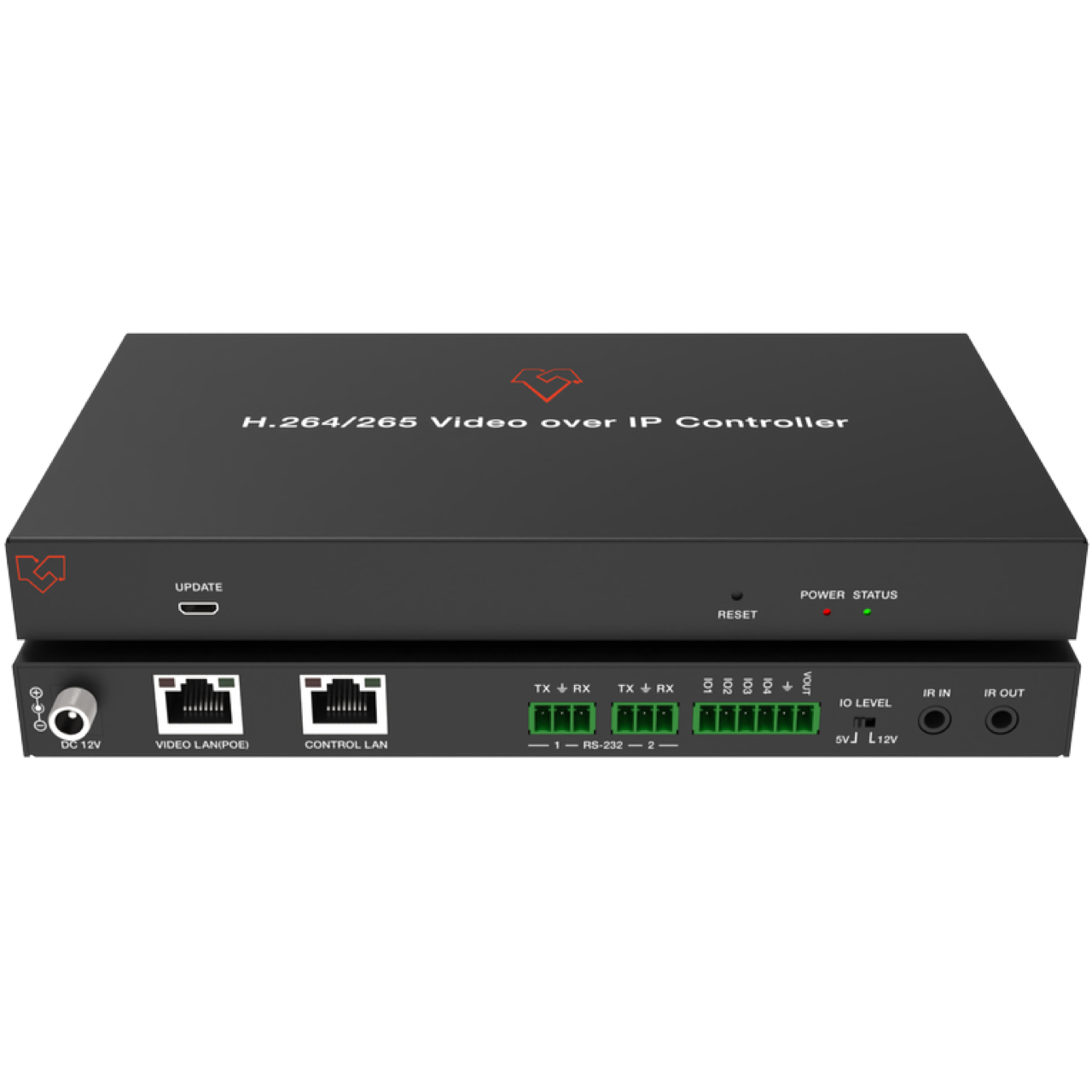

VigilLink VLIP-H54G-CTRL AVoIP H.264/265 Video over IP Controller for VLIP-H54KC-TRX with Dual 1G Network Ports

VLIP-H54G-CTRL - Overview

• Features:

  • ARM Cortex-A55 2GHz CPU
  • Easy to create, control, and manage the system
  • HTTPS and SSH security are compatible
  • Built-in Web GUI control interface for easy system setup and management
  • Intuitive "drag & drop" source selection with video preview
  • Powerful video wall function, supporting window roaming and marquee
  • Seamless switching for the distributed system
  • Collaboration management of computers via mouse roaming, allowing one operator to manage multiple PCs

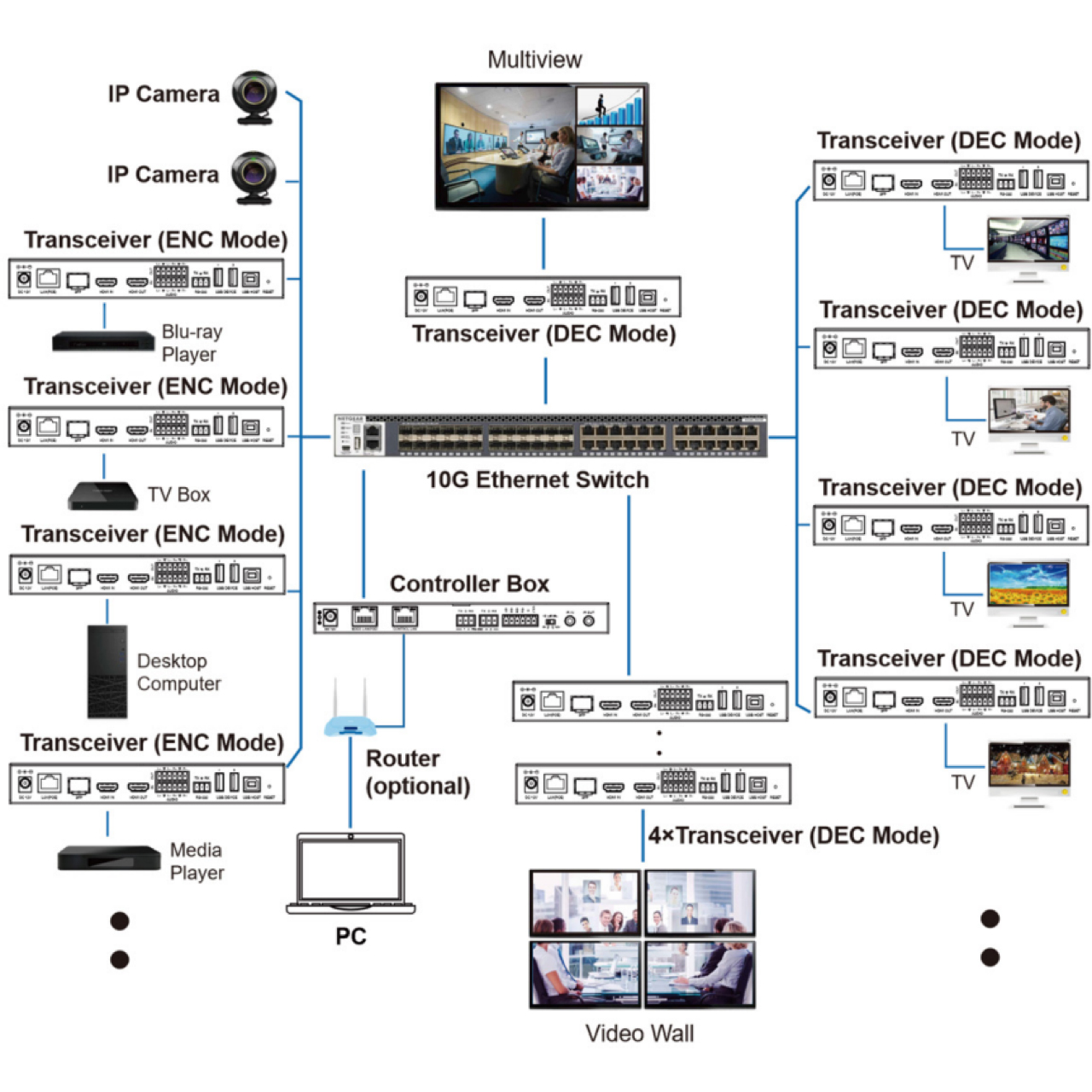

  • Supports video, audio, RS-232, KVM control, and management of the distributed system
  • Dual 1G network ports (VIDEO LAN port supports PoE function) to isolate Controls and video networks
  • Supports an IP camera imported as a source
  • Supports high-definition background image, as well as multi-screen splicing display
  • Dual RS-232 ports, capable of connecting to central control or controlling external devices
  • Support IR signal receiving and loop output (3.5mm audio jack, 12V level)
  • 4-channel GPIO control ports (5V/12V optional level) for external devices control
  • Easy to integrate with the 3rd party major control system brands
  • Multiple circuits protection, lightning protection, and ESD design
  • PoE (802.3af PD device) or local 12V power supply
  • Reliable system design, ensuring 7*24 hours of reliable and stable work
  • Compatible with 1U/6U V2 rack installation


• Specifications:

  • Network Bandwidth: 1G
  • Transmission Distance: 328ft (100m)(CAT5E/6/6A/7)
  • Control Ports:
    - 2x 1G LAN (RJ45 connector)(VIDEO LAN supports PoE)
    - 1x IR IN (3.5mm audio jack, 12V level)
    - 1x IR OUT (3.5mm audio jack, 5V level)
    - 1x DIGITAL I/O (6-pin 3.81mm phoenix connector)
    - 2x RS-232 (3-pin 3.81mm phoenix connector)
    - 1x UPDATE (Micro USB, 5-pin female)
  • Dimensions: 8" x 4.6" x 0.8" (204mm x 117.5mm x 21.5mm)
  • Housing: Metal Enclosure
  • Color: Black
  • Weight: 1.32lbs (597g)
  • Power Supply: 12V/2.5A
  • Power Consumption: 6.84W


• Item Includes:

  • 1x H.264/265 Video over IP Controller
  • 1x 20kHz - 60kHz 12V IR Receiver Cable - 4.9ft (1.5m)
  • 1x IR Blaster Cable - 4.9 Feet (1.5 meters)
  • 2x 3-pin 0.15" Phoenix Connector (Male)
  • 1x 6-pin 0.15" Phoenix Connector (Male)
  • 2x Mounting Ear
  • 4x Machine Screw (KM3*6)
  • 1x 12V/2.5A Locking Power Adaptor
  • 1x User Manual


• Warranty:

  • 6 Year Limited Warranty


• GTIN:

  0810119591135
