VLMX-0202E - Overview

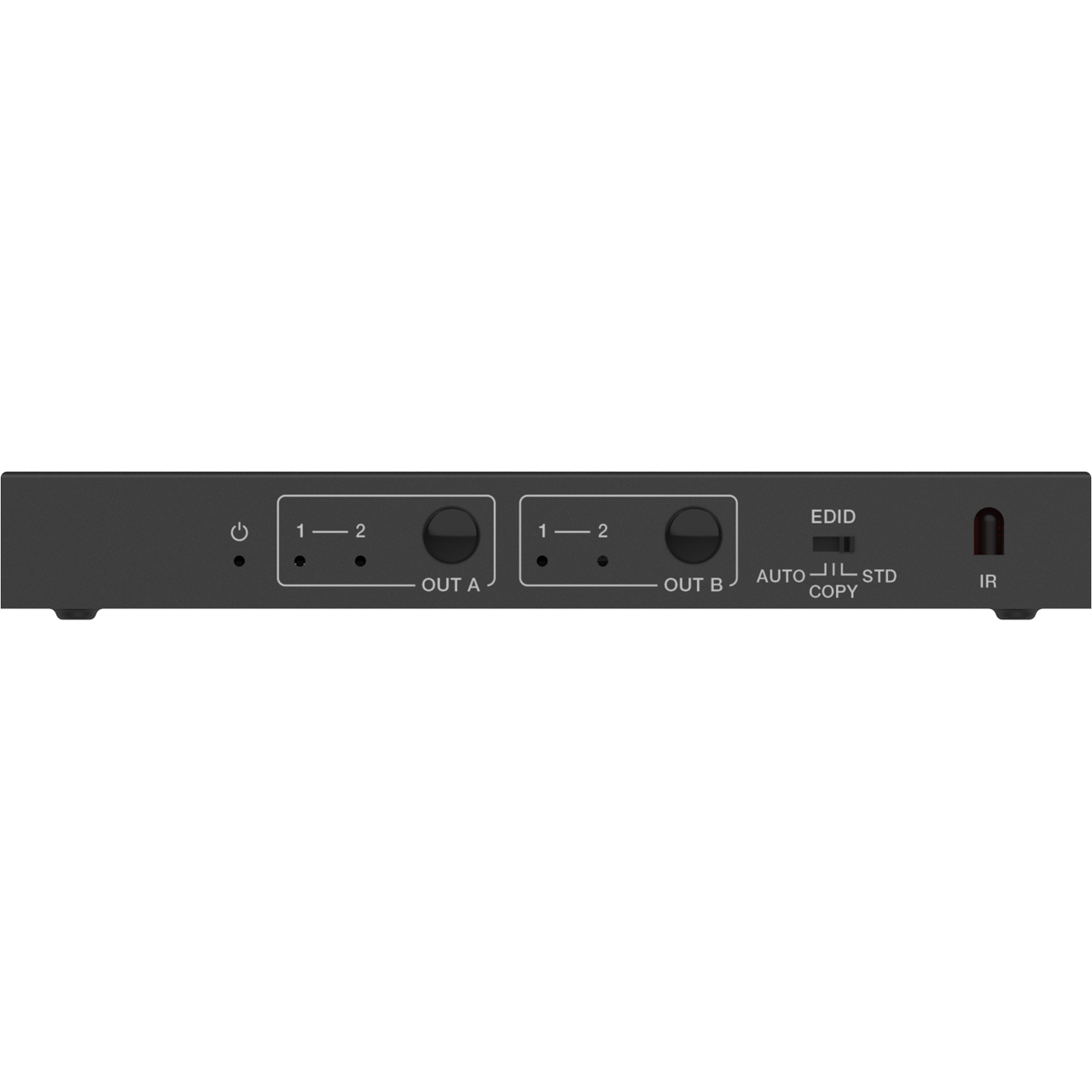

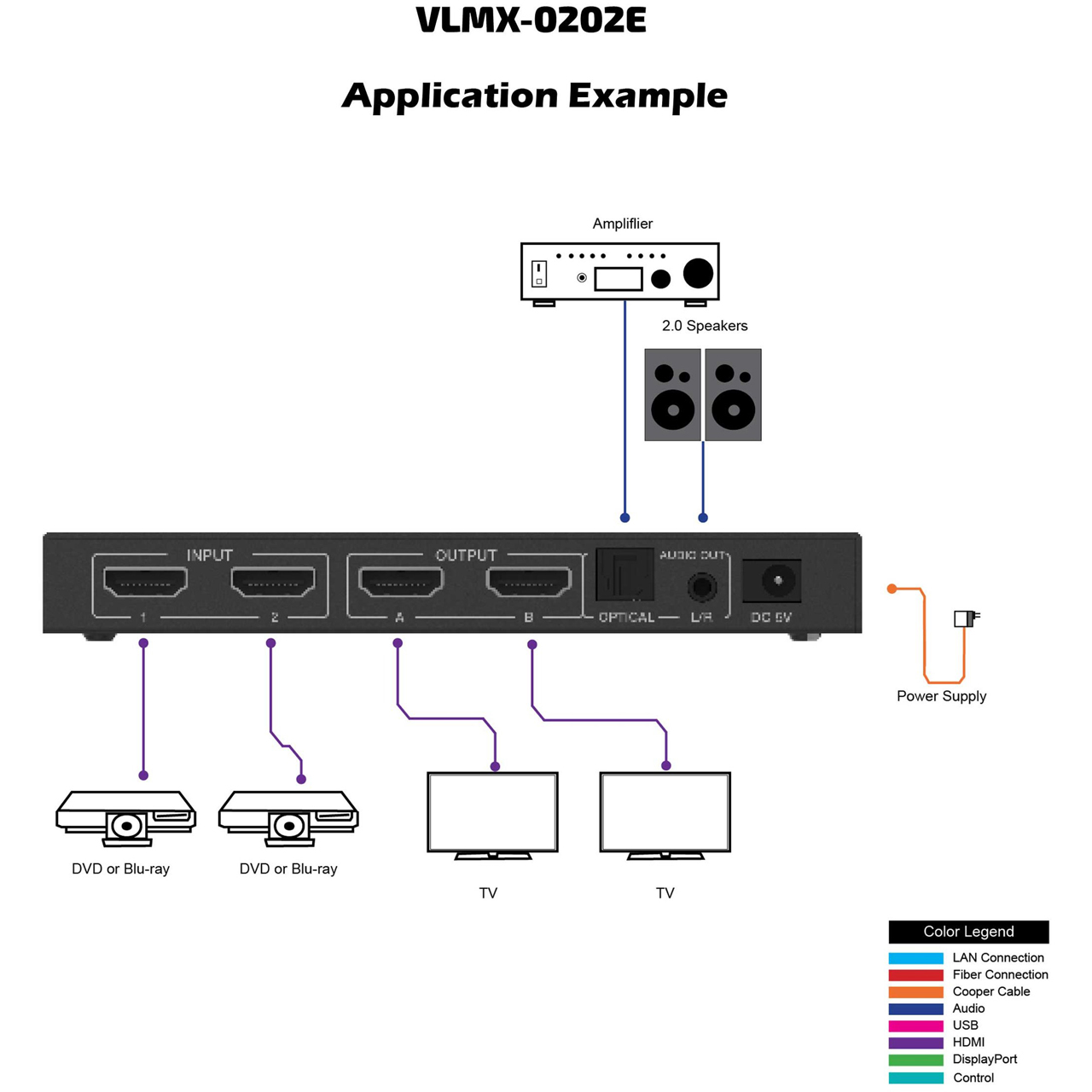

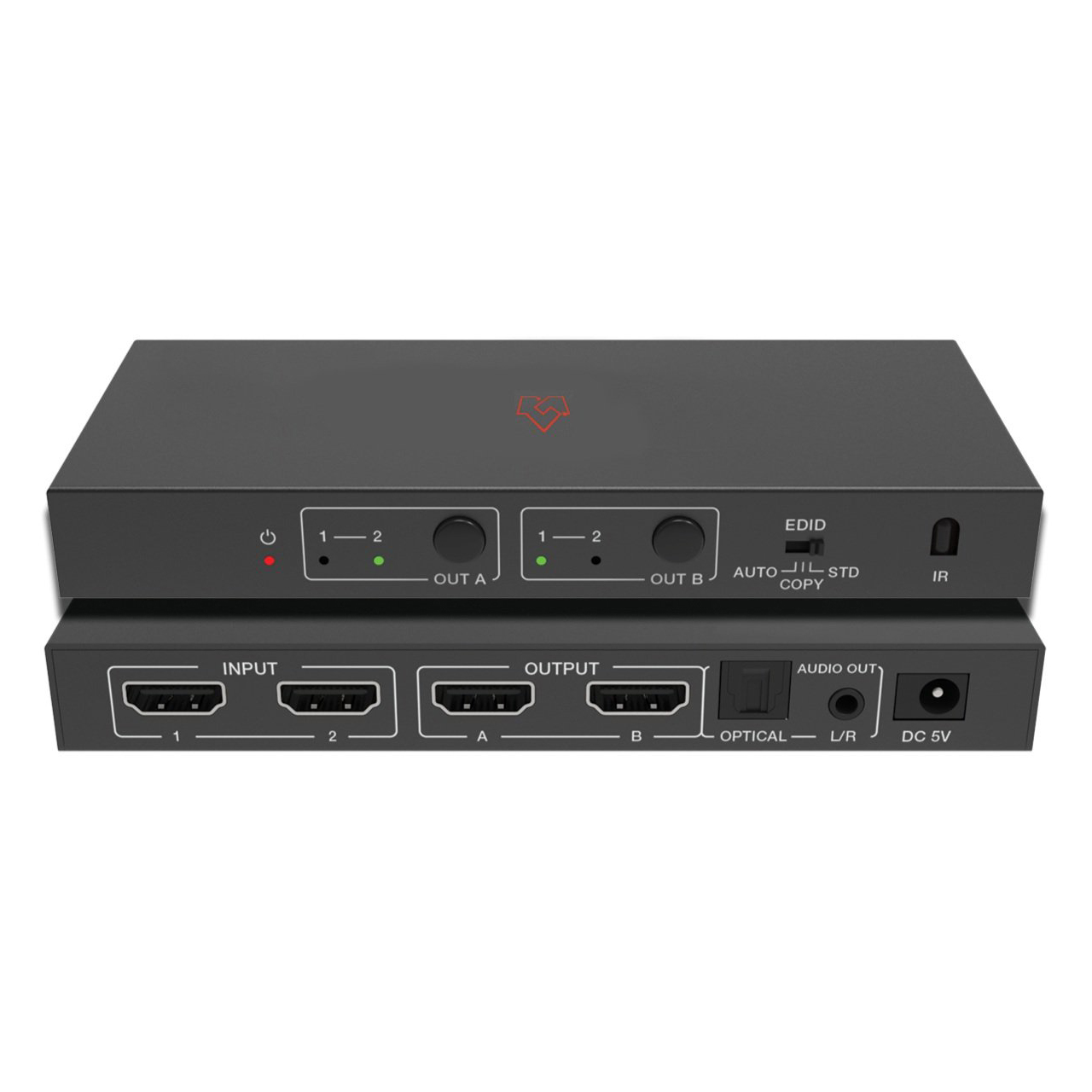

The VigilLink VLMX-0202E 18Gbps 2x2 HDMI Matrix switcher supports the transmission of video signals (up to 4K2K@50/60Hz YCbCr 4:4:4) from two HDMI sources to two HDMI displays simultaneously. This product supports audio extraction from output A to optical and analog output. It supports three modes of EDID setting (AUTO, COPY, and STD). Flexible control via panel buttons and IR remote; the corresponding LED indicator on the front panel will be illuminated.

Features:
- HDCP2.2 / HDCP1.x, DVI 1.0 compliant
- Supports 18Gbps video bandwidth
- Video resolution is up to 4K2K@50/60Hz (4:4:4)
- Supports digital and analog audio extract output from output A
- EDID can be selected with AUTO, COPY, and STD modes via the selector on the front panel
- Supports analog audio PCM 2.0
- Supports optical audio pass-through format: LPCM 2.0/2.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-HRA 5.1.
- Supports HDR function
- Flexible control via panel buttons and IR remote
Specifications:
- HDCP Compliance: HDCP 2.2 and HDCP 1.x
- DVI Compliance: DVI 1.0
- Video Bandwidth: 594MHz/18Gbps
- HDMI Video Resolution: Up to 4K2K @ 50/60Hz YCbCr 4:4:4
- High Dynamic Range: HDR, HDR 10+, HLD, DOLBY VISION
- Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
- Color Depth: 8-bit, 10-bit, 12-bit
- HDMI Audio Formats: PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby-TrueHD, DTS-HD
- L/R Audio Formats: Analog stereo PCM 2.0
- Optical Audio Formats: LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
- ESD Protection: Human Body Model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

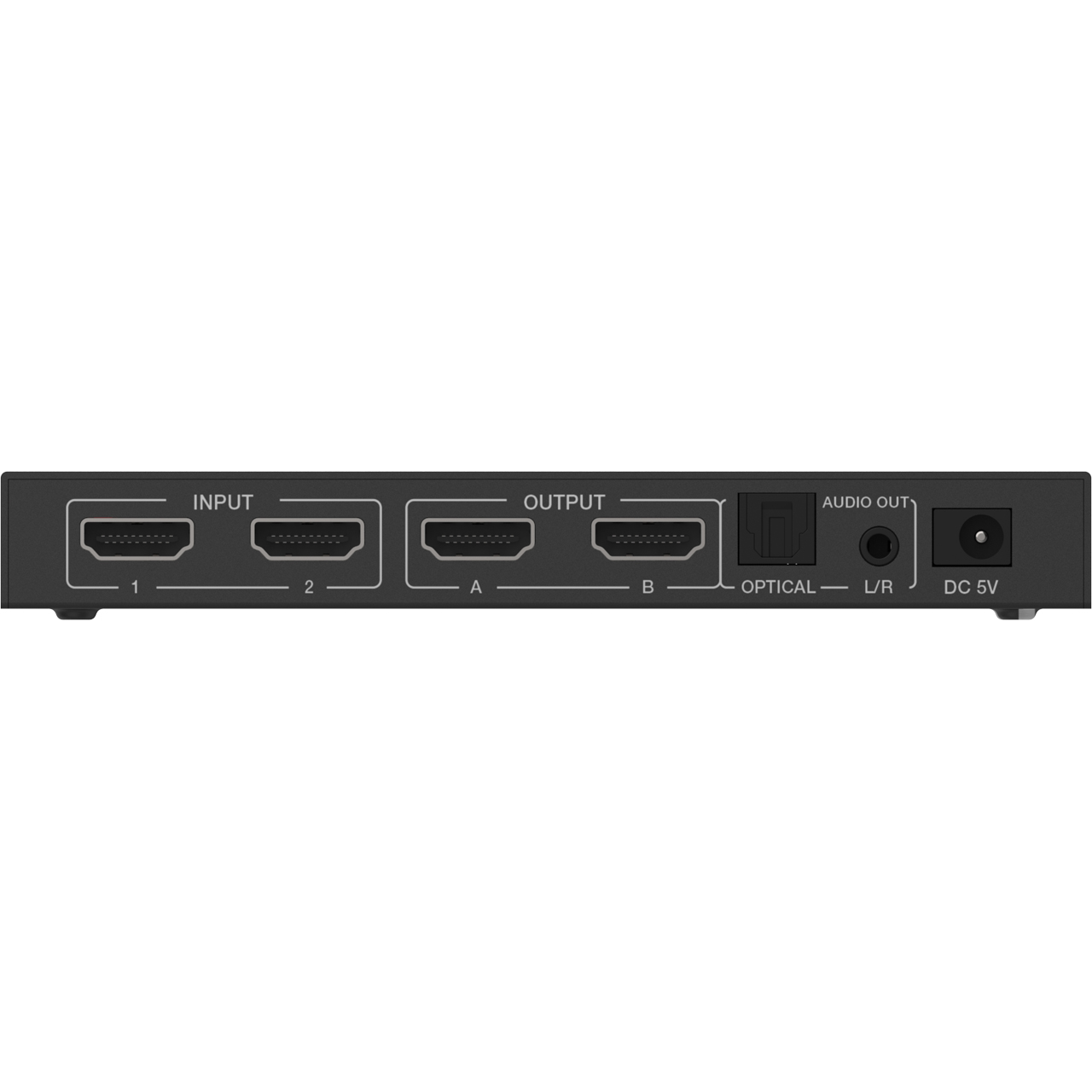

  Connection
- Input Ports:
  - 2x HDMI Type A (19-pin female)
  - 1x IR Receiver Window
- Output Ports:
  - 2x HDMI Type A (19-pin female)
  - 1x L/R (3.5mm Stereo Mini-jack)
  - 1x OPTICAL OUT (Optical jack)

  Mechanical
- Housing: Metal Enclosure
- Color: Black
- Dimensions: 5.66" 2.34" x 0.70" (144mm x 59.5mm x 18mm)
- Weight: 0.46lbs (208g)
- Power Supply:
  - Input: AC 100V - 240V, 50/60Hz
  - Output: DC 5V/1A
- Power Consumption: 2.7W
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- Storage Temperature: -4°F - 140°F (-20°C - 60°C)
- Relative Humidity: 20% - 90% RH (No condensation)
Item Includes:
- 1x 2x2 HDMI Matrix Switcher
- 1x 5V/1A Power Adapter
- 1x Matrix IR Remote
- 1x User Manual
Warranty:
- 6 Years
