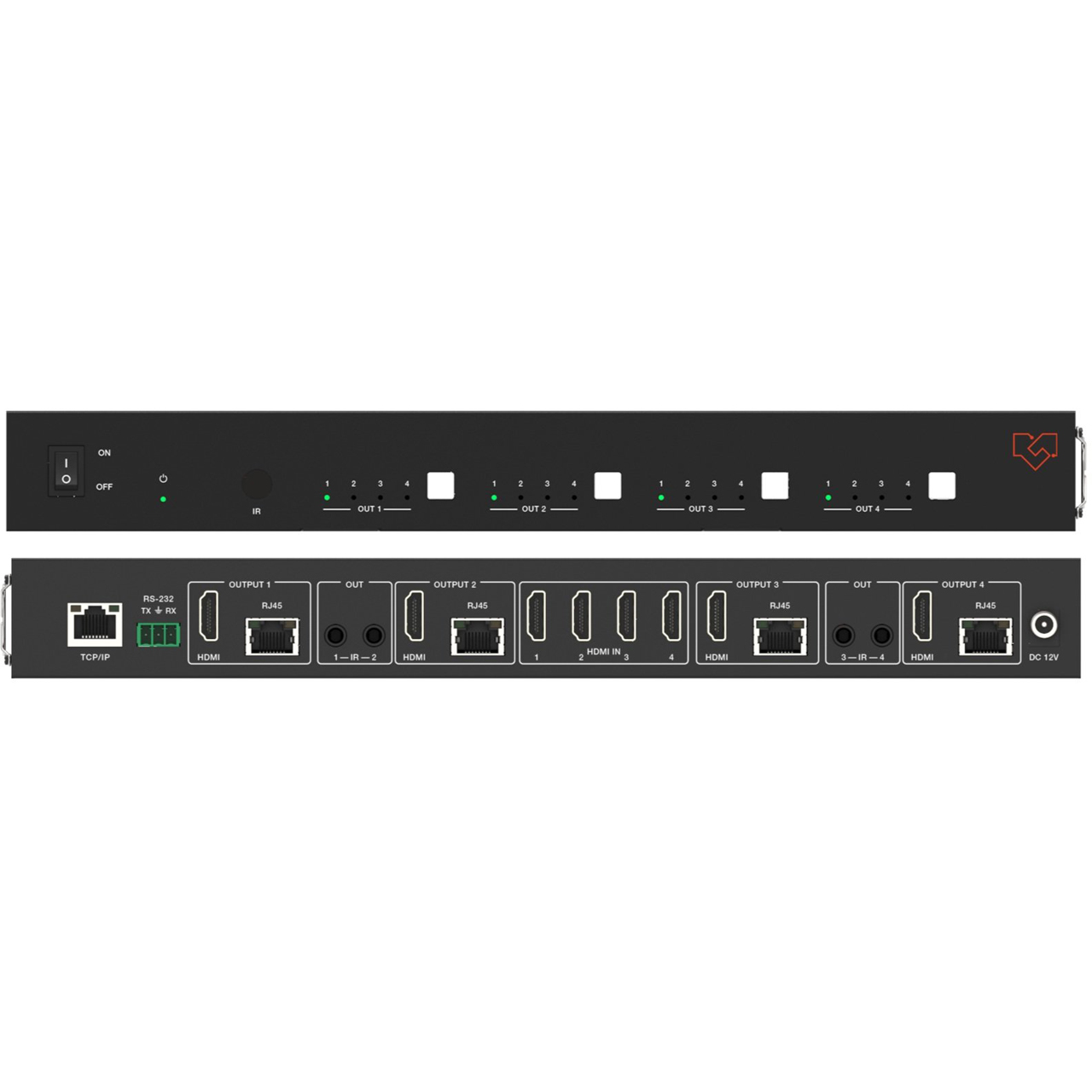

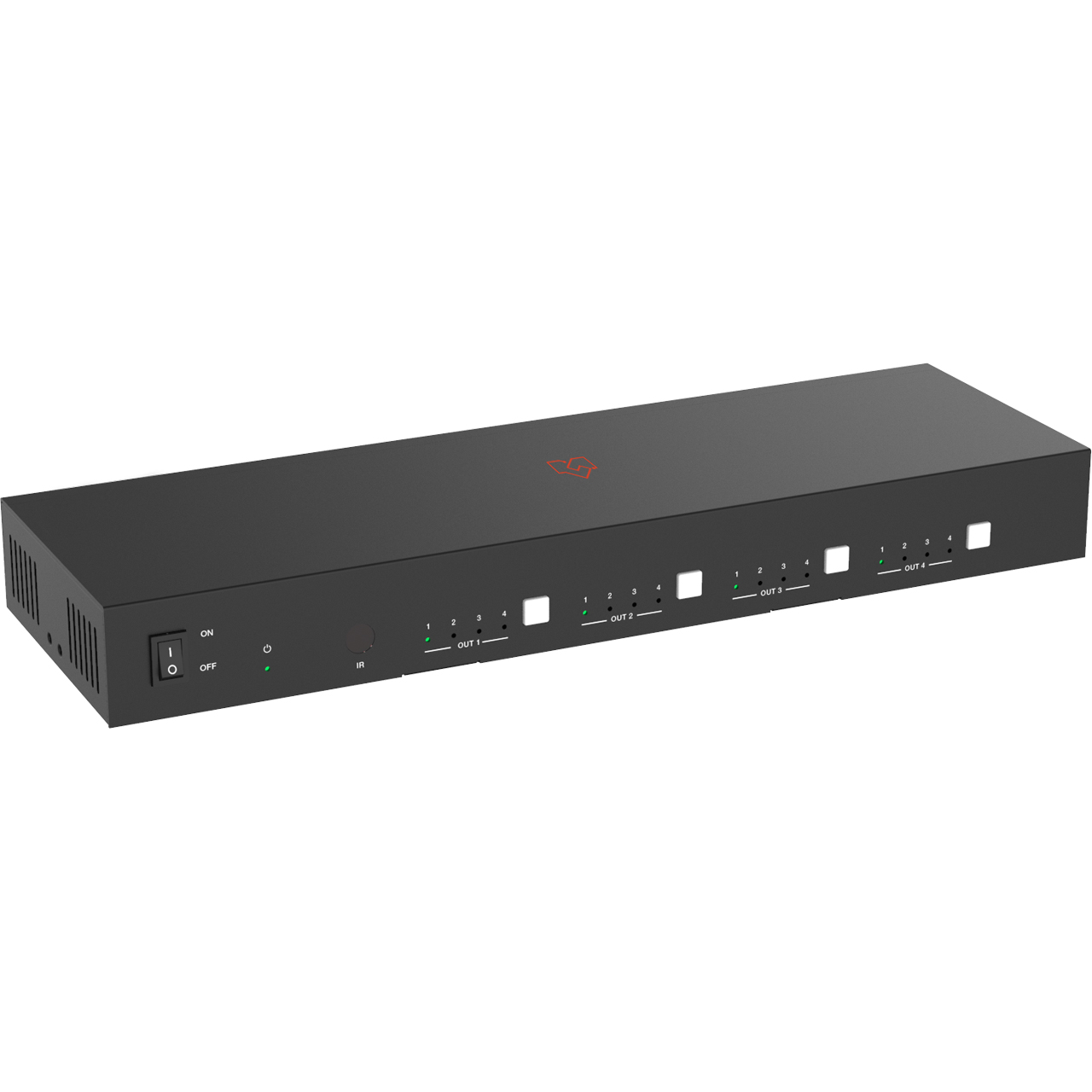

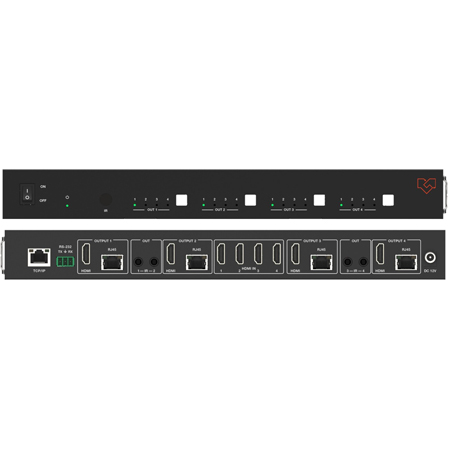

VigilLink VLMX-44CT70 4x4 HDMI 2.0 18Gbps Matrix Switcher over Cat6 - 229 Foot70m - HDMI 2.0b & HDCP 2.2/1.x Compliant

VLMX-44CT70 - Overview

• Features:

  • HDMI 2.0b and HDCP 2.2/1.x compliant
  • Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & Cat ports
  • 4 HDMI inputs, 4 HDMI & Cat mirrored outputs
  • HDMI ports support 18Gbps lossless uncompressed video bandwidth
  • Supports 4K->1080P Down Scaler for each output port
  • HDR, HDR10, HDR10+, Dolby Vision, HLG are supported
  • Cat output can extend the transmission distance up to 230ft/70m via a single Cat6 cable
  • HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
  • Advanced EDID management and CEC control are supported
  • 12V PoC on all Cat ports
  • Control via front panel buttons, IR remote, RS-232, LAN and Web GUI


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2/1.x
  • Video Bandwidth: 18Gbps
  • Video Resolution: Up to 4K2K @ 50/60Hz (4:4:4)
  • Color Depth:
    - 8-bit, 10-bit, 12-bit (1080p @ 60Hz)
    - 8-bit (4K2K @ 60Hz YUV4:4:4)
    - 8-bit, 10-bit, 12-bit (4K2K @ 60Hz YCbCr 4:2:2/4:2:0)
  • Color Space: RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
  • HDR: HDR10, HDR10+, Dolby Vision, HLG
  • HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
  • Transmission Distance: 230ft (70m)(via a single Cat6 cable)
  • ESD Protection: Human Body Model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

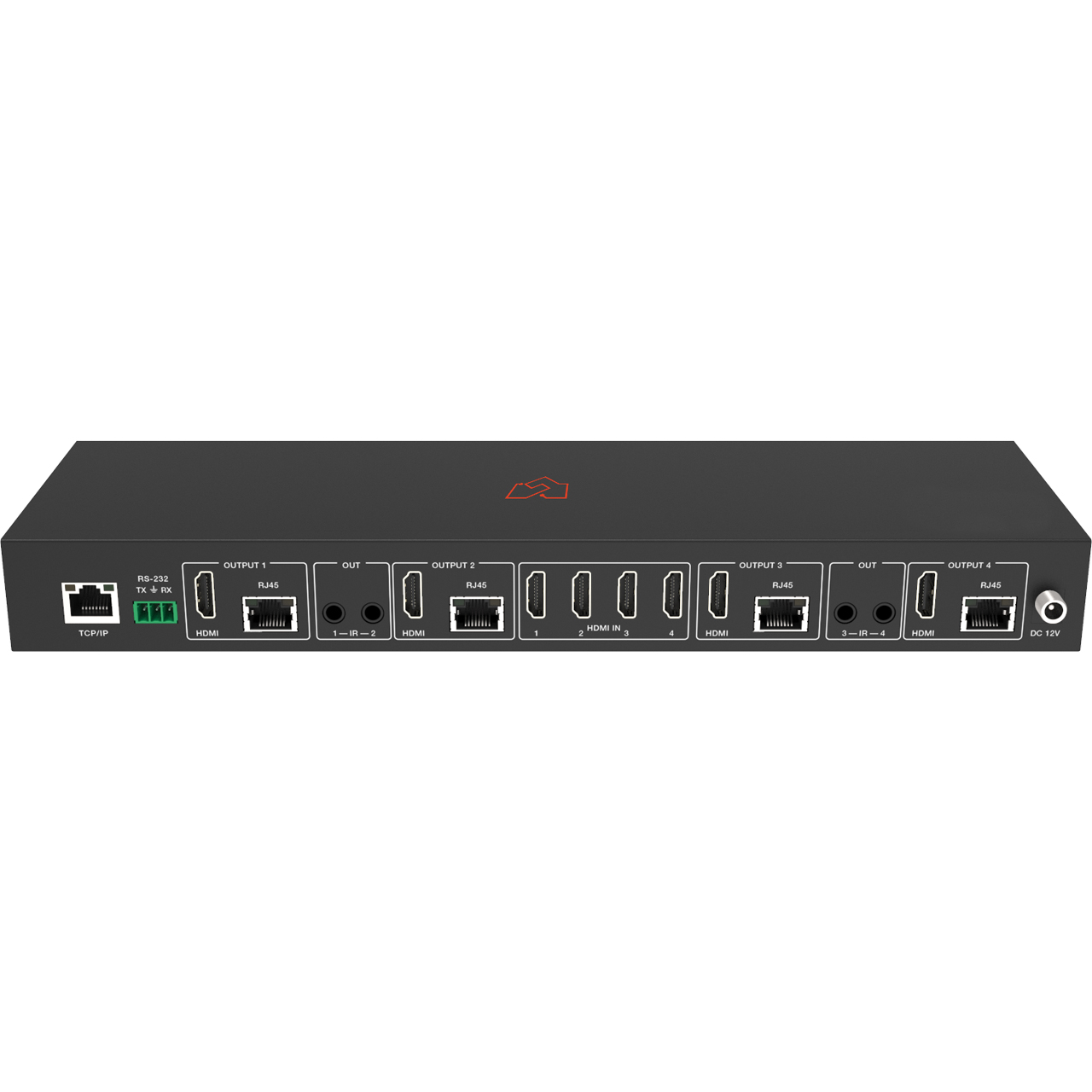

    Connection
  • Matrix Inputs: 4x HDMI Type A (19-pin female)
  • Matrix Outputs:
    - 4x HDMI Type A (19-pin female)
    - 4x Cat port (RJ45)
    - 4x IR OUT (3.5mm Stereo Mini-jack)
  • Matrix Controls:
    - 1x TCP/IP (RJ45)
    - 1x RS-232 (3-pin phoenix connector)
  • Cat Receiver Inputs:
    - 1x IR IN (3.5mm Stereo Mini-jack)
    - 1x Cat port (RJ45)
  • Cat Receiver Output: 1x HDMI Type A (19-pin female)
  • Cat Receiver Control: 1x SERVICE (Micro USB, Update port)

    Mechanical
  • Housing: Metal enclosure
  • Color: Black
  • Dimensions:
    - Matrix: 12.6" x 3.93" x 1.42" (320mm x 100mm x 36mm)
    - Receiver: 2.4" x 3.46" x 0.70" (61mm x 88mm x 18mm)
  • Weight:
    - Matrix: 2.01lbs (915g)
    - Receiver: 0.34lbs (155g)
  • Power Supply:
    - Input: AC 90V - 260V, 50/60Hz
    - Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified)
  • Power Consumption: 19.68W (Max)
  • Operating Temperature: 32°F - 10°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)

    Resolution/Cable Length (HDMI In/Out)
  • 4K60: 16ft (5m)
  • 4K30: 32ft (10m)
  • 1080p60: 50ft (15m)
    **The use of the "Premium High-Speed HDMI" is highly recommended.


• Item Includes:

  • 1x 18Gbps 4x4 HDMI Matrix
  • 4x Cat Receiver
  • 1x Matrix IR Remote
  • 1x 12V2.5A Power Supply
  • 1x RS-232 serial Cable (1.5 meters, male to female head)
  • 1x 3-pin Phoenix Connector
  • 4x IR Blaster Cable (1.5 meters)
  • 4x IR Receiver Cable (1.5 meters)
  • 10x Mounting Ear (Matrix and Receiver)
  • 1x User Manual


• Warranty:

  • 6 Years
