VigilLink VLMX-88HT2 8x8 HDMI 2.0 18Gbps Matrix Switcher over HDBaseT - 492 Foot/150m - HDMI 2.0b/HDCP 2.2 Compliant

Name: VigilLink VLMX-88HT2 8x8 HDMI 2.0 18Gbps Matrix Switcher over HDBaseT - 492 Foot/150m - HDMI 2.0b/HDCP 2.2 Compliant
Brand: VigilLink
SKU: VGL-VLMX-88HT2
Price: 5739.00 USD
Availability: InStock

ITEM #: VGL-VLMX-88HT2 MFG #: VLMX-88HT2

VigilLink

Our Price:

$5,739.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

VLMX-88HT2 - Overview

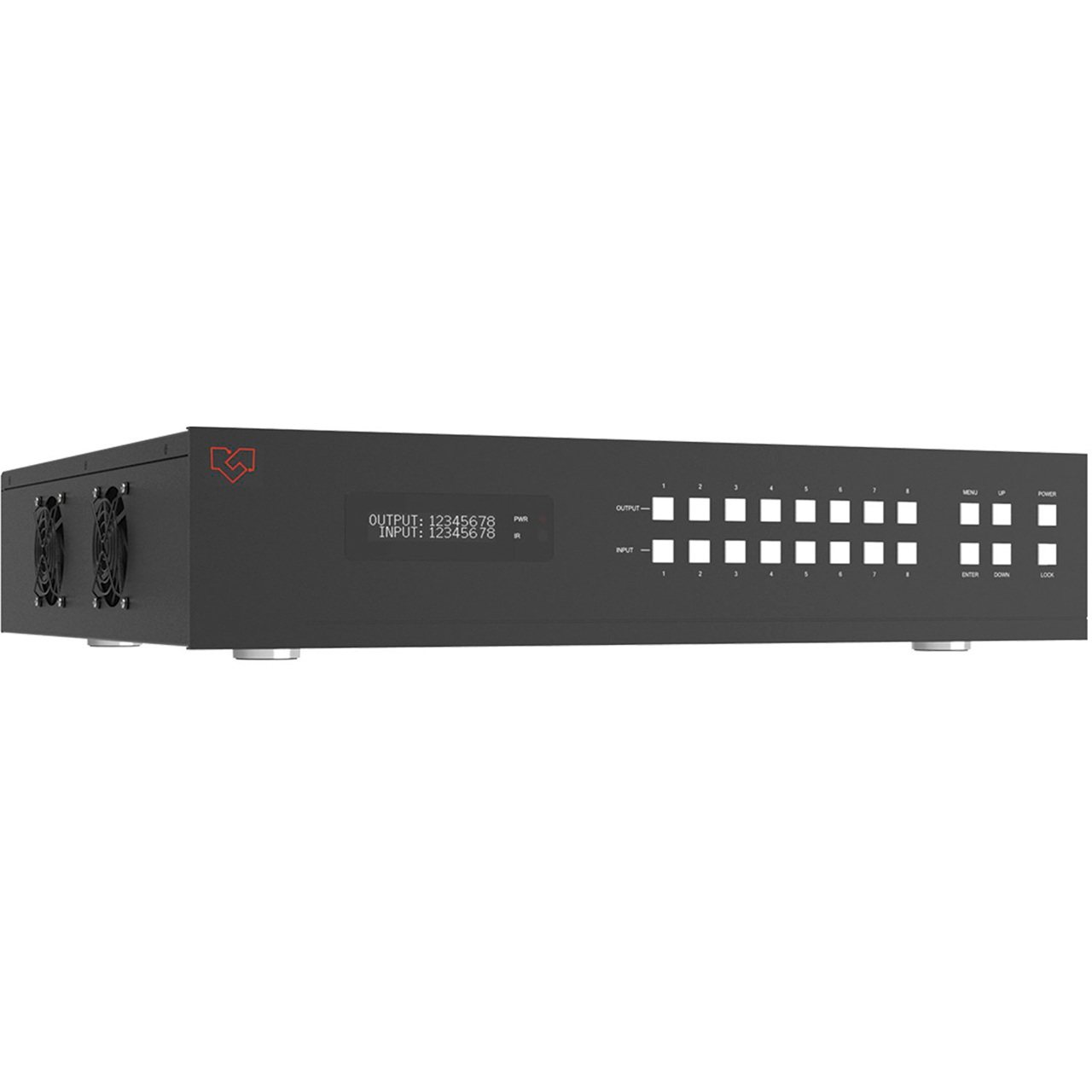

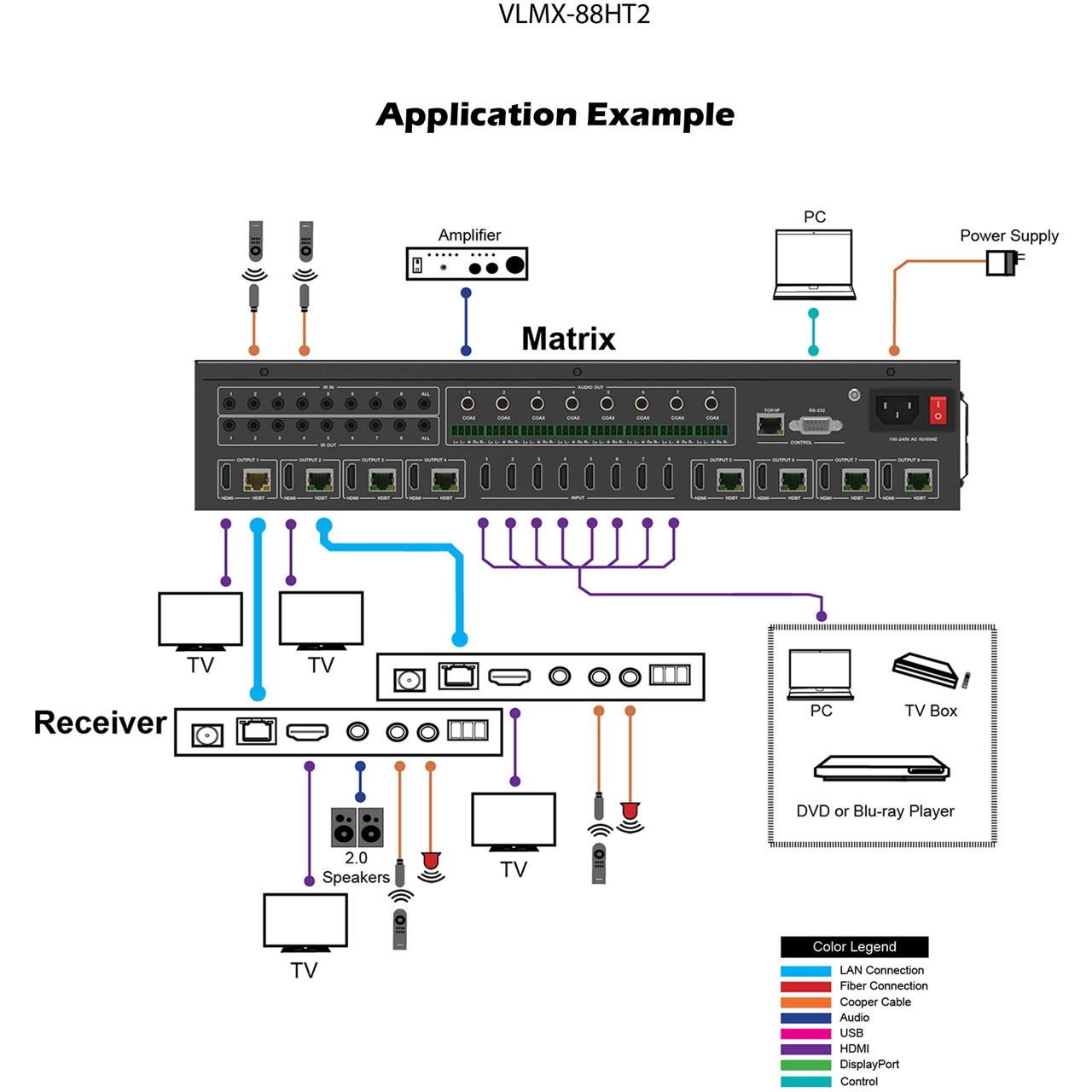

The VigilLink VLMX-88HT2 18Gbps 8x8 HDBaseT Matrix can connect eight (8) HDMI sources to 16 different displays. It features 8 HDMI outputs and each HDMI output is mirrored to provide a Cat-Cable output that runs simultaneously. HDBaseT output can extend video transmission distance up to 492ft/150m via a single Cat 5e/6/7 cable and supports resolutions up to 4k2k @60Hz (4:4:4). Audio can be de-embedded to analog and coaxial audio is also supported. Each HDMI output supports 4k2k to 1080p the downscaler independently. It also provides an intuitive set of front panel control options with an OLED screen, front panel buttons, IR remote, RS-232, LAN, and Web GUI.

Features:
- 4x HDMI inputs, 4x HDMI & HDBaseT mirrored outputs
- HDMI 2.0b, HDCP 2.2 compliant
- Up to 4K / 2K @60Hz with 24bit RGB / YCbCr (4:4:4)
- HDR, HDR10, HDR10+, Dolby Vision pass-through
- Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
- Each output supports 4K to 1080p downscale independently
- Each output supports digital and analog audio de-embedded
- HDBaseT output 1080p up to 492ft/150m and 4K2K up to 394ft/120m
- Advanced EDID management
- Built-in IR matrix
- 24V PoC on all HDBaseT ports
- Front panel button, IR, RS-232, TCP/IP and Web GUI control
Specifications:
- HDMI Compliance: HDMI 2.0b
- HDCP Compliance: HDCP 2.2/1.x
- Video Bandwidth: 18Gbps
- Video Resolution: Up to 4K2K @ 50/60Hz (4:4:4)
- Color Space: RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
- Color Depth:
  - 8-bit, 10-bit, 12-bit (1080p @ 60Hz)
  - 8-bit (4K2K @ 60Hz YUV4:4:4)
  - 8-bit, 10-bit,12-bit (4K2 K@ 60Hz YCbCr 4:2:2/4:2:0)
- HDR: HDR10, HDR10+, Dolby Vision, HLG
- HDMI Audio Formats (Pass-through): LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
- Coax Audio Formats: PCM 2.0, Dolby Digital/Plus, DTS 2.0/5.1
- Analog Balanced Audio Formats: PCM2.0CH
- Vmax: 2Vrms
- SNR: >90dB
- THD+N Ratio: <0.1%(V_max), 0.001% - 0.01% (V_best)
- Crosstalk: >80dB
- Frequency Response: 20Hz - 20kHz ±0.5dB
- ESD Protection: Human Body Model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

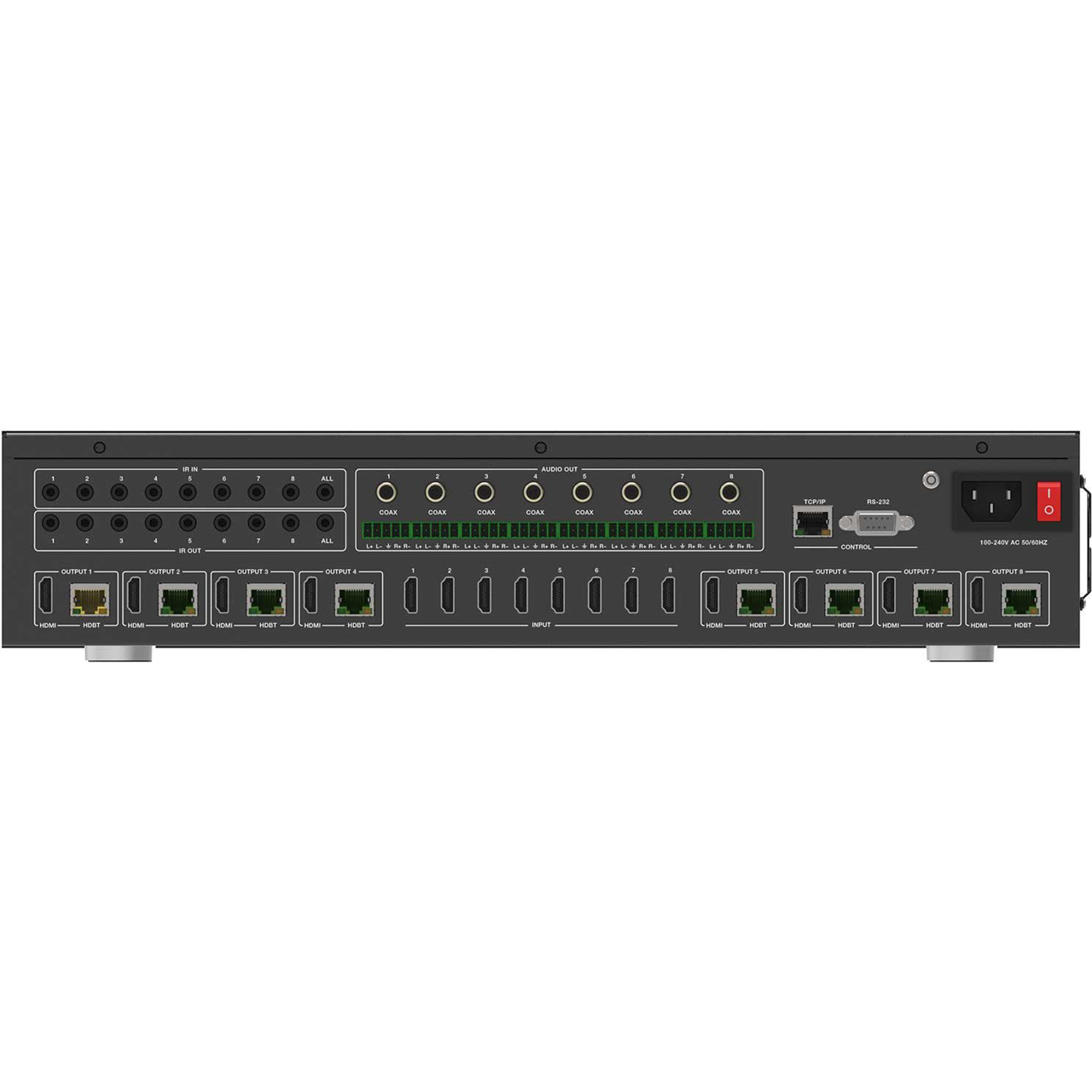

  Connections
- Matrix Inputs: 8x HDMI Type A (19-pinfemale)
- Matrix Outputs:
  - 8x HDMI Type A (19-pin female)
  - 8x HDBaseT port (RJ45)
  - 8x Coaxial audio (3.5mm Stereo Mini-jack)
  - 8x balanced analog audio (5-pin Phoenix connector)
- Matrix Controls:
  - 9x IR IN (3.5mm Stereo Mini-jack)
  - 9x IR OUT (3.5mm Stereo Mini-jack)
  - 1x TCP/IP (RJ45)
  - 1x RS-232 (D-Sub 9)
- HDBaseT Receiver Inputs: 1x HDBT IN (RJ45, 8-pin female)
- HDBaseT Receiver Outputs:
  - 1x HDMI Type A (19-pin female)
  - 1x AUDIO OUT (3.5mm Stereo Mini-jack)
- HDBaseT Receiver Controls:
  - 1x IR IN (3.5mm Stereo Mini-jack)
  - 1x IR OUT (3.5mm Stereo Mini-jack)
  - 1x RS-232 (3-pin Phoenix connector)
  - 1x SERVICE (Mini-USB, Update port)

  Mechanical
- Housing: Metal enclosure
- Color: Black
- Dimensions:
  - Matrix: 17.32" x 14.72" x 3..49" (440mm x 374mm x 88.6mm)
  -Receiver: 5.51" x 2.56" x 0.71" (140mm x 65mm x 18mm)
- Weight:
  - Matrix: 14.42lbs (6.54kg)
  - Receiver: 0.34lbs (155g)
- Power Supply: 125W (Max)
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- Storage Temperature: -4°F - 140°F (-20°C - 60°C)
- Relative Humidity: 20% - 90% RH (No condensation)

  Resolution/Distance (Cat5e/6/7)
- 4K60: 492ft (150m)

  Resolution/Distance (HDMI In/Out)
- 4K60: 16ft (5m)
- 4K30: 32ft (10m)
- 1080p60: 50ft (15m)

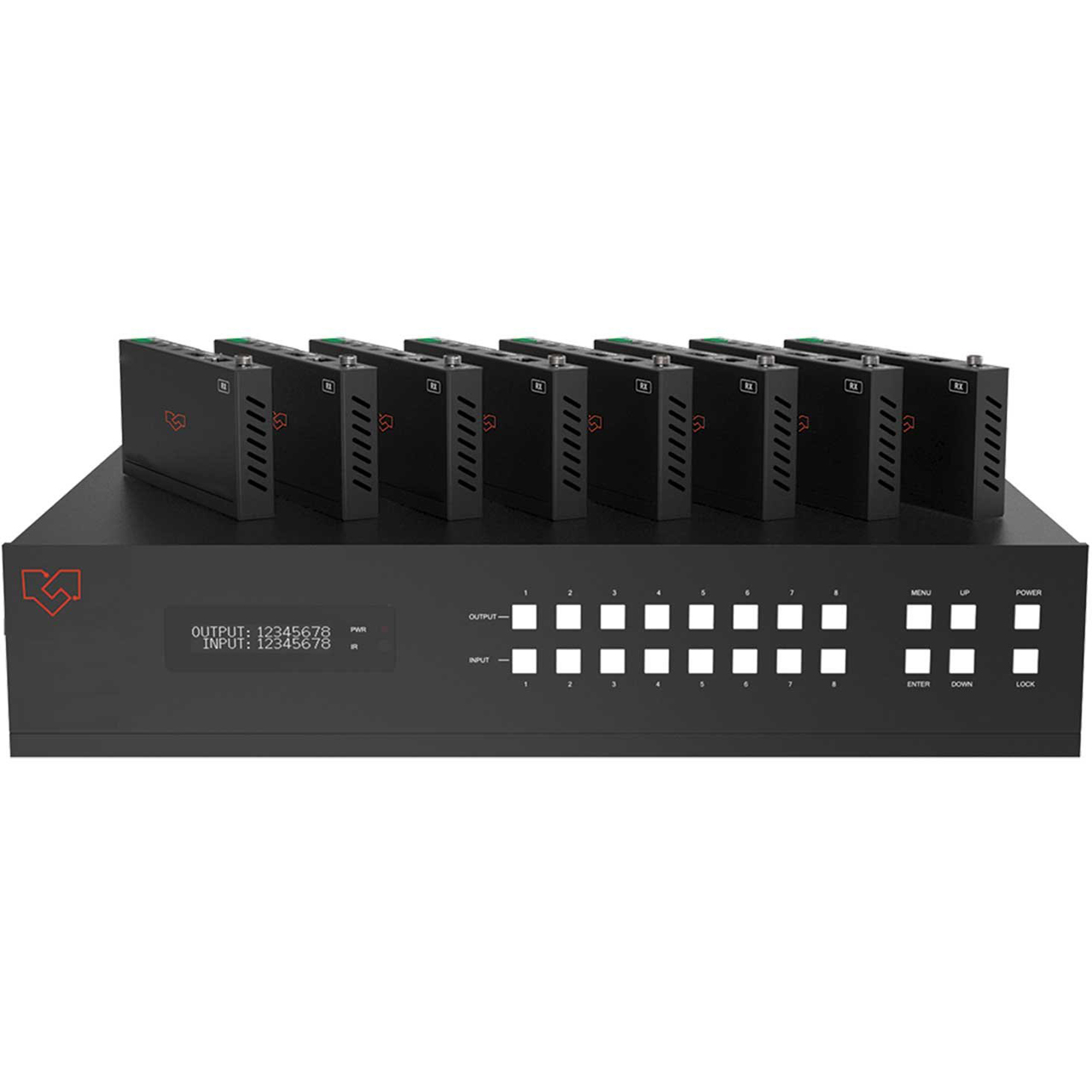

Item Includes:
- 1x 18Gbps 8x8 HDBaseT(150M) Matrix
- 8x HDBaseT Receiver
- 1x Matrix IR Remote
- 1x 100~240V AC 50/60Hz Power cable
- 1x RS-232 serial cable (1.5 meters, male to female head)
- 8x 3-pin Phoenix Connector & 8x 5-pin Phoenix Connector
- 9x IR Blaster cable (1.5 meters)
- 9x IR Receiver cable (1.5 meters)
- 18x Mounting Ear (Matrix and Receiver)
- 1x User Manual
Warranty:
- 6 Years
