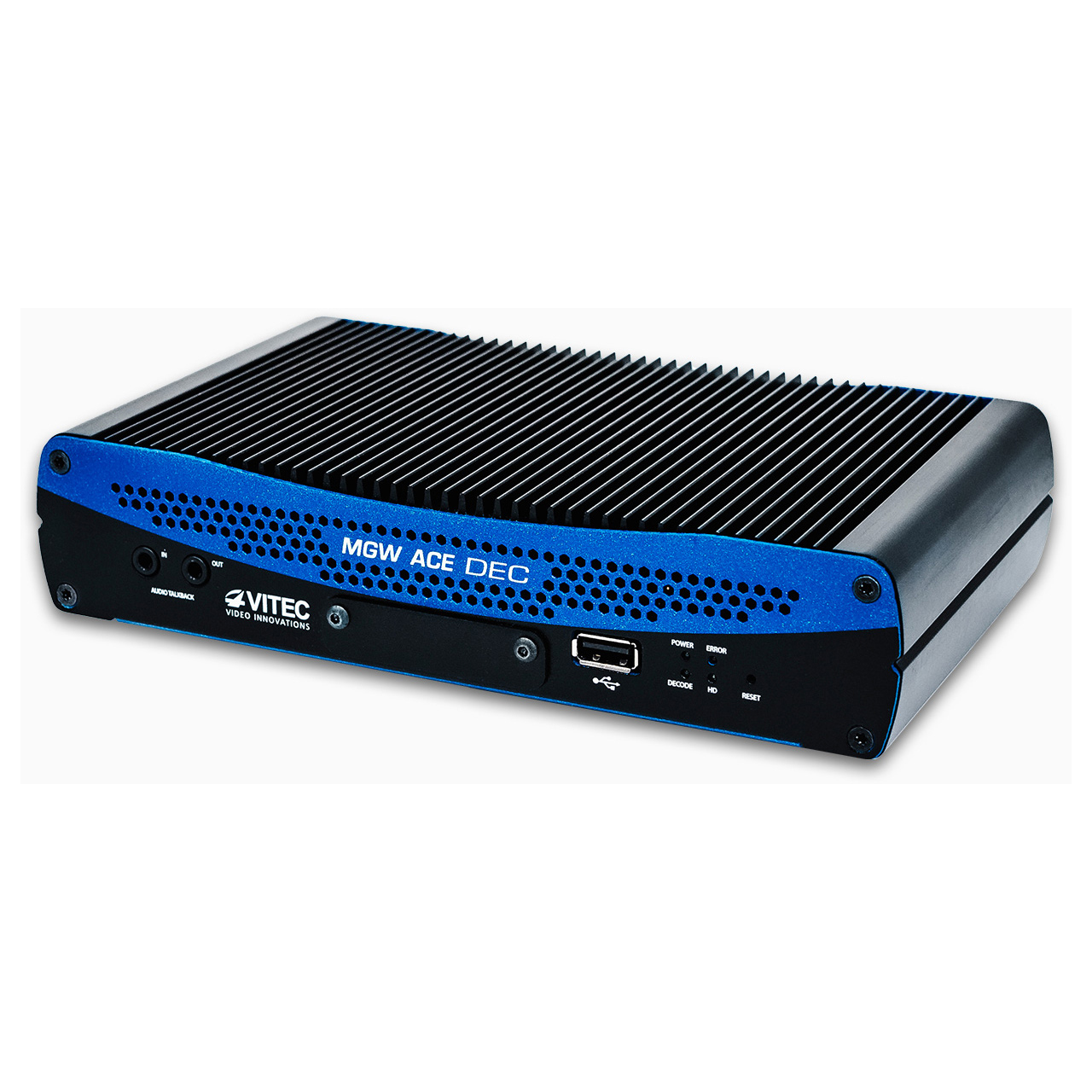

The VITEC 16647 MGW Ace Decoder is a single channel multi-codec decoder that delivers reliable, broadcast-quality decoding of HEVC, H.264 or MPEG-2 streams up to UHDp60 4:2:2 10 bits (respectively Main422 [email protected], [email protected] and HL@HP) with HDR support.

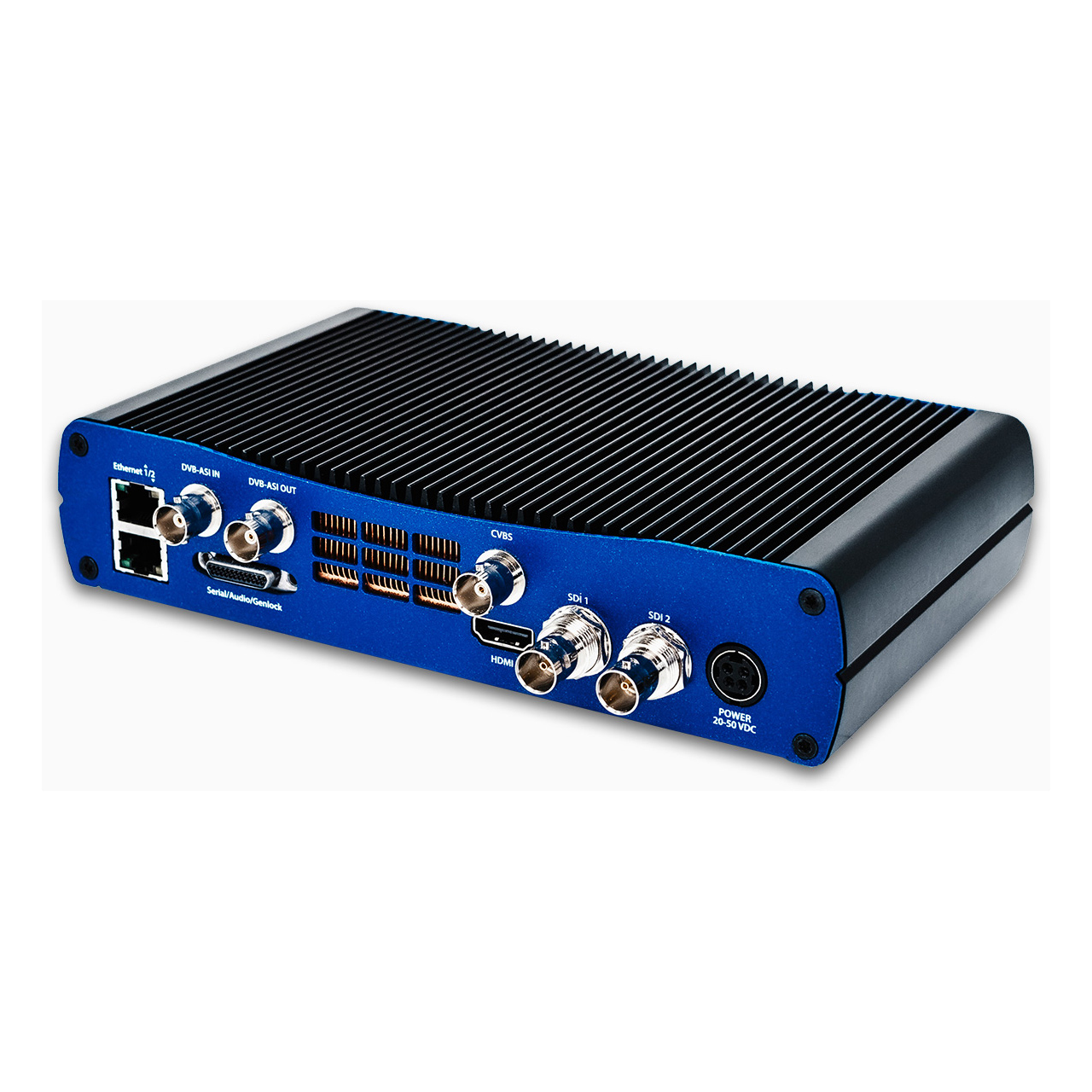

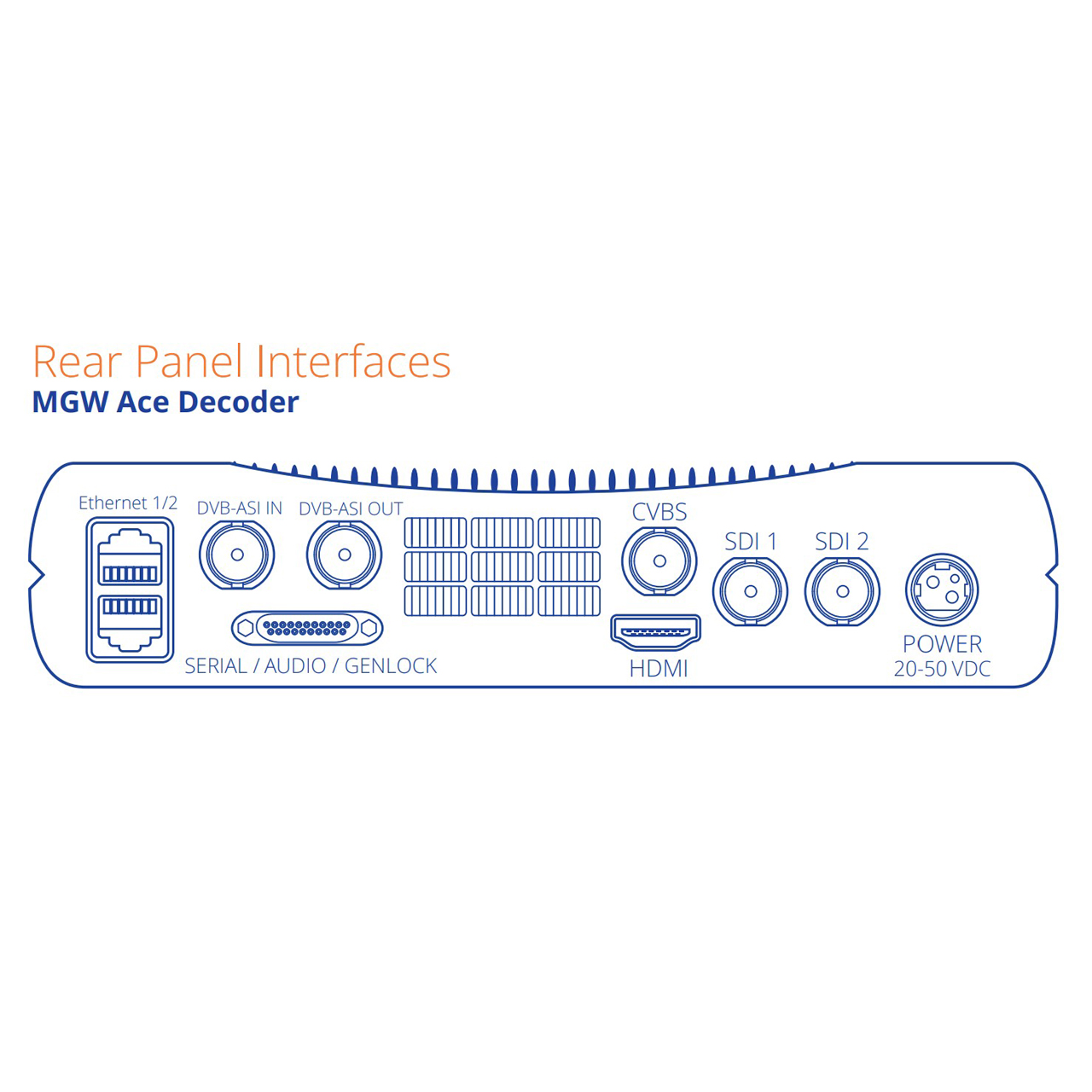

The MGW Ace Decoder provides pristine video quality and versatility with its high-end video scaling, frame sampling and de-interlacing for any stream to any output resolution or frame rate. It offers a wide range of video connectivity with 12G-SDI, HDMI2.0, SD-SDI and composite outputs which can be activated simultaneously.
It delivers audio as embedded in SDI/HDMI as well as separate over analog balanced or unbalanced stereo audio and digital AES outputs. IP feeds can be received from two Ethernet ports to match any network topology (each port is configurable as management and/or streaming ports) or from the DVB-ASI input.

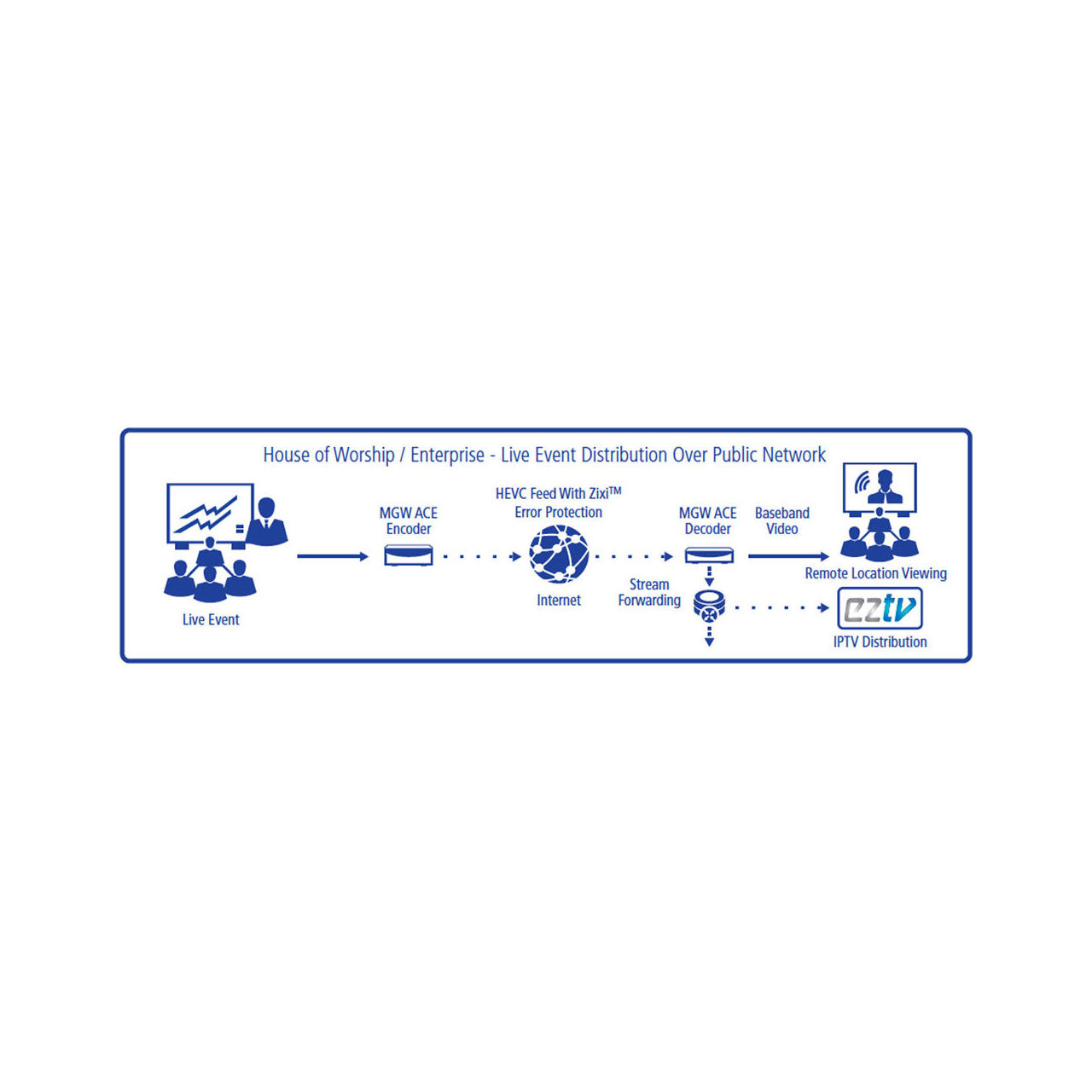

The MGW Ace Decoder is designed to always provide the best possible viewing experience. Shipping with ZixiT, SRT, RIST and SMPTE 2022 Pro- MPEG streaming protection technology included, the appliance protects video, audio and metadata on networks with up to 30% packet loss or data corruption. When paired with the MGW Ace Encoder for point-to-point applications, the solution provides bandwidth efficient, artifact-free video streaming over any network, including the Internet.
With its stream forwarding feature, the MGW Ace Decoder is able to decode the HEVC or H.264 stream over its baseband video outputs while delivering the stream for IPTV distribution within a private LAN / WAN network. Additionally, the Ace Decoder provides industry-standard SMPTE 2022 ProMPEG error correction technology for compatibility with other encoders. It offers flexible connectivity options with H.264 and MPEG-2 backward compatibility.
